Engine Control Module




Component Connector End Views

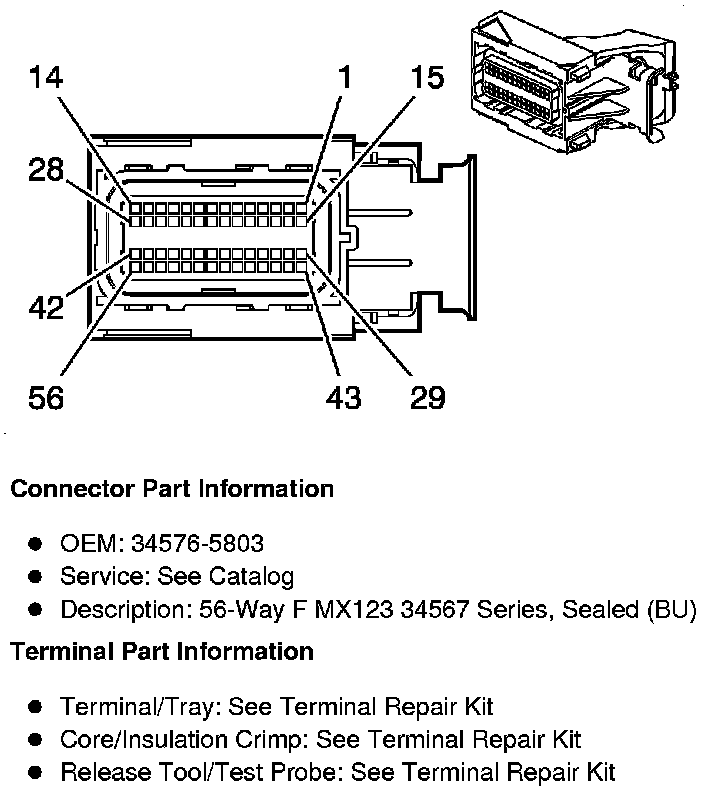

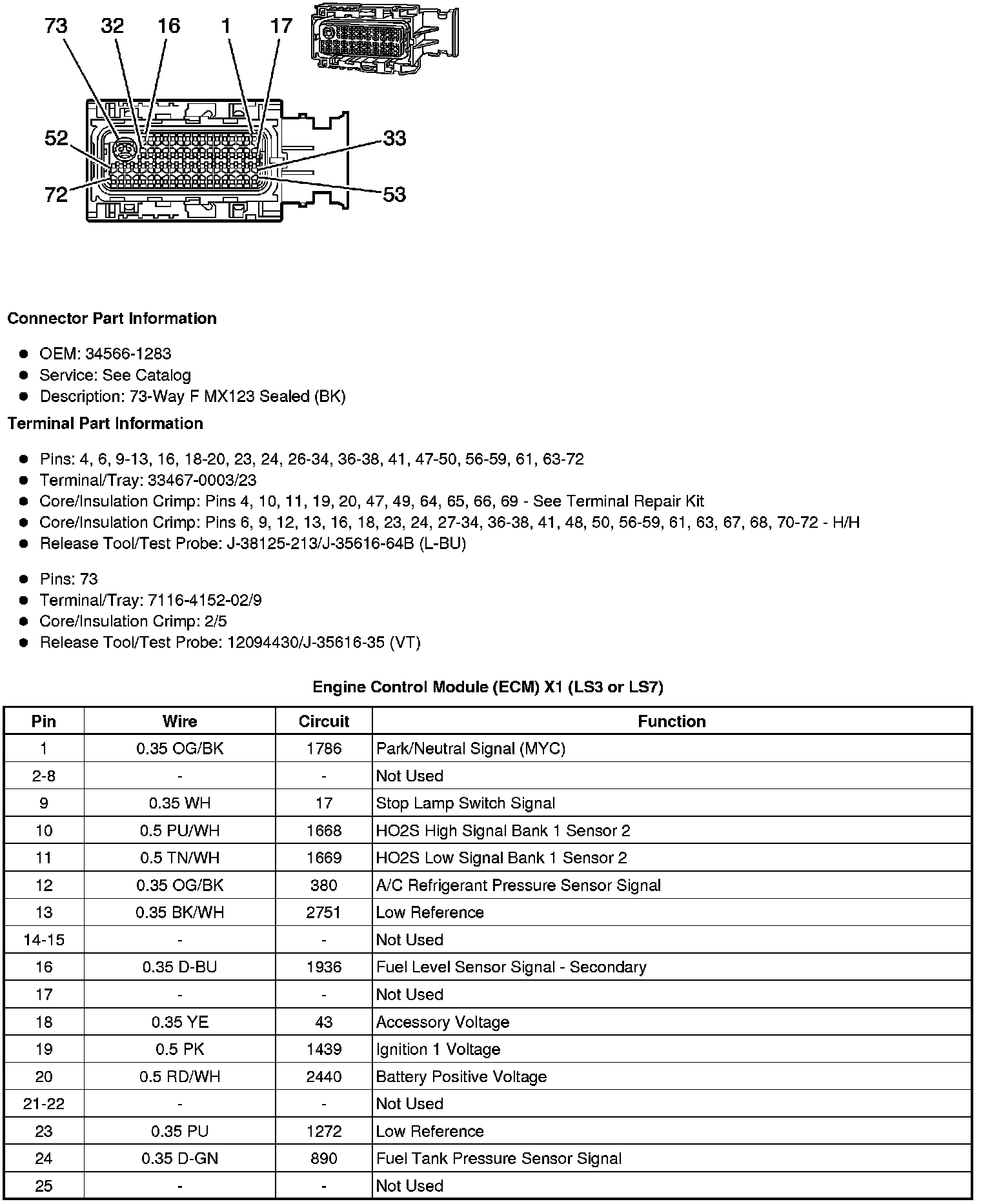

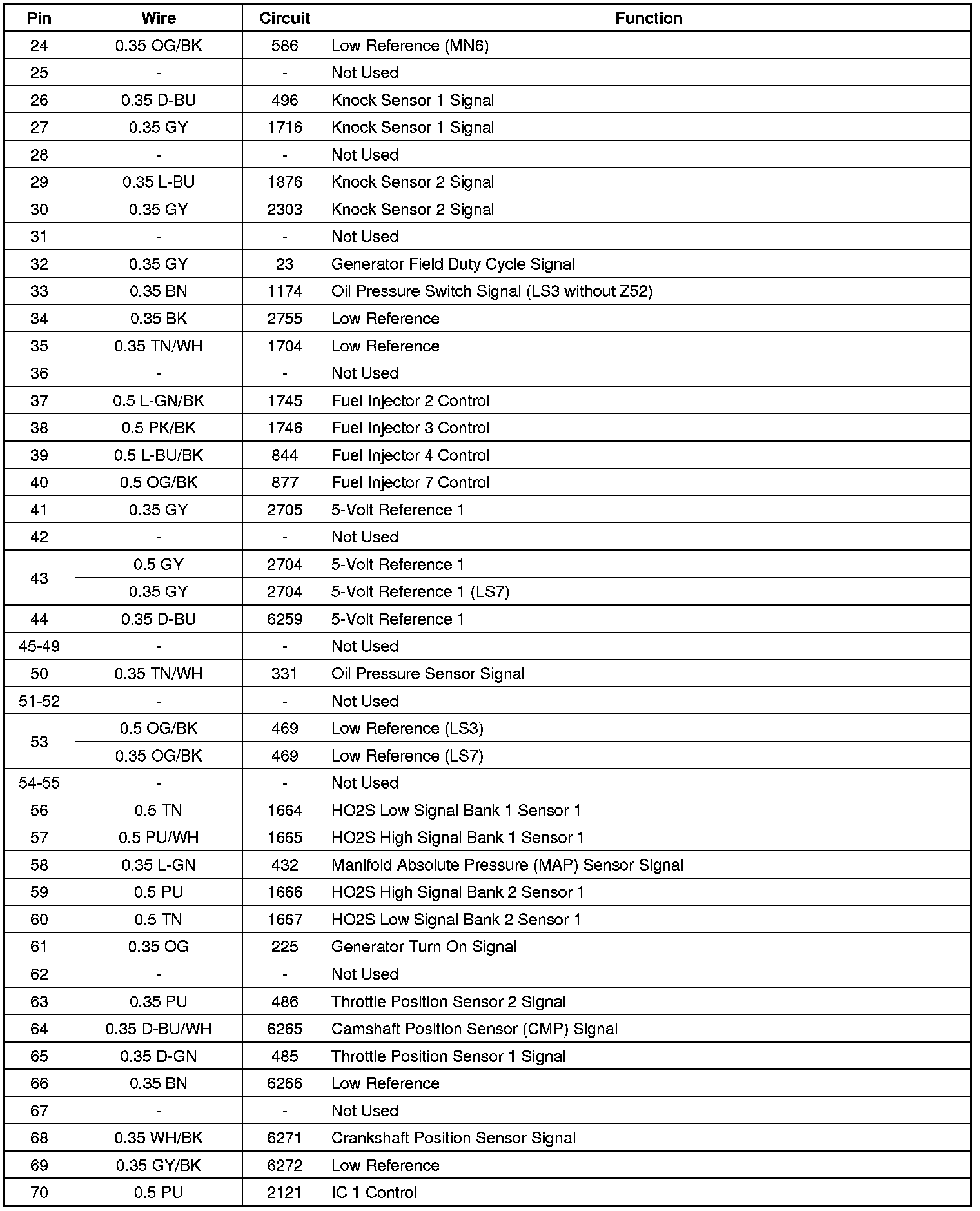

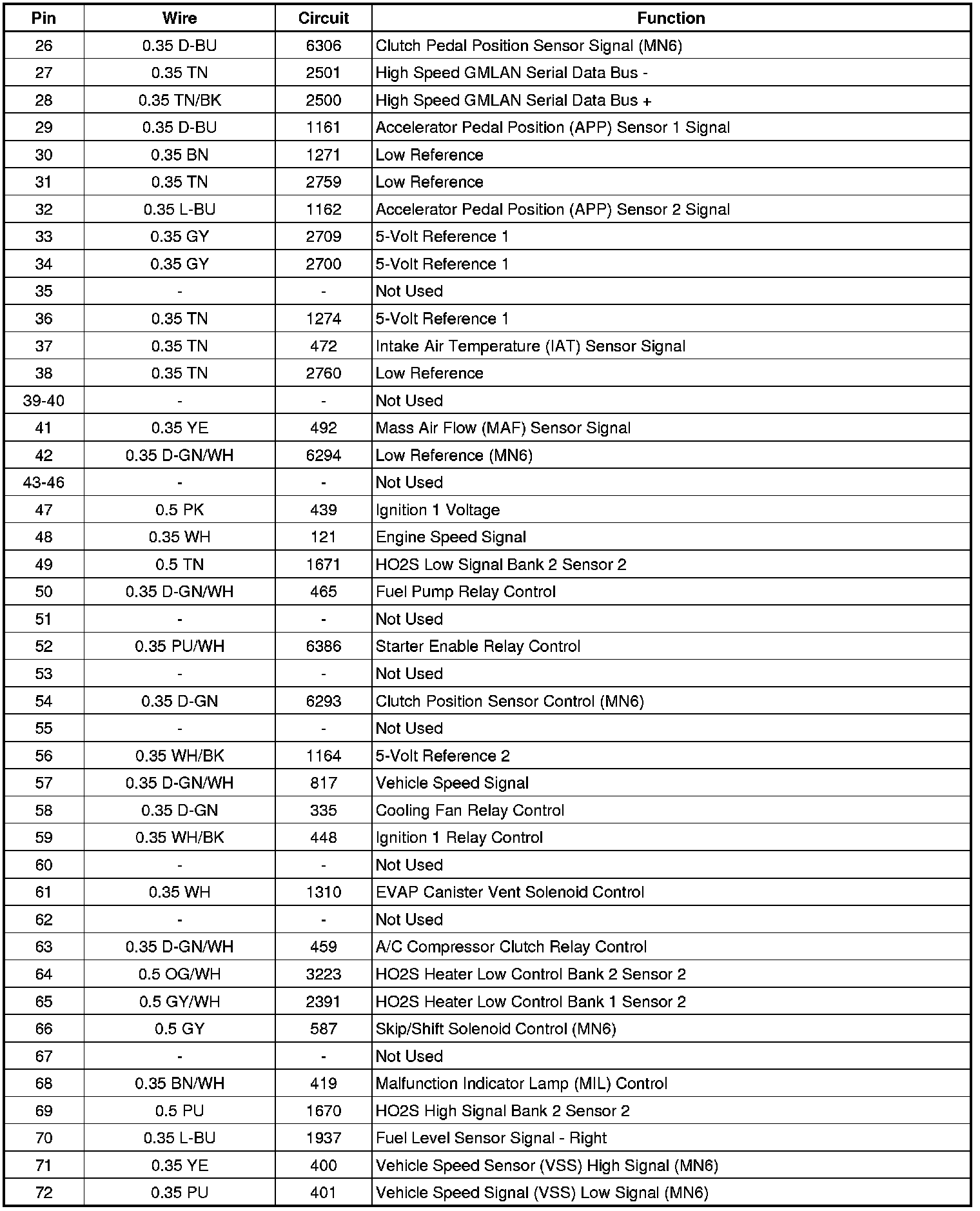

Engine Control Module (ECM) X1 (LS3 or LS7)

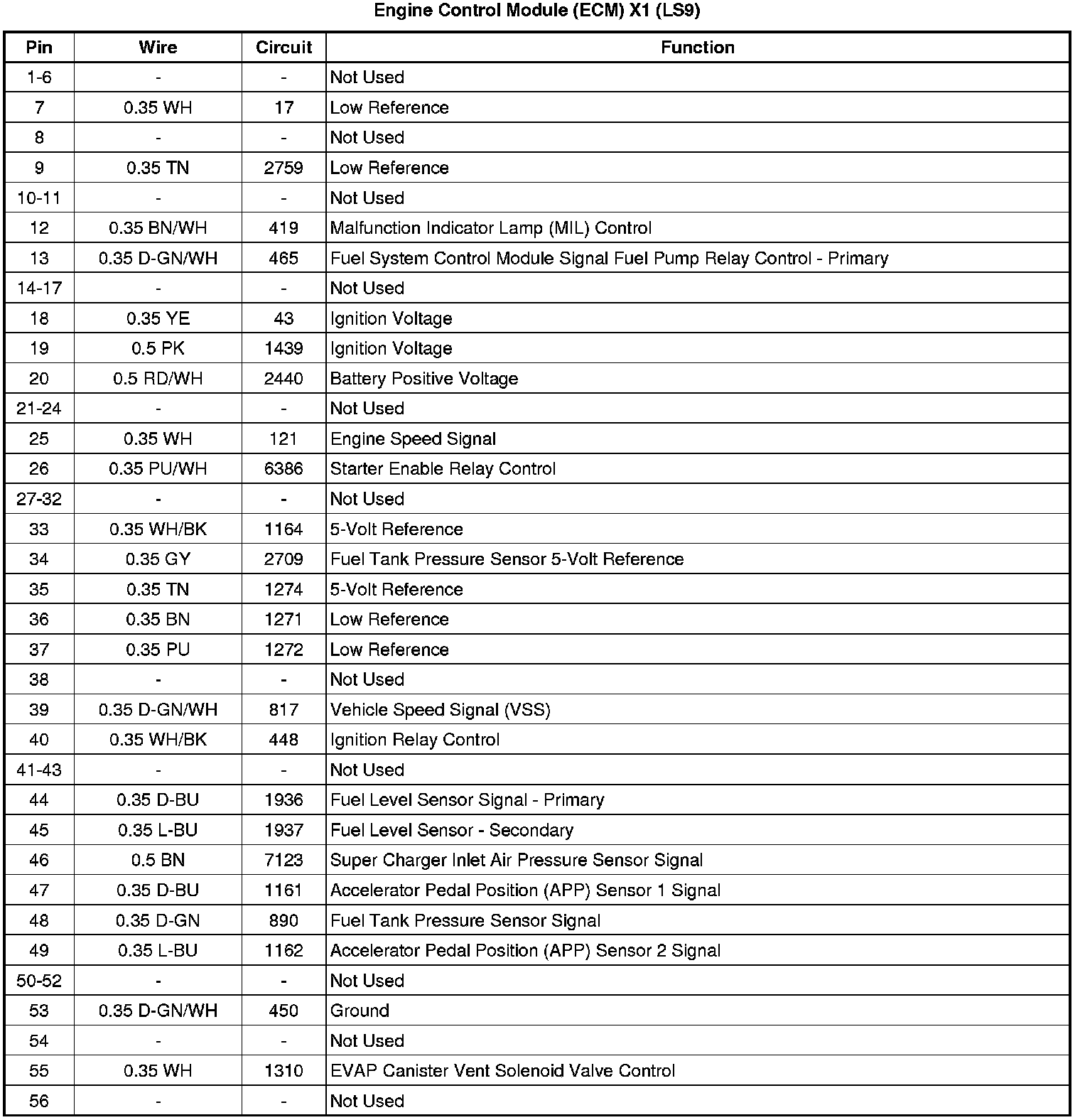

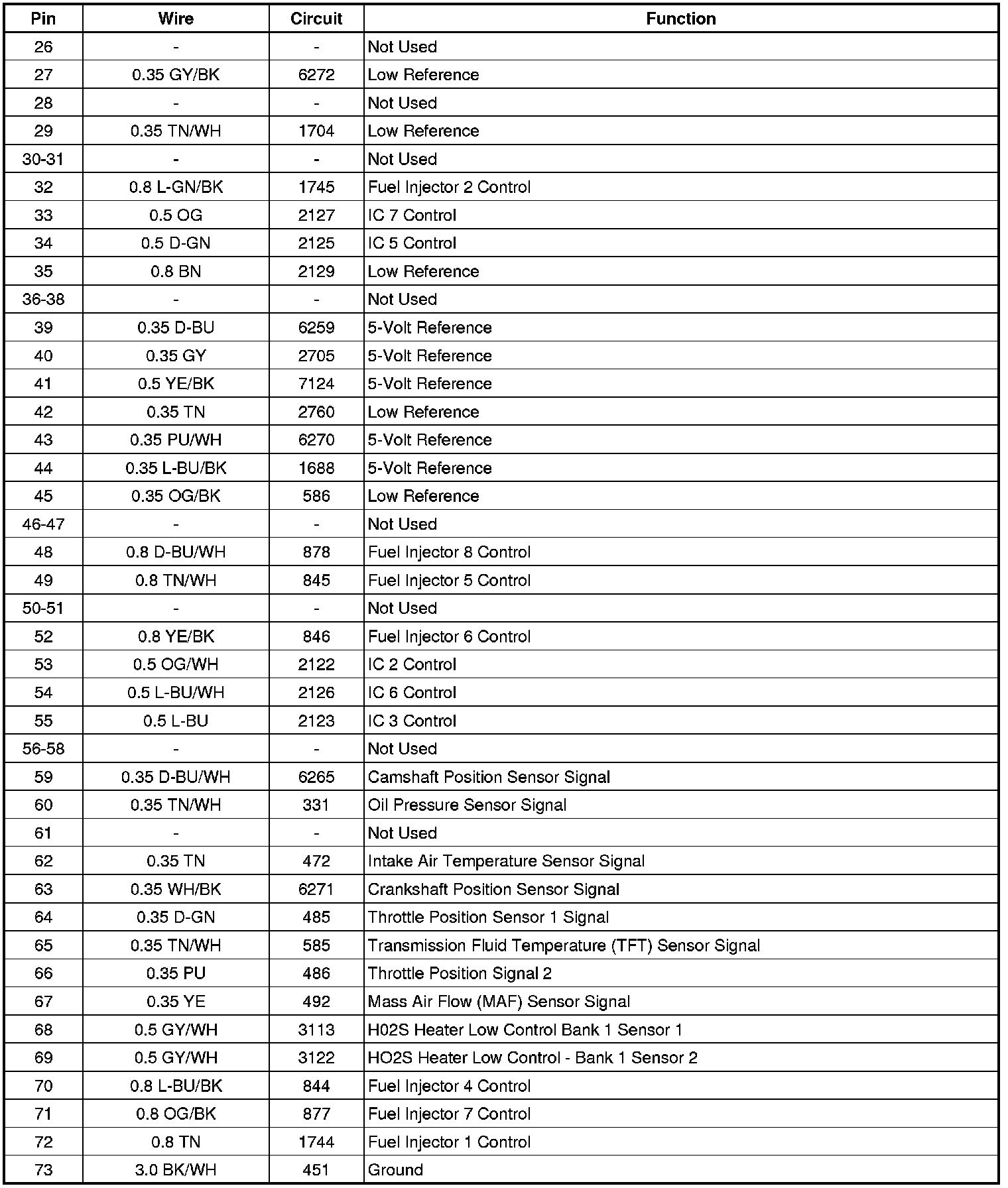

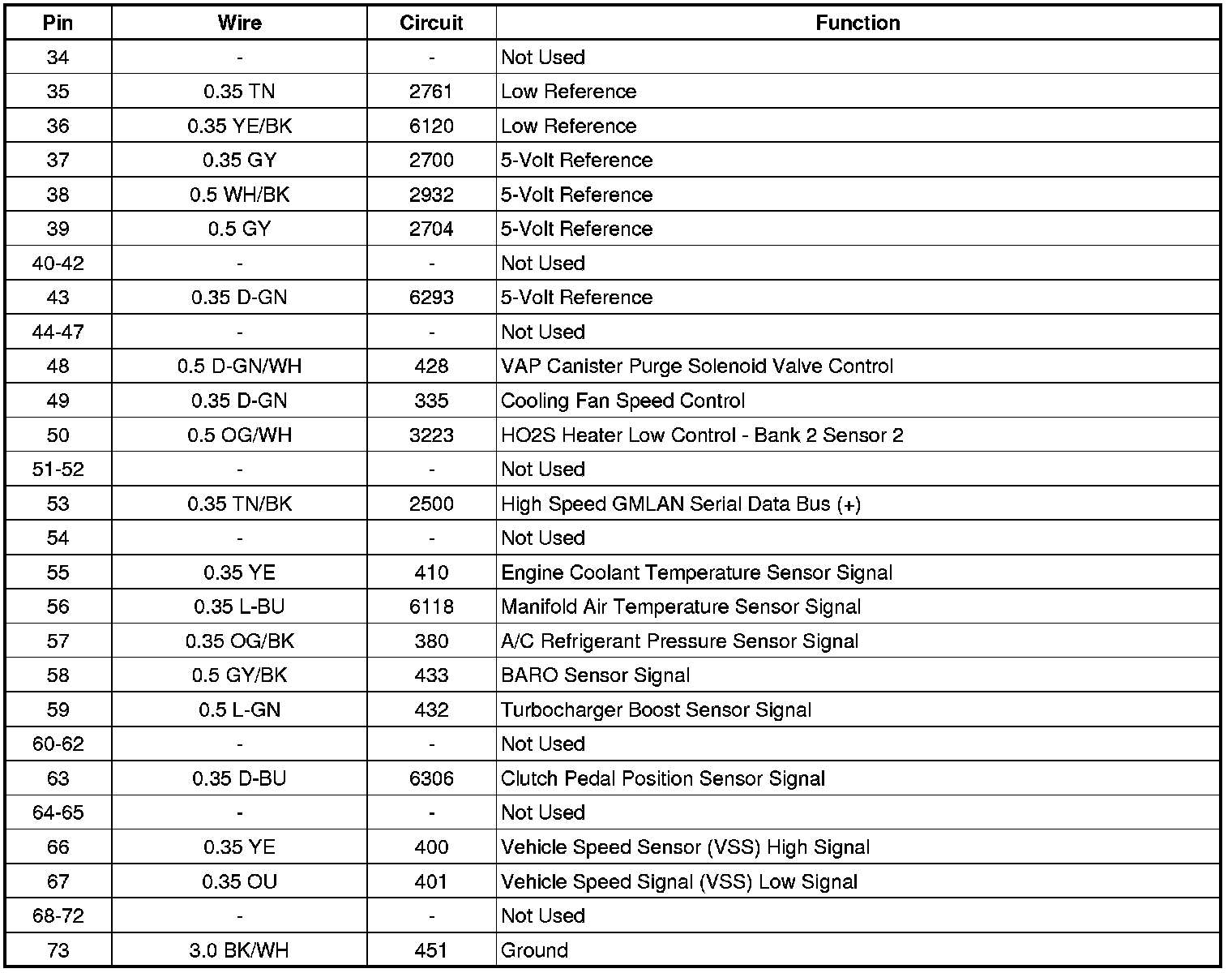

Engine Control Module (ECM) X1 (LS9)

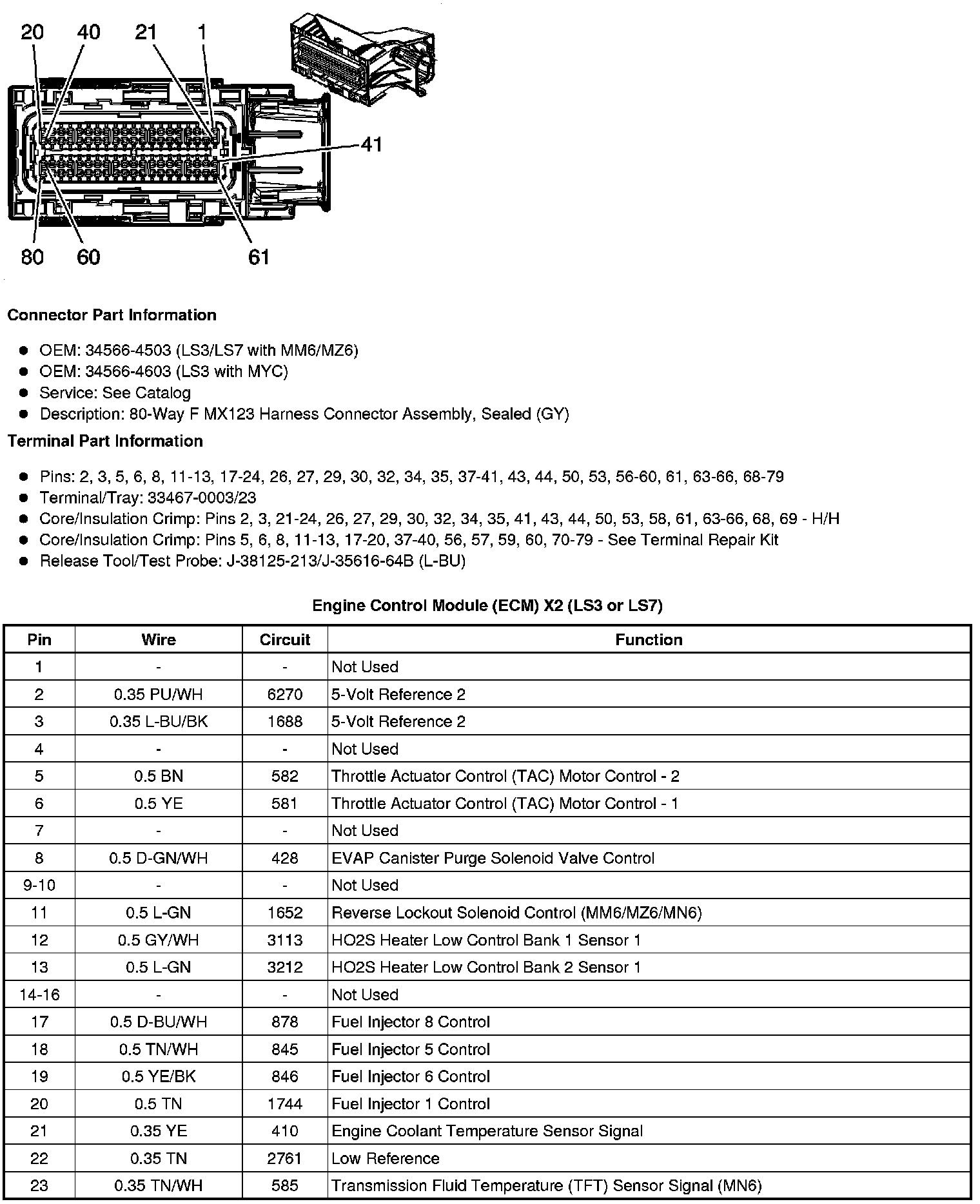

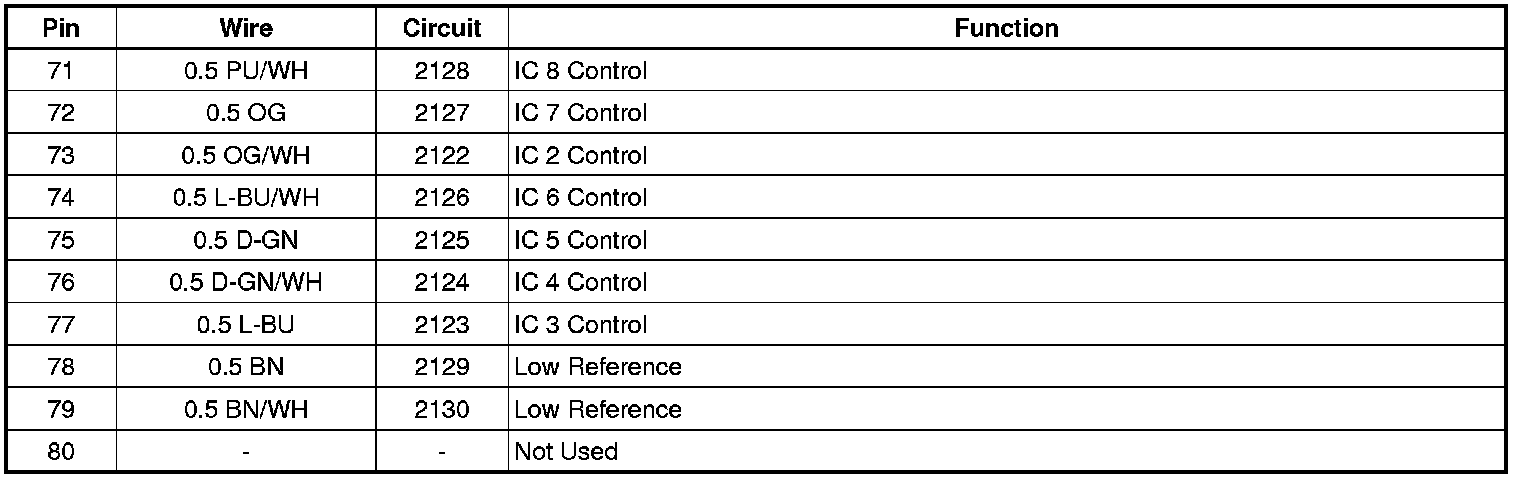

Engine Control Module (ECM) X2 (LS3 or LS7)

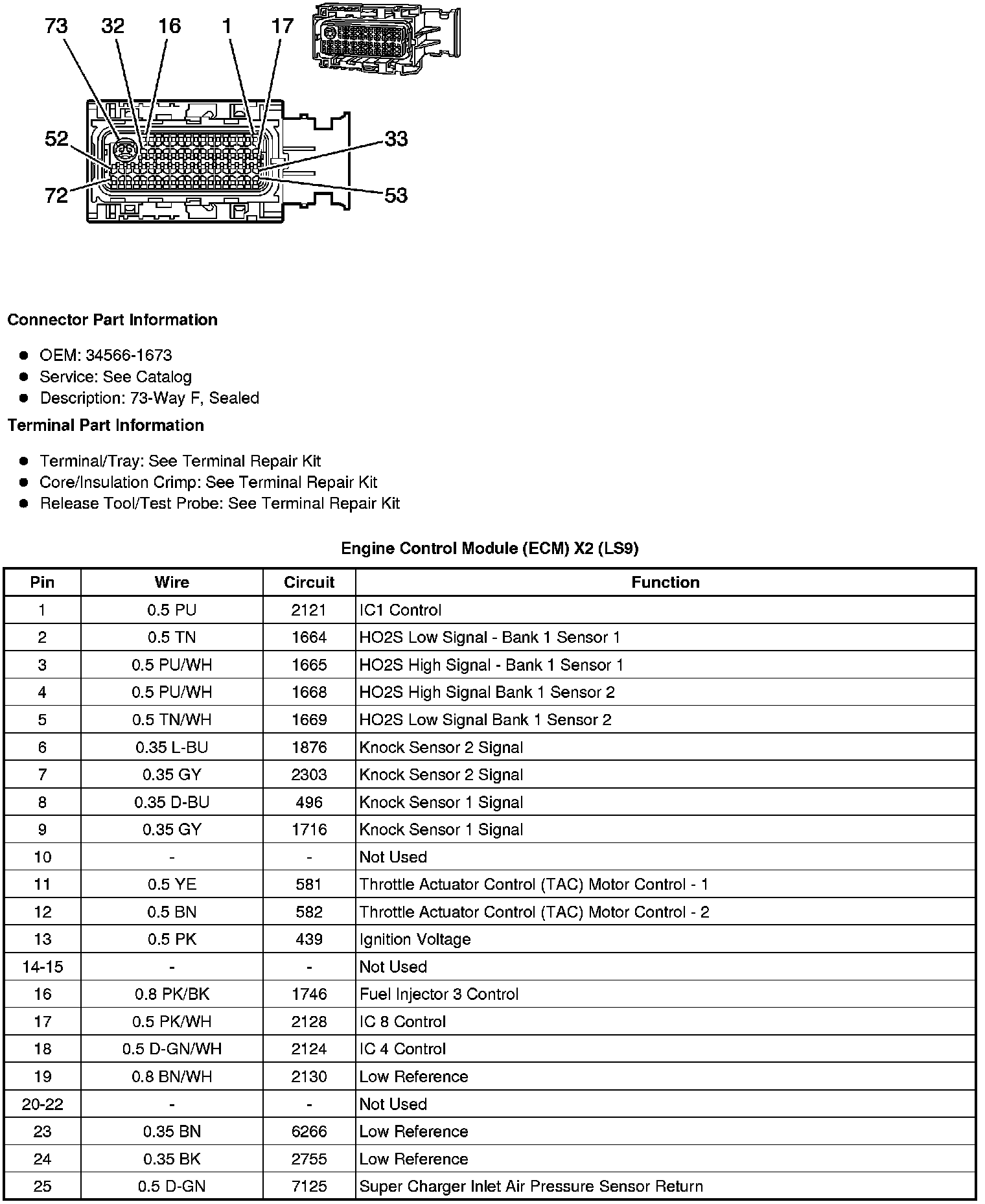

Engine Control Module (ECM) X2 (LS9)

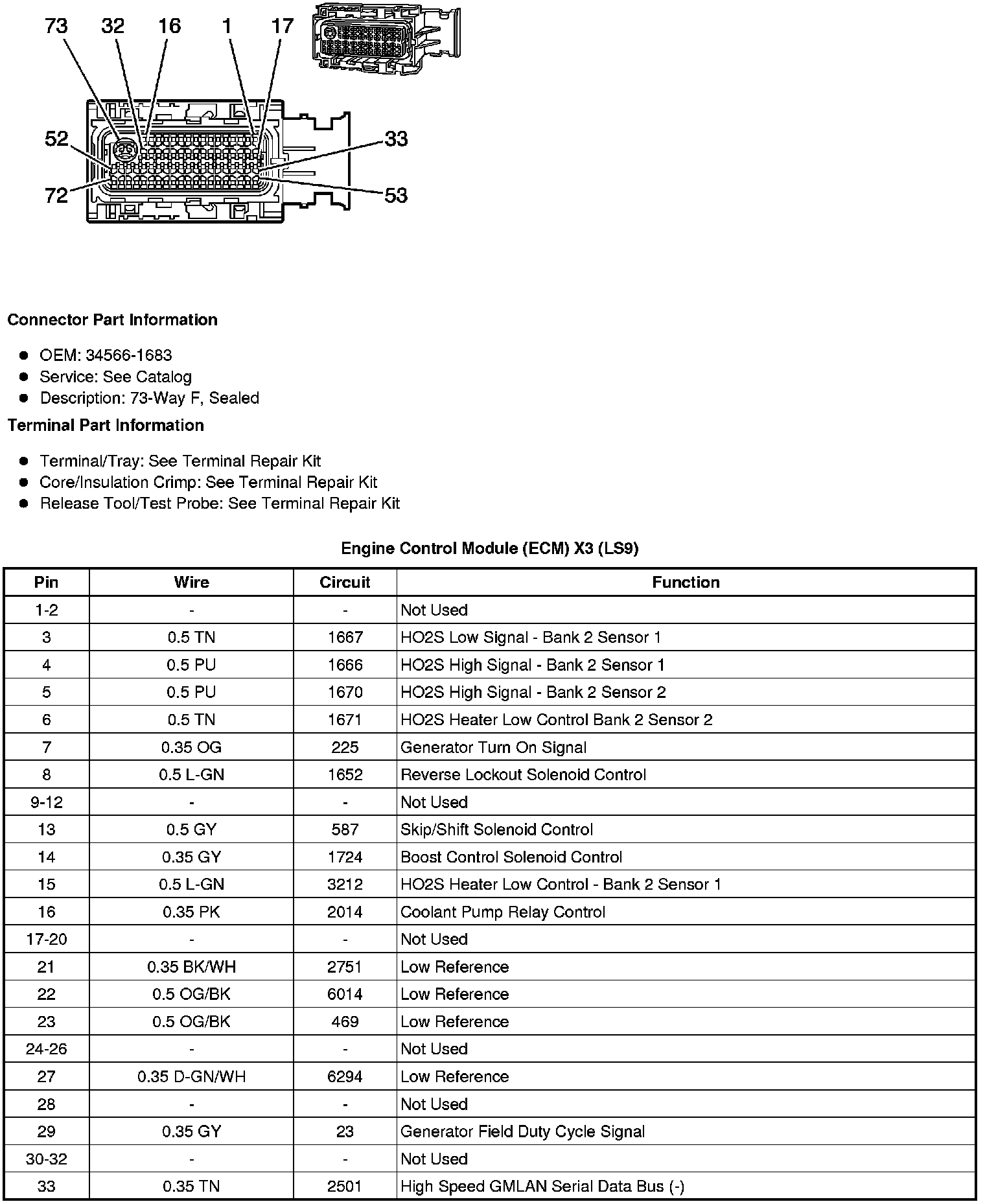

Engine Control Module (ECM) X3 (LS9)
