Barometric Pressure Sensor: Diagrams

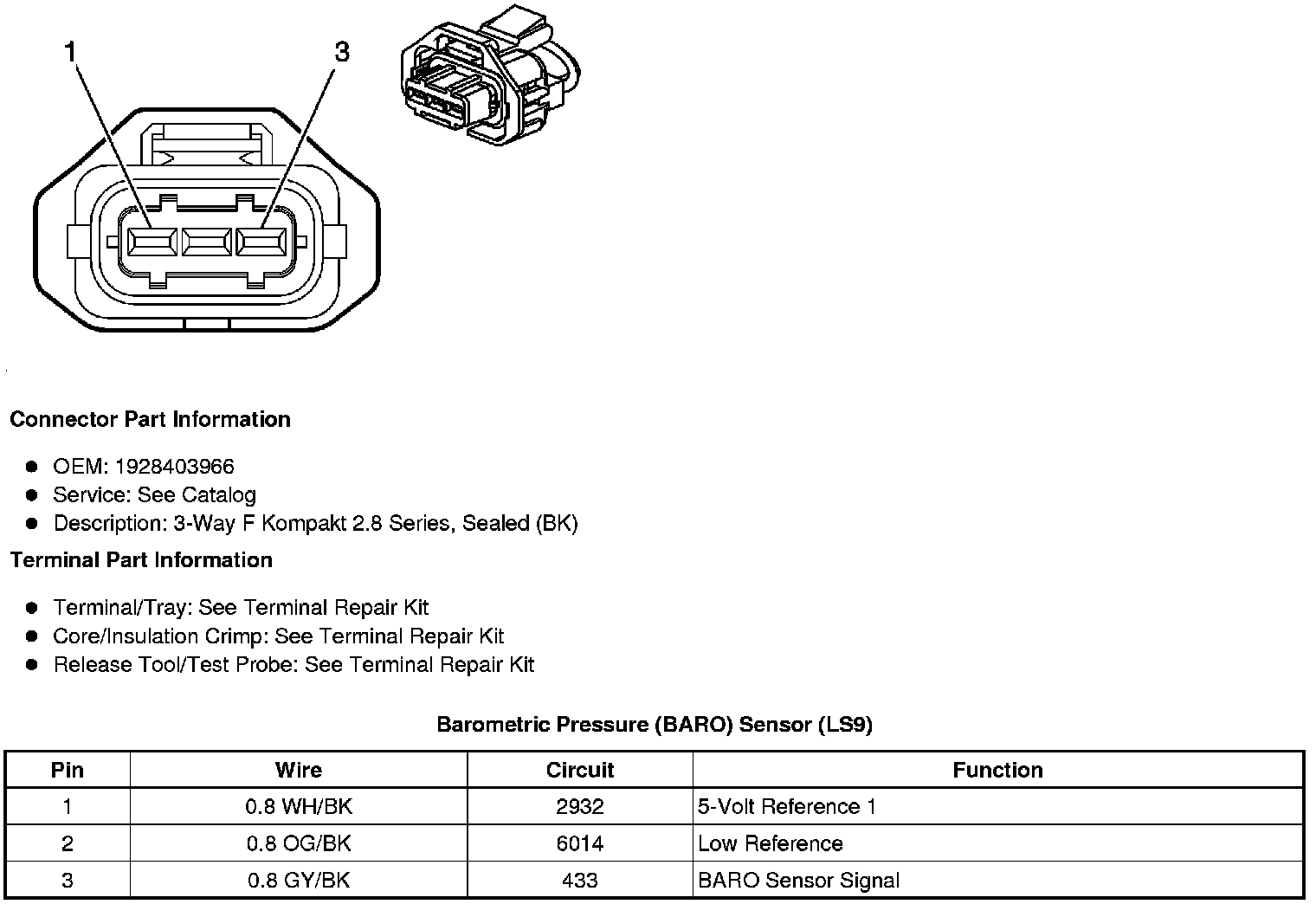

Component Connector End Views

Barometric Pressure (BARO) Sensor (LS9)
