Home >> Chevrolet >> 2011 >> Corvette V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor




Component Connector End Views

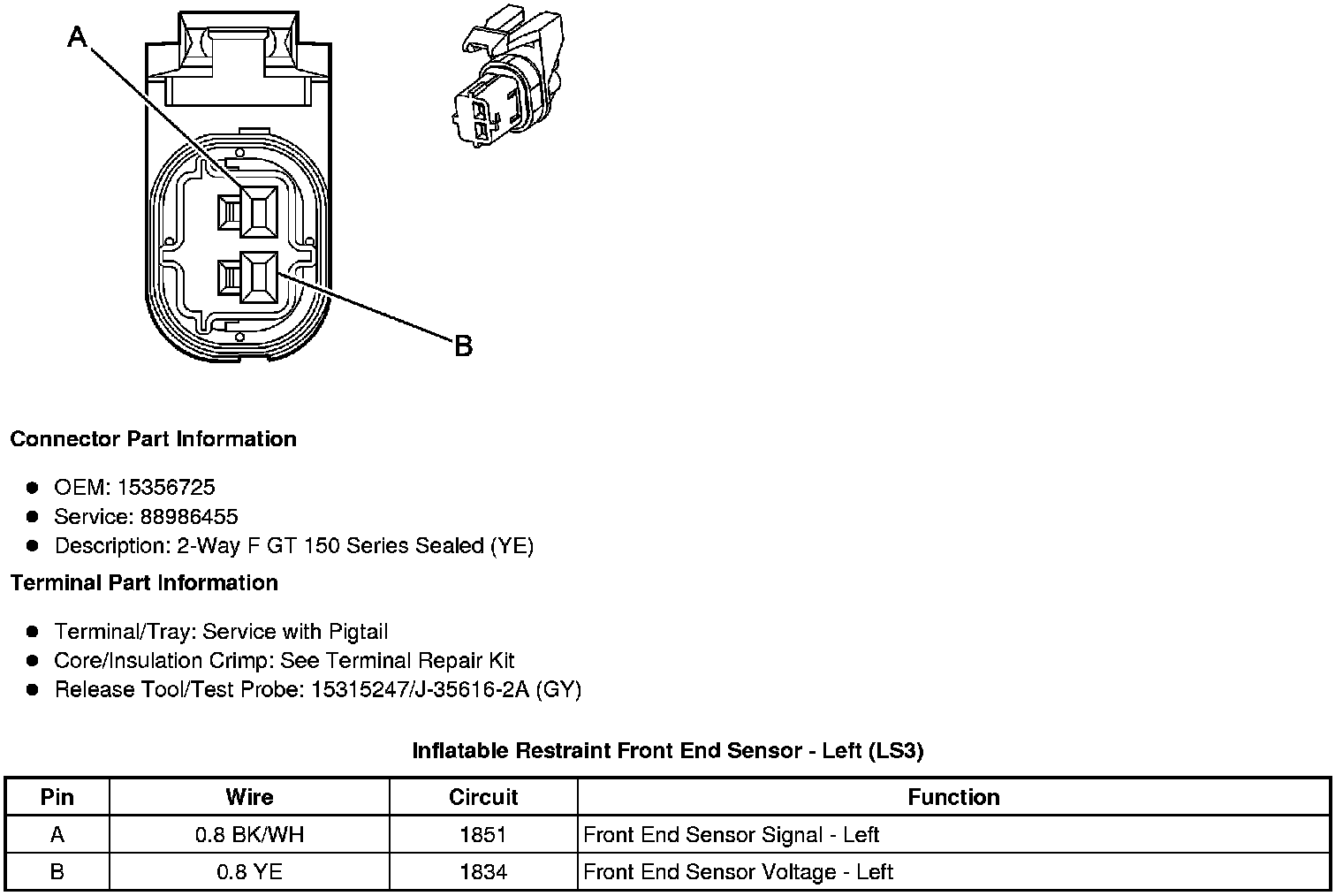

Inflatable Restraint Front End Sensor - Left (LS3)

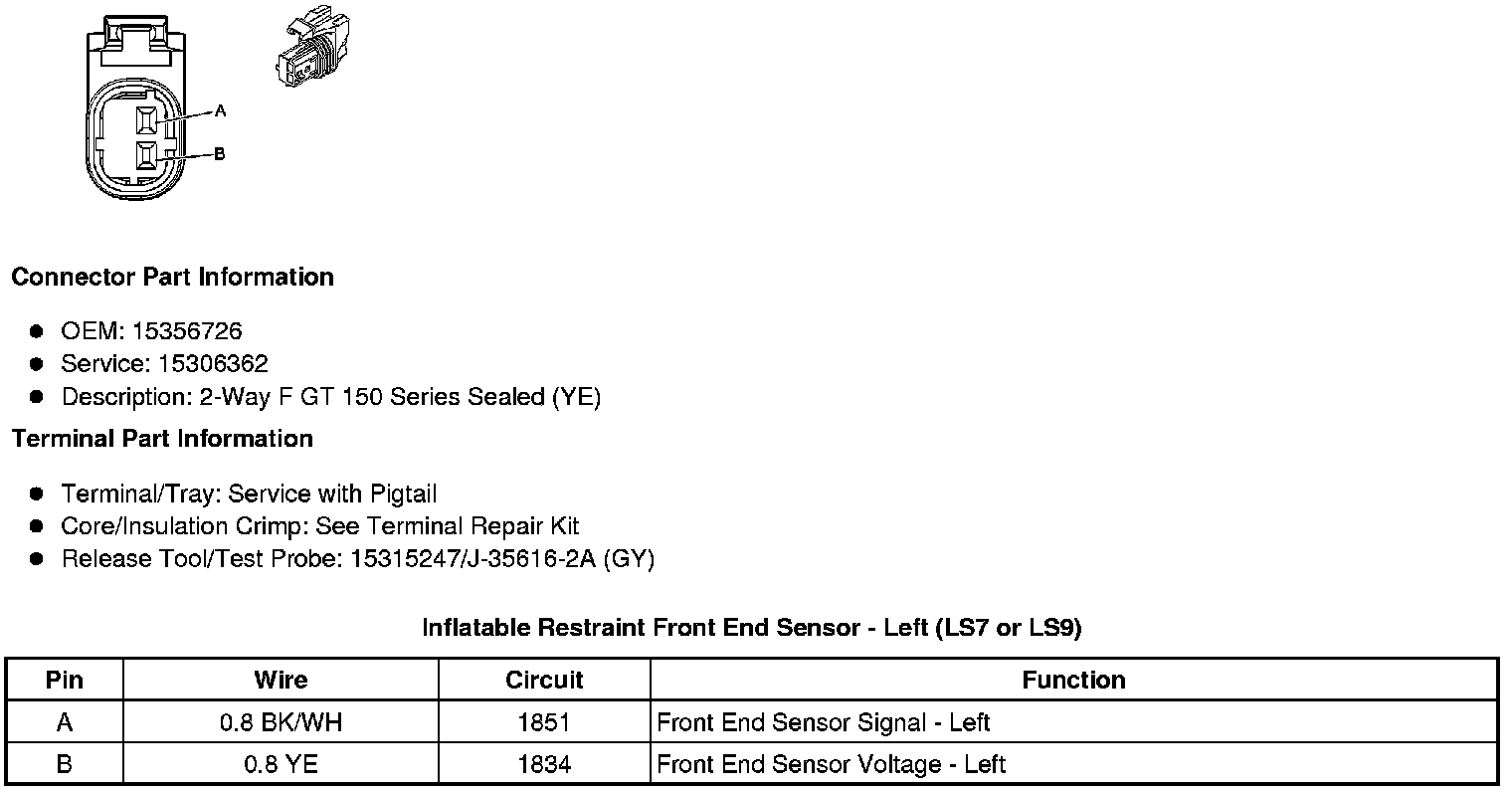

Inflatable Restraint Front End Sensor - Left (LS7 or LS9)

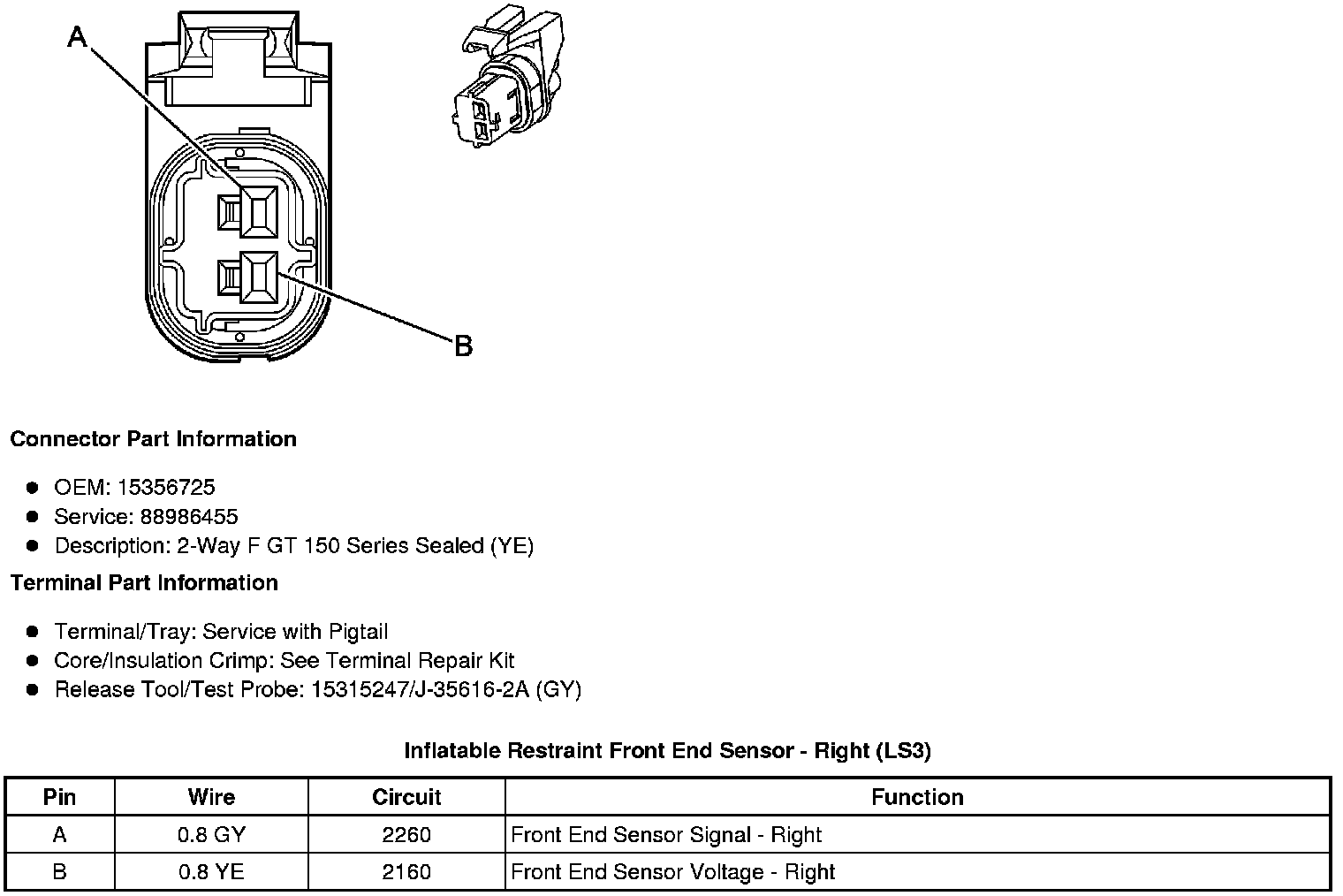

Inflatable Restraint Front End Sensor - Right (LS3)

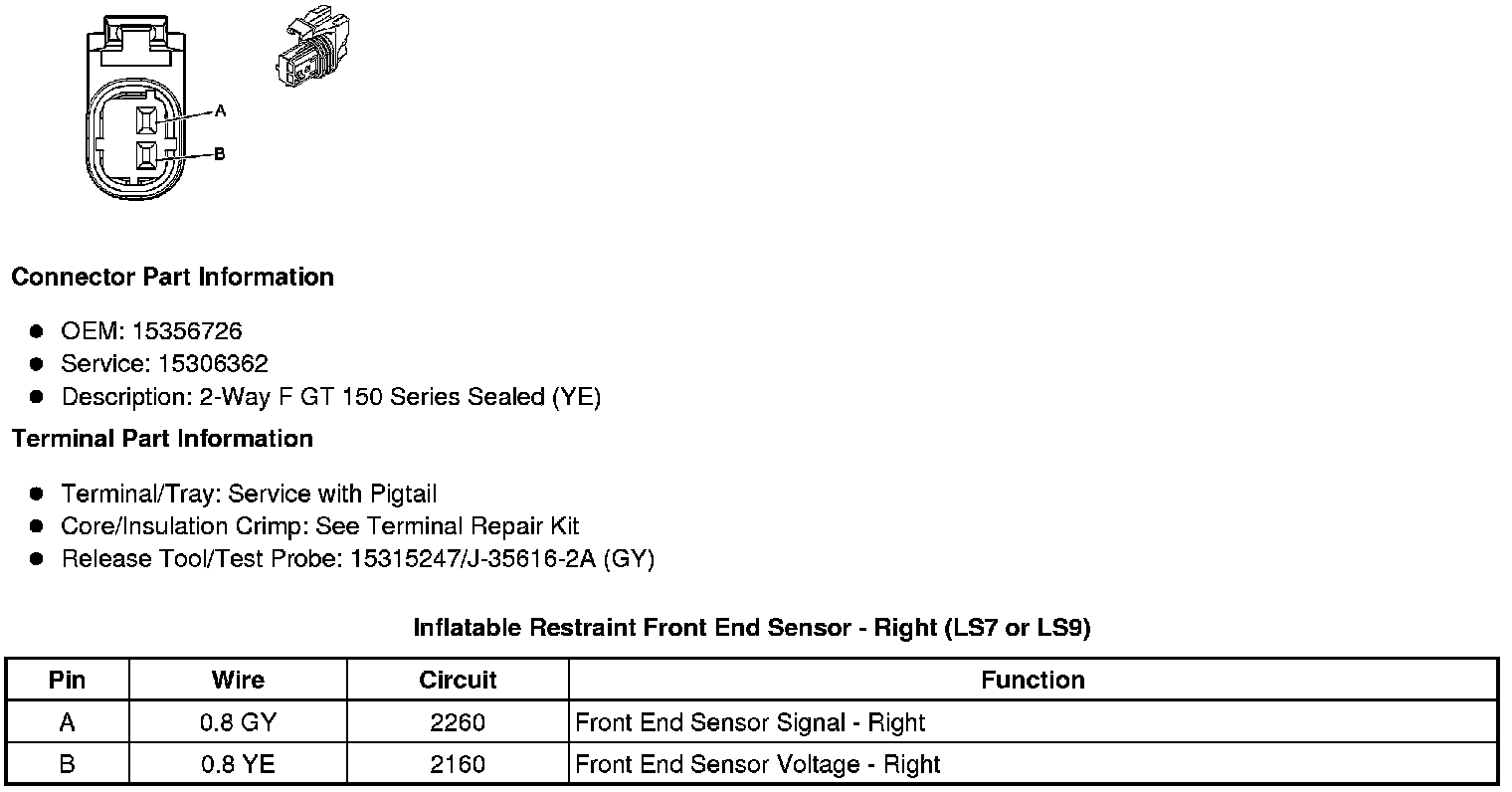

Inflatable Restraint Front End Sensor - Right (LS7 or LS9)

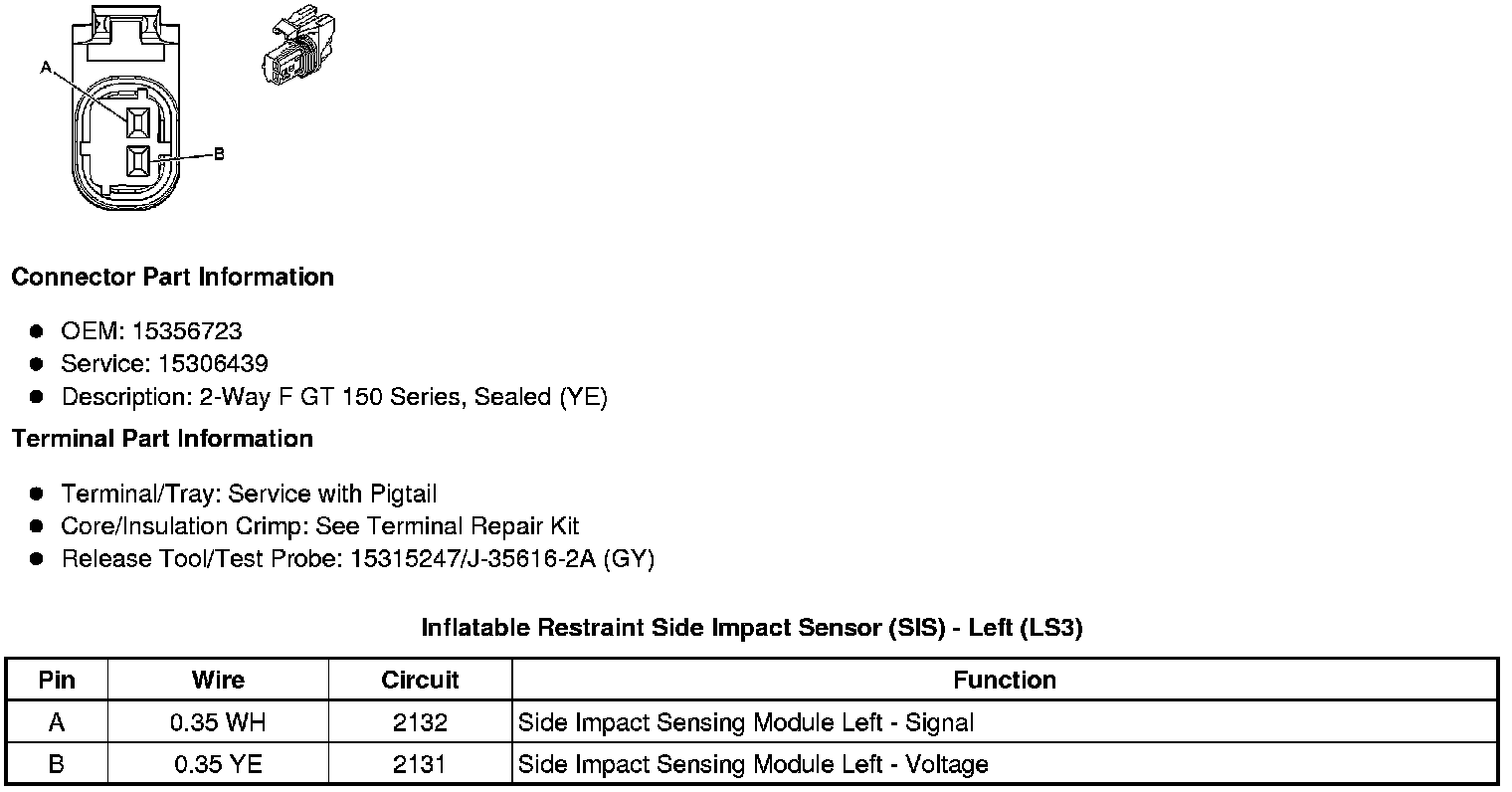

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS3)

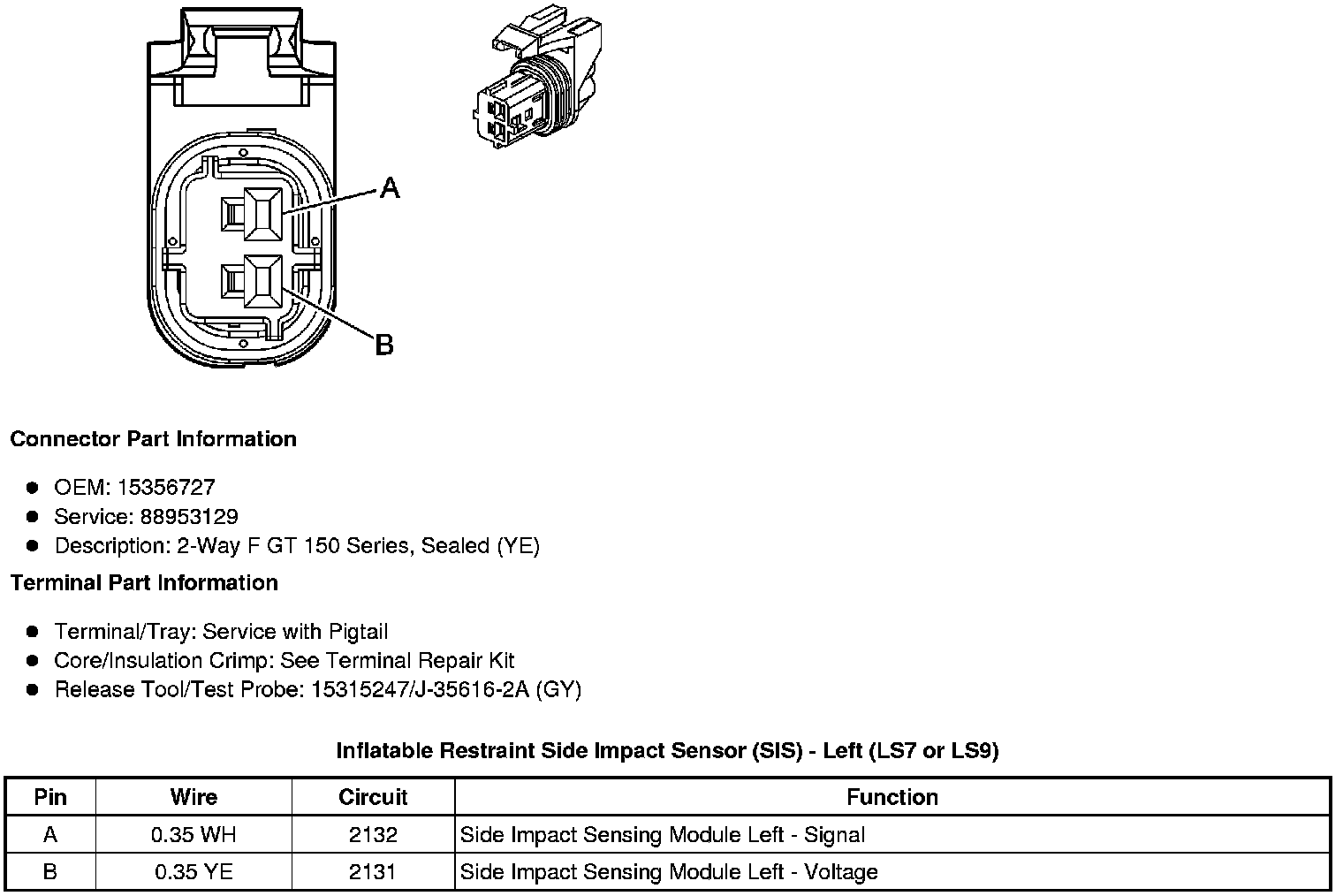

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS7 or LS9)

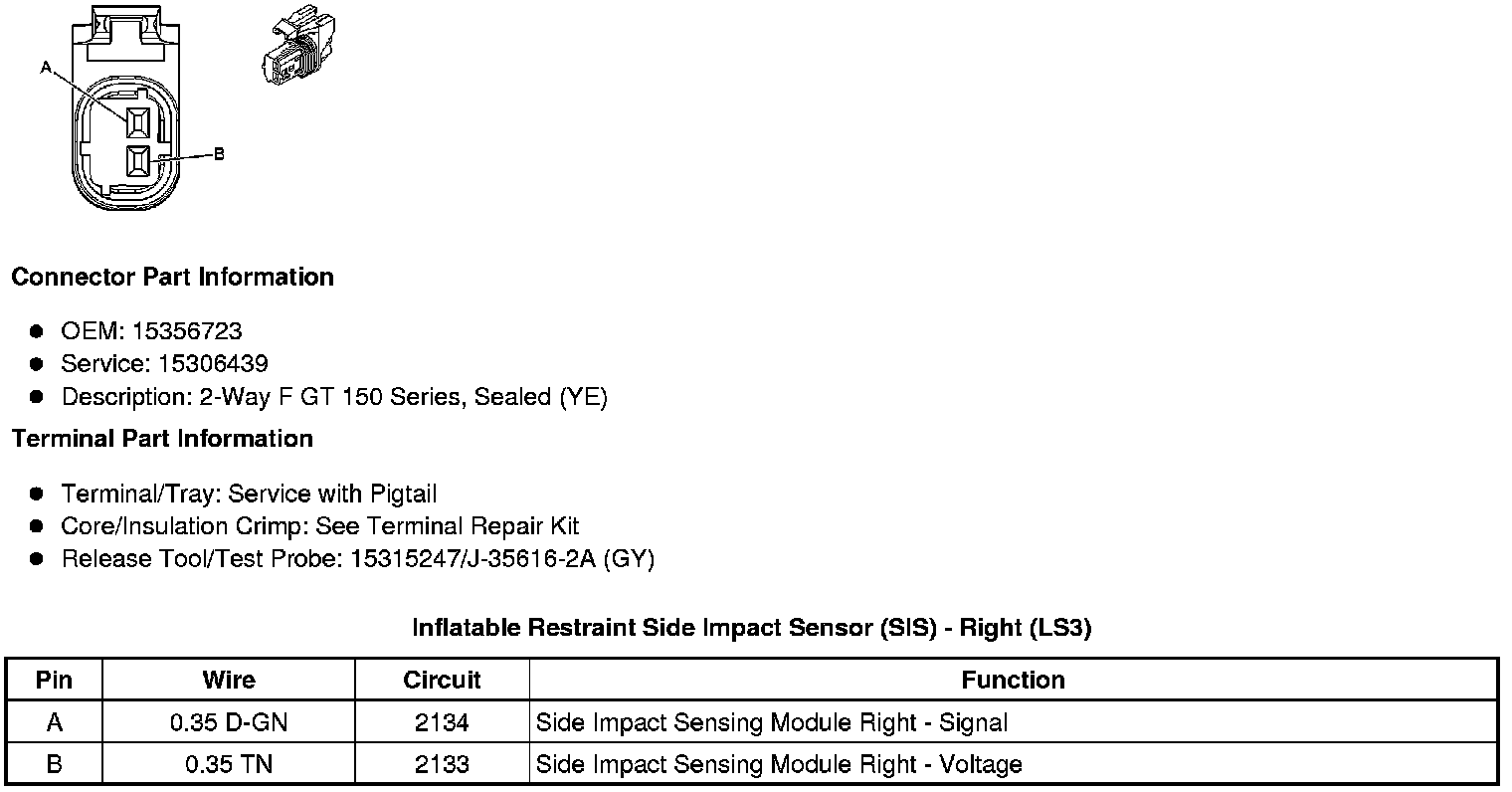

Inflatable Restraint Side Impact Sensor (SIS) - Right (LS3)

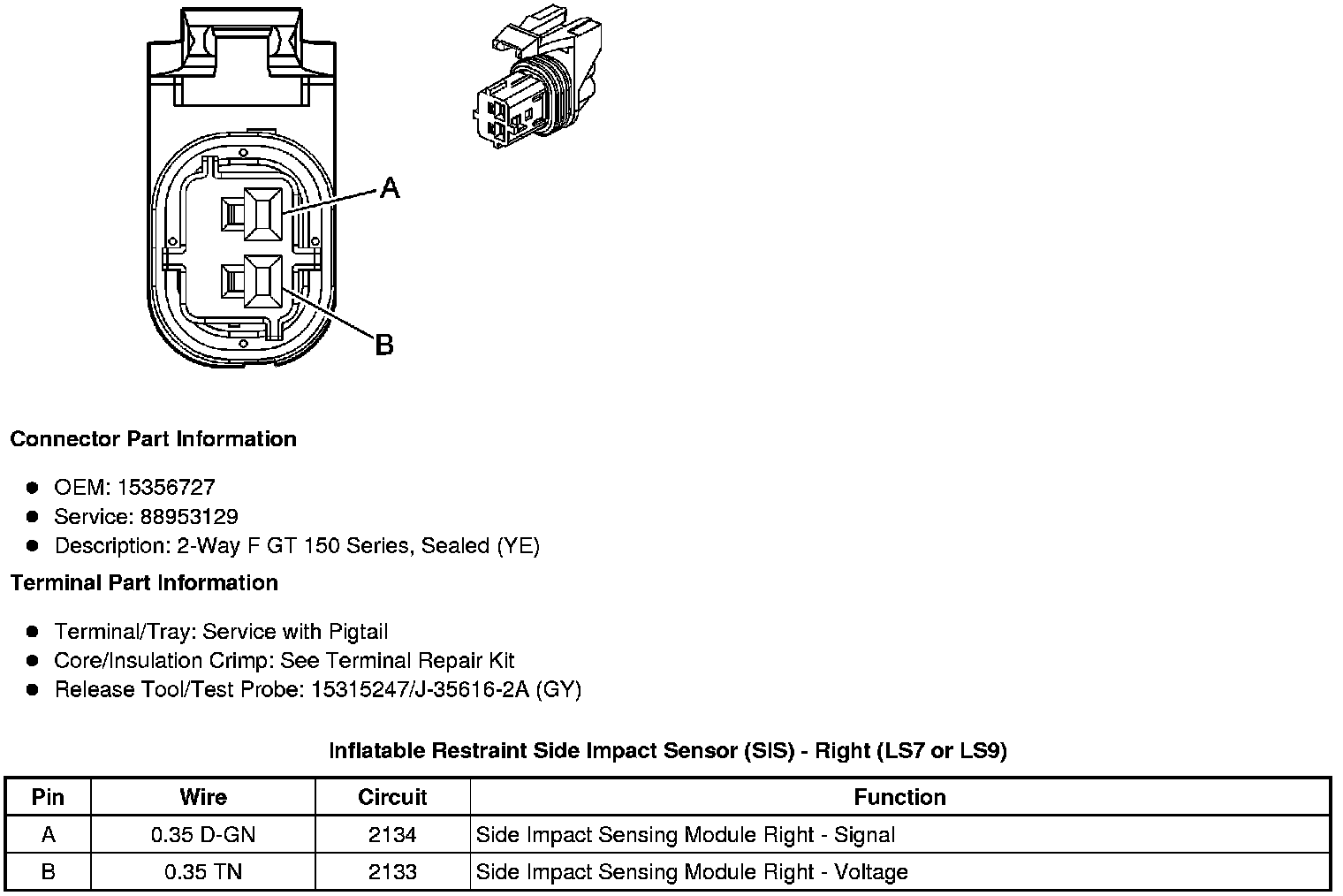

Inflatable Restraint Side Impact Sensor (SIS) - Right (LS7 or LS9)
