Transmission Position Sensor/Switch: Diagrams

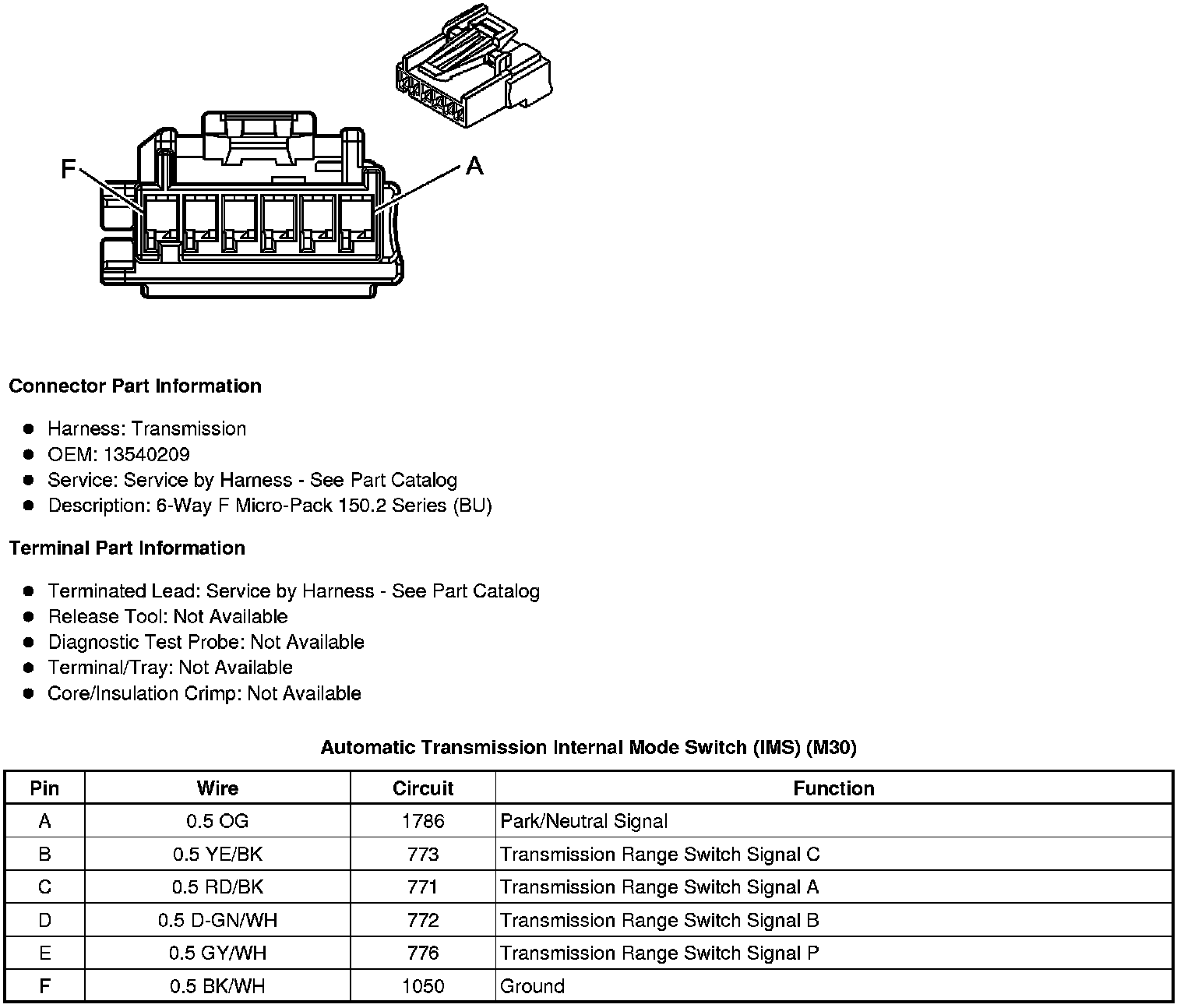

Component Connector End Views
Automatic Transmission Internal Mode Switch (IMS) (M30)
