Outside Temperature Display Sensor
Outside Temperature Display Sensor

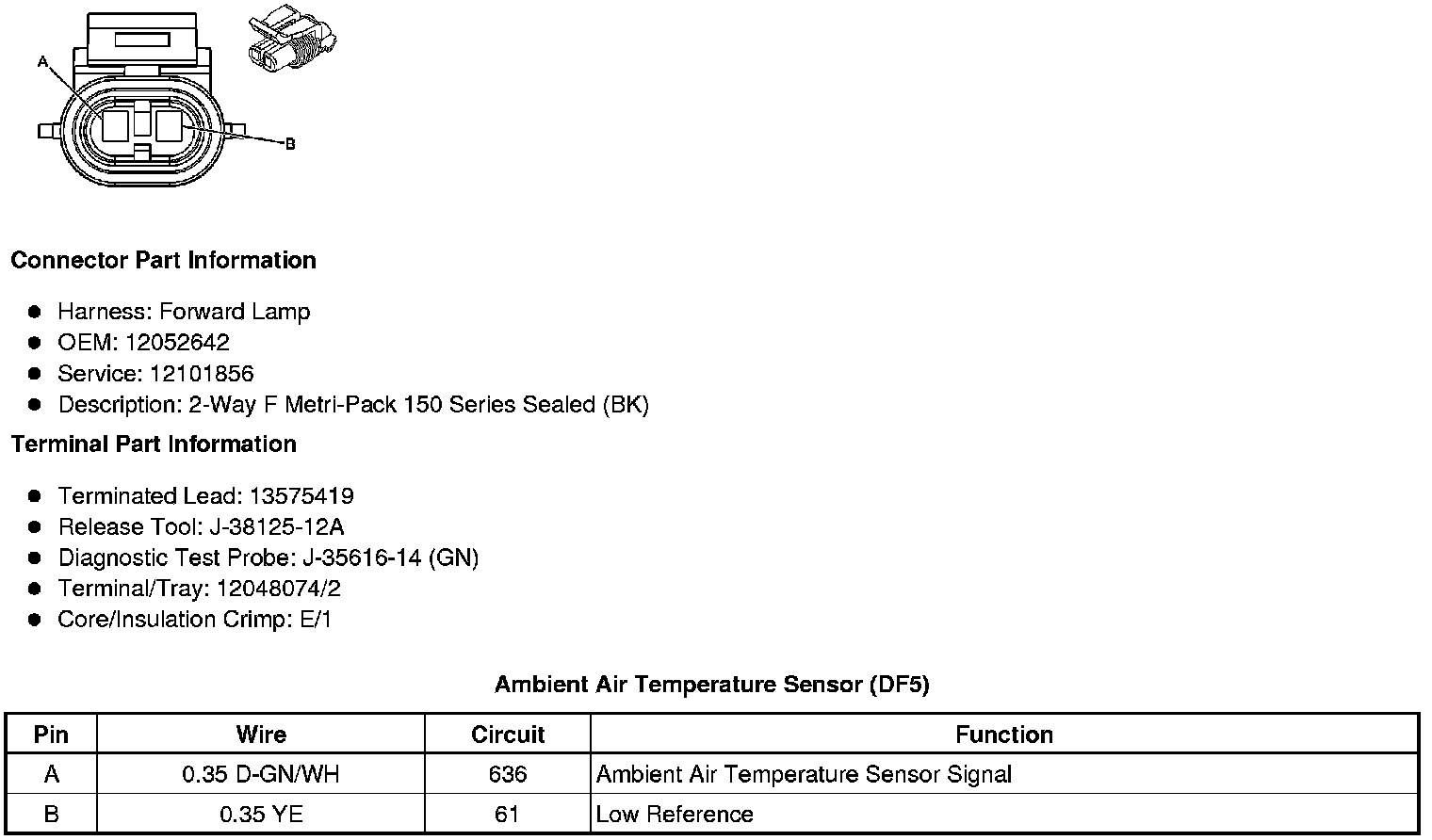

Component Connector End Views
Ambient Air Temperature Sensor (DF5)
