Charging System Control Module
Charging System Control Module
Component Connector End Views
Generator

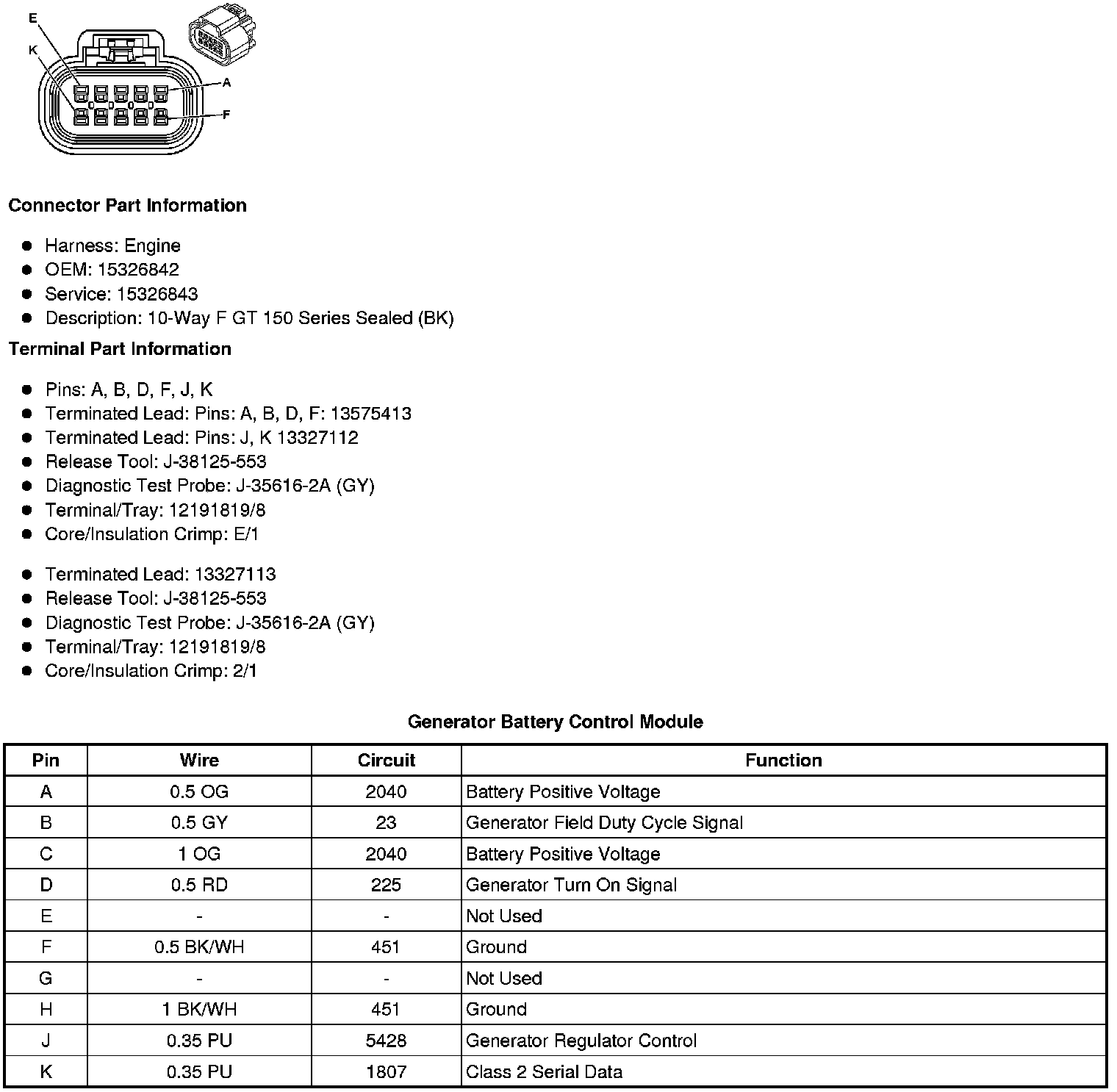

Battery Control Module
