Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

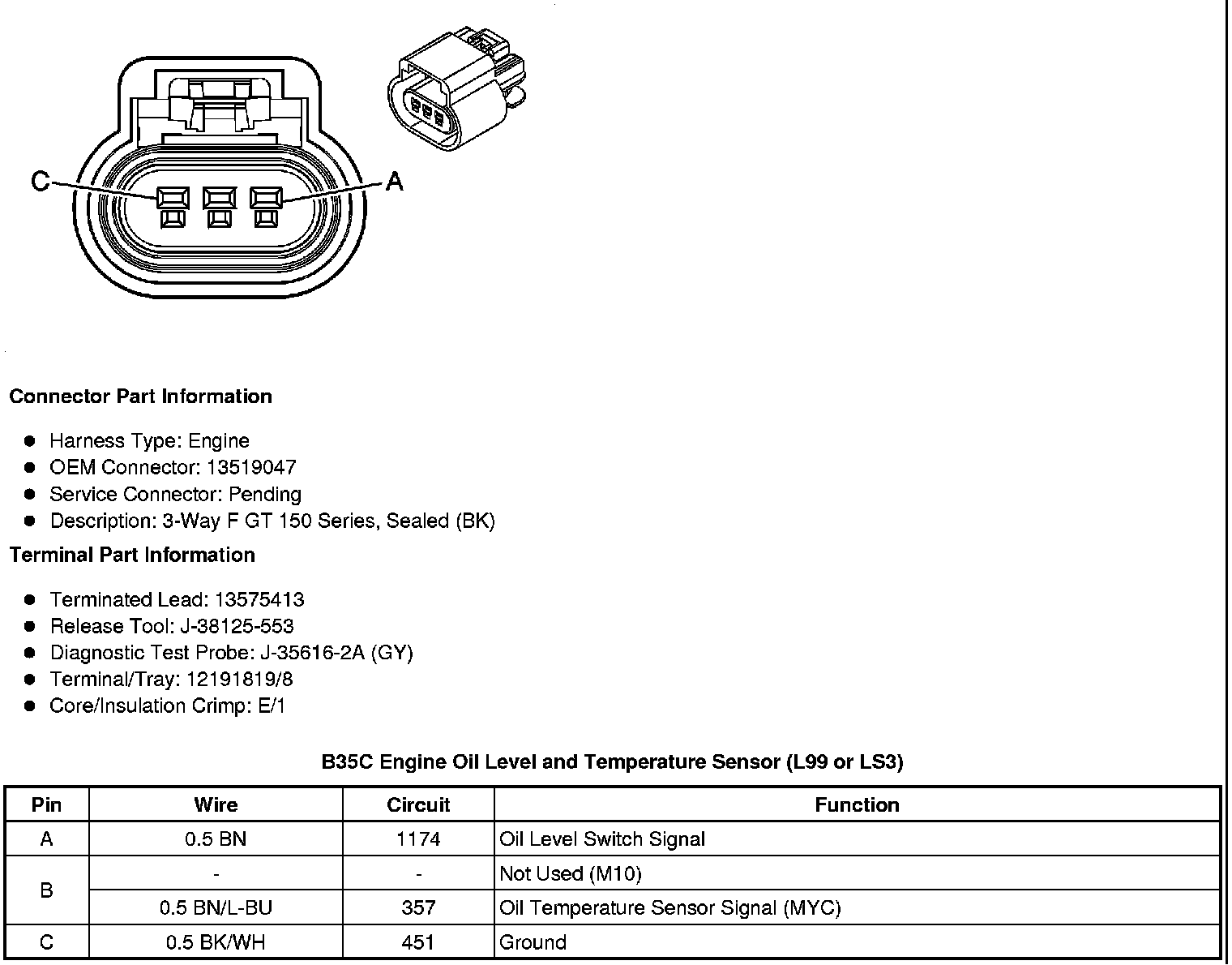

Component Connector End Views
B35C Engine Oil Level and Temperature Sensor (L99 or LS3)
