Impact Sensor




Component Connector End Views

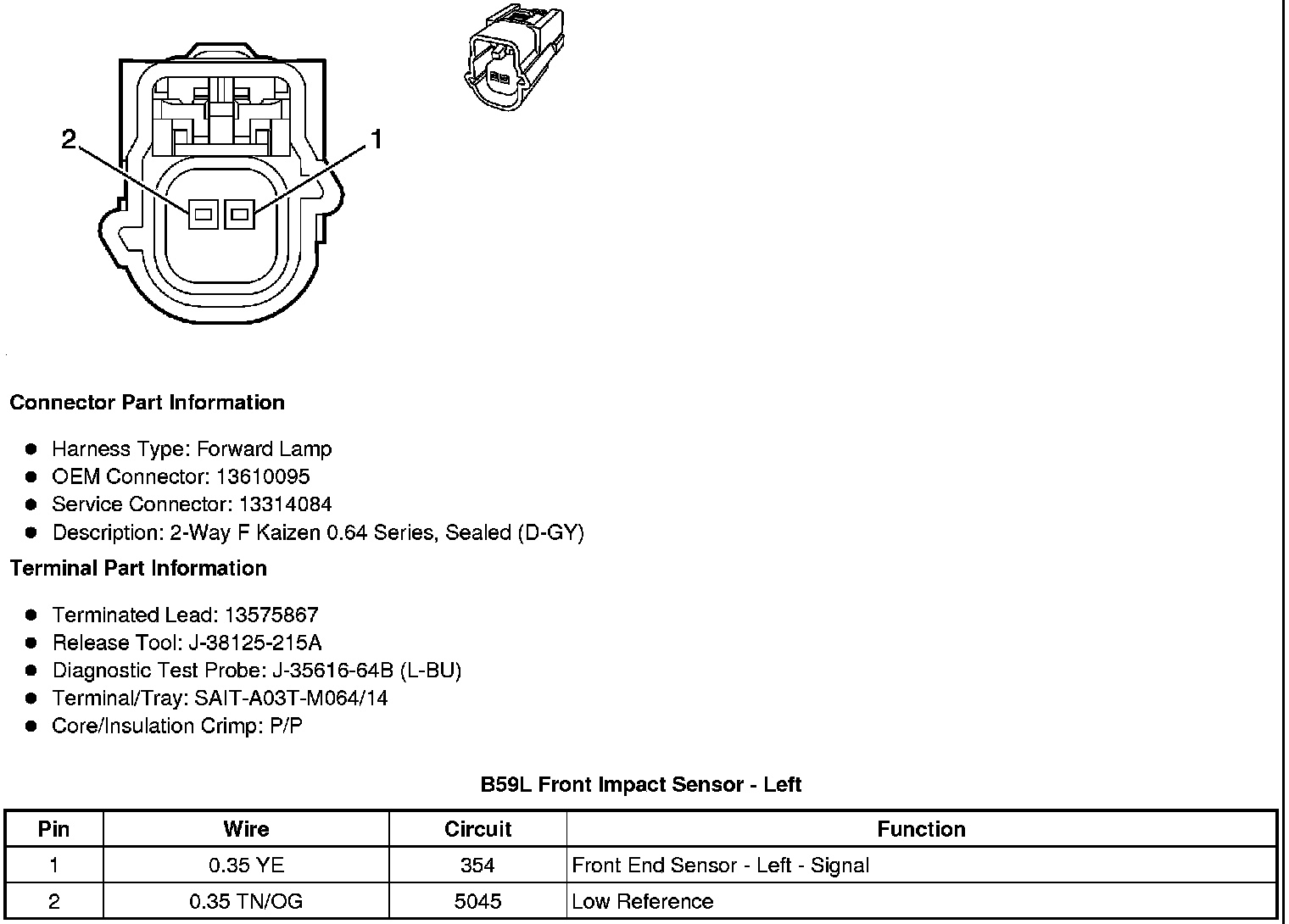

B59L Front Impact Sensor - Left

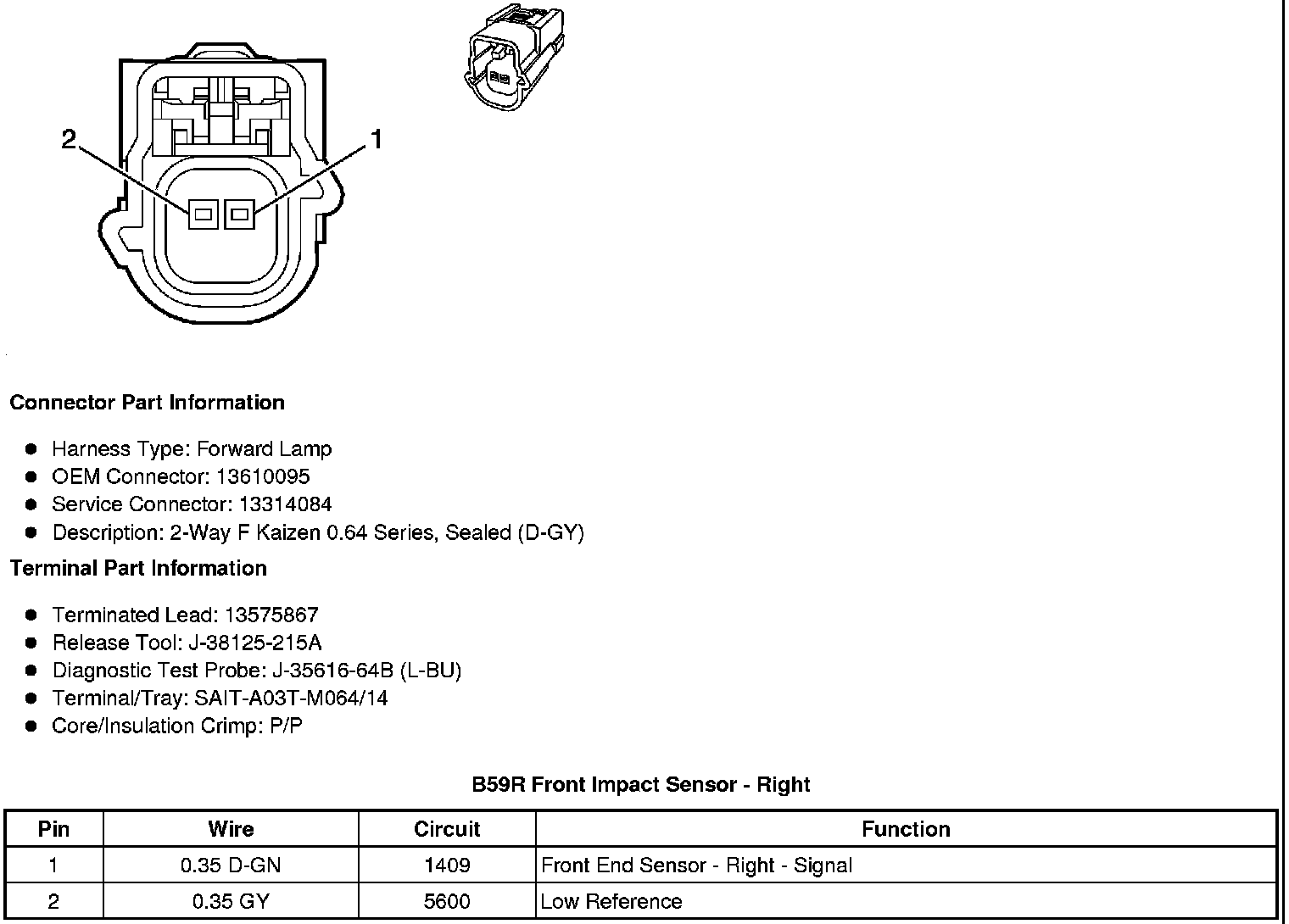

B59R Front Impact Sensor - Right

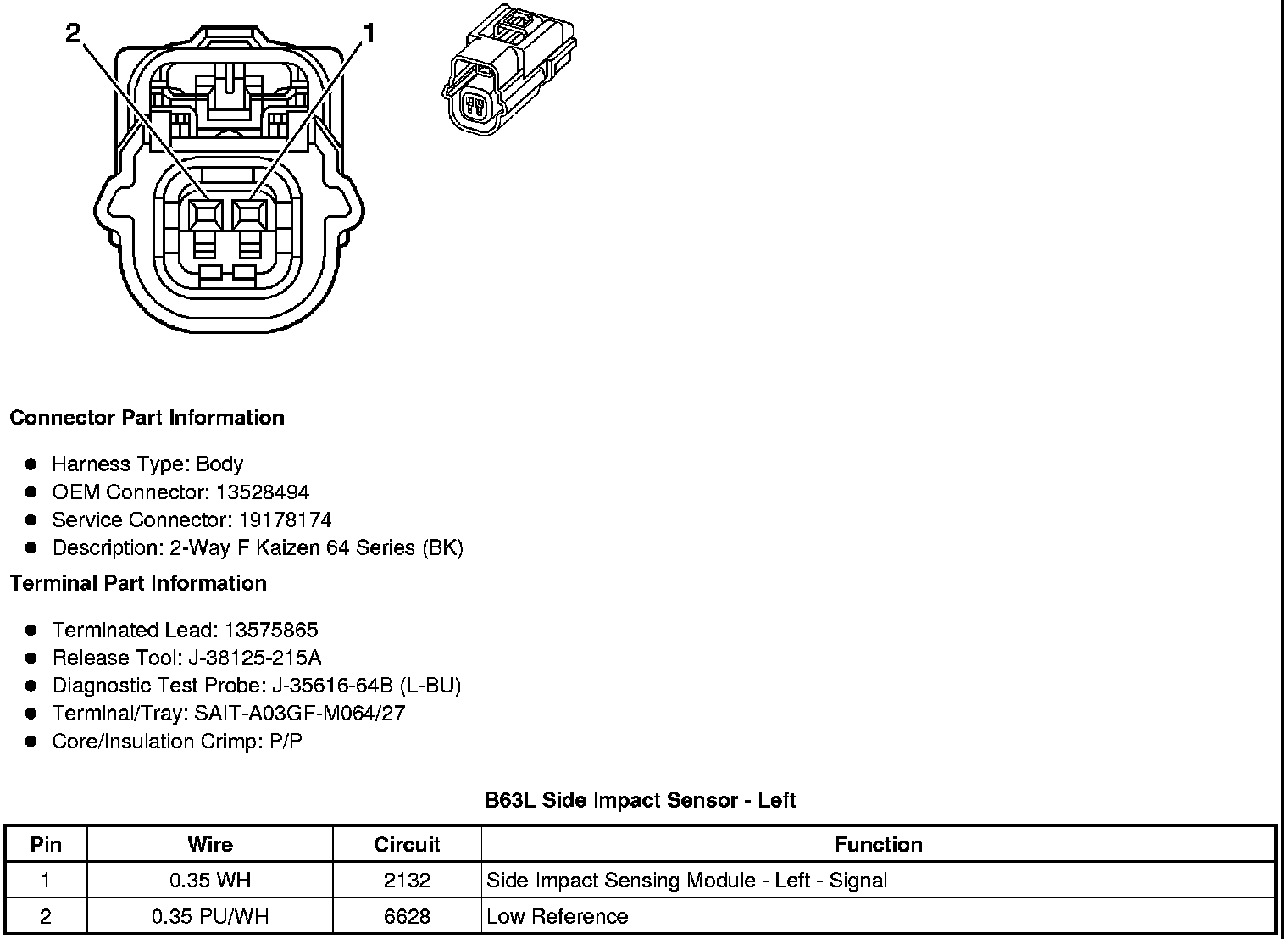

B63L Side Impact Sensor - Left

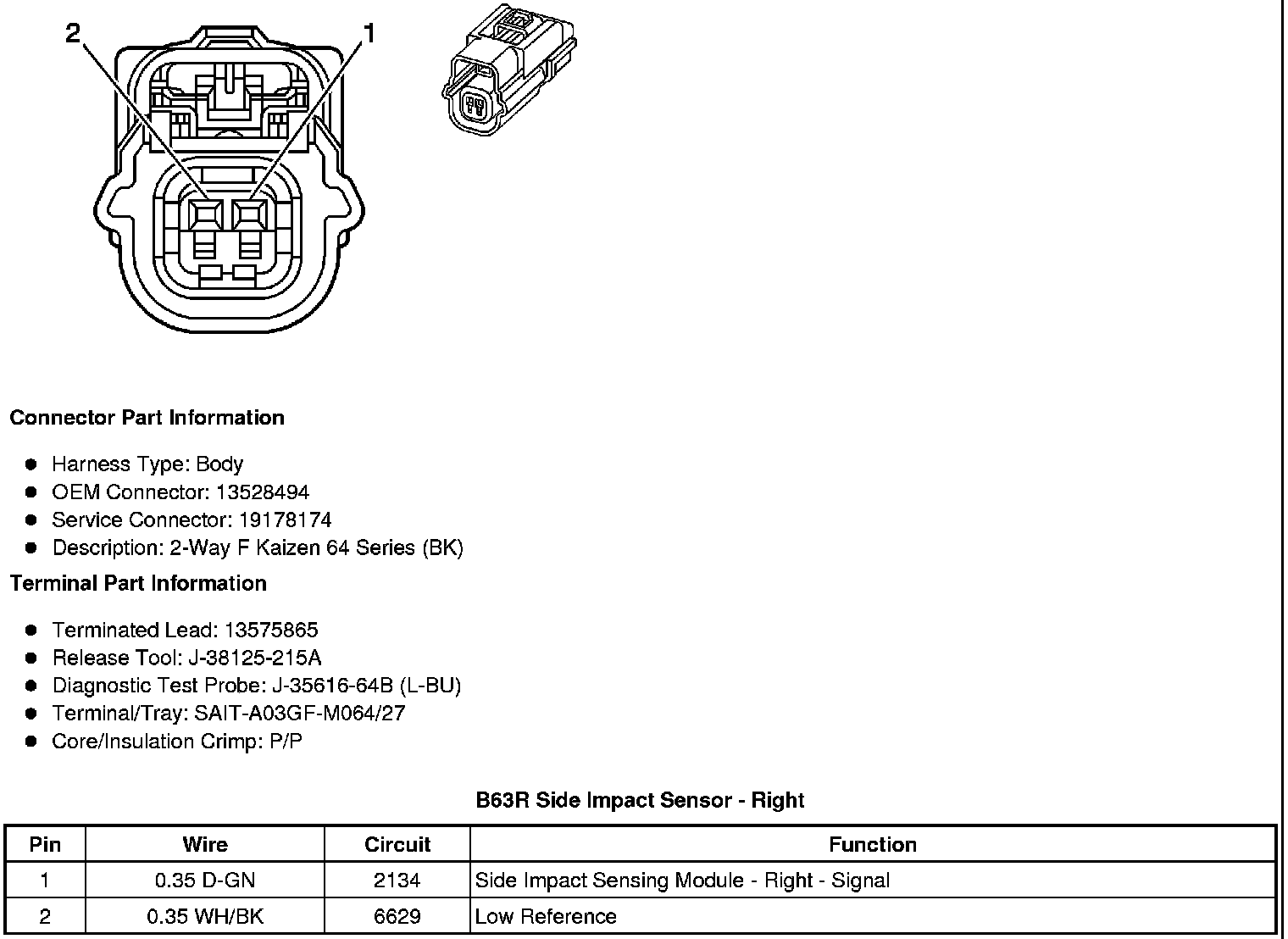

B63R Side Impact Sensor - Right
