Home >> Chevrolet >> 2011 >> Camaro V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module




Component Connector End Views

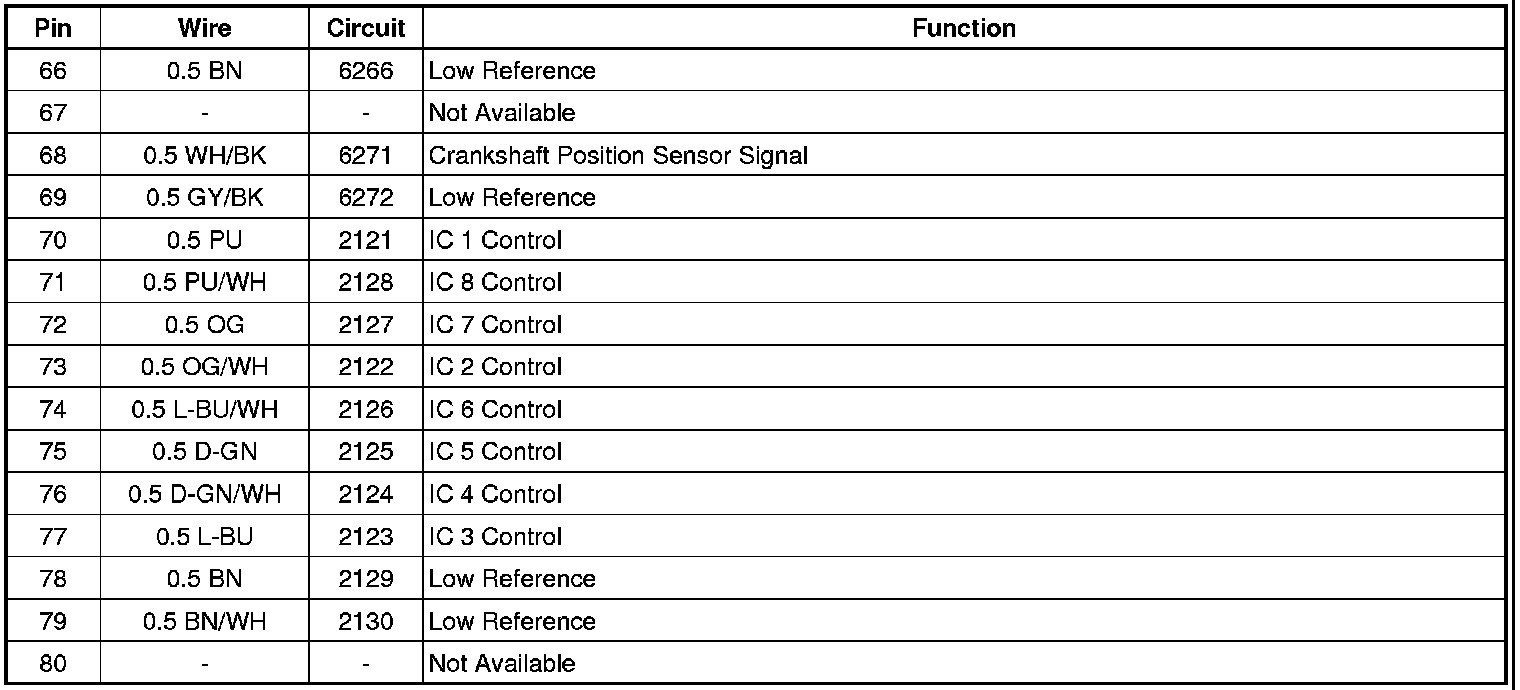

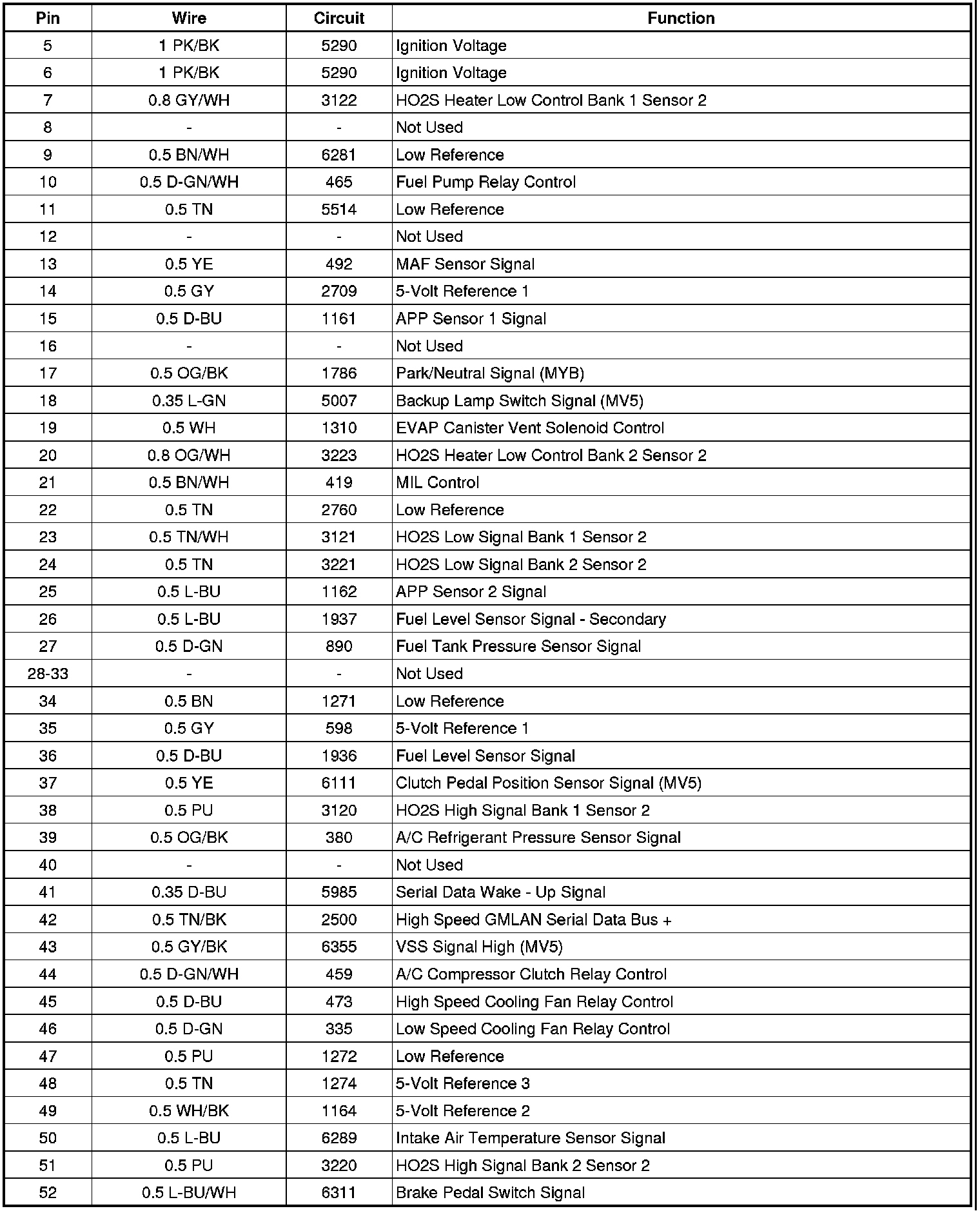

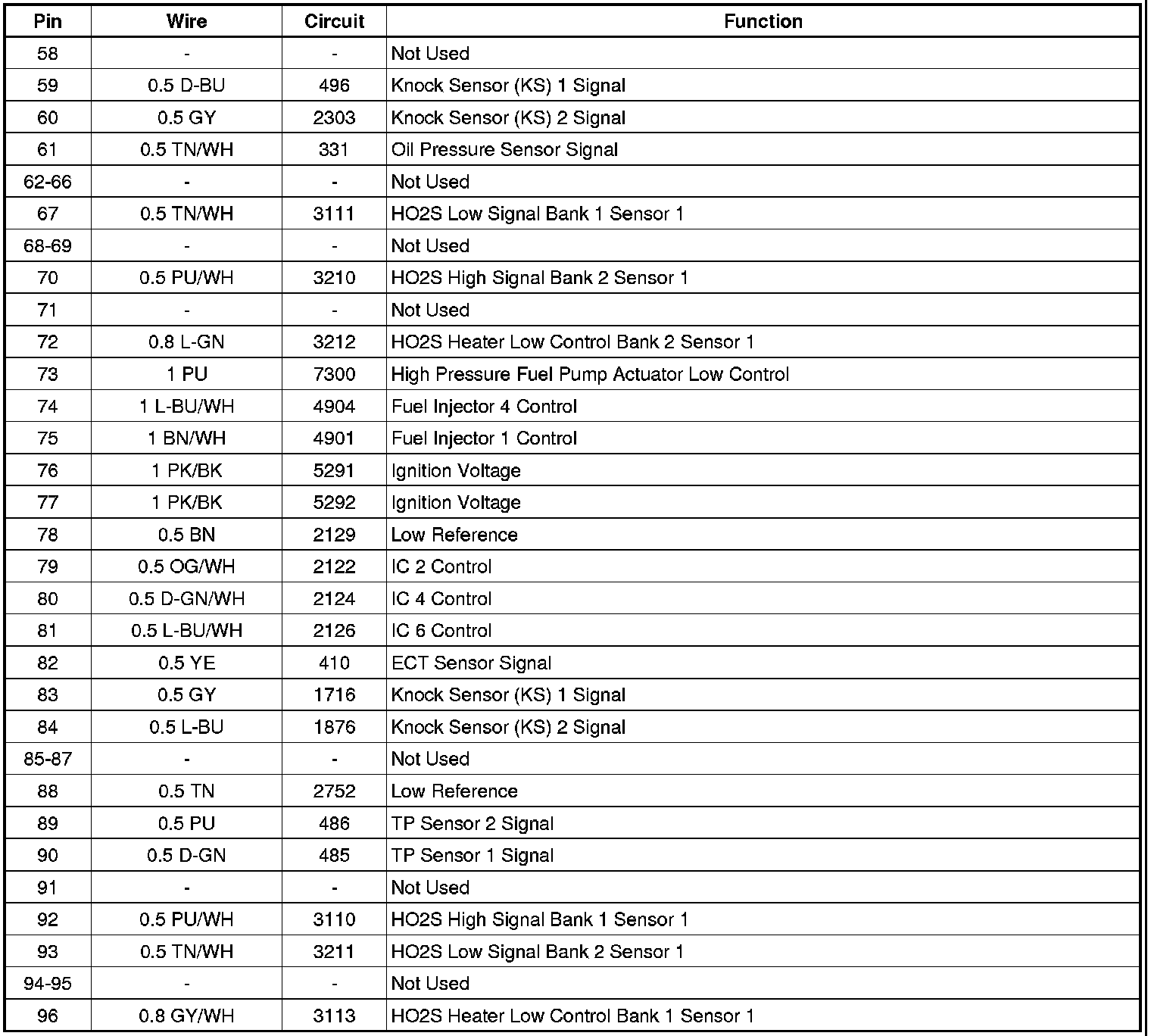

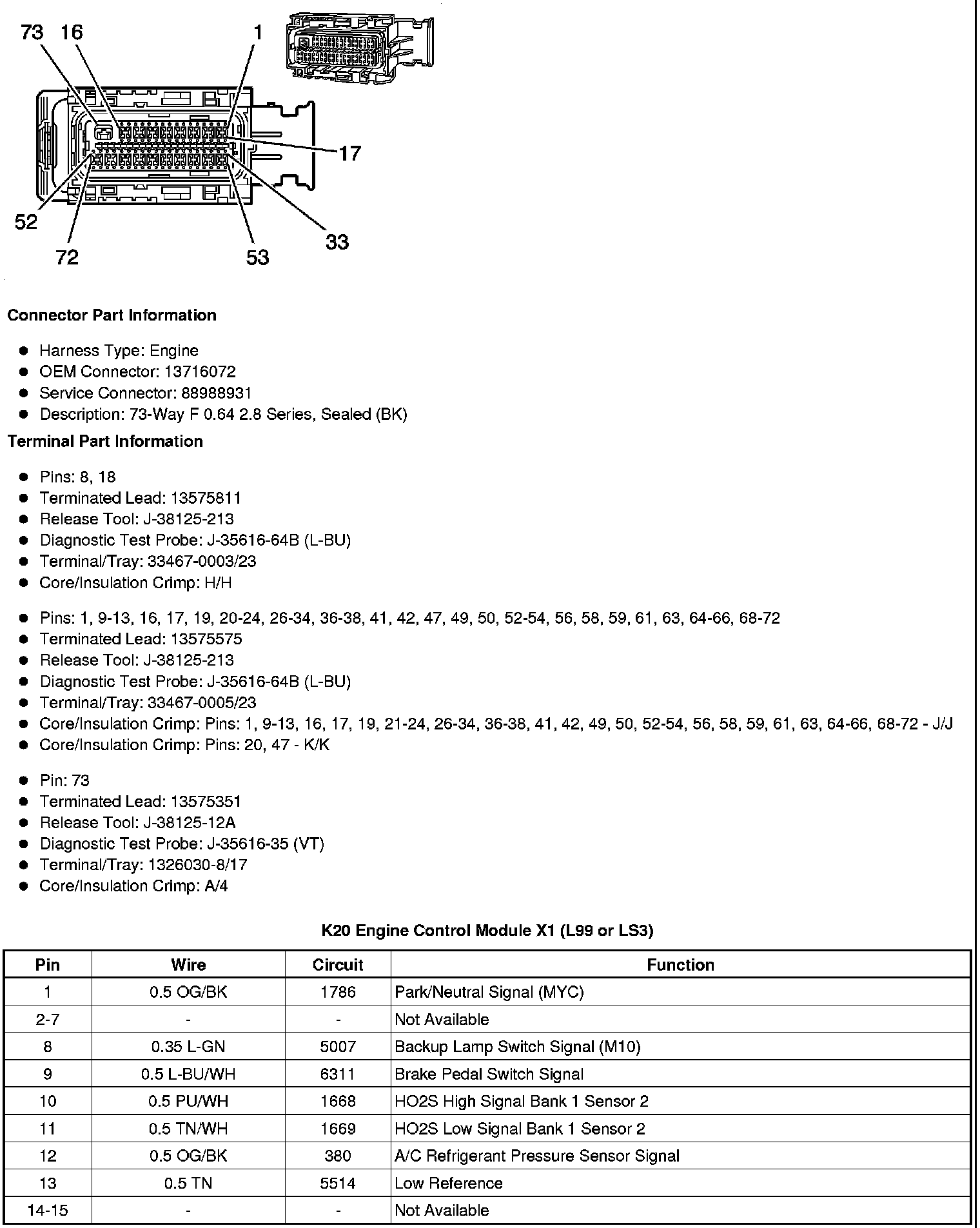

K20 Engine Control Module X1 (L99 or LS3)

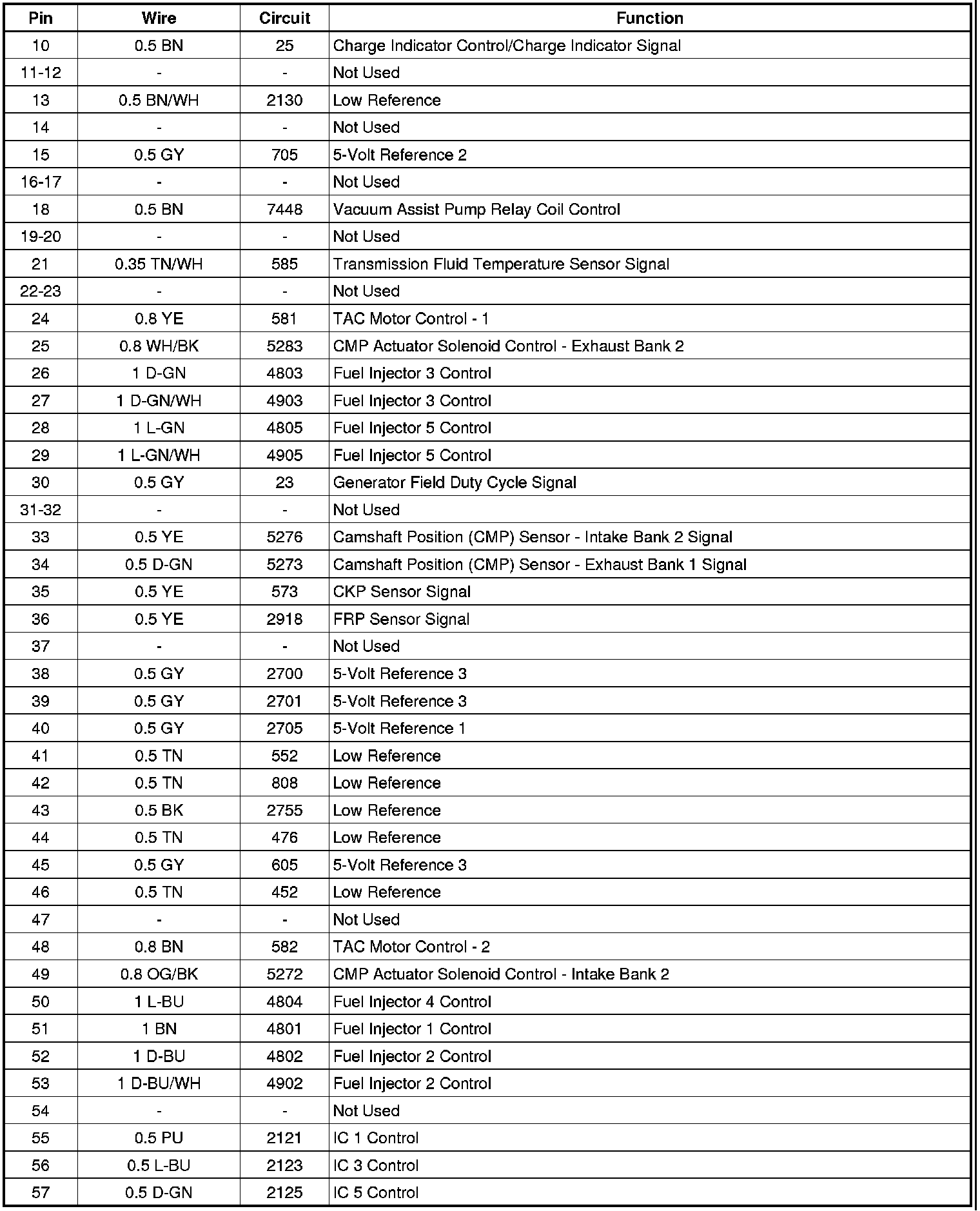

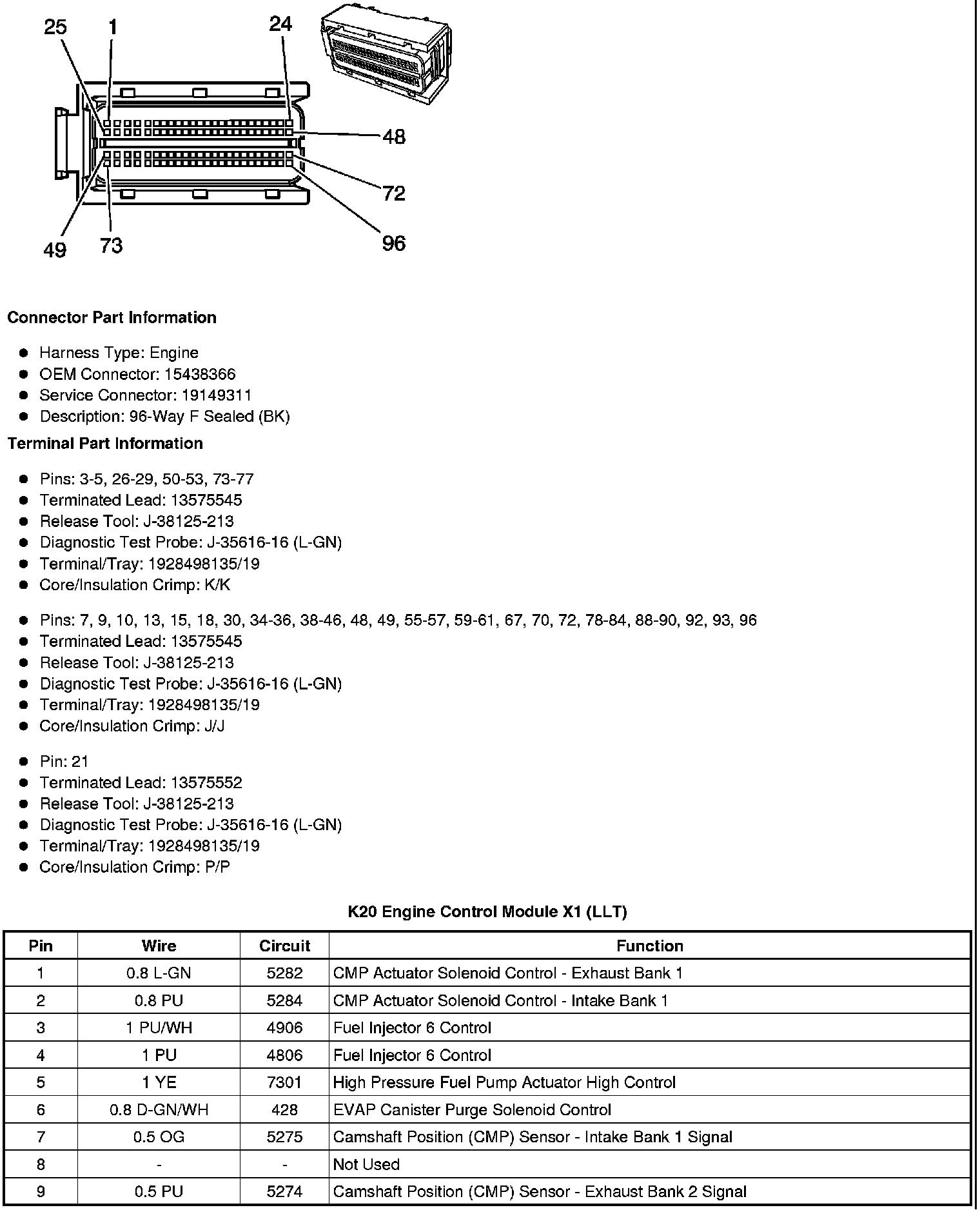

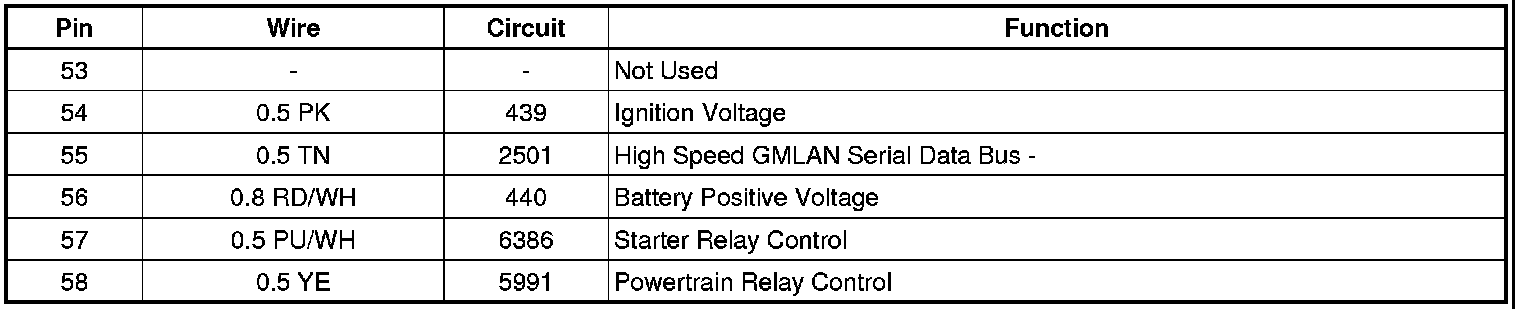

K20 Engine Control Module X1 (LLT)

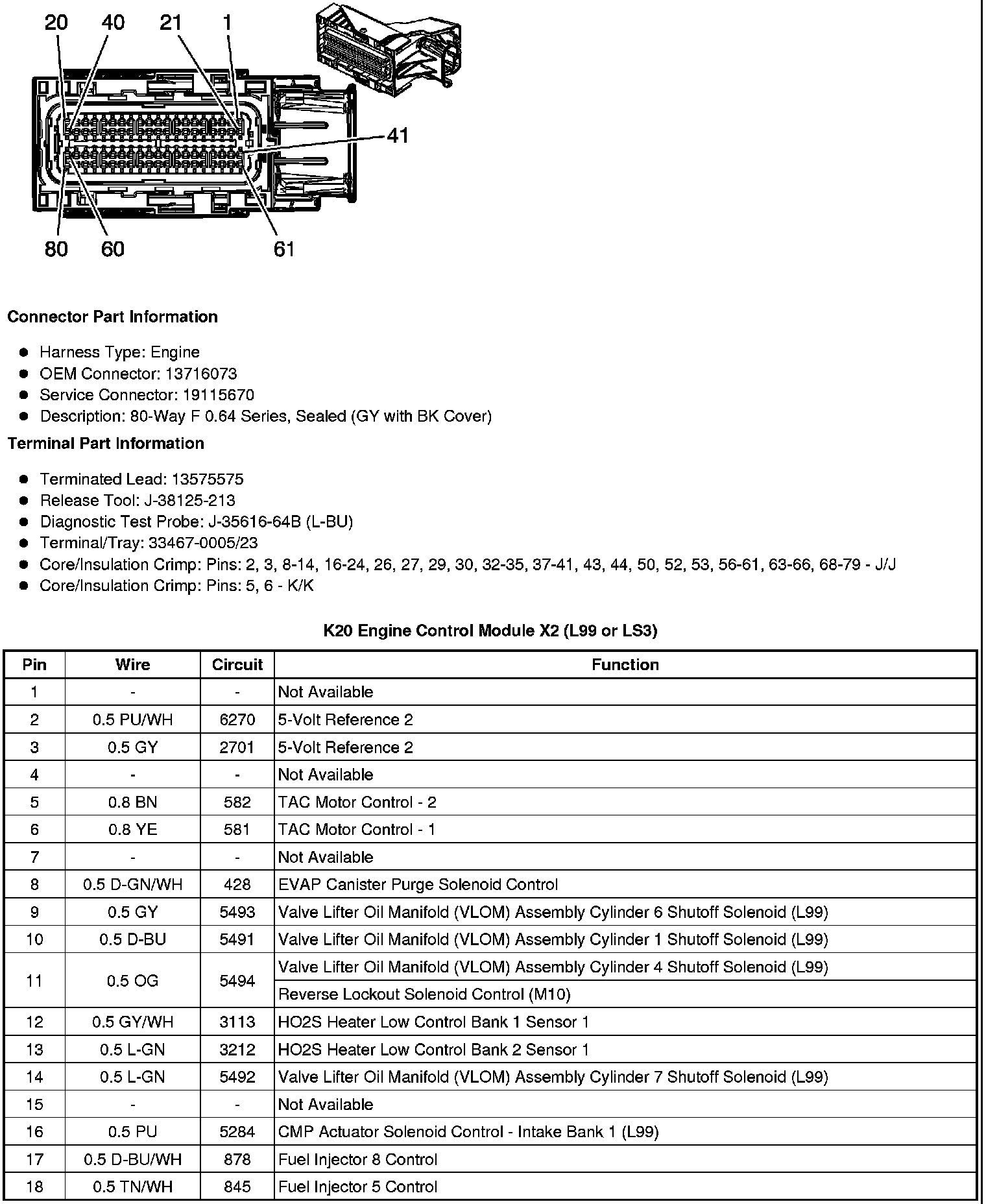

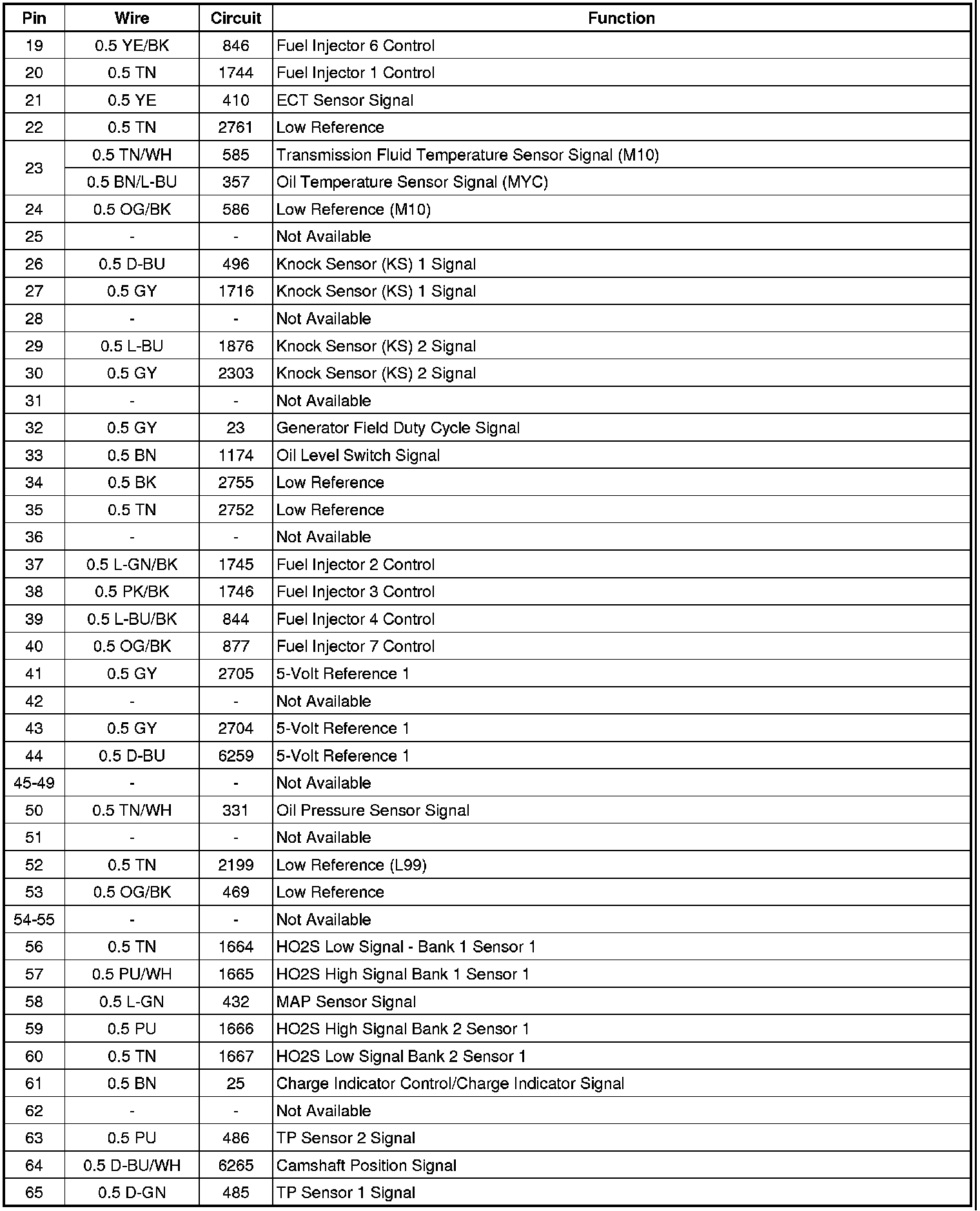

K20 Engine Control Module X2 (L99 or LS3)

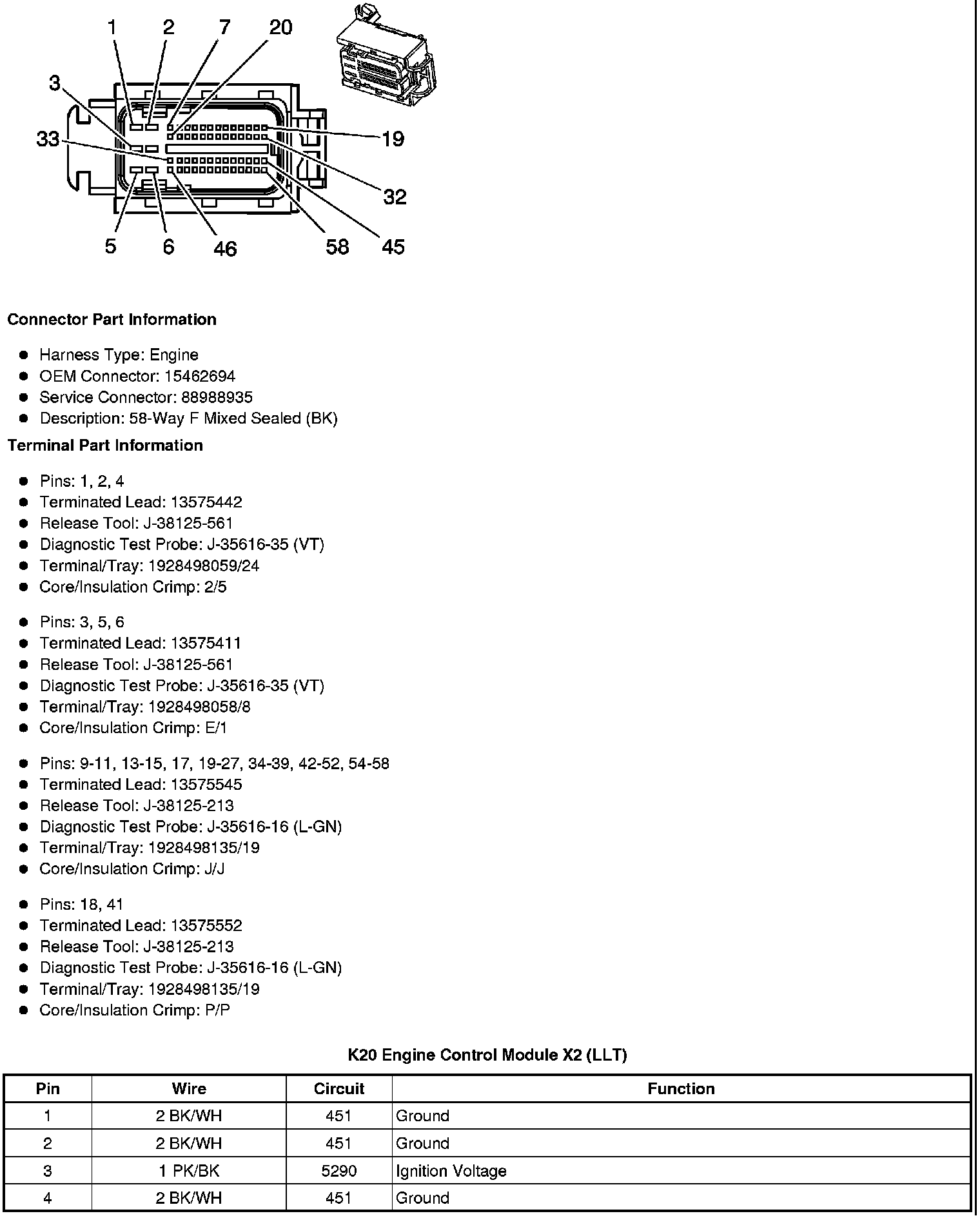

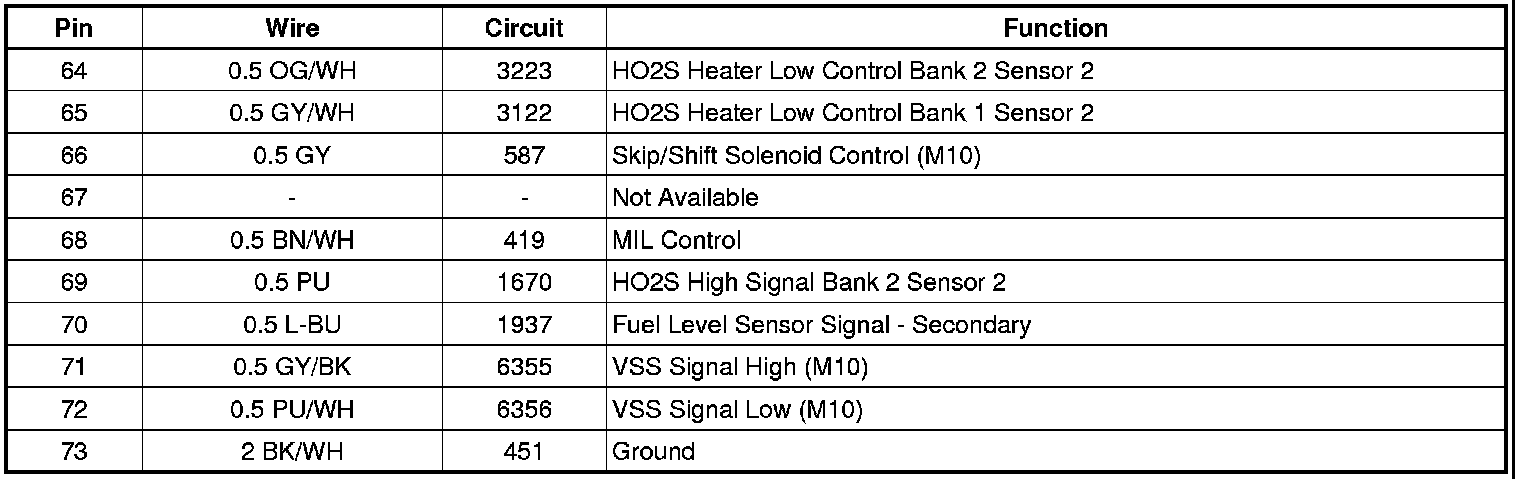

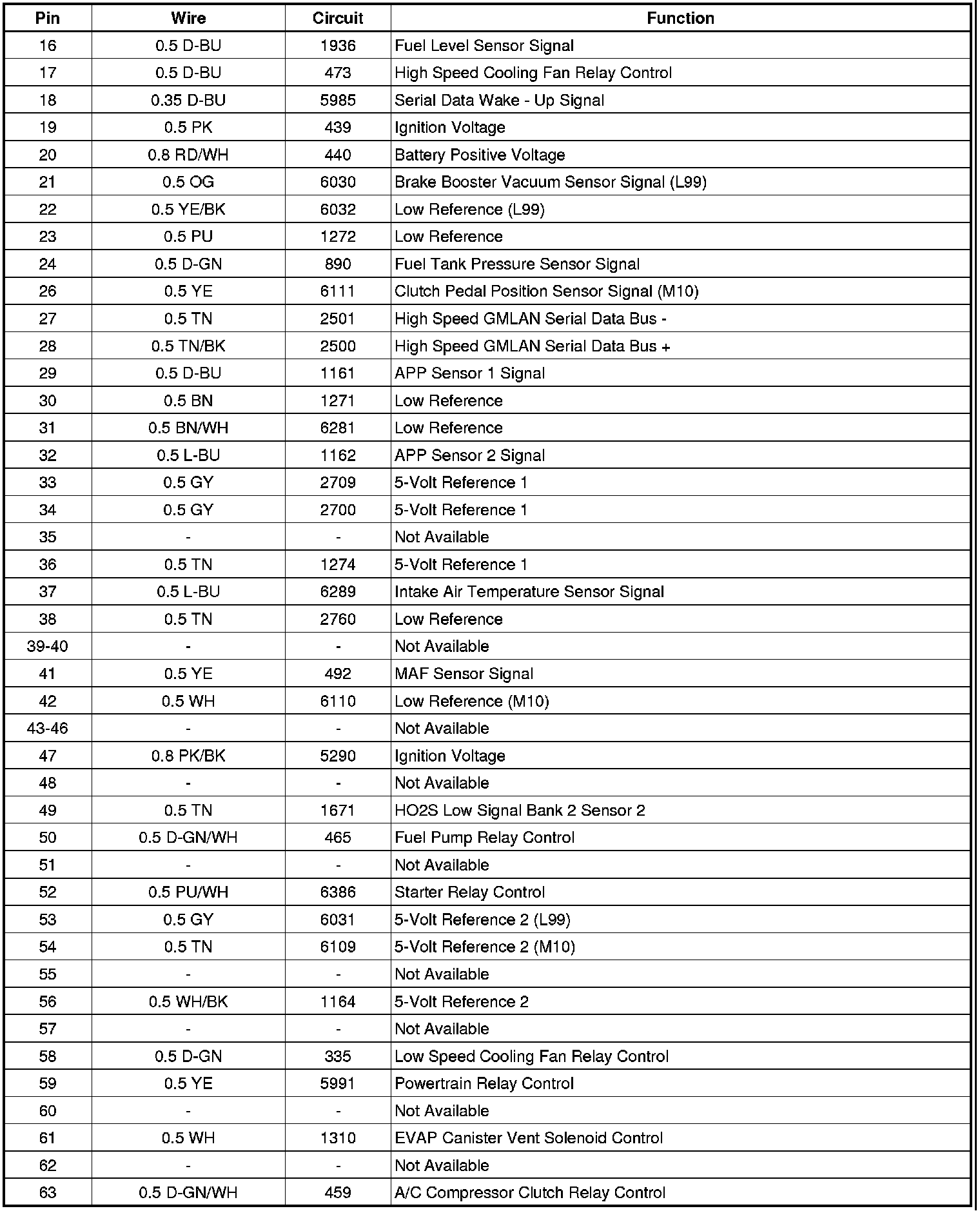

K20 Engine Control Module X2 (LLT)
