Central Control Module




Component Connector End Views

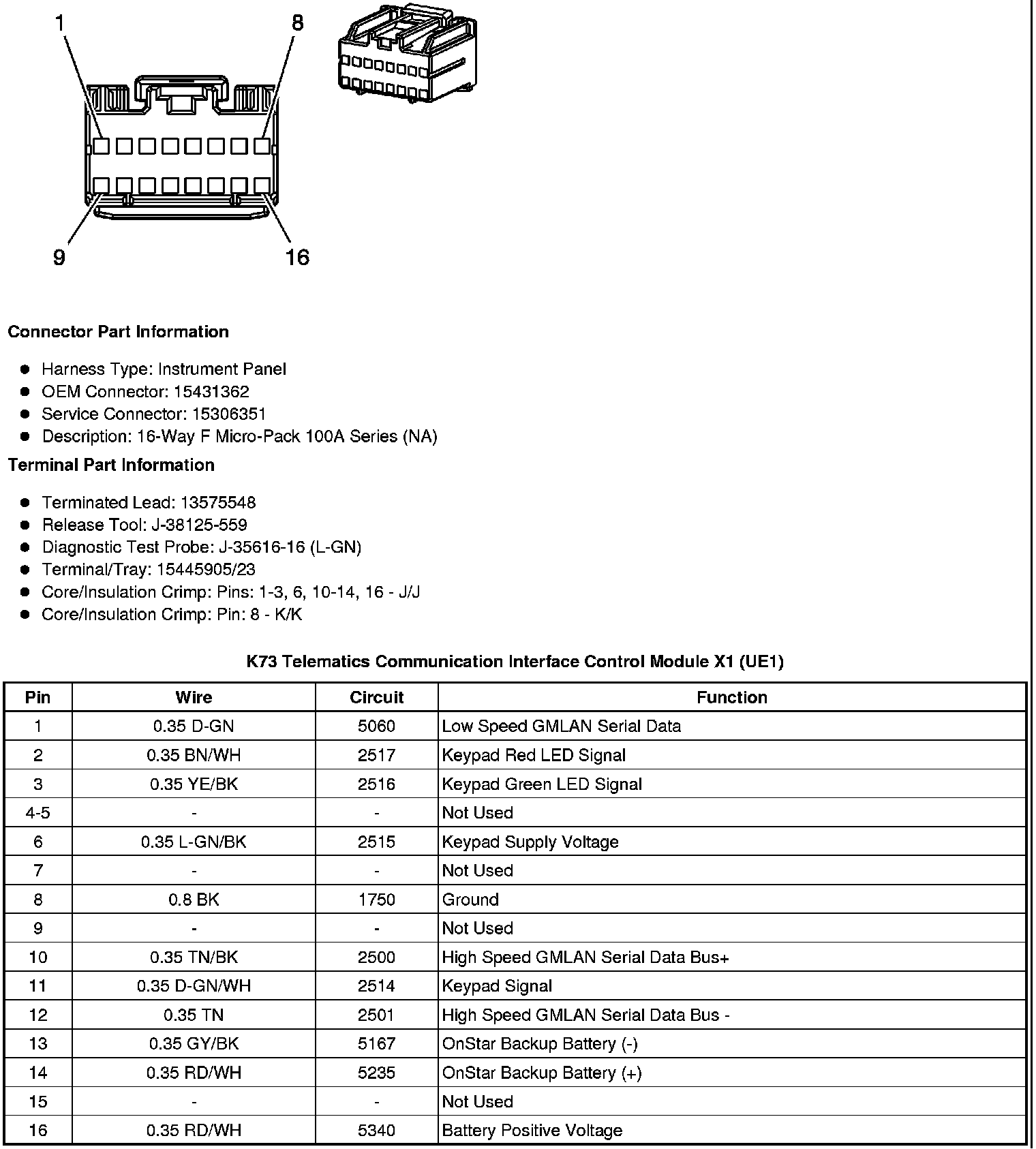

K73 Telematics Communication Interface Control Module X1 (UE1)

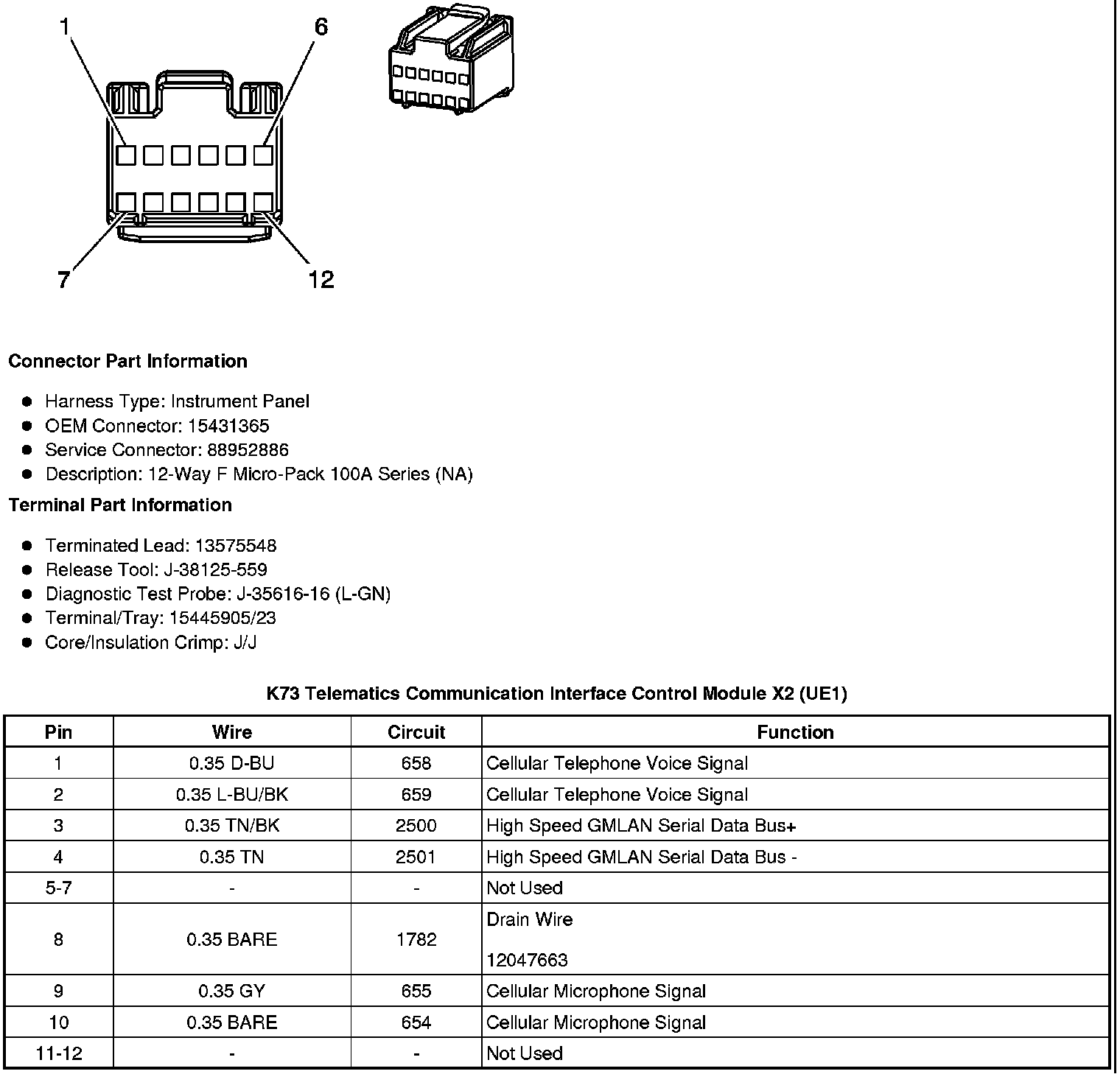

K73 Telematics Communication Interface Control Module X2 (UE1)
