Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Component Connector End Views

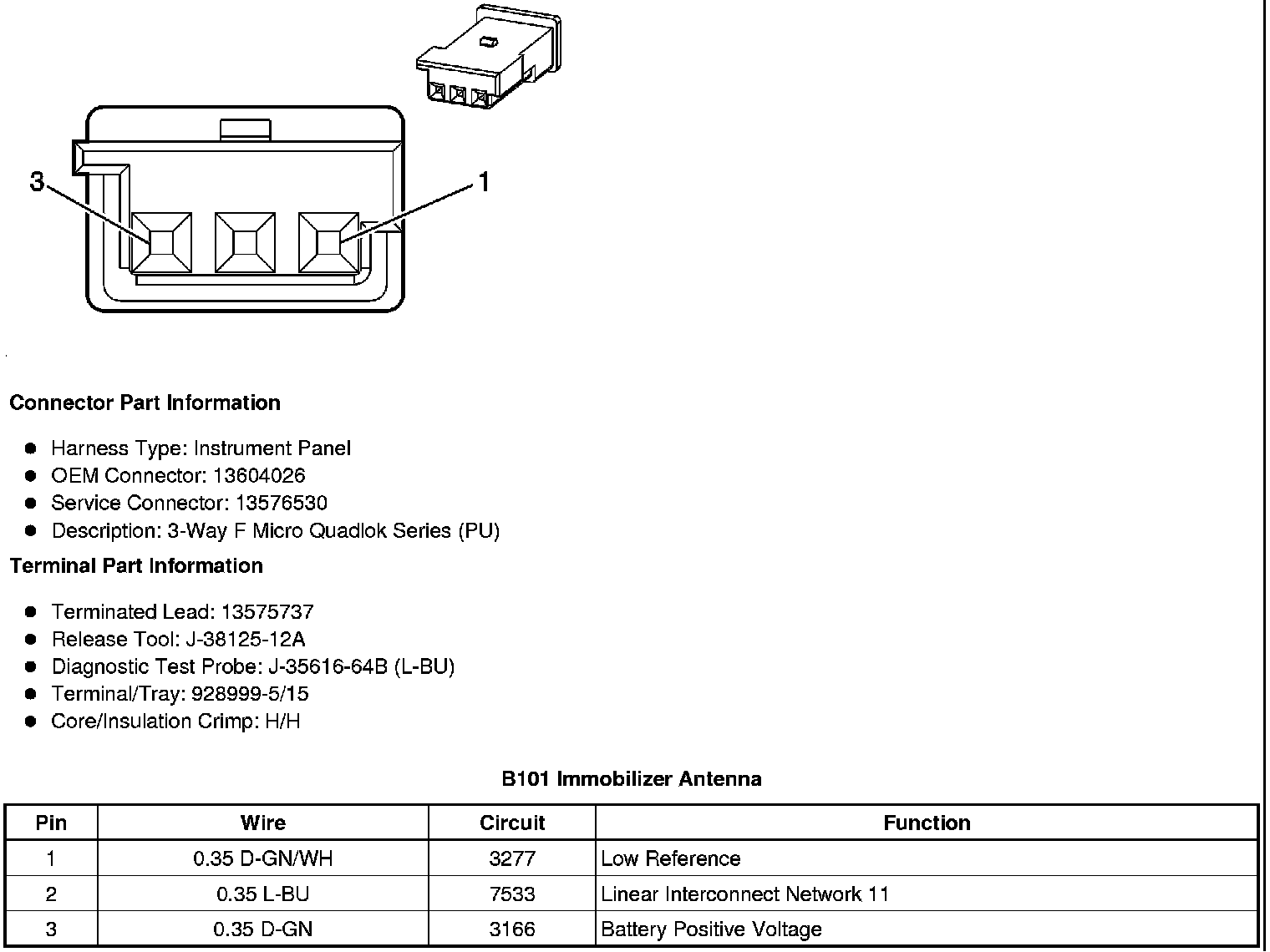

B101 Immobilizer Antenna
