Entertainment System Control Module
Entertainment System Control Module

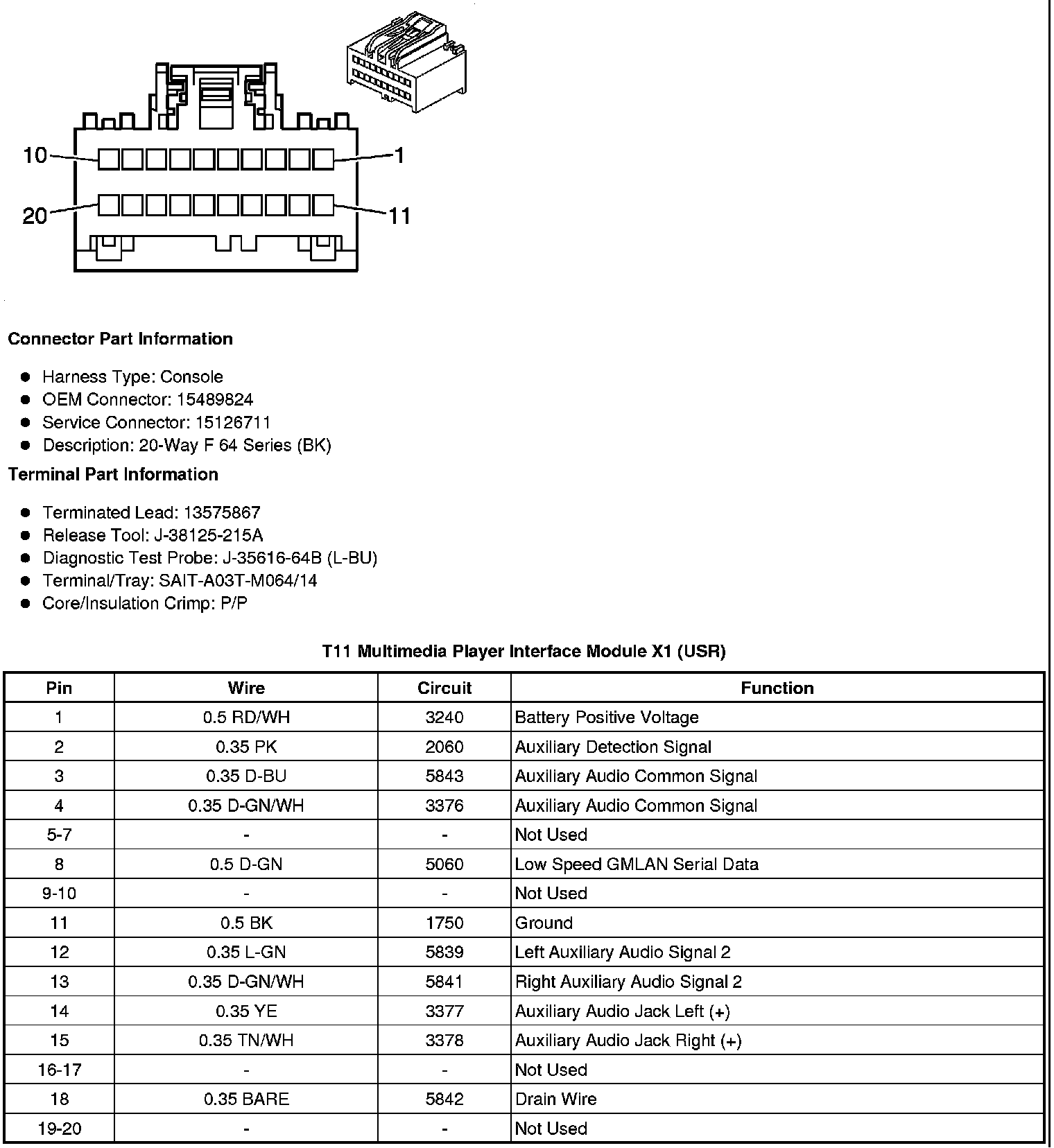

Component Connector End Views
T11 Multimedia Player Interface Module X1 (USR)
