Chevrolet
>>
2011
>>
Camaro V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
Communications Control Module
Component Connector End Views

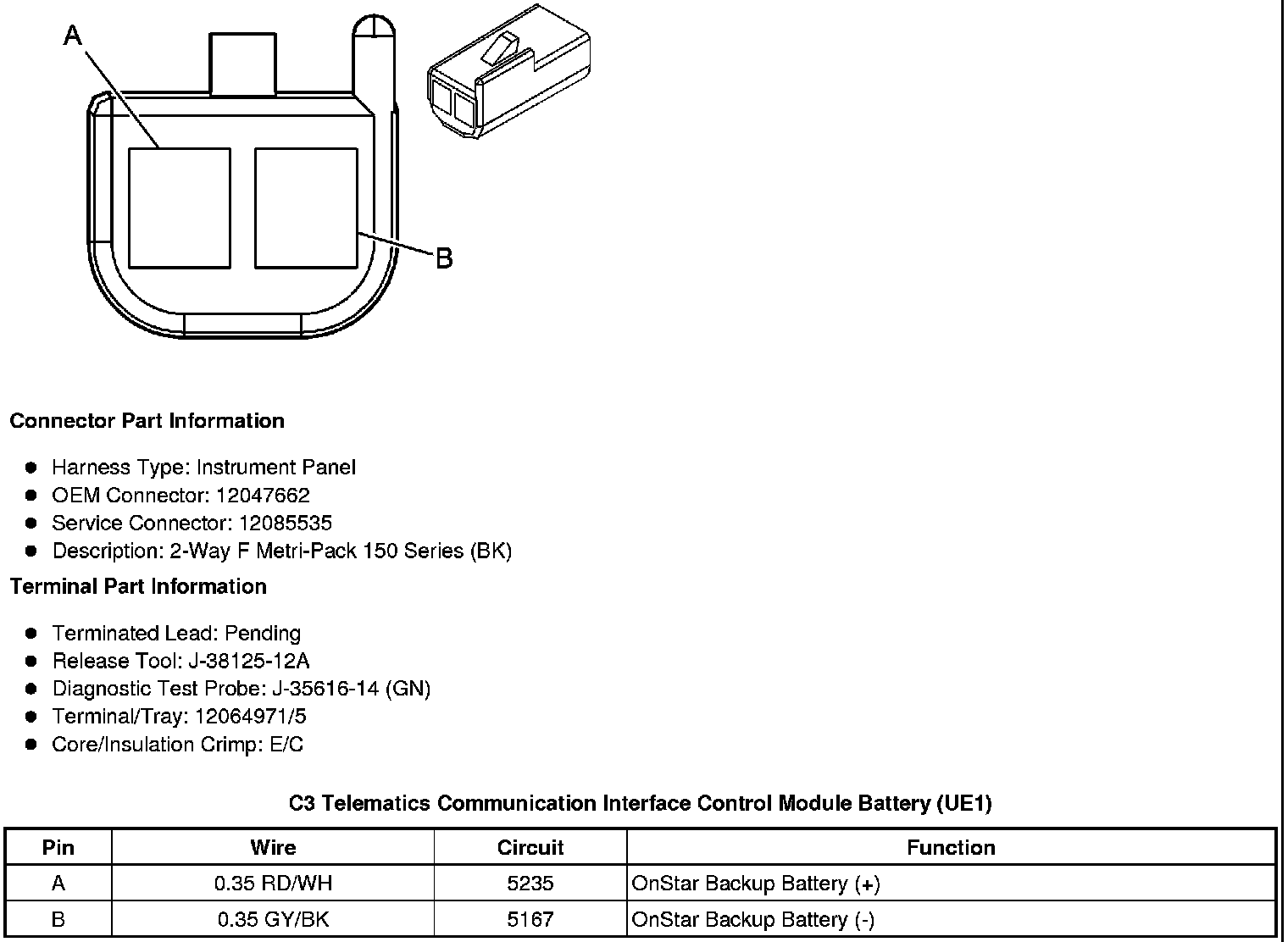

C3 Telematics Communication Interface Control Module Battery (UE1)
