Throttle Position Sensor: Diagrams

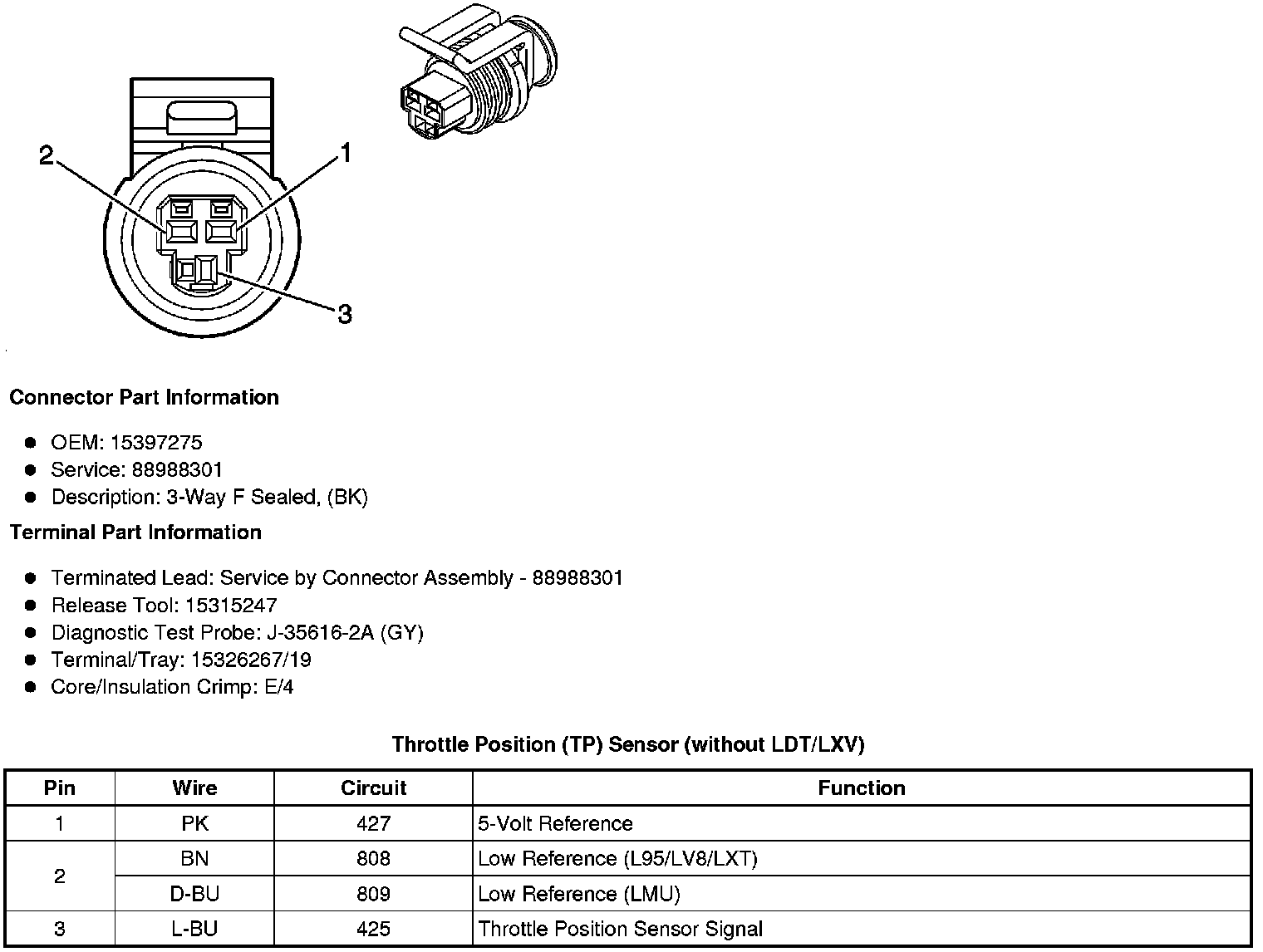

Component Connector End Views

Throttle Position (TP) Sensor (without LDT/LXV)
