Component Locations

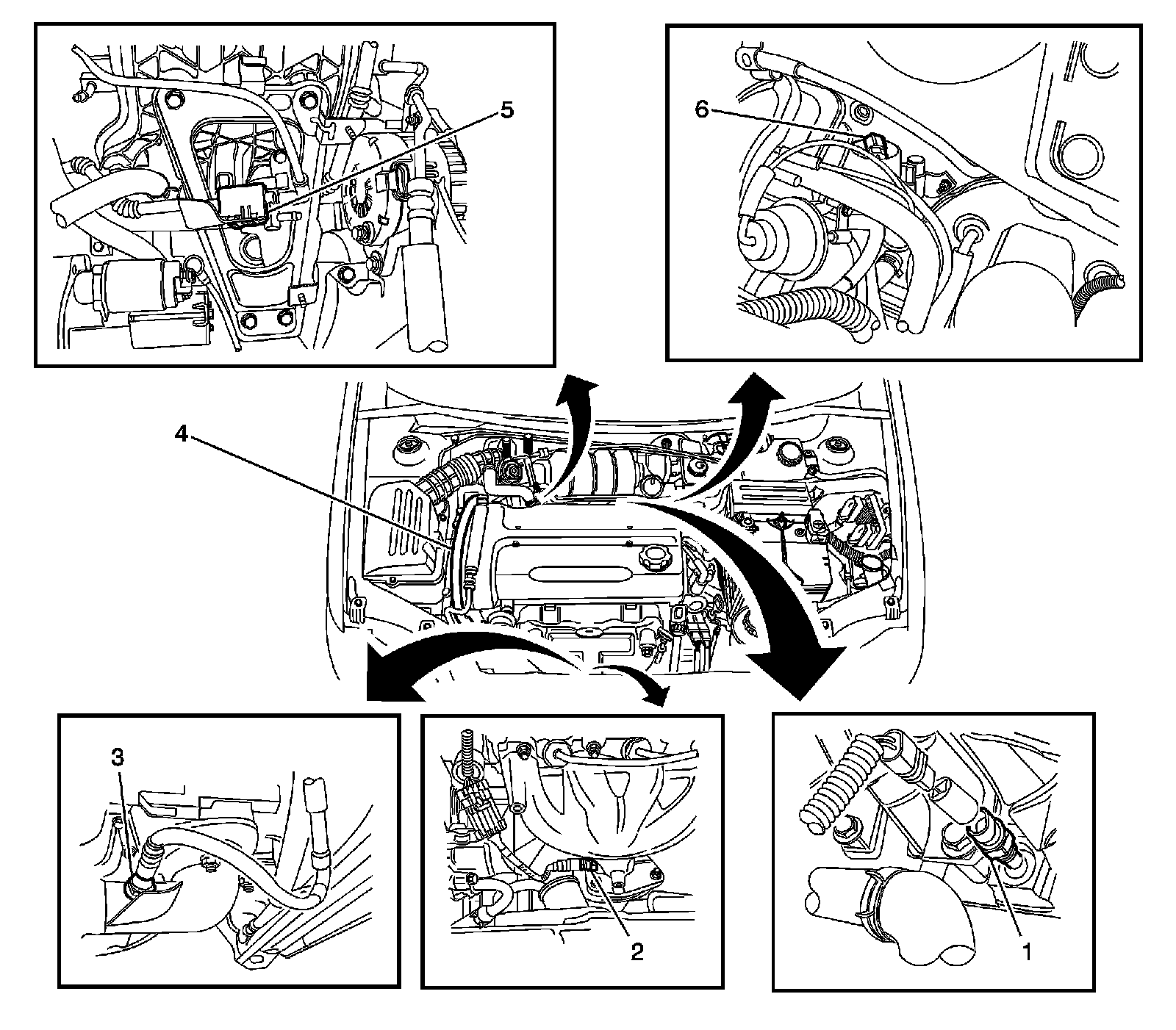

Powertrain Component Views (LXT)

Engine Data Sensors




1 - Engine Coolant Temperature (ECT) Sensor
2 - Heated Oxygen Sensor (HO2S)1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Oil Pressure Switch
5 - EVAP Canister Purge Solenoid Valve
6 - Intake Manifold Tuning Valve Solenoid
