Accelerator Pedal Position Sensor: Diagrams




Component Connector End Views

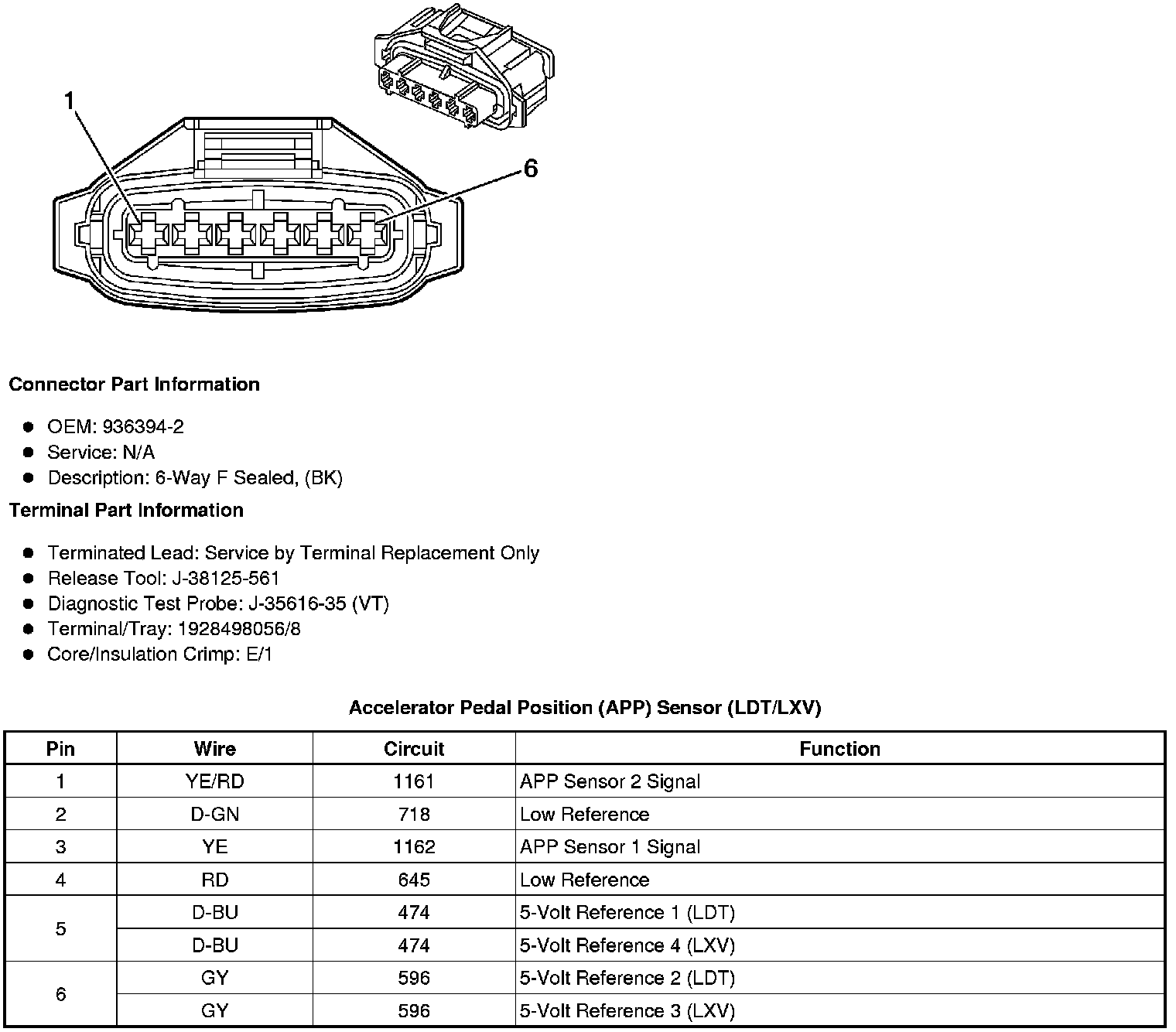

Accelerator Pedal Position (APP) Sensor (LDT/LXV)
