Compressor Control Valve Assembly Removal




Compressor Control Valve Assembly Removal

Tools Required

J 5403 Snap Ring Pliers




1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Service and Repair).

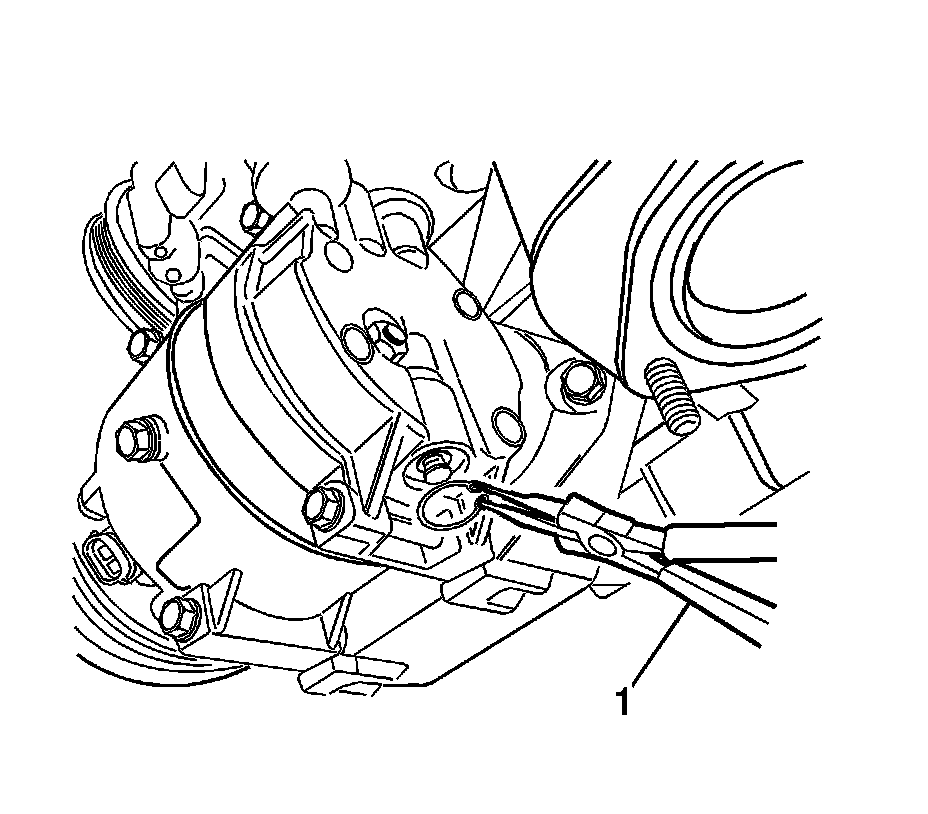

2. Remove the control valve retaining ring using the J 5403 (1).
3. Remove the control valve assembly.
