Variable Induction Control Valve
Variable Induction Control Valve

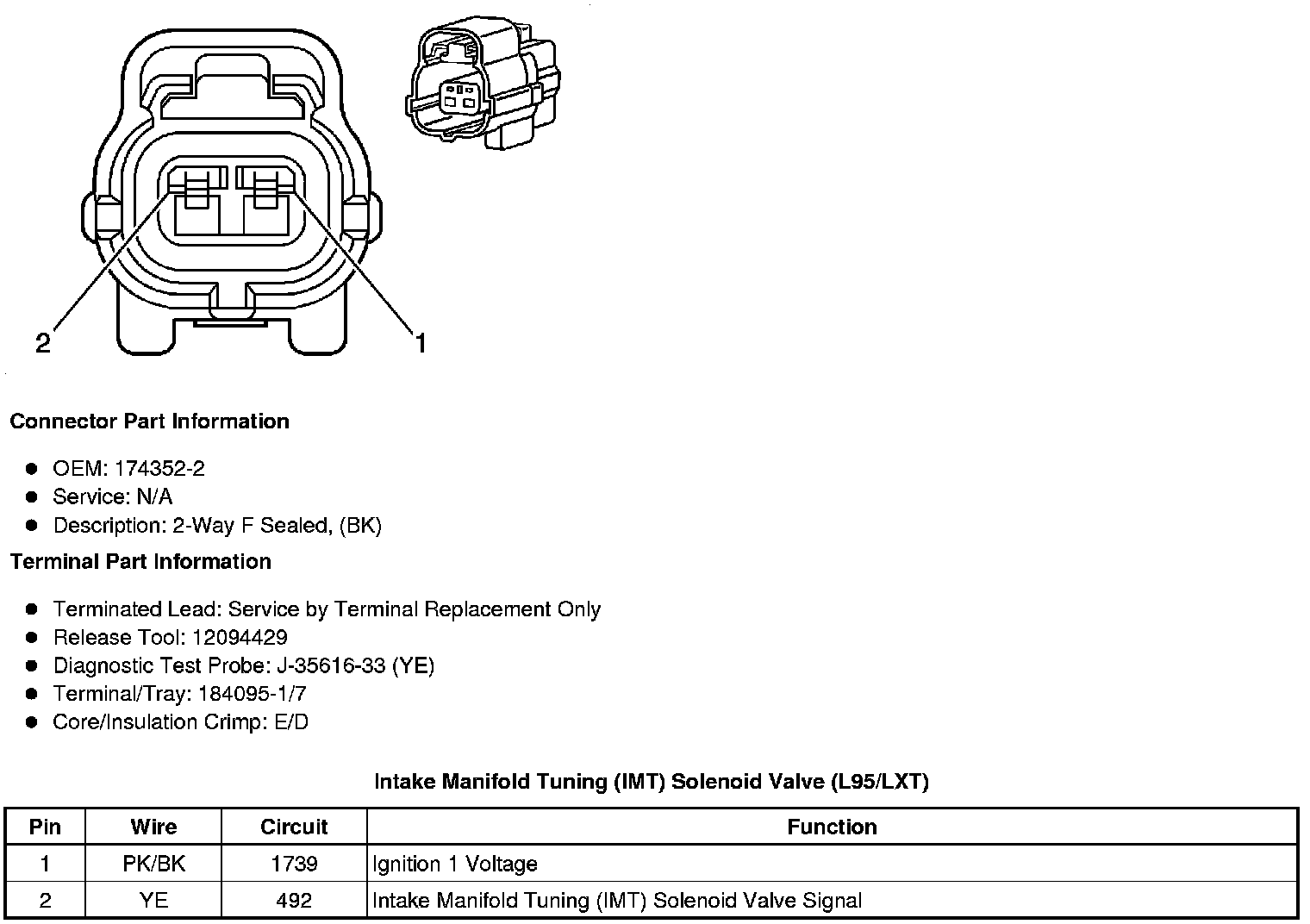

Component Connector End Views
Intake Manifold Tuning (IMT) Solenoid Valve (L95/LXT)
