Chevrolet
>>
2011
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module

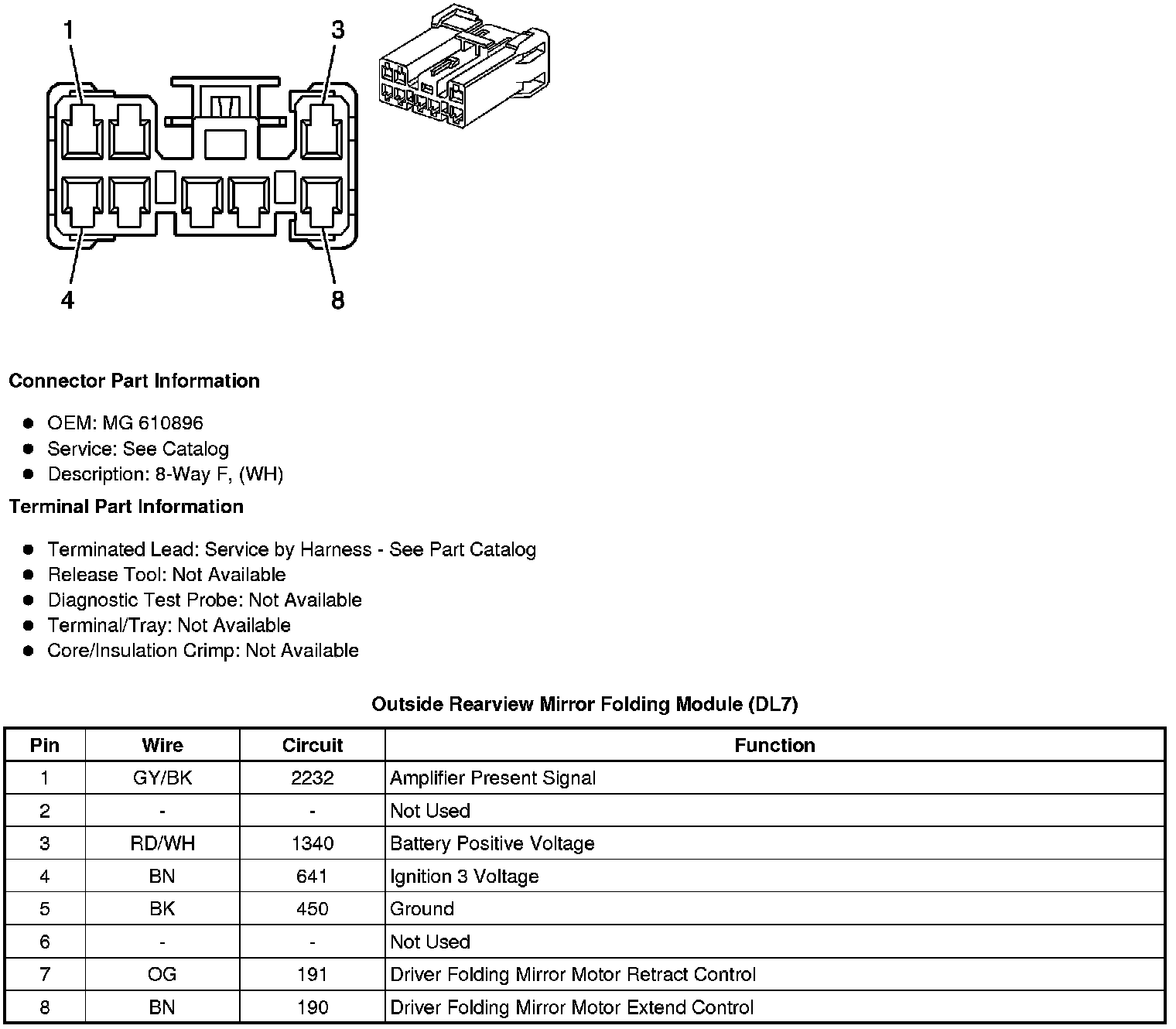

Component Connector End Views
Outside Rearview Mirror Folding Module (DL7)
