Intake Manifold

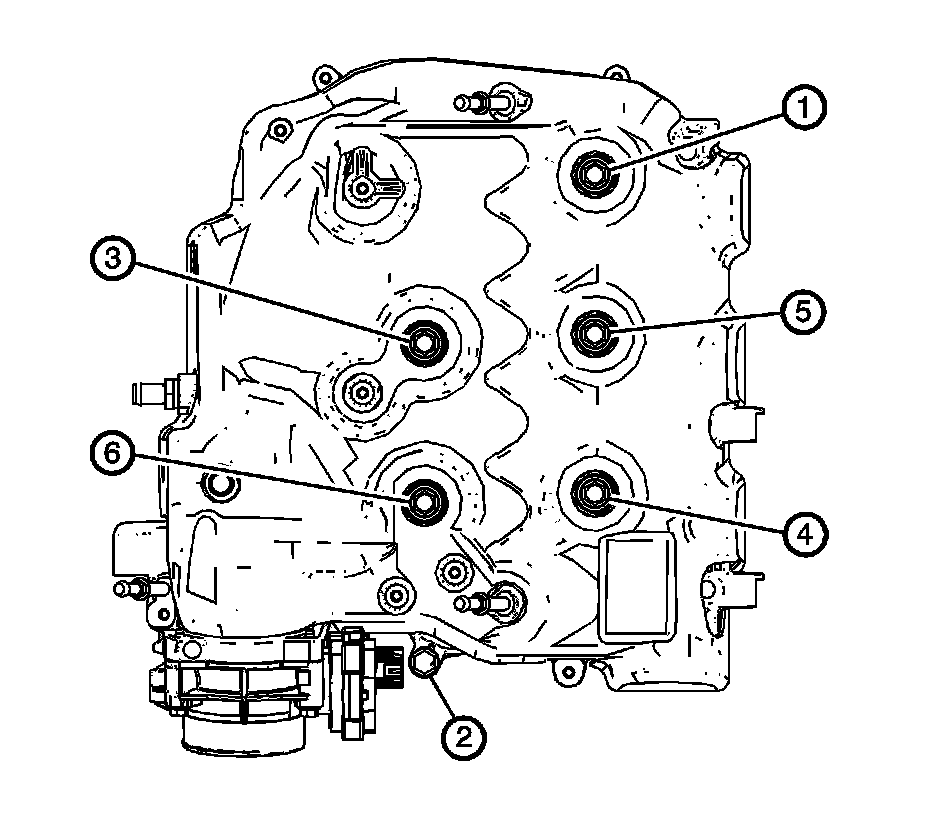

Intake Tightening Sequence (LLT):
Upper-to-Cylinder Head Bolt - Long 25 Nm (18 lb ft)
Upper-to-Cylinder Head Bolt - Short 25 Nm (18 lb ft)
Upper-to-Lower Intake Manifold Bolt 25 Nm (18 lb ft)
Throttle Body Bolt 10 Nm (89 lb in)
Upper-to-Cylinder Head Bolt - Long 25 Nm (18 lb ft)
Upper-to-Cylinder Head Bolt - Short 25 Nm (18 lb ft)
Upper-to-Lower Intake Manifold Bolt 25 Nm (18 lb ft)
Throttle Body Bolt 10 Nm (89 lb in)
