Battery Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

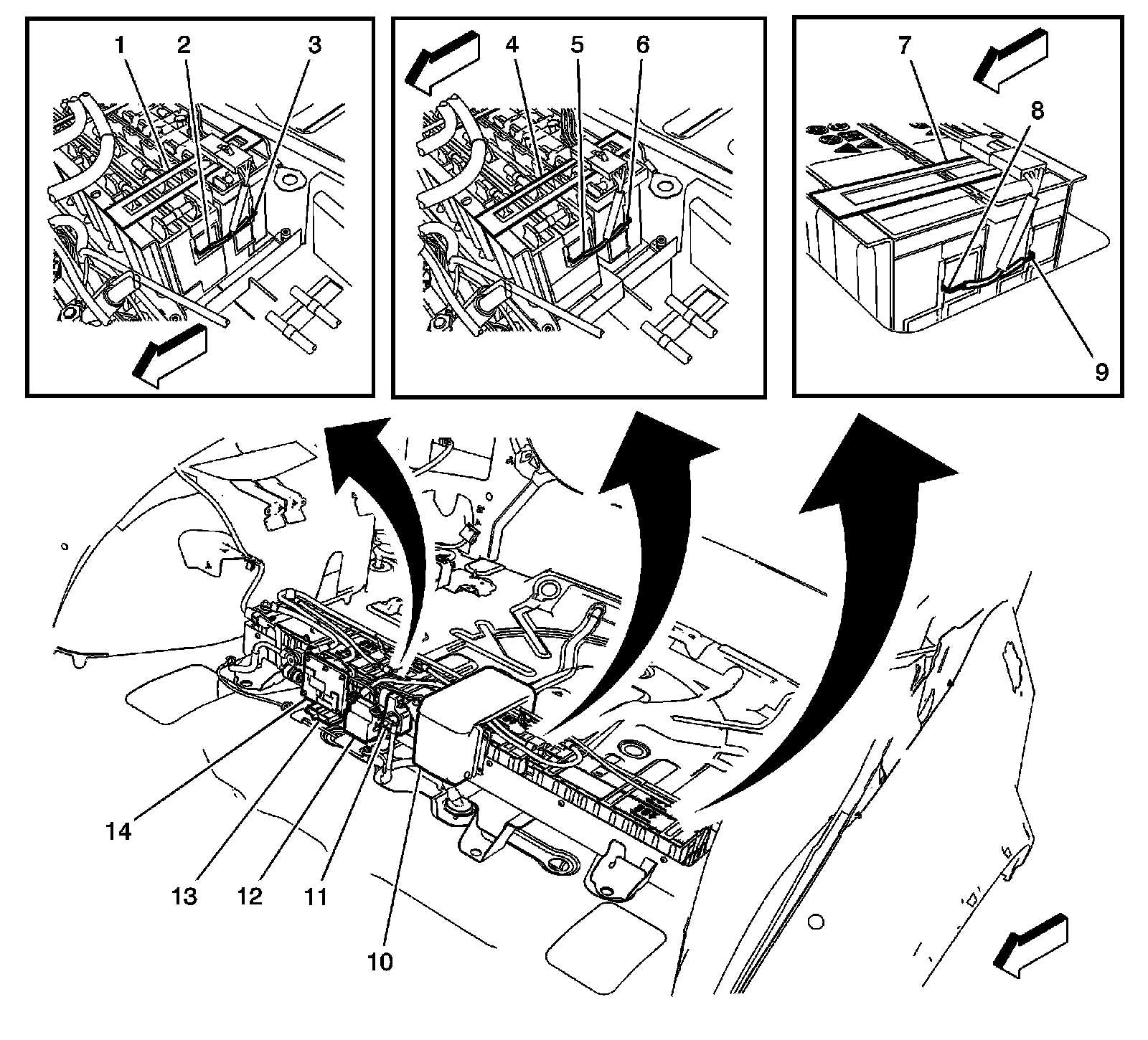

Lower Front of the Rear Compartment Components (HP7)




1 - Generator Battery 1
2 - Generator Battery Temperature Sensor 1A
3 - Generator Battery Temperature Sensor 1B
4 - Generator Battery 2
5 - Generator Battery Temperature Sensor 2A
6 - Generator Battery Temperature Sensor 2B
7 - Generator Battery 3
8 - Generator Battery Temperature Sensor 3A
9 - Generator Battery Temperature Sensor 3B
10 - Generator Battery Vent Fan
11 - Battery Current Sensor
12 - Main Contactor Relay
13 - Battery Disconnect Switch
14 - Generator Battery Disconnect Control Module
