Home >> Chevrolet >> 2010 >> Malibu L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Pedal Positioning Module

Pedal Positioning Module




Component Connector End Views

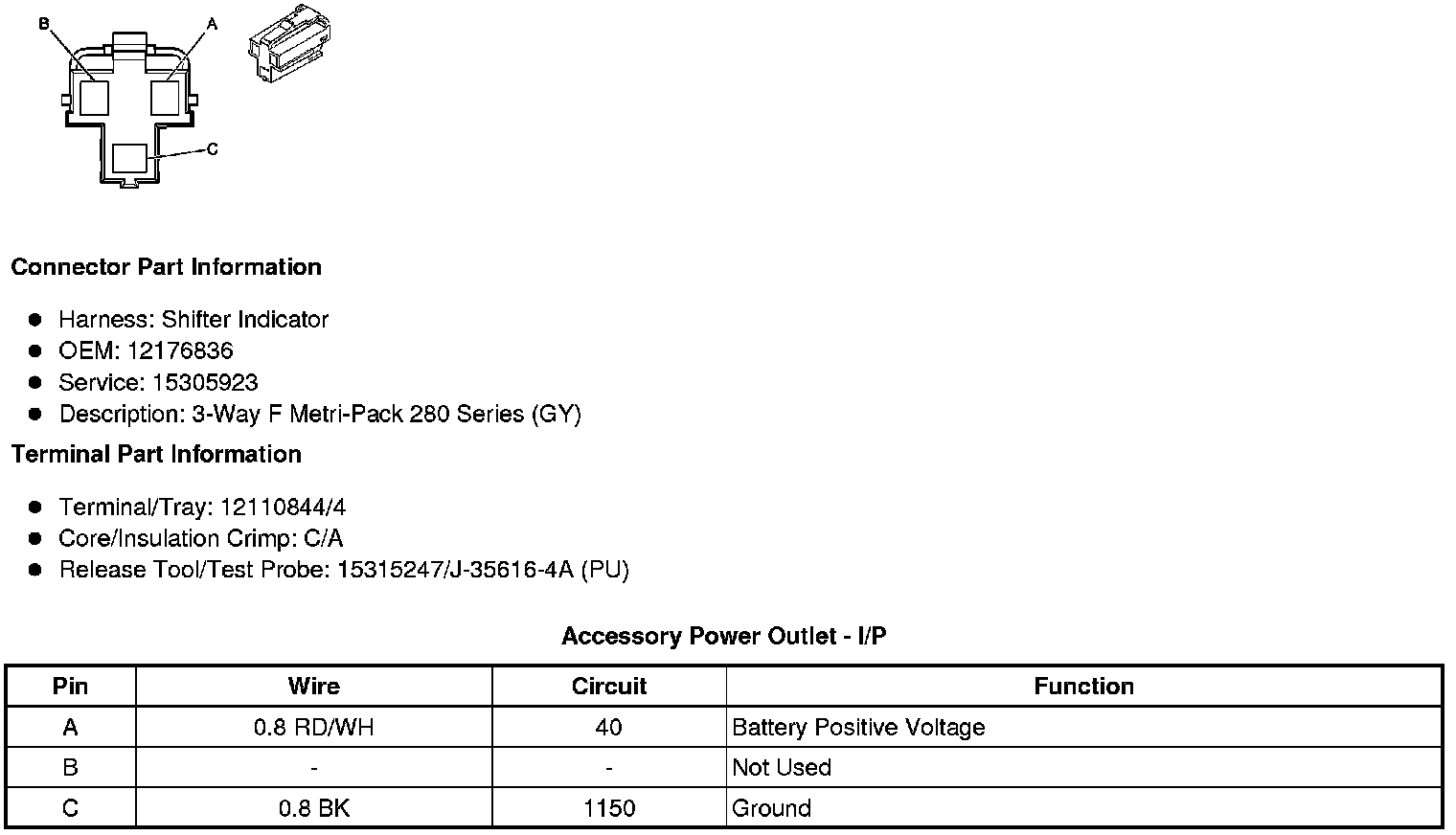

Accessory Power Outlet - I/P

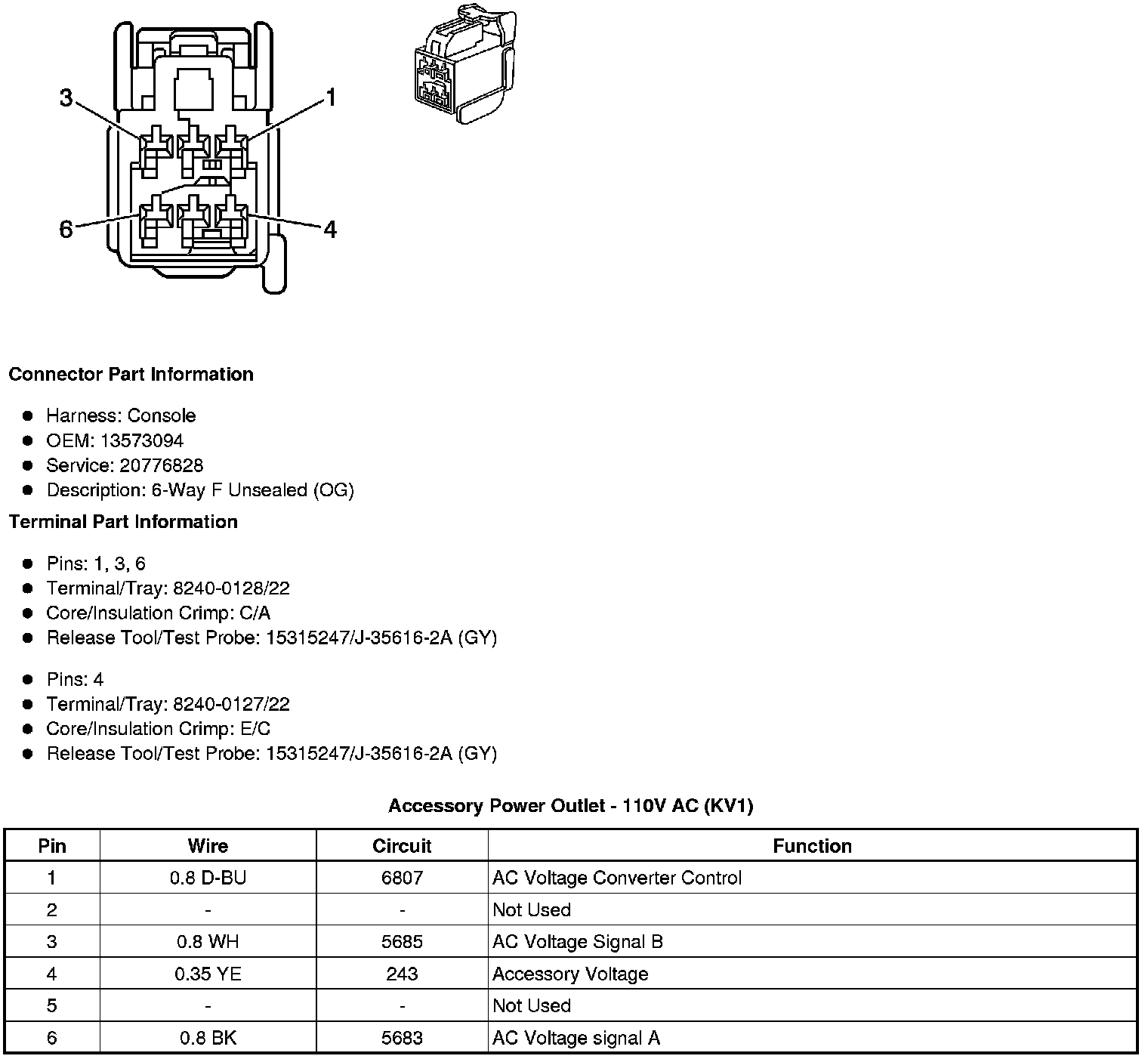

Accessory Power Outlet - 110V AC (KV1)

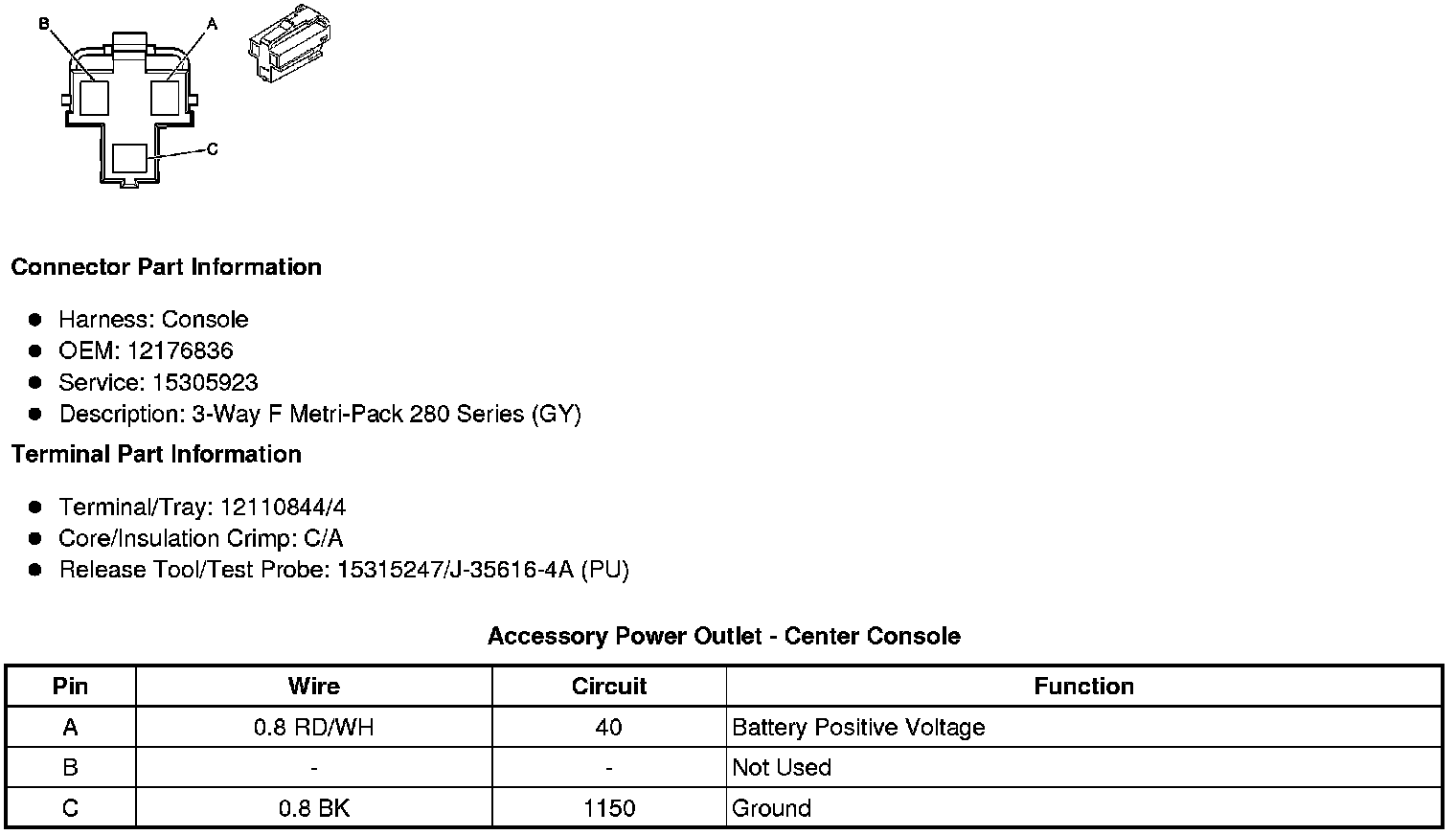

Accessory Power Outlet - Center Console
