Chevrolet
>>
2010
>>
Malibu L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

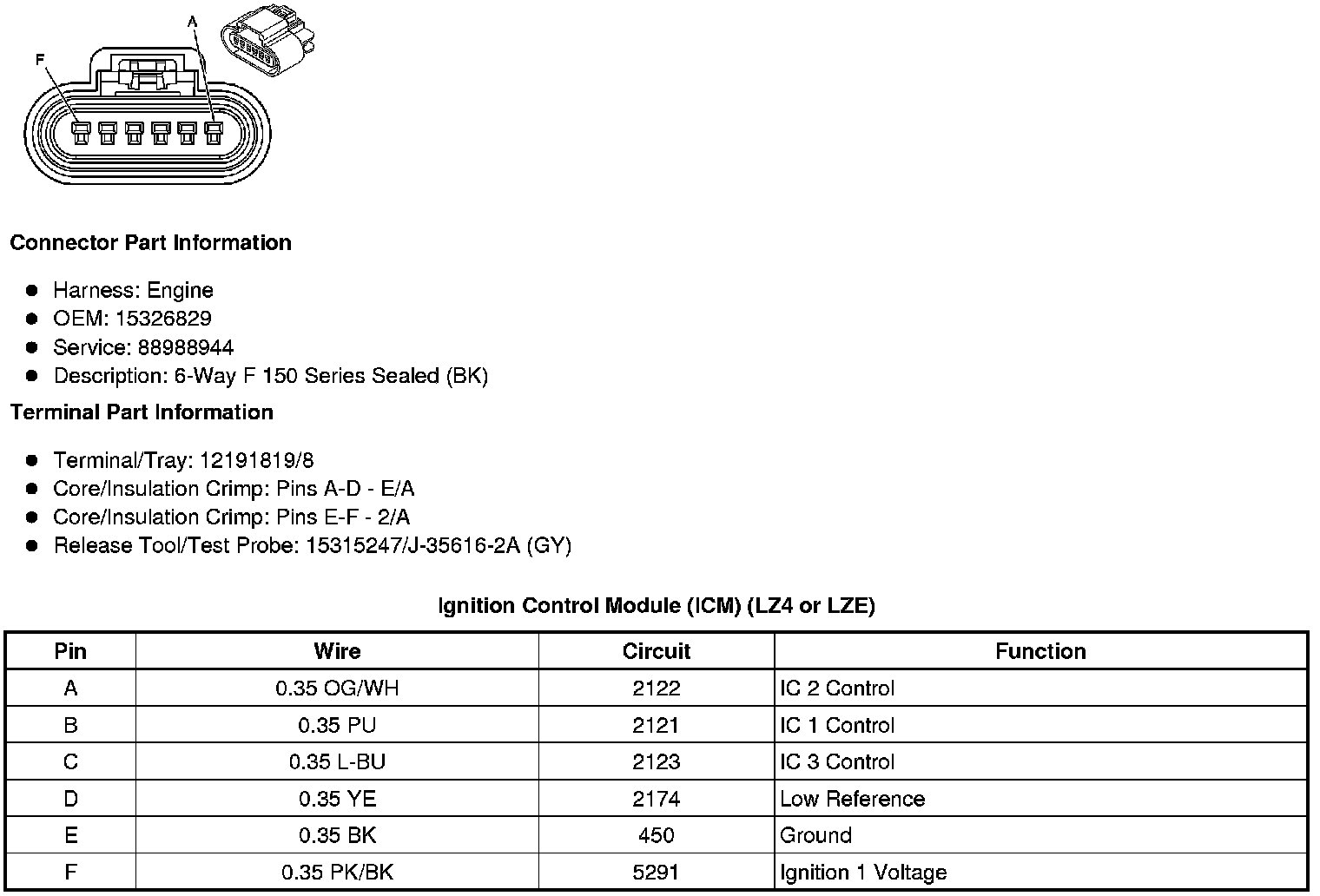

Component Connector End Views
Ignition Control Module (ICM) (LZ4 or LZE)
