Emergency Contact Module
Emergency Contact Module

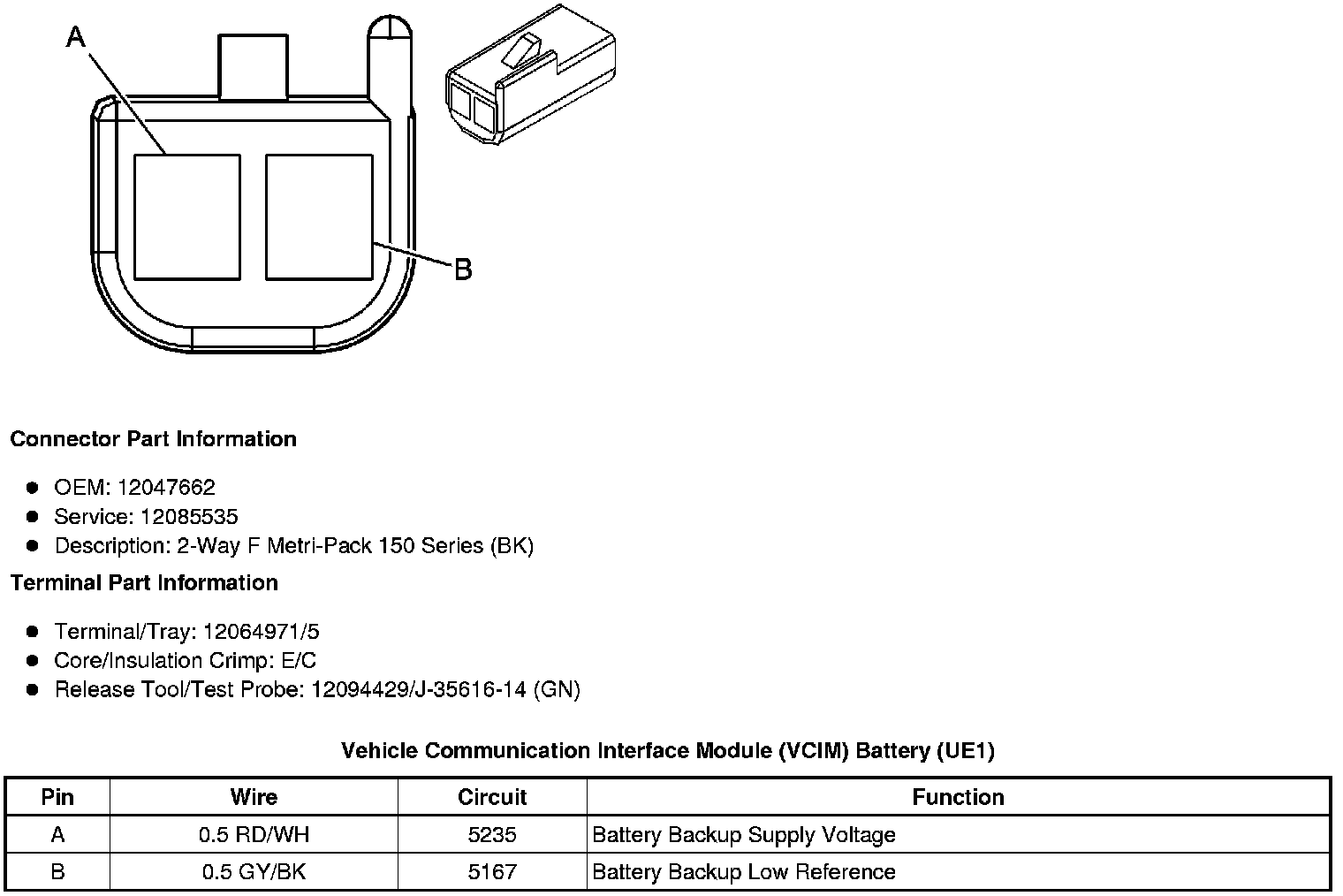

Component Connector End Views
Vehicle Communication Interface Module (VCIM) Battery (UE1)
