Air Bag Control Module
Air Bag Control Module

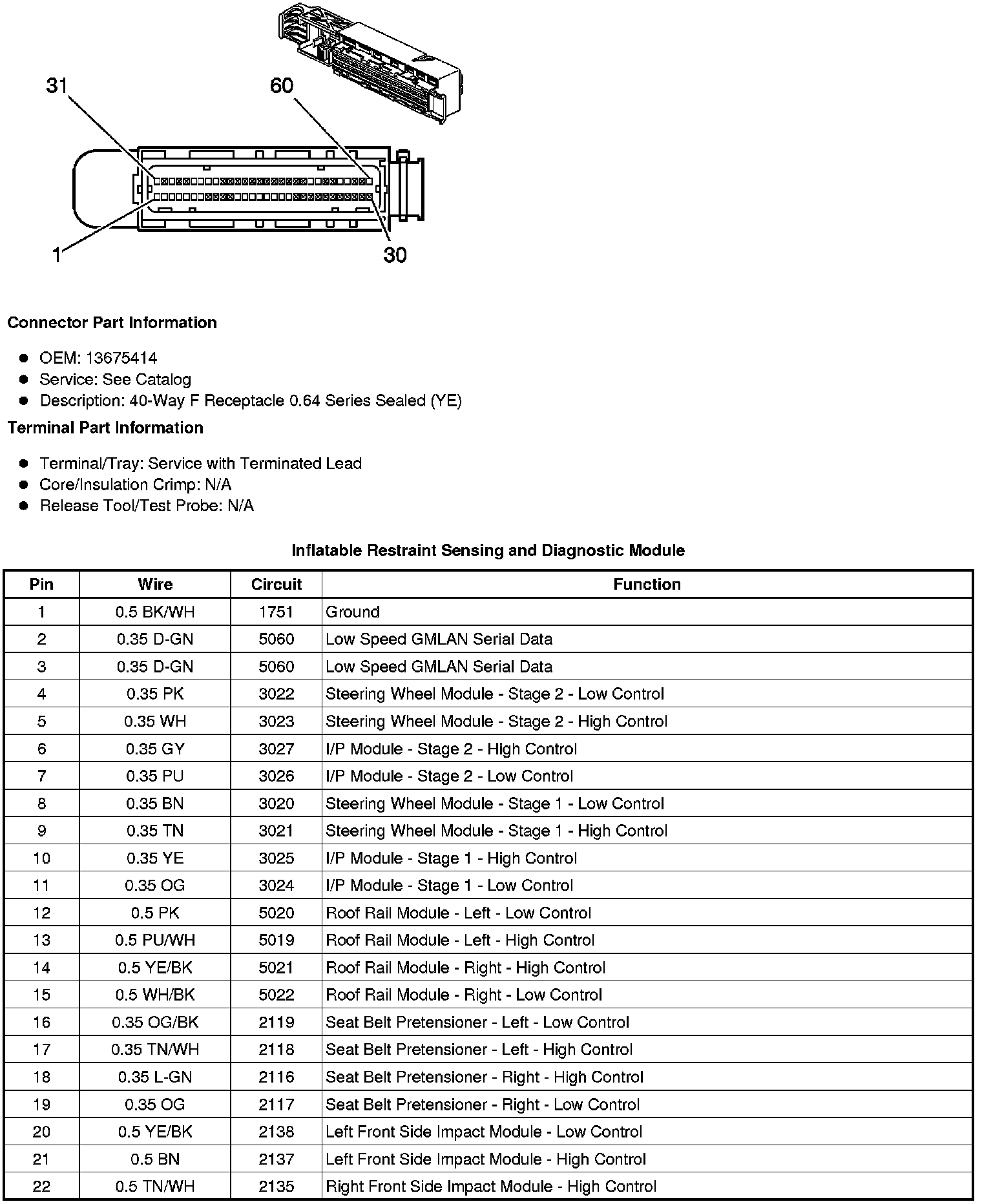

Component Connector End Views

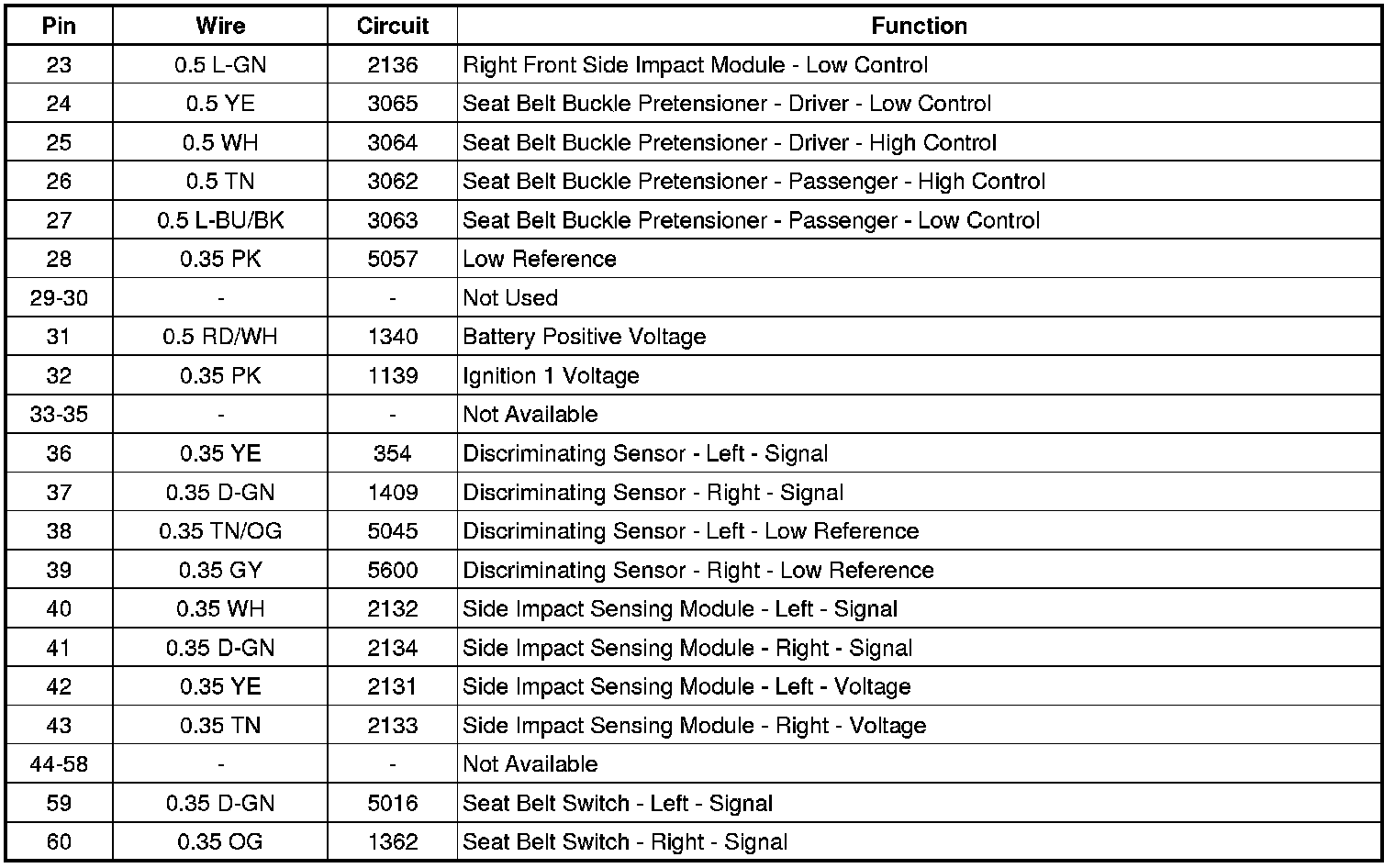

Inflatable Restraint Sensing and Diagnostic Module
