Fuse Block

Electrical Center Identification Views

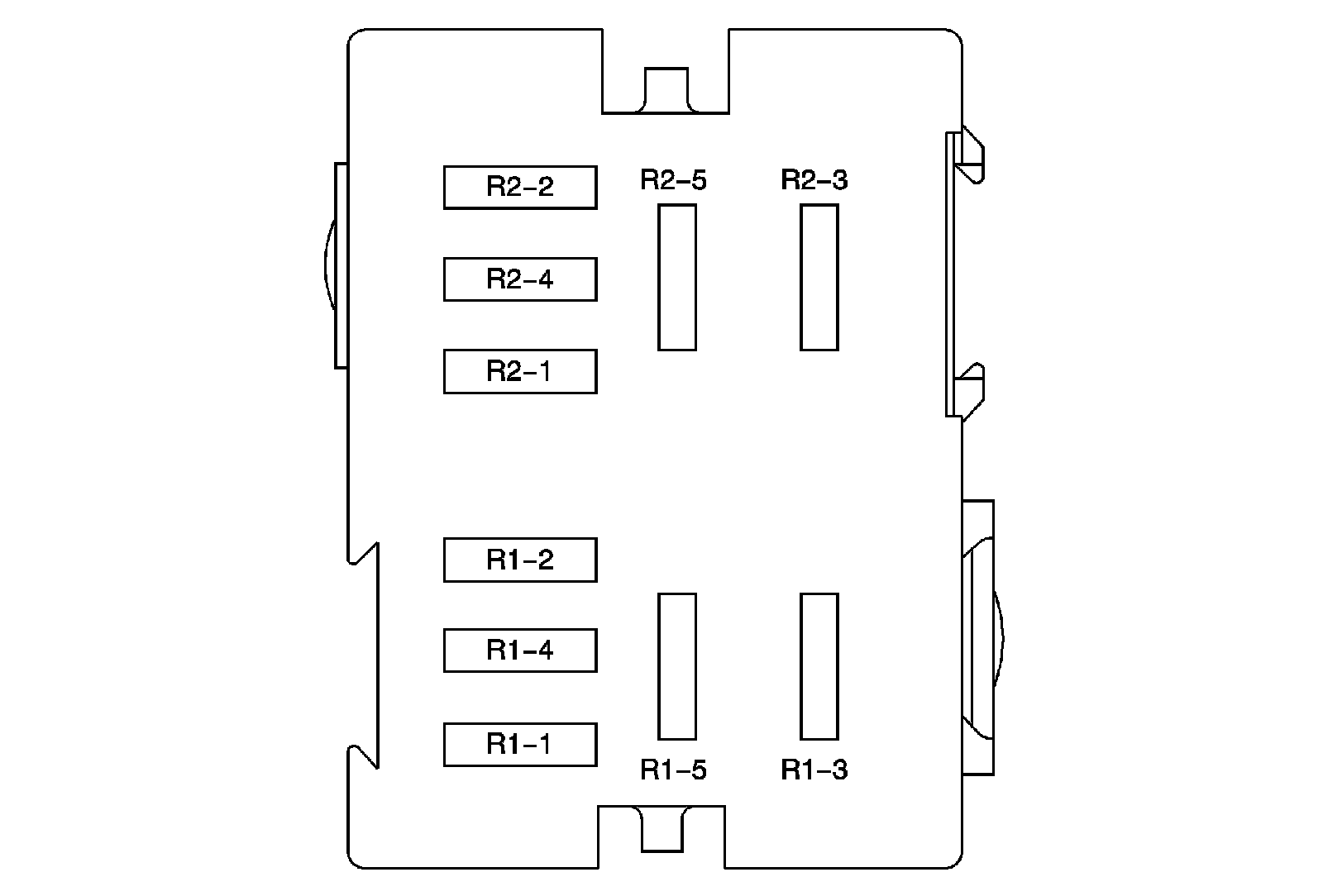

Fuse Block - Rear Access Panel Top View (Panel Van)

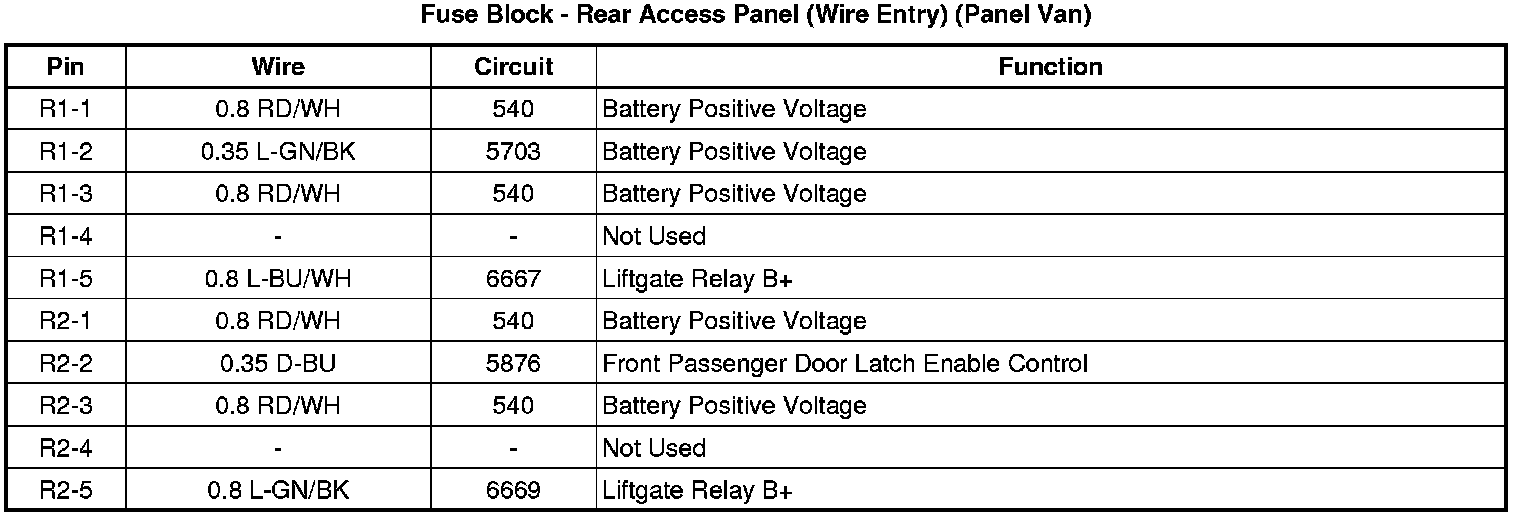

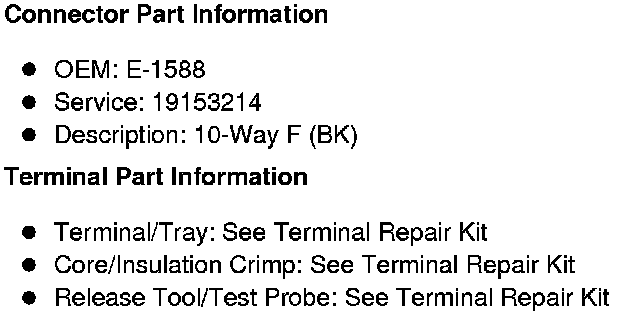

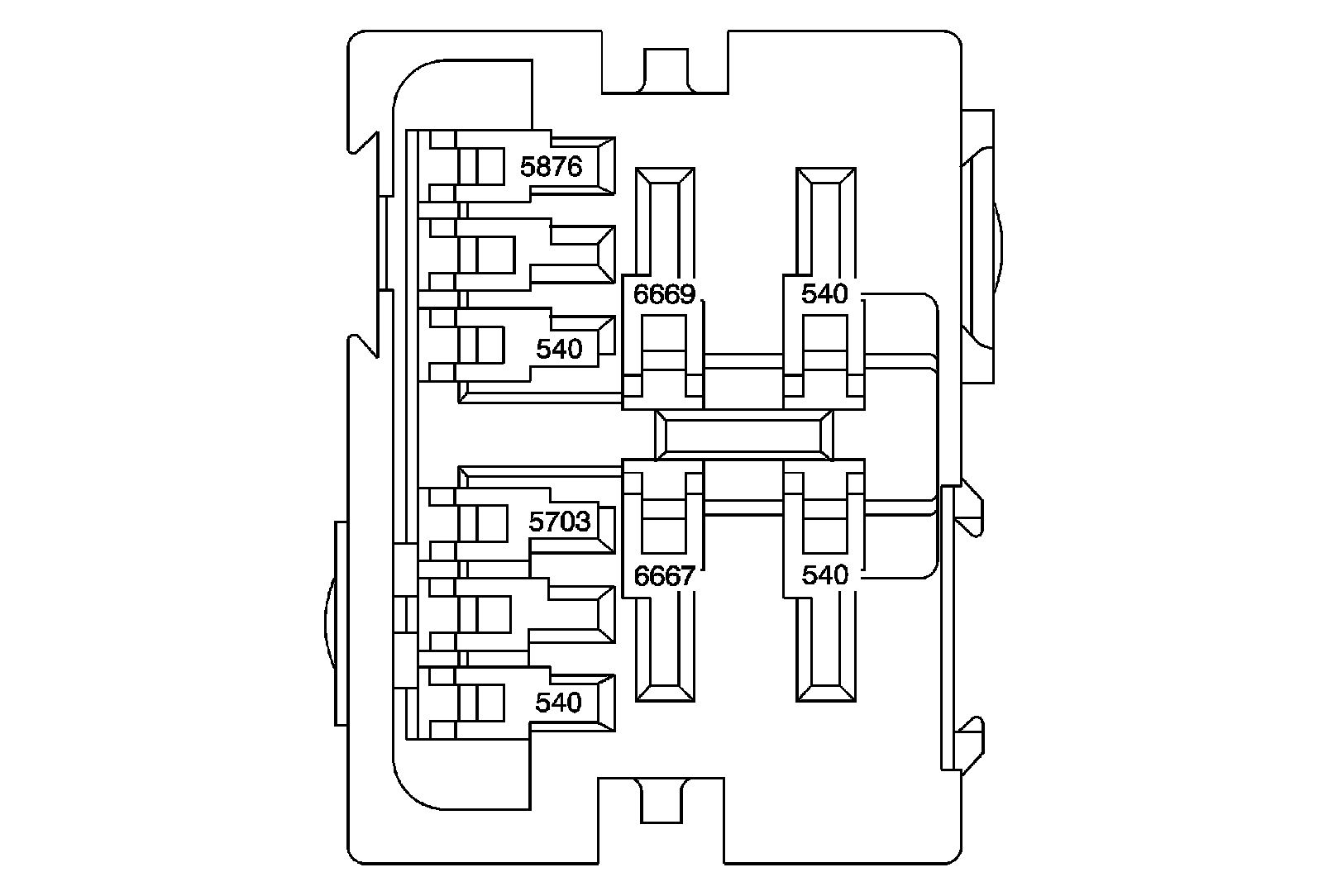

Fuse Block - Rear Access Panel (Wire Entry) (Panel Van)
