Map Light




Component Connector End Views

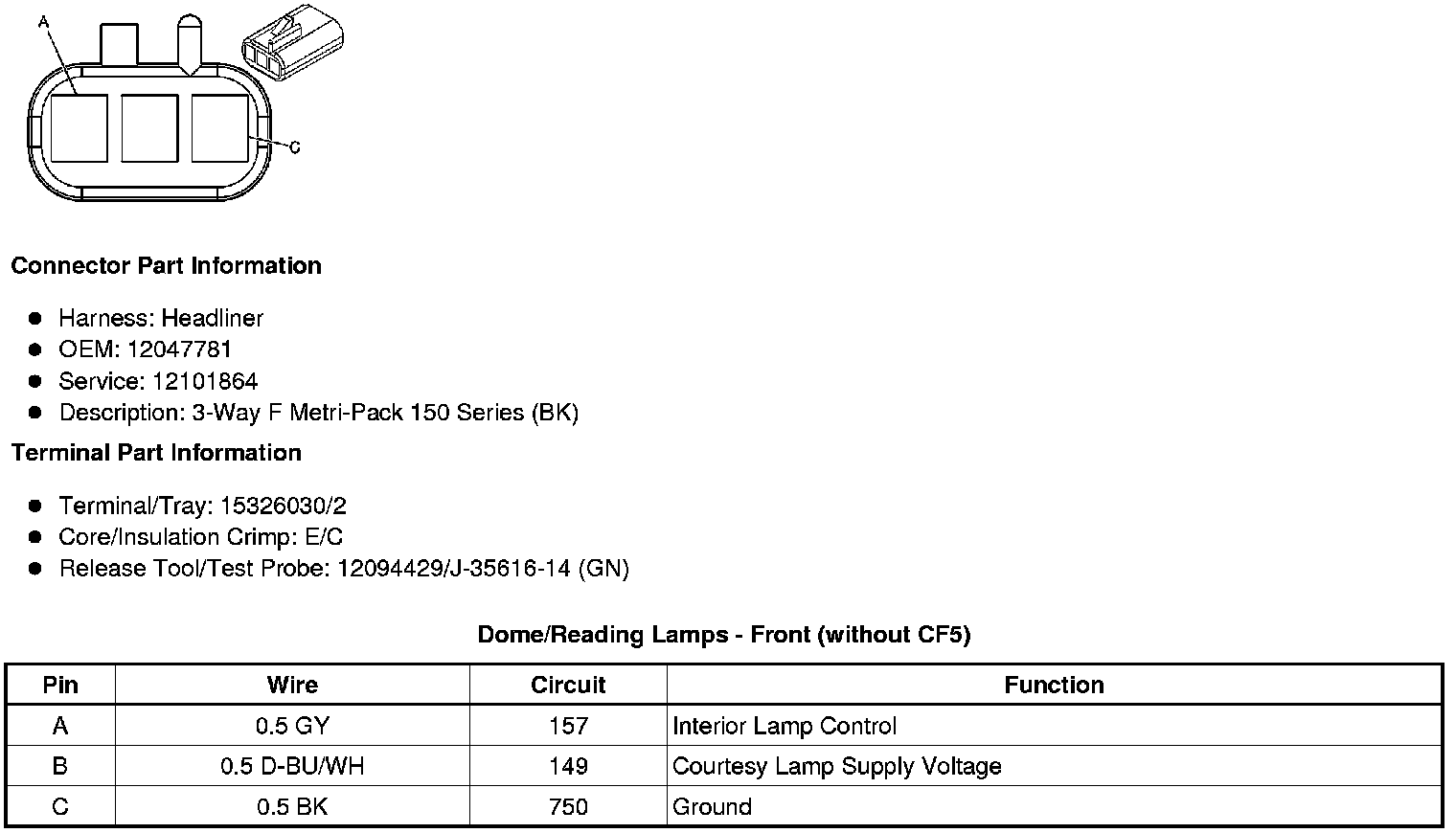

Dome/Reading Lamps - Front (without CF5)

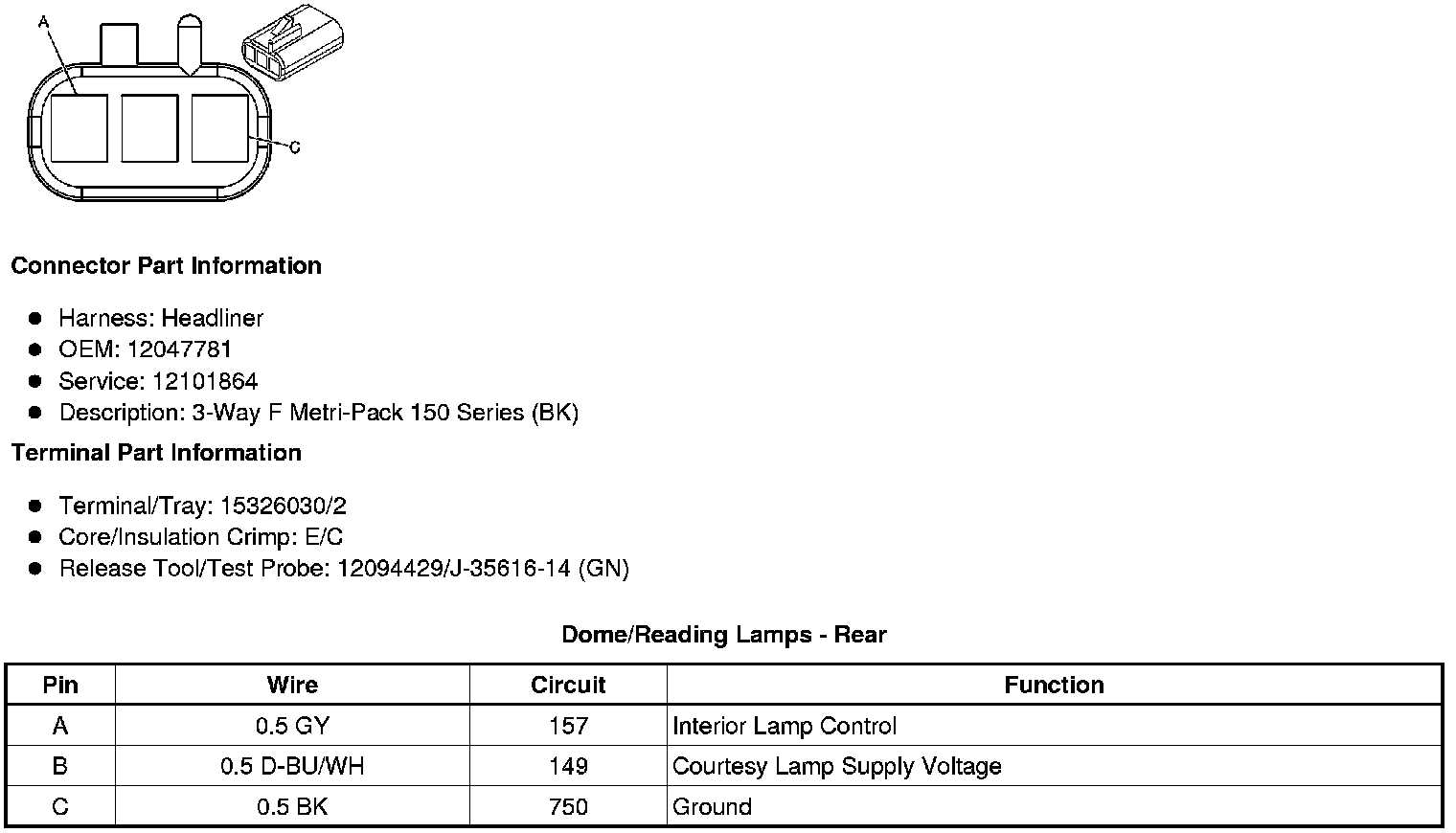

Dome/Reading Lamps - Rear

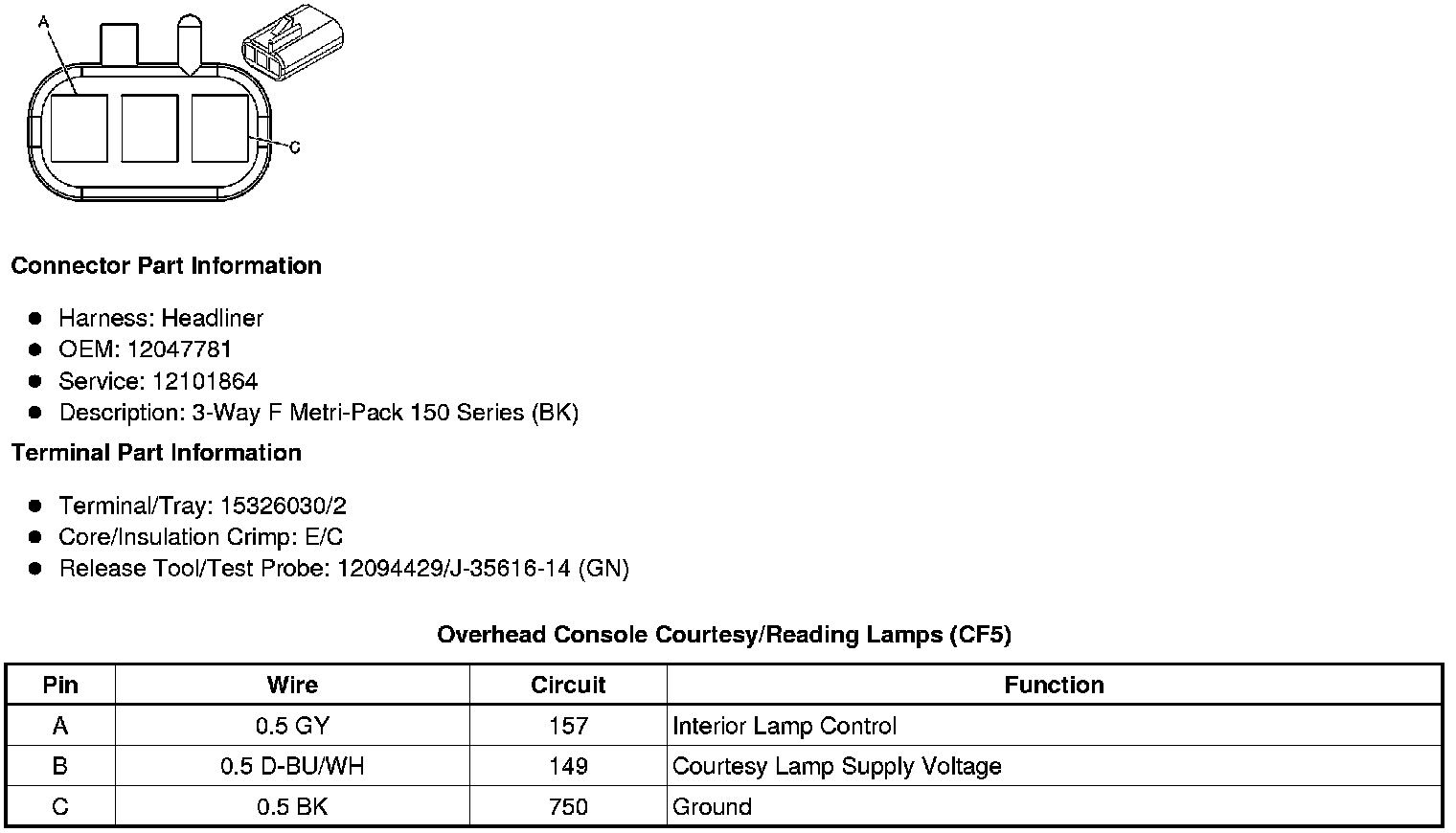

Overhead Console Courtesy/Reading Lamps (CF5)
