Intake Manifold

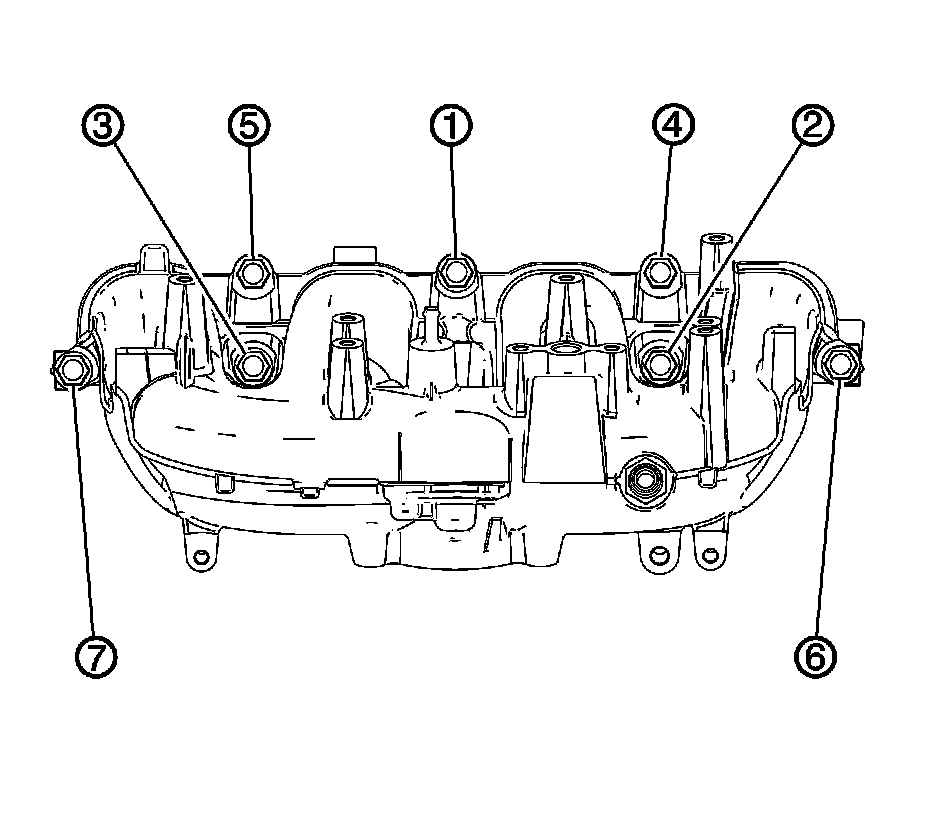

Intake Manifold Sequence






Install the intake manifold bolts and nuts finger tight.
Tighten the intake manifold bolts and nuts in sequence to 5 Nm (44 lb in).
Tighten the intake manifold bolts and nuts in sequence a final pass to 25 Nm (18 lb ft).

Tighten the throttle body bolts to 10 Nm (89 lb in).
