Electronic Brake Control Module





Component Connector End Views

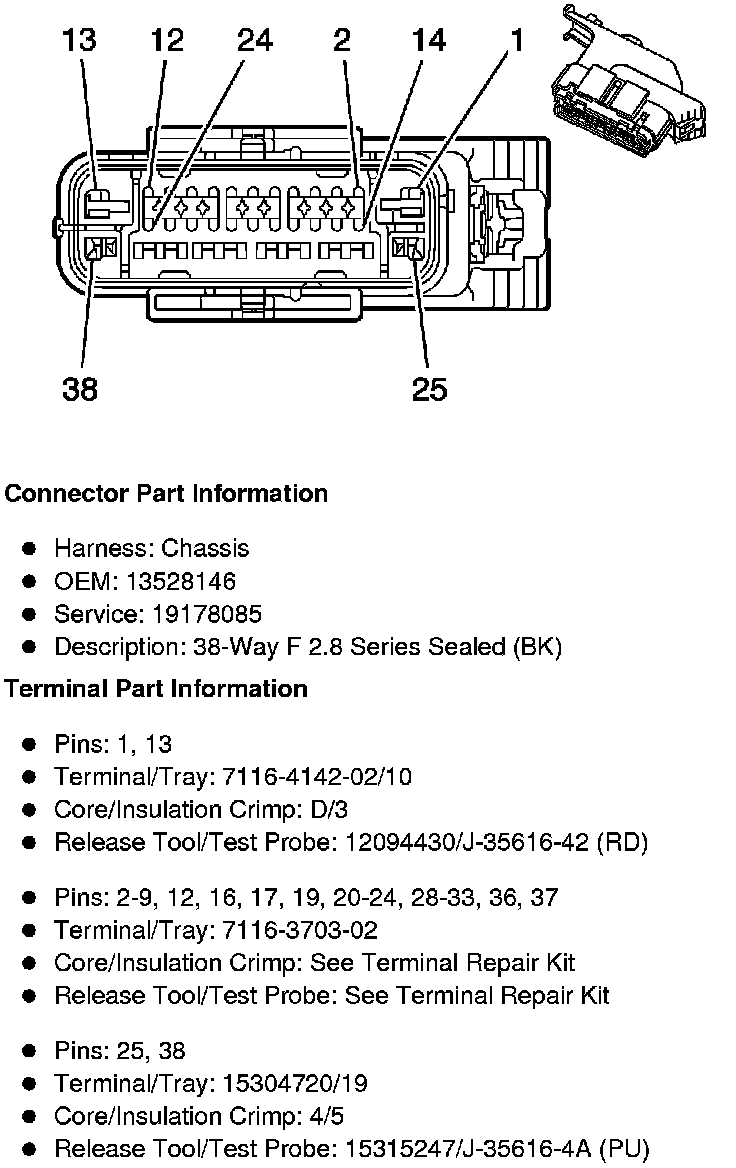

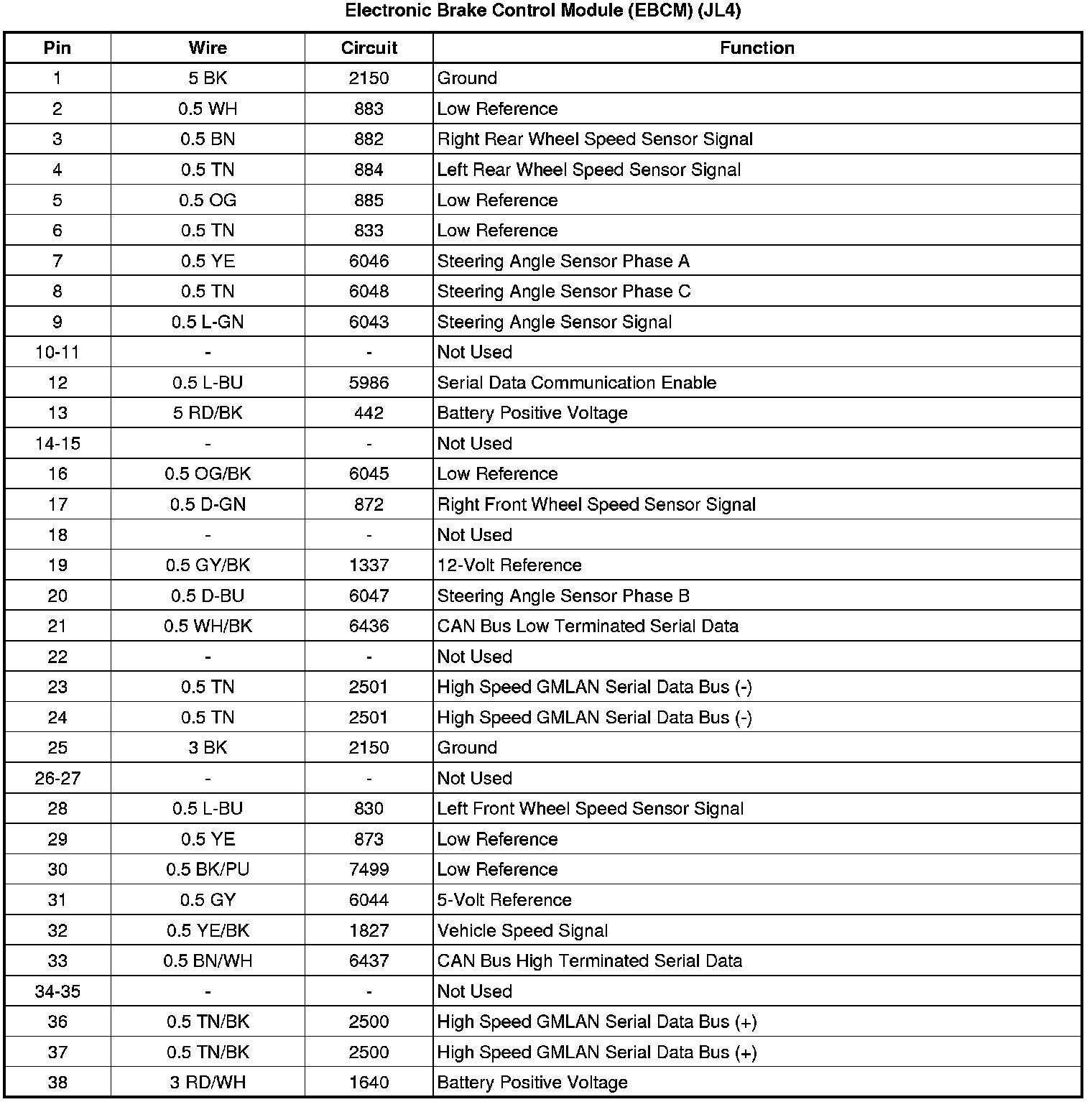

Electronic Brake Control Module (EBCM) (JL4)

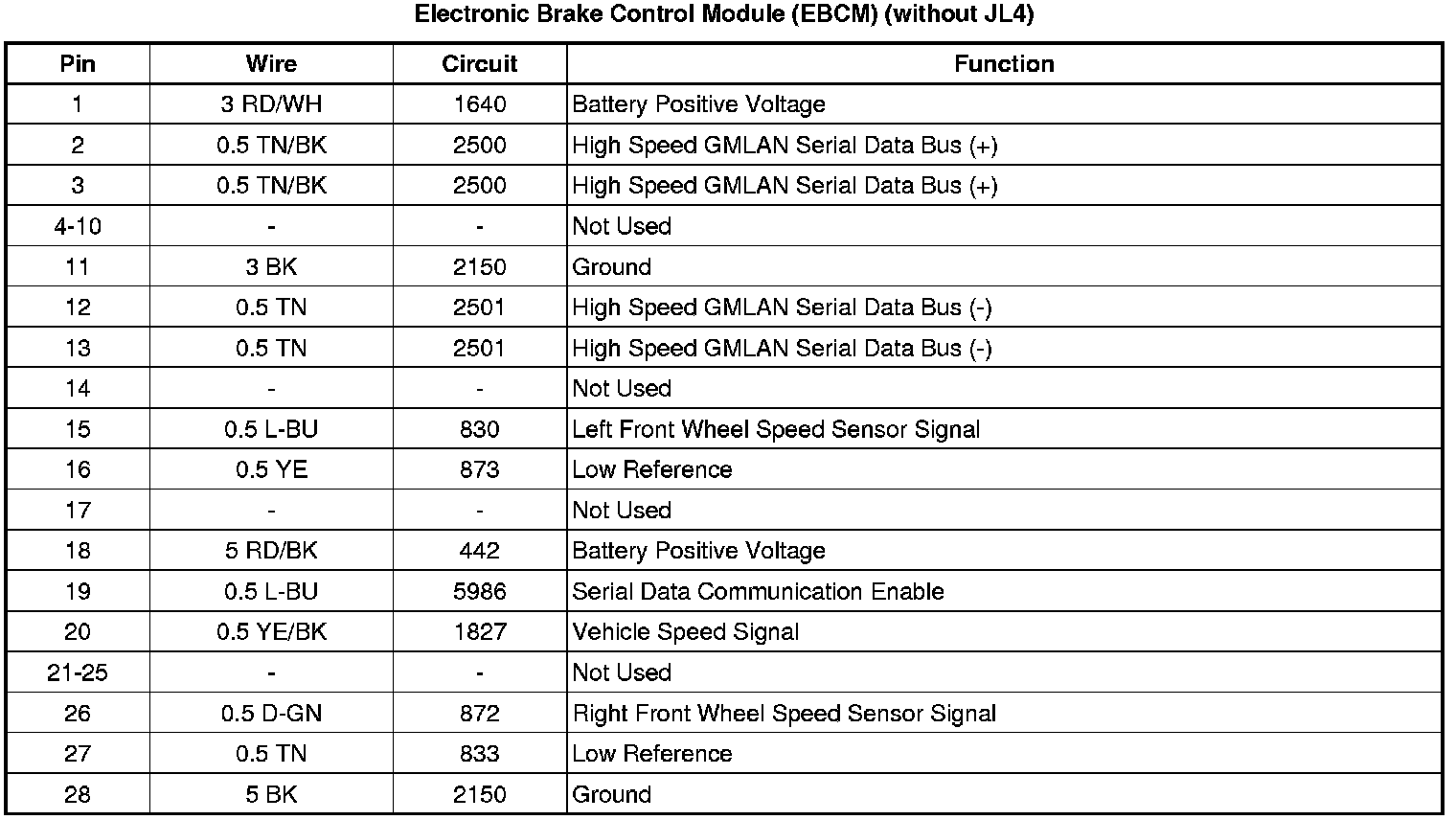

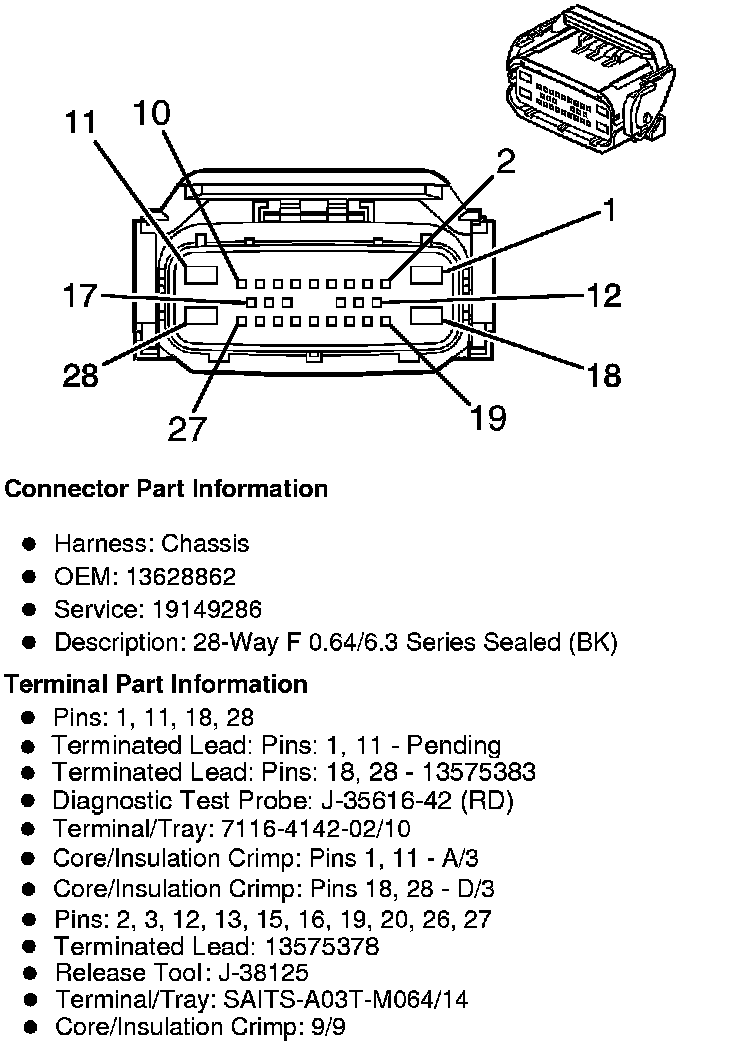

Electronic Brake Control Module (EBCM) (without JL4)
