Body Control Module: Locations

Harness Routing Views

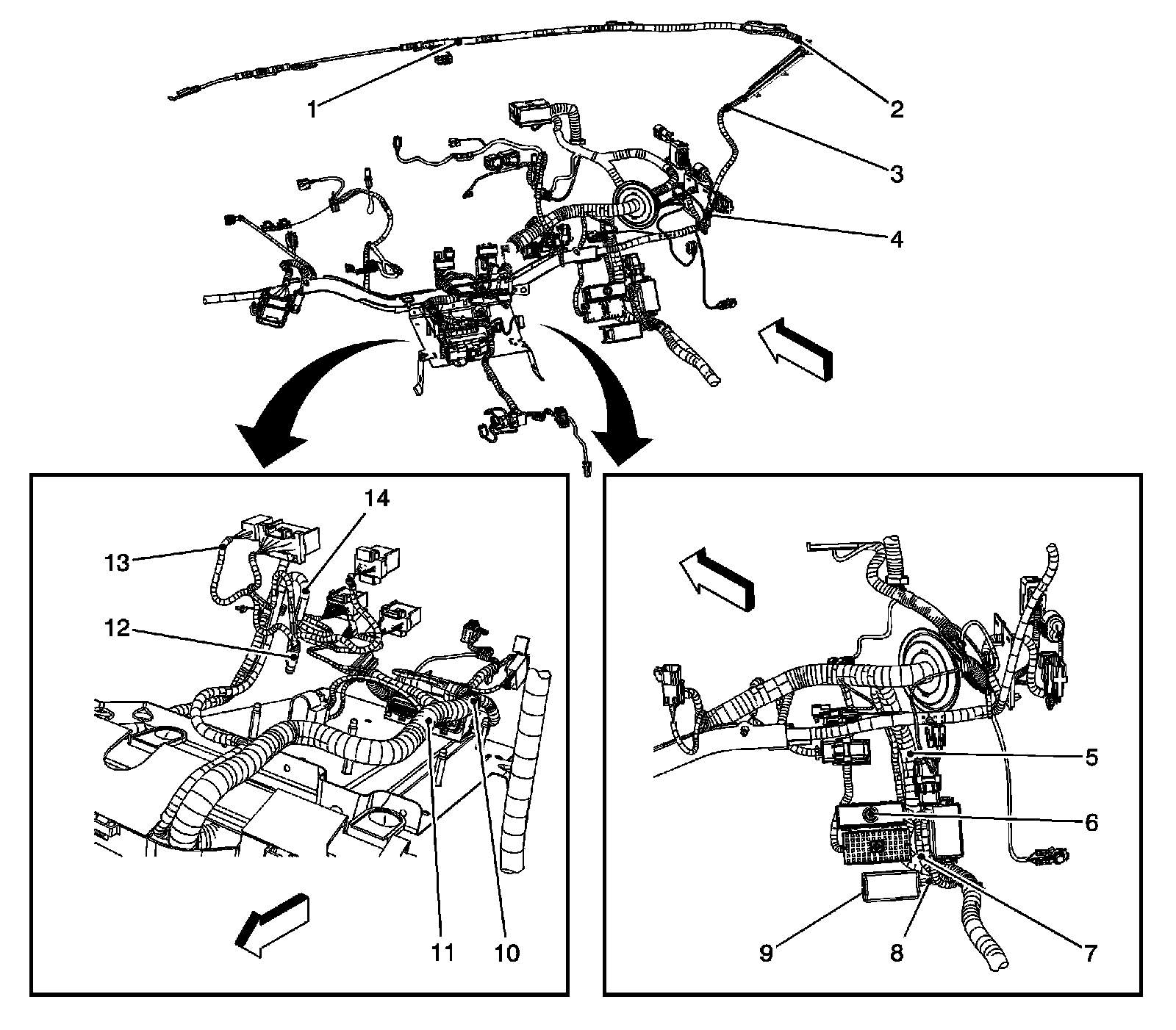

Instrument Panel Harness Routing Splices - Engine and Passenger Compartment




1 - J351
2 - J640
3 - J213 (CM7)
4 - J312
5 - J234
6 - Body Control Module (BCM) X3
7 - J208
8 - J222
9 - Fuse Block - I/P
10 - J246
11 - J255
12 - J205
13 - J204
14 - J219 (U3Z)
