Intake Manifold

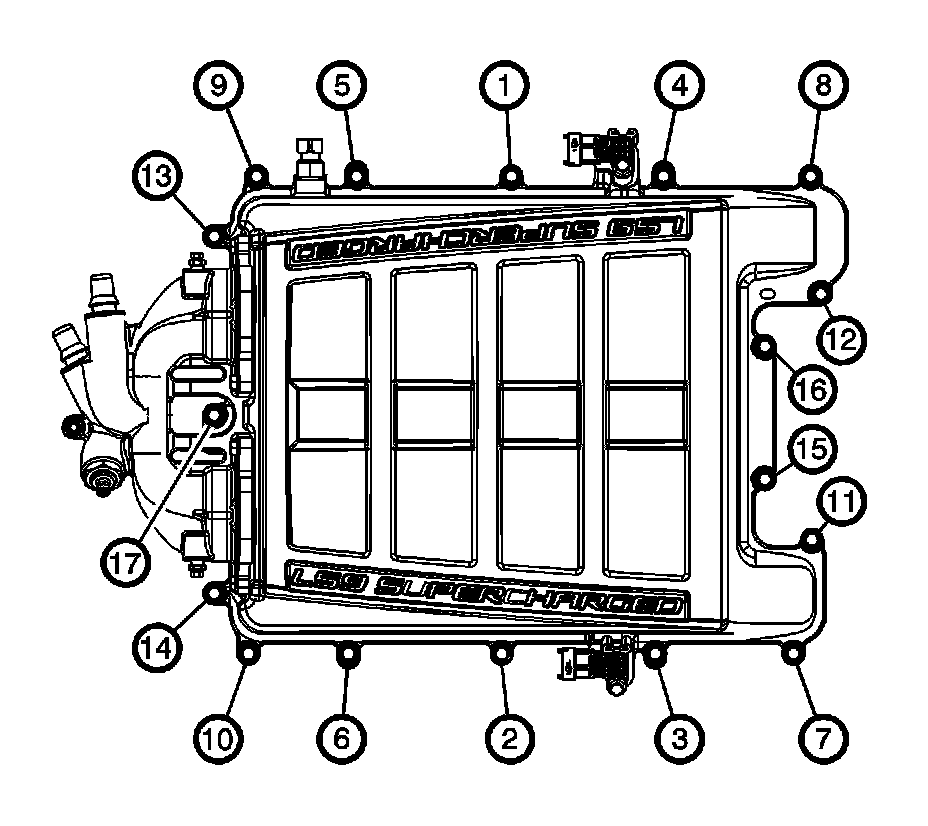

Supercharger





First pass 5 Nm (44 lb in)
Final pass 10 Nm (89 lb in)

Supercharger Cover





First pass 5 Nm (44 lb in)
Final pass 10 Nm (89 lb in)

Throttle Body
Bolts 10 Nm (89 lb in)
