Component Locations




Front of Vehicle/Engine Compartment Component Views

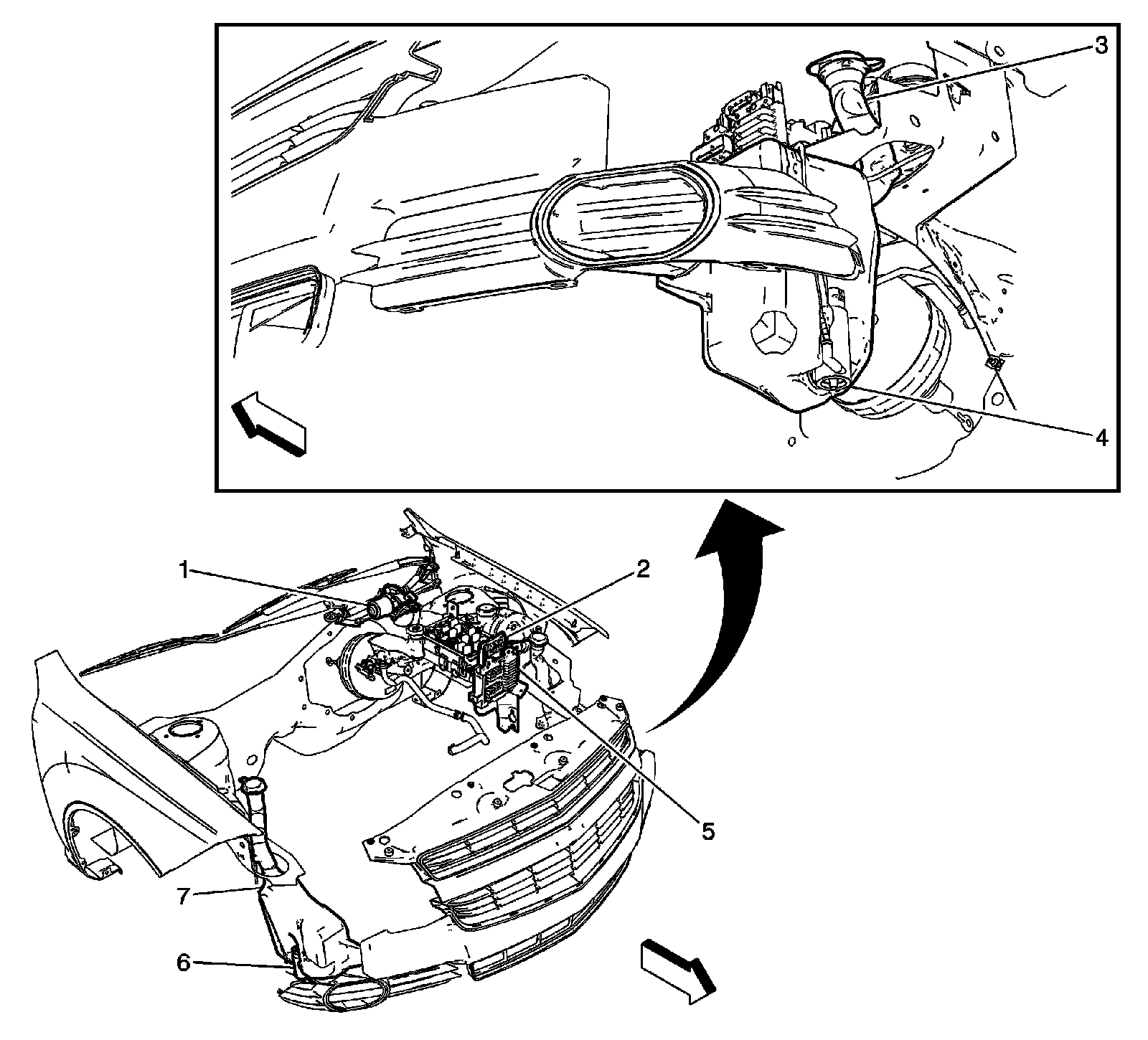

Front Engine Compartment (1 of 2)




1 - Windshield Wiper Motor
2 - Transmission Control Module (TCM) (MN5)
3 - Windshield Washer Container (Sedan)
4 - Windshield Washer Fluid Pump (Sedan)
5 - Engine Control Module (ECM)
6 - Windshield Washer Fluid Pump (Coupe)
7 - Windshield Washer Container (Coupe)
