Home >> Chevrolet >> 2010 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module




Component Connector End Views

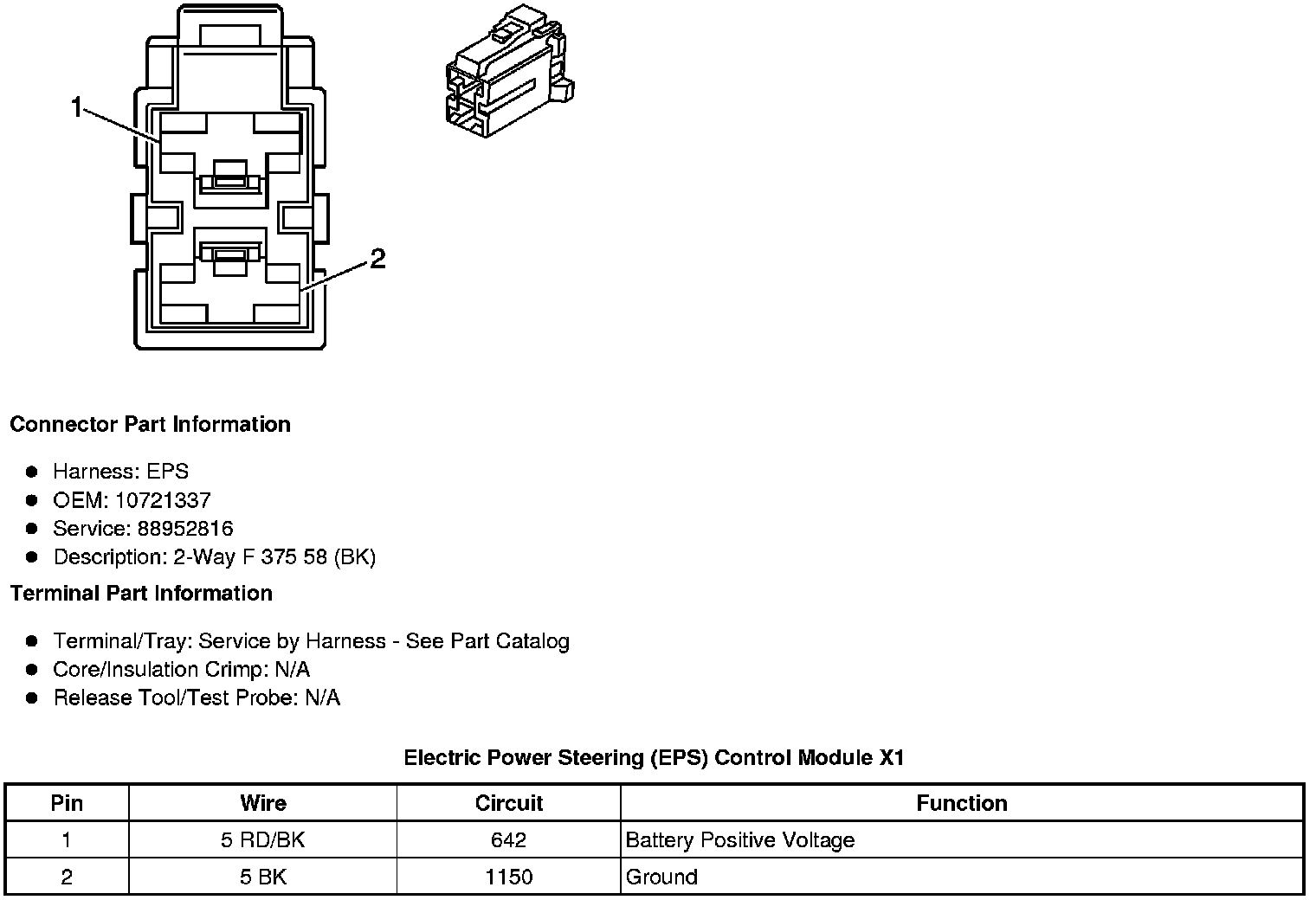

Electric Power Steering (EPS) Control Module X1

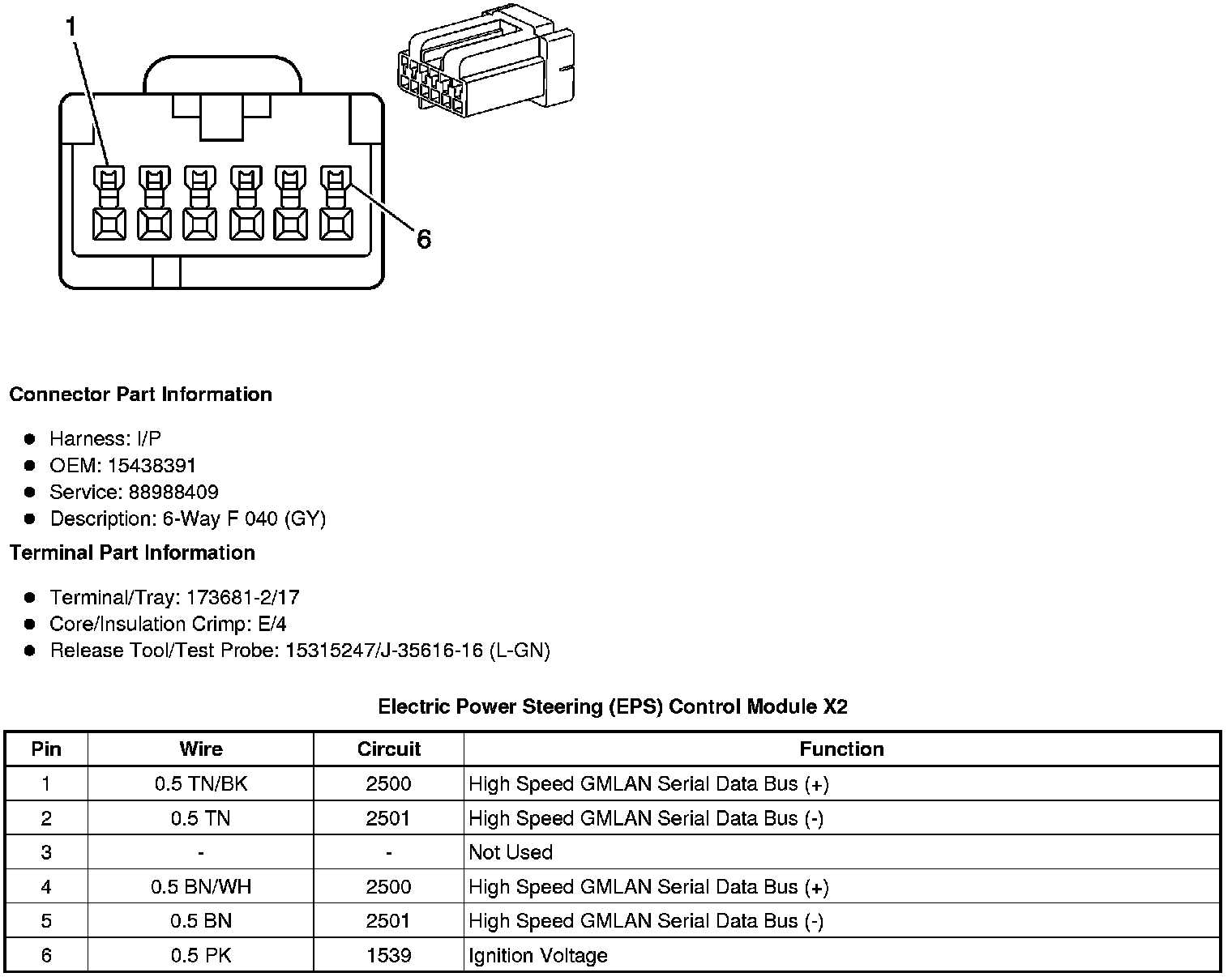

Electric Power Steering (EPS) Control Module X2

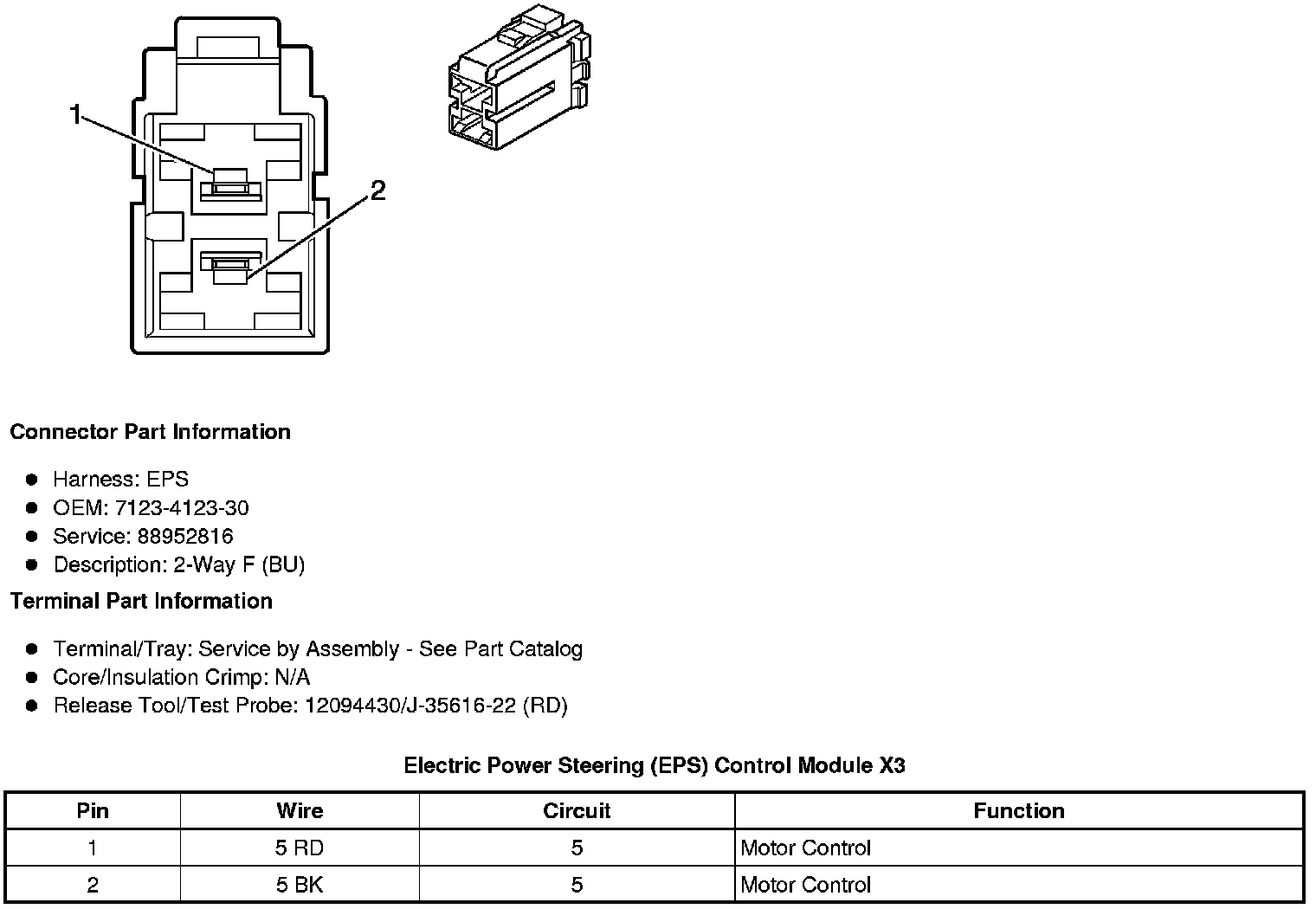

Electric Power Steering (EPS) Control Module X3
