Timing Cover

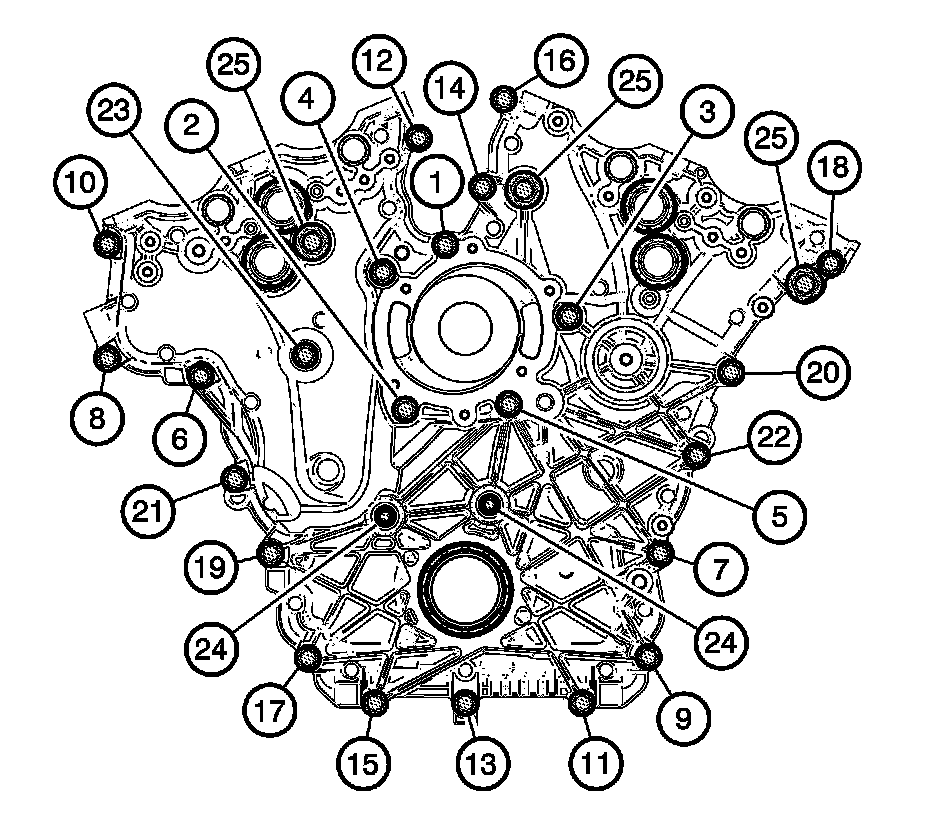

Engine front cover





Engine front cover bolts in the number (25) location are model dependent and may not apply

Bolts (1-23)
First pass 20 Nm (14 lb ft)
Second pass 20 Nm (14 lb ft)
Third pass additional 60 degrees

Bolts (24) 15 Nm (11 lb ft)
Bolts (25) 65 Nm (48 lb ft)
