Home >> Chevrolet >> 2010 >> Camaro V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

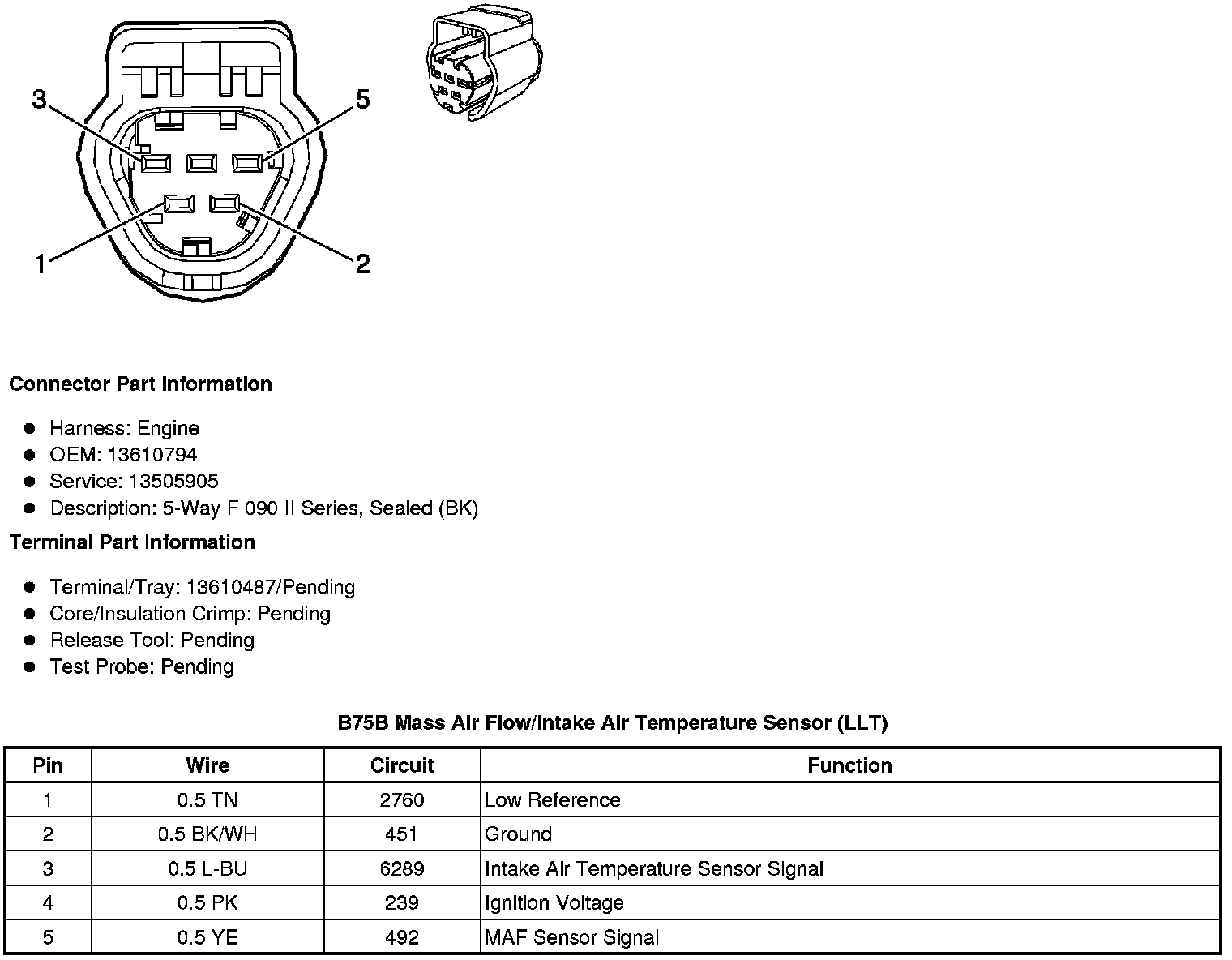

B75B Mass Air Flow/Intake Air Temperature Sensor (LLT)

RPO LLT - Engine VIN V Gas, 6 Cylinder, 3.6L, SIDI, V6, Aluminum, 60 Degrees, GM
