Home >> Chevrolet >> 2010 >> Camaro V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

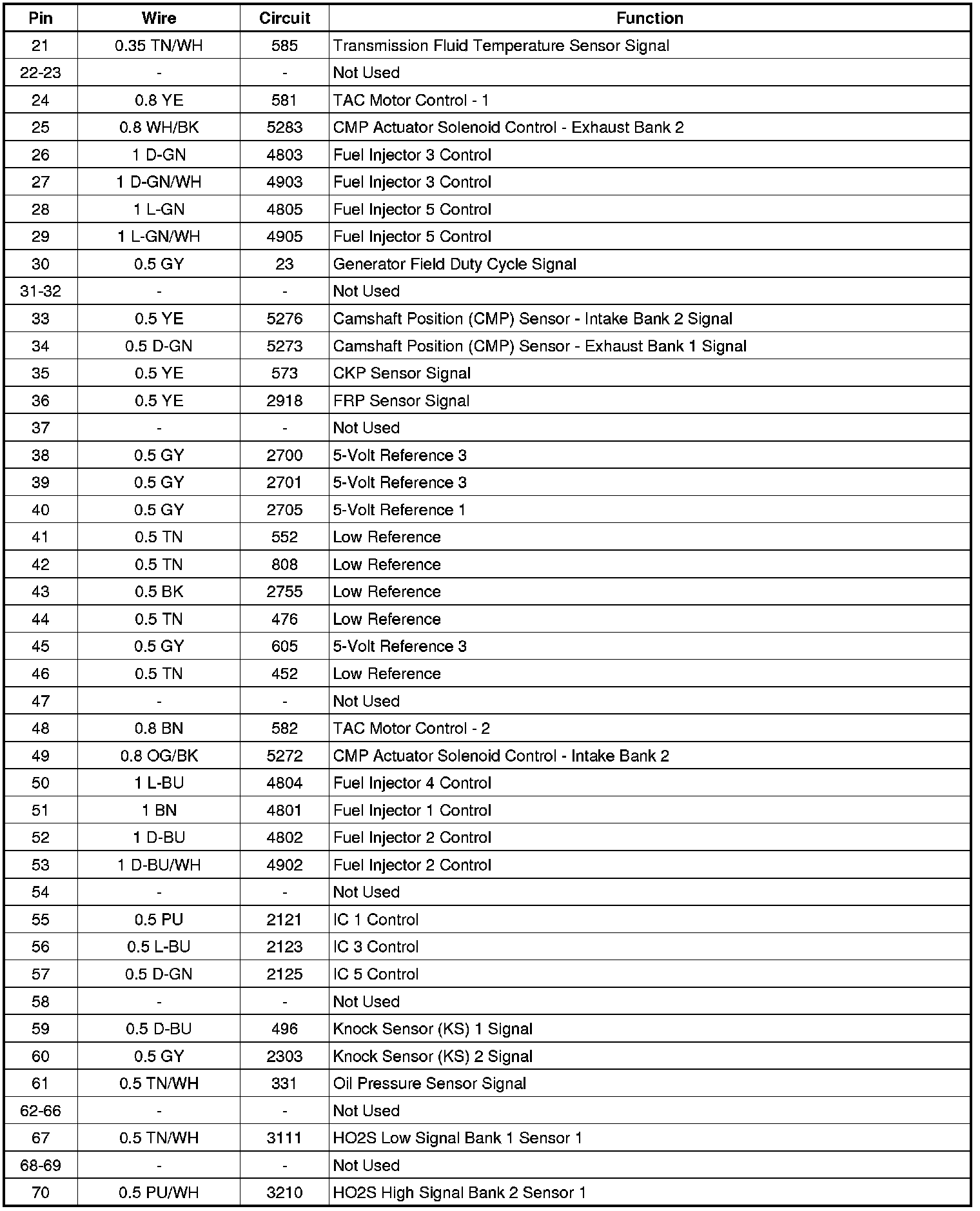

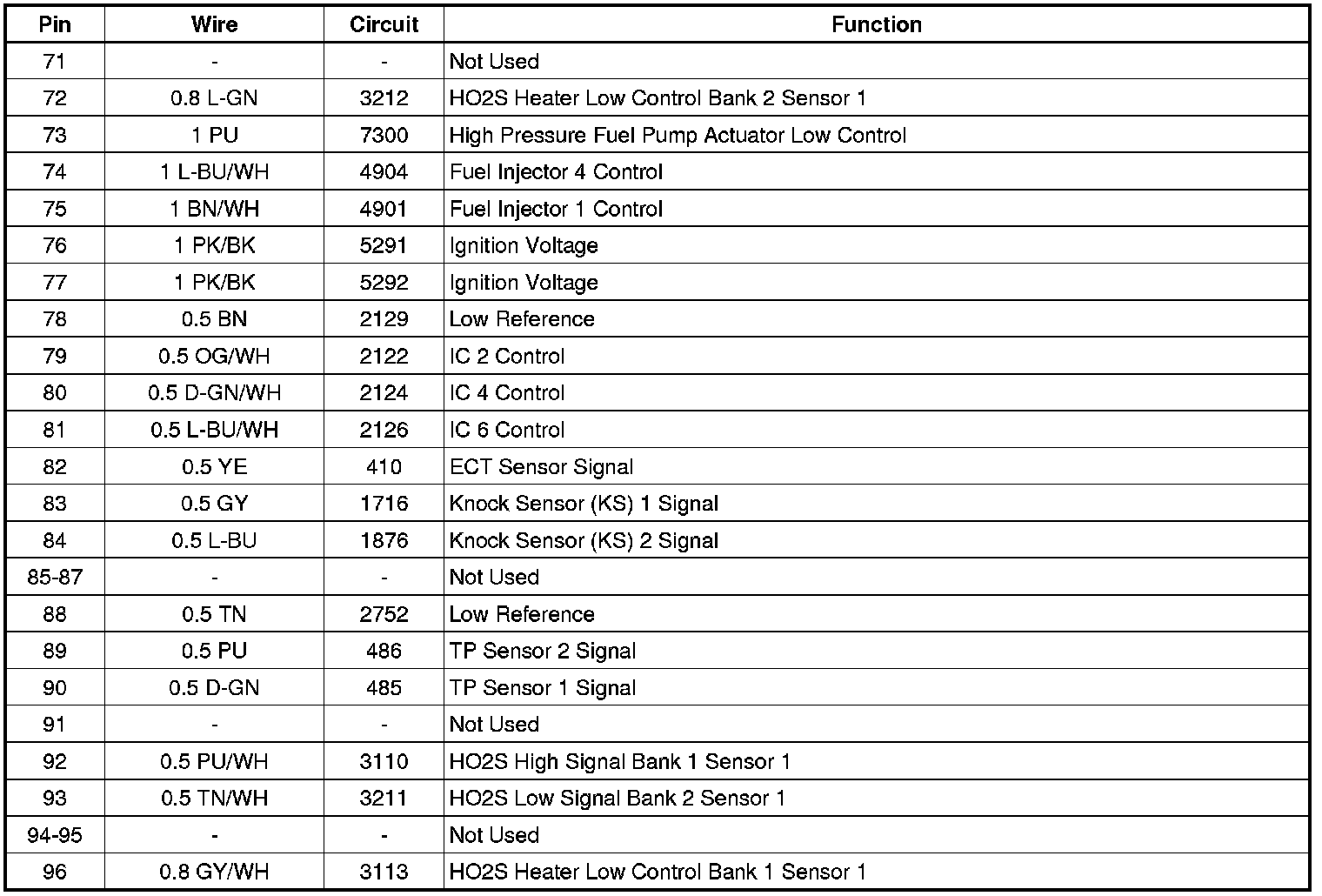

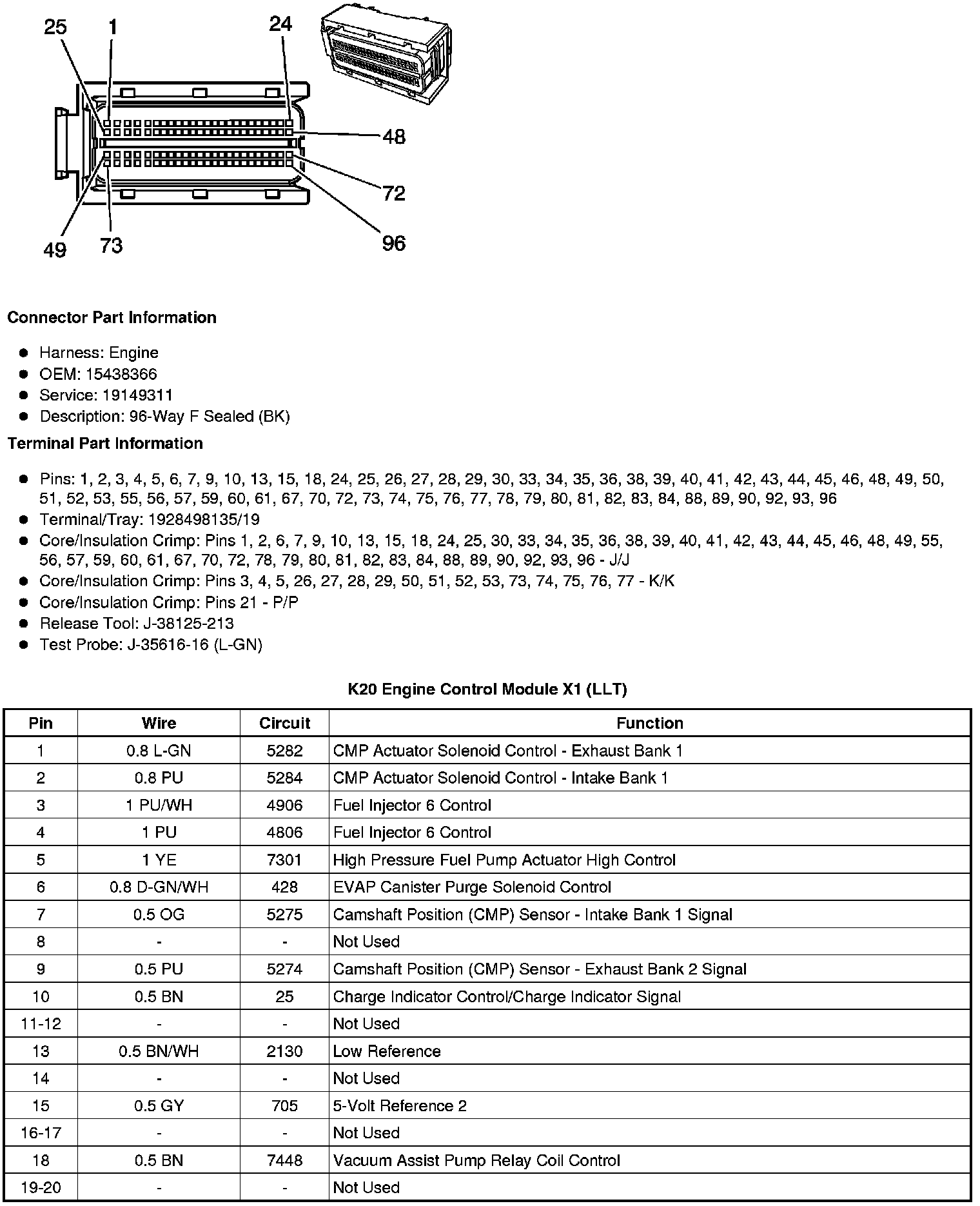

K20 Engine Control Module X1 (LLT)

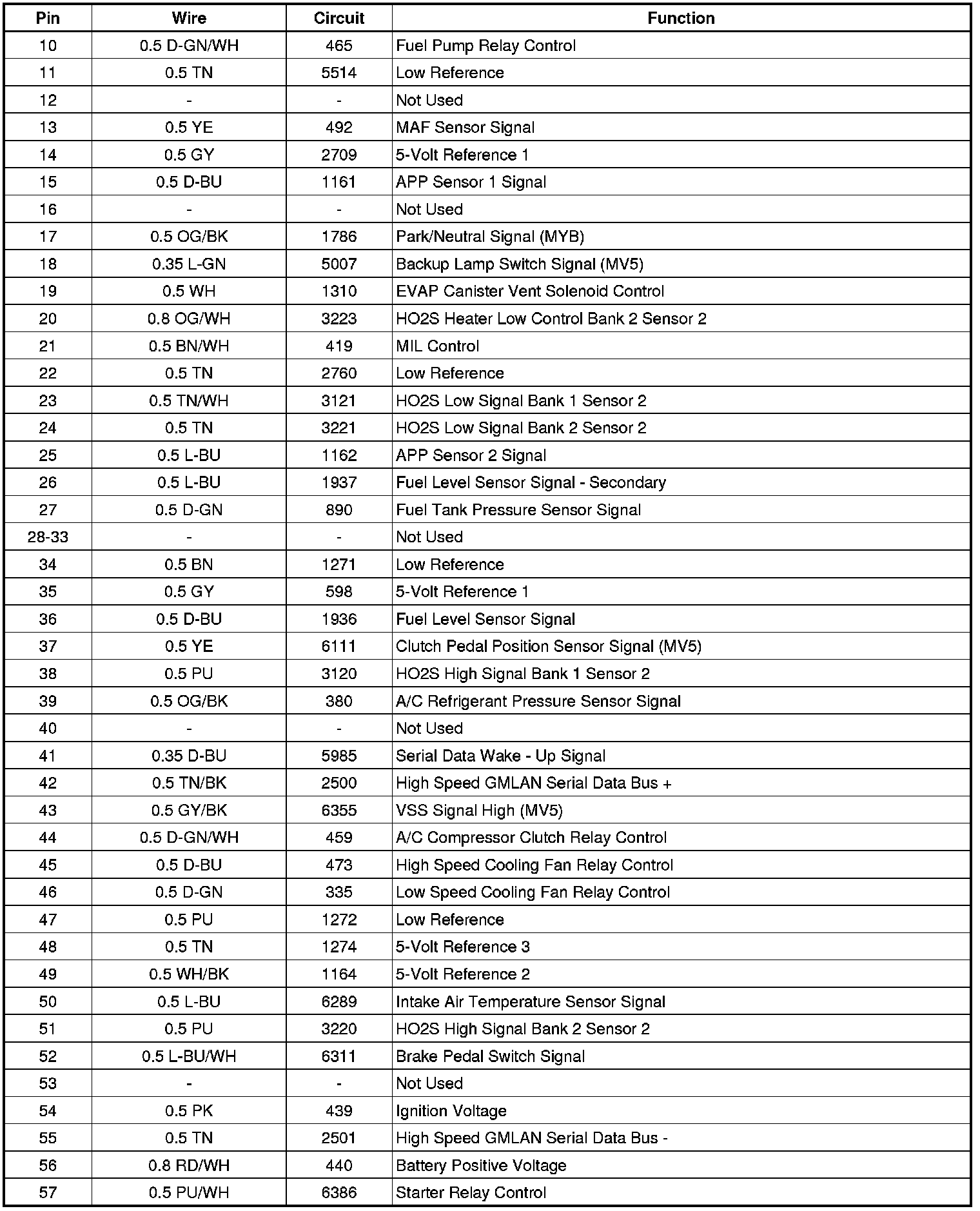

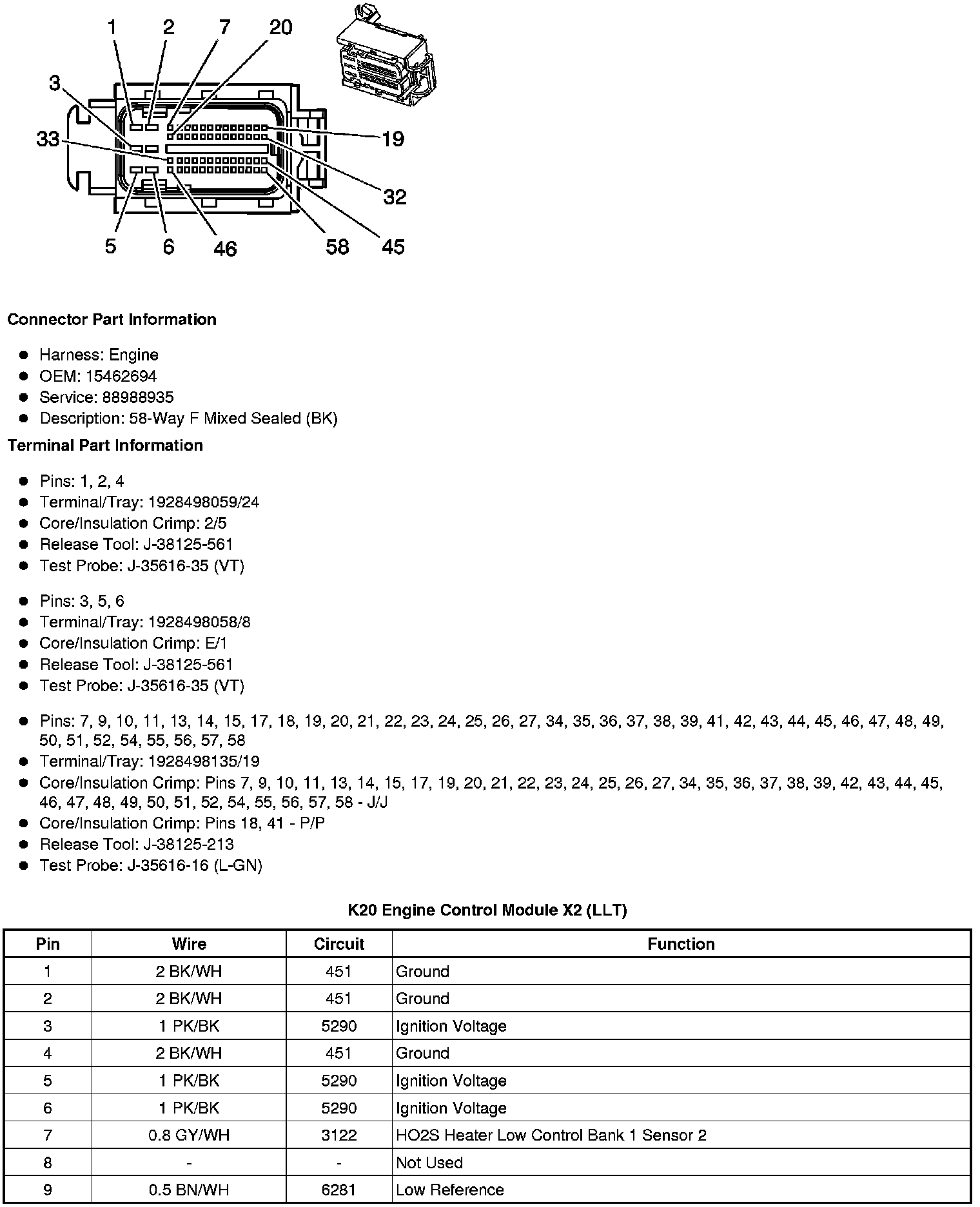

K20 Engine Control Module X2 (LLT)

RPO LLT - Engine VIN V Gas, 6 Cylinder, 3.6L, SIDI, V6, Aluminum, 60 Degrees, GM
