Central Control Module

Harness Routing Views

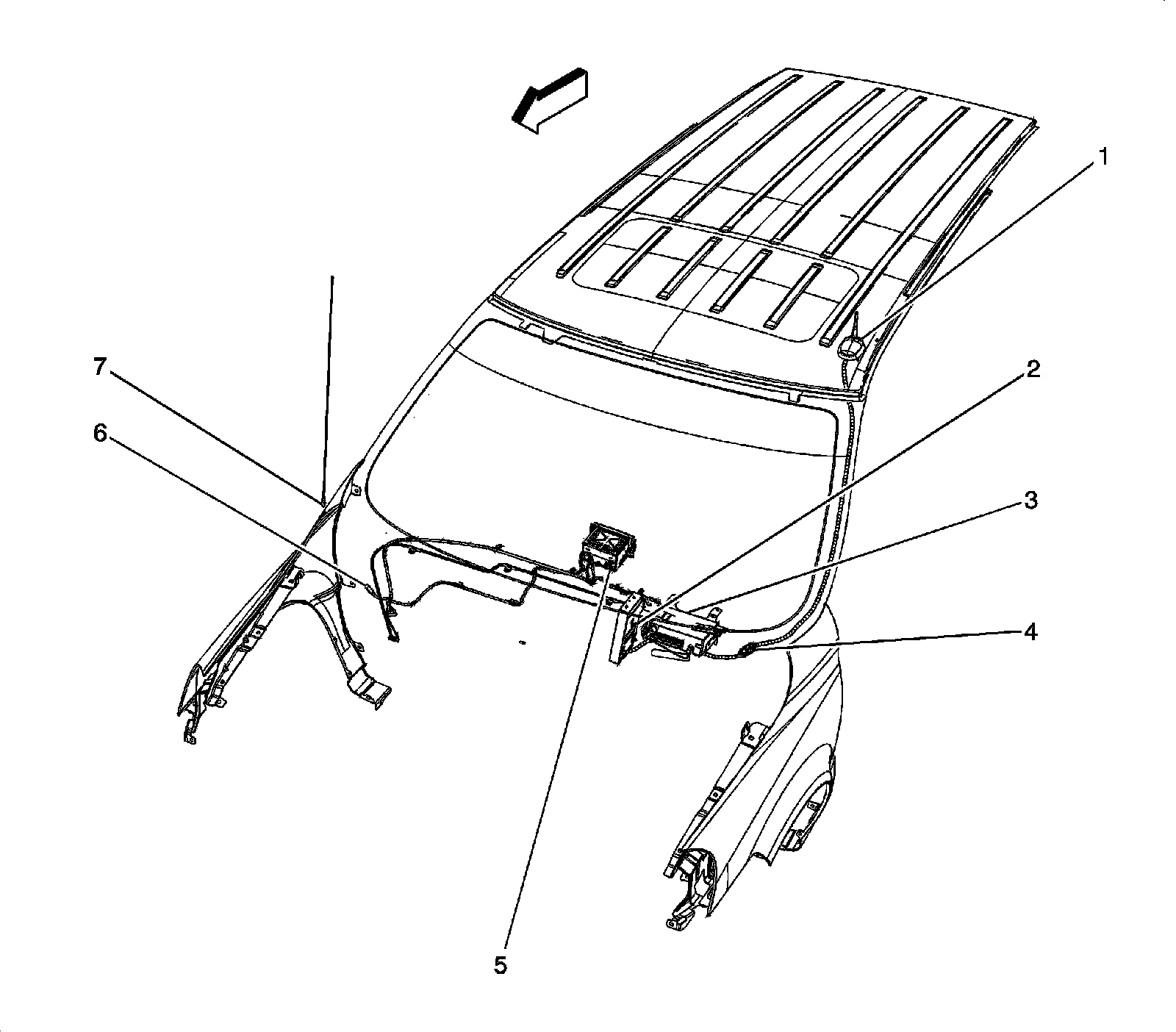

Antenna Components




1 - Cellular, Navigational, and Digital Radio Antenna (UE1/U2K)
2 - Digital Radio Receiver (U2K)
3 - Vehicle Communication Unit (VCU) (UE1)
4 - X300 Digital Radio Antenna Coax Connector (U2K)
5 - Radio
6 - X298 Radio Antenna Coax Connector
7 - Radio Antenna
