Home >> Chevrolet >> 2009 >> Traverse FWD V6-3.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Flex Plate

Flex Plate

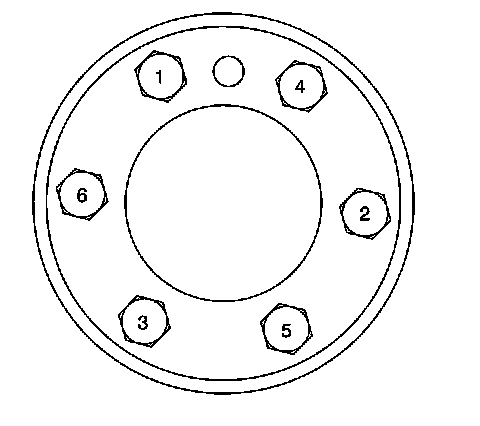

ENGINE FLYWHEEL BOLT
First Pass 30 Nm (22 lb ft)
Final Pass 45 Degrees
