Transmission Position Sensor/Switch: Diagrams




Component Connector End Views

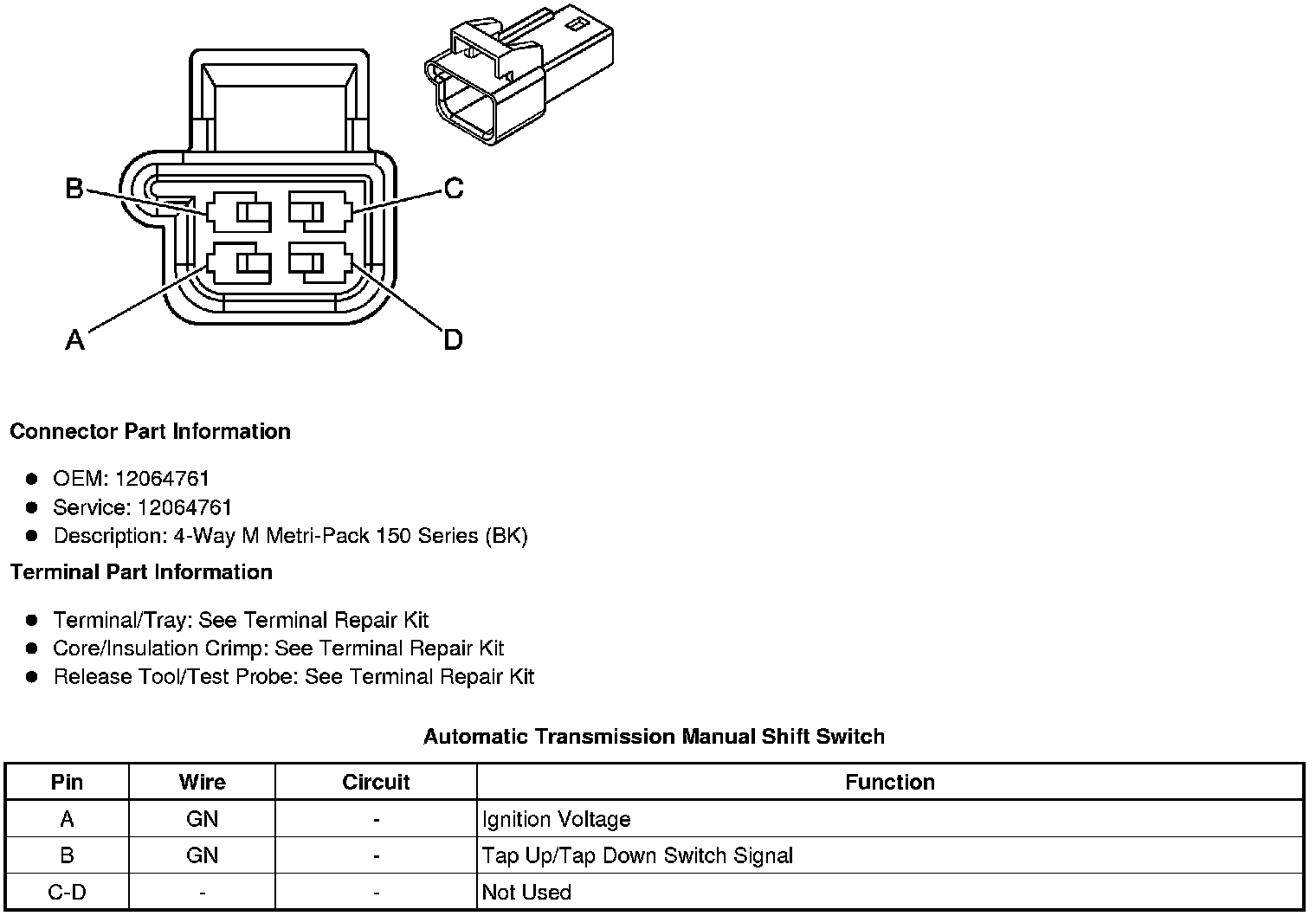

Automatic Transmission Manual Shift Switch

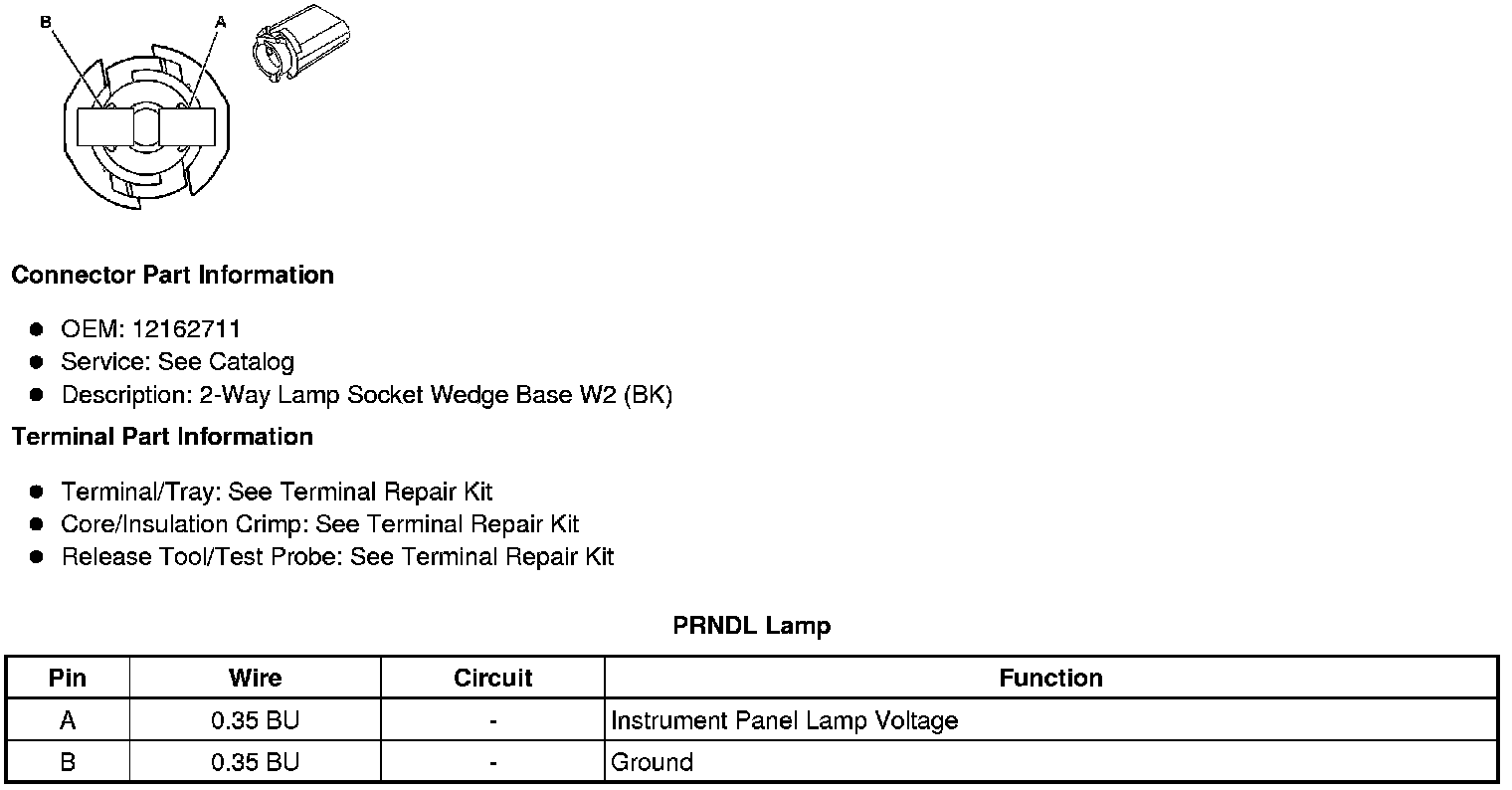

PRNDL Lamp
