Knock Sensor: Diagrams
Component Connector End Views

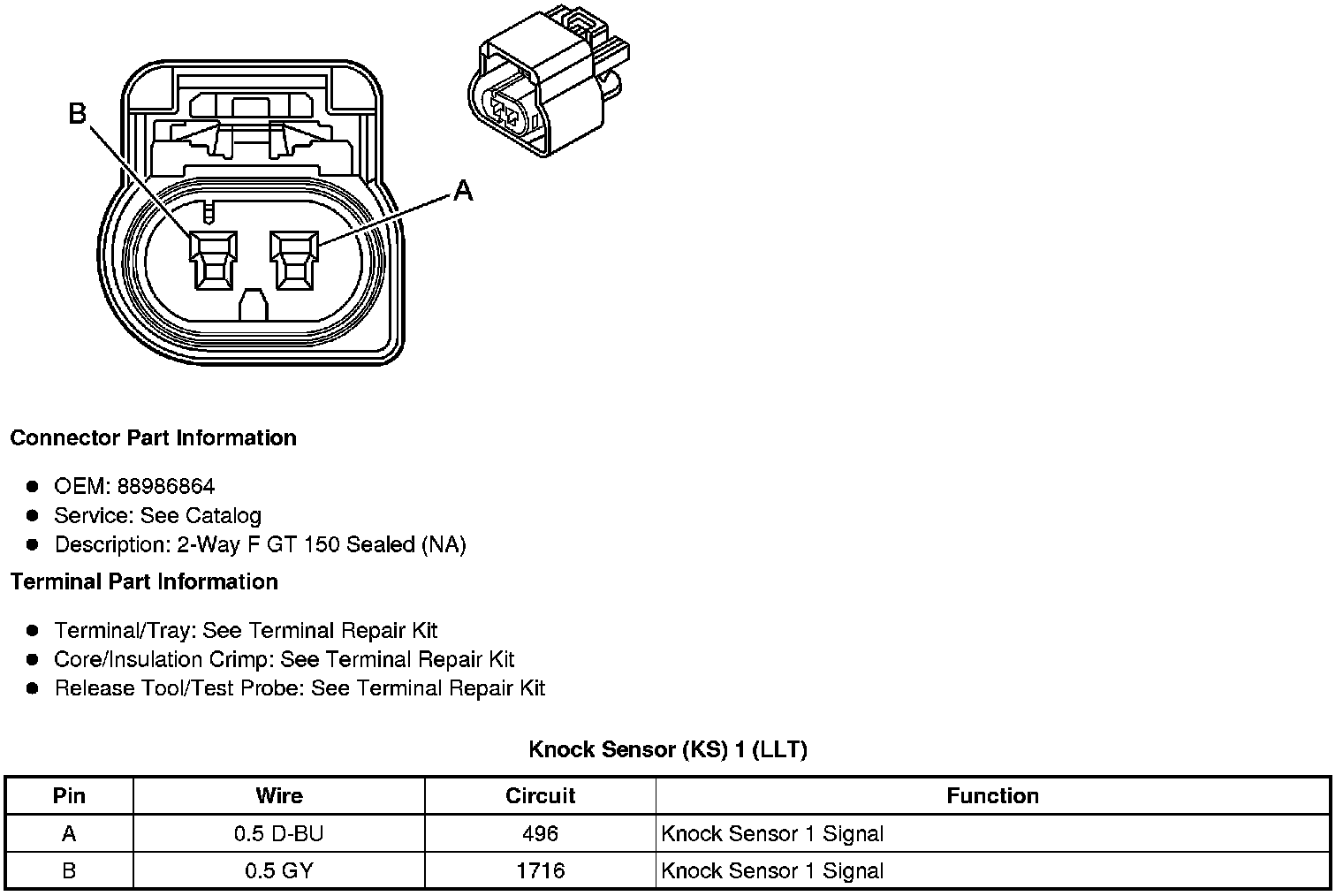

Knock Sensor (KS) 1 (LLT)
Knock Sensor (KS) 2 (LLT)
