Home >> Chevrolet >> 2009 >> Impala V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module




Component Connector End Views

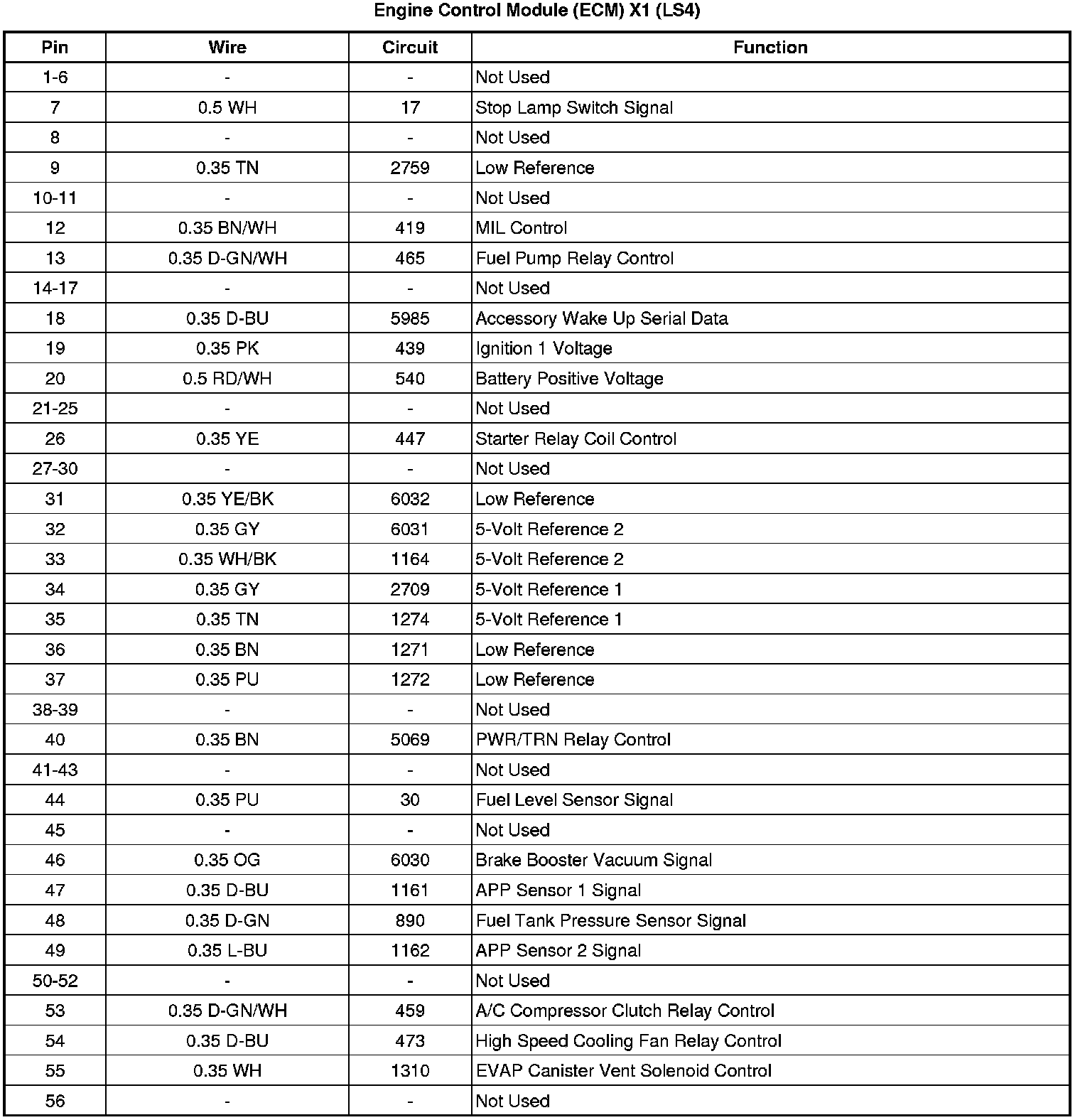

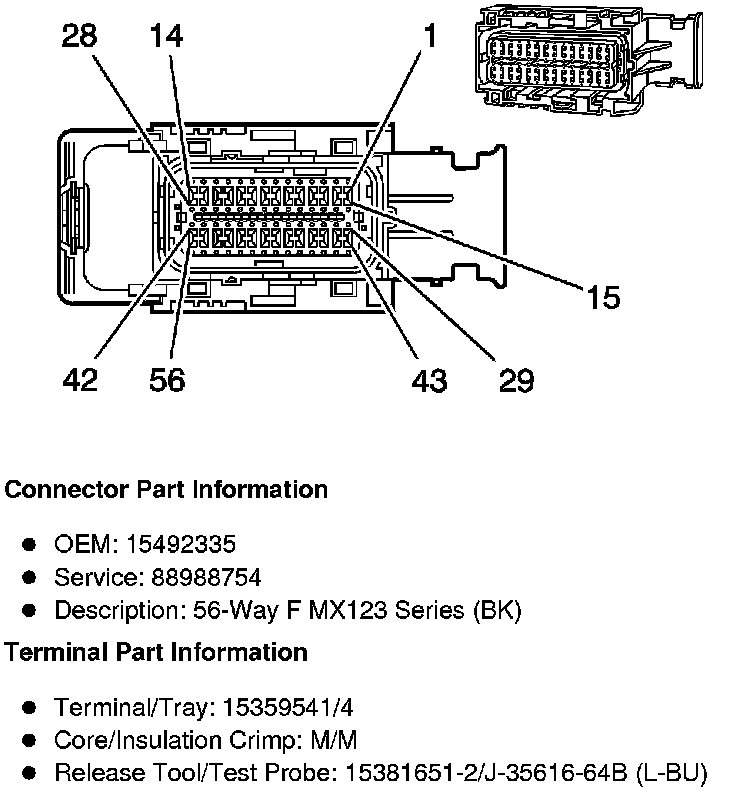

Engine Control Module (ECM) X1 (LS4-5.3L)

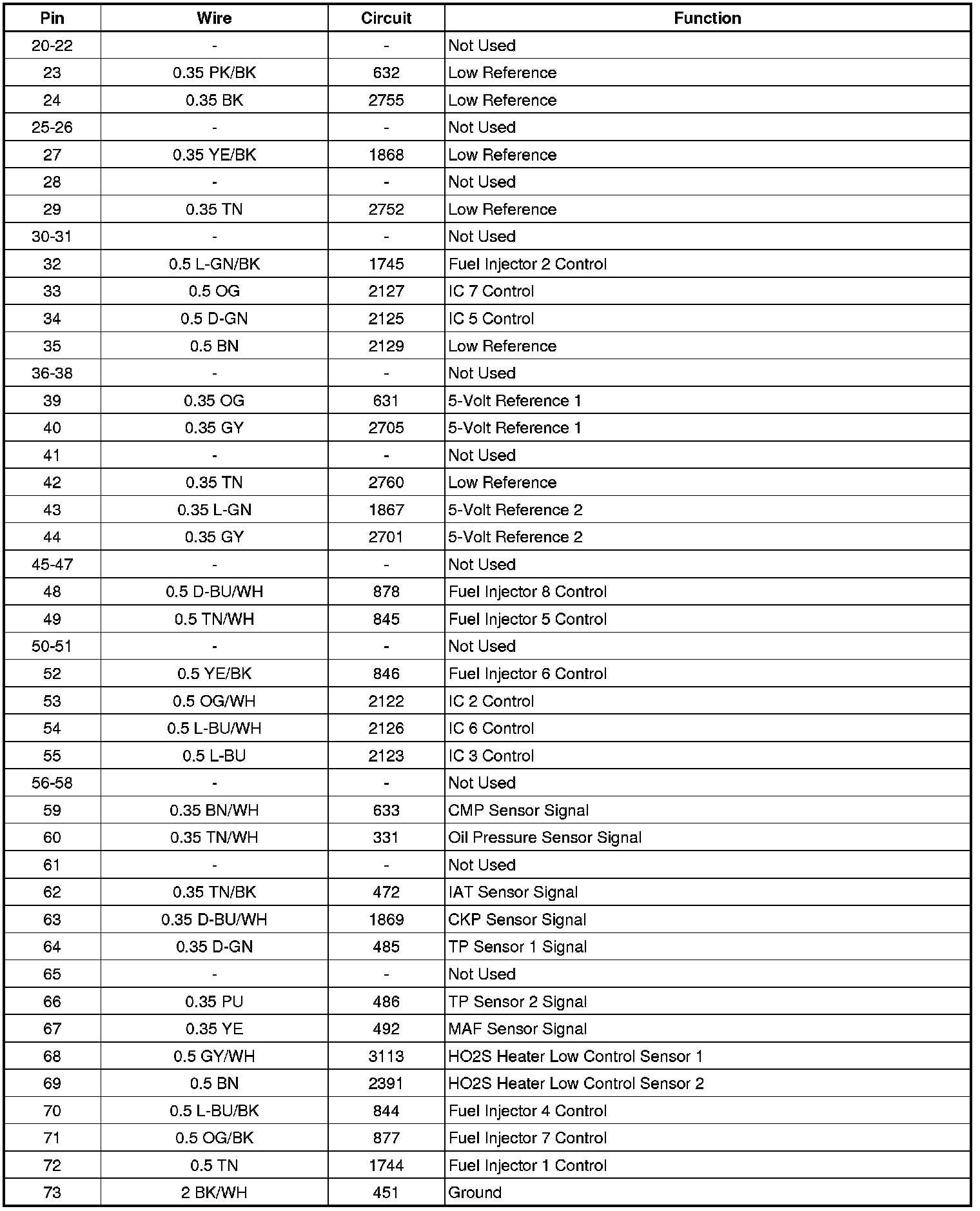

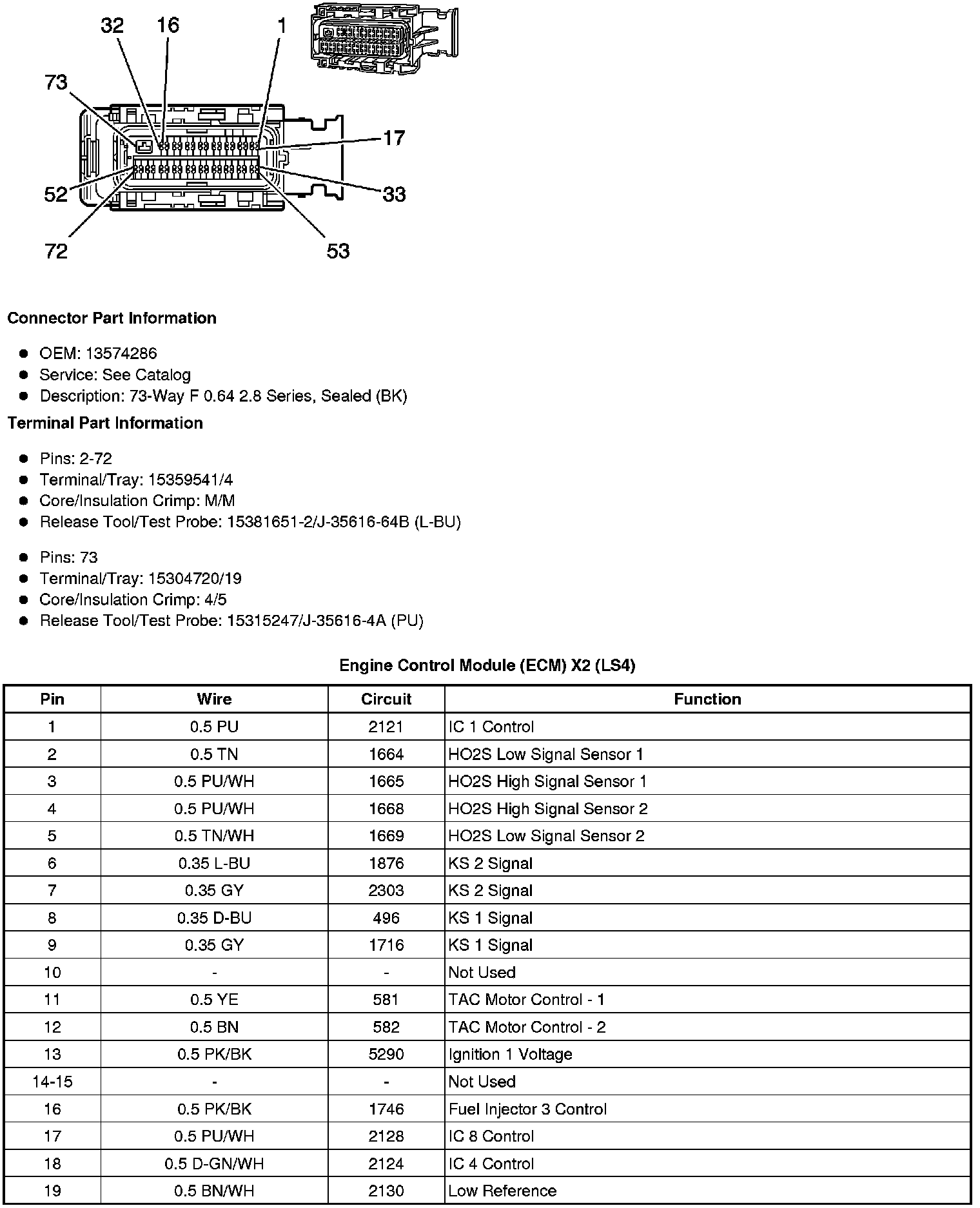

Engine Control Module (ECM) X2 (LS4-5.3L)

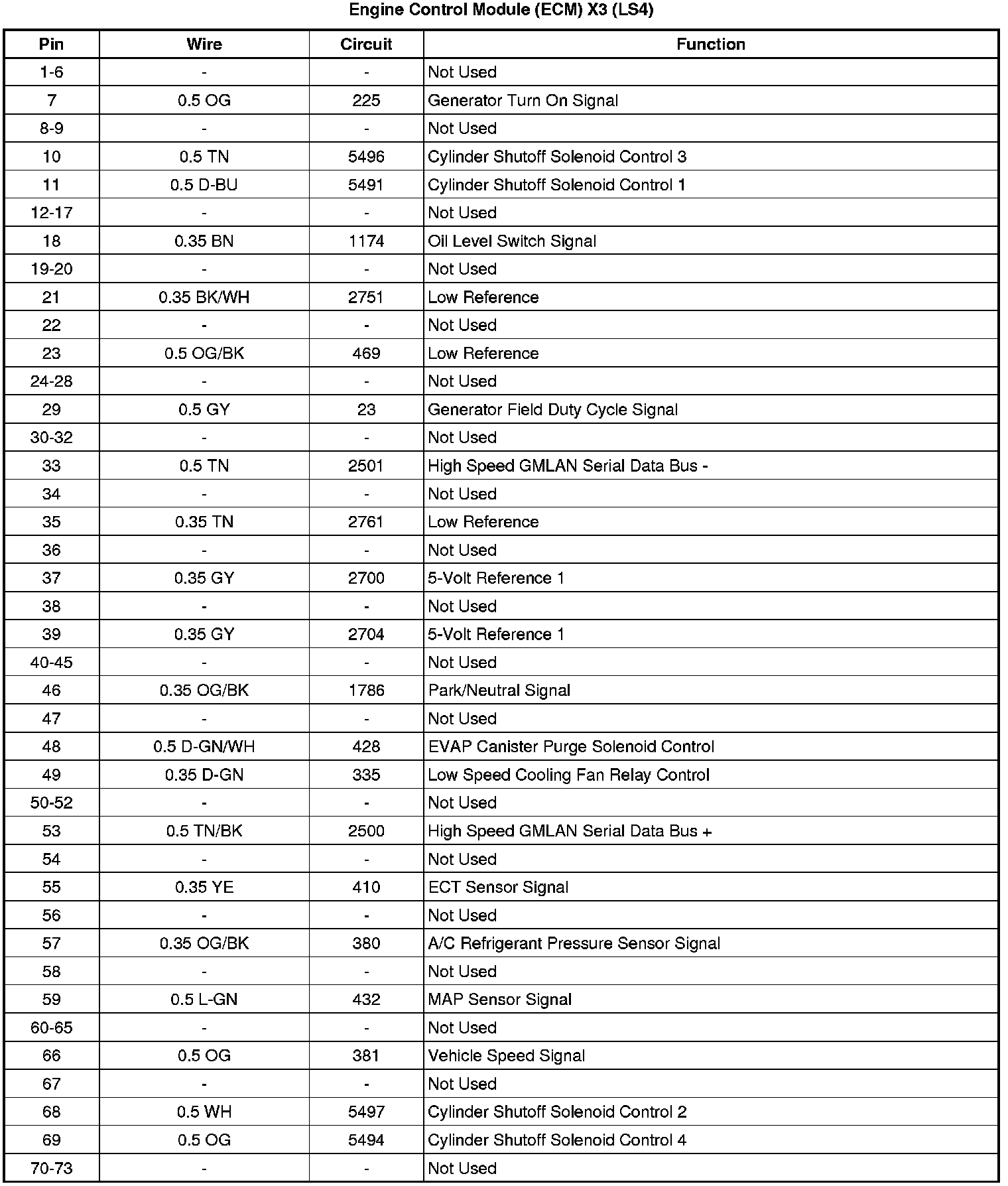

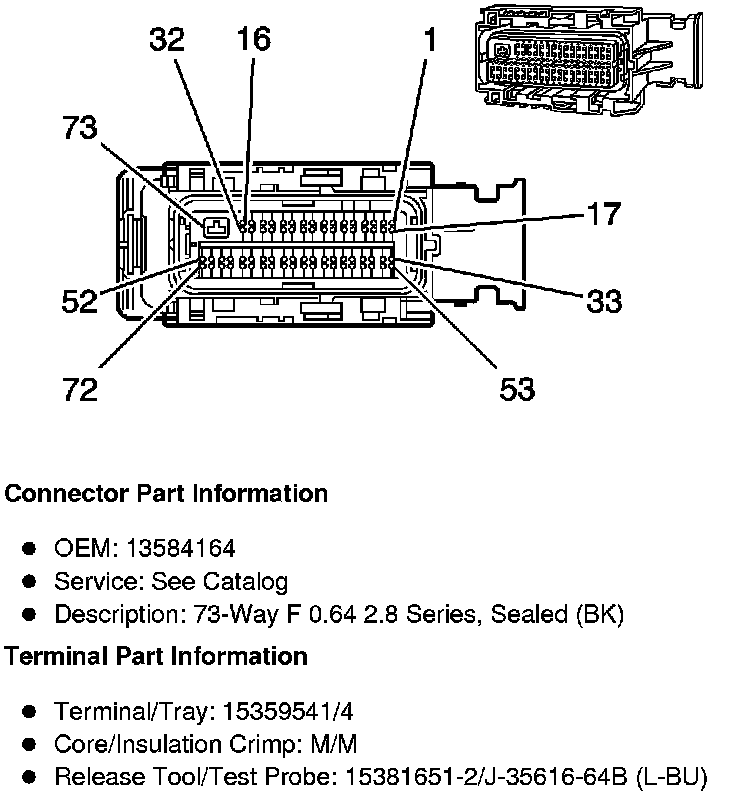

Engine Control Module (ECM) X3 (LS4-5.3L)
