Engine Control Module
Component Connector End Views

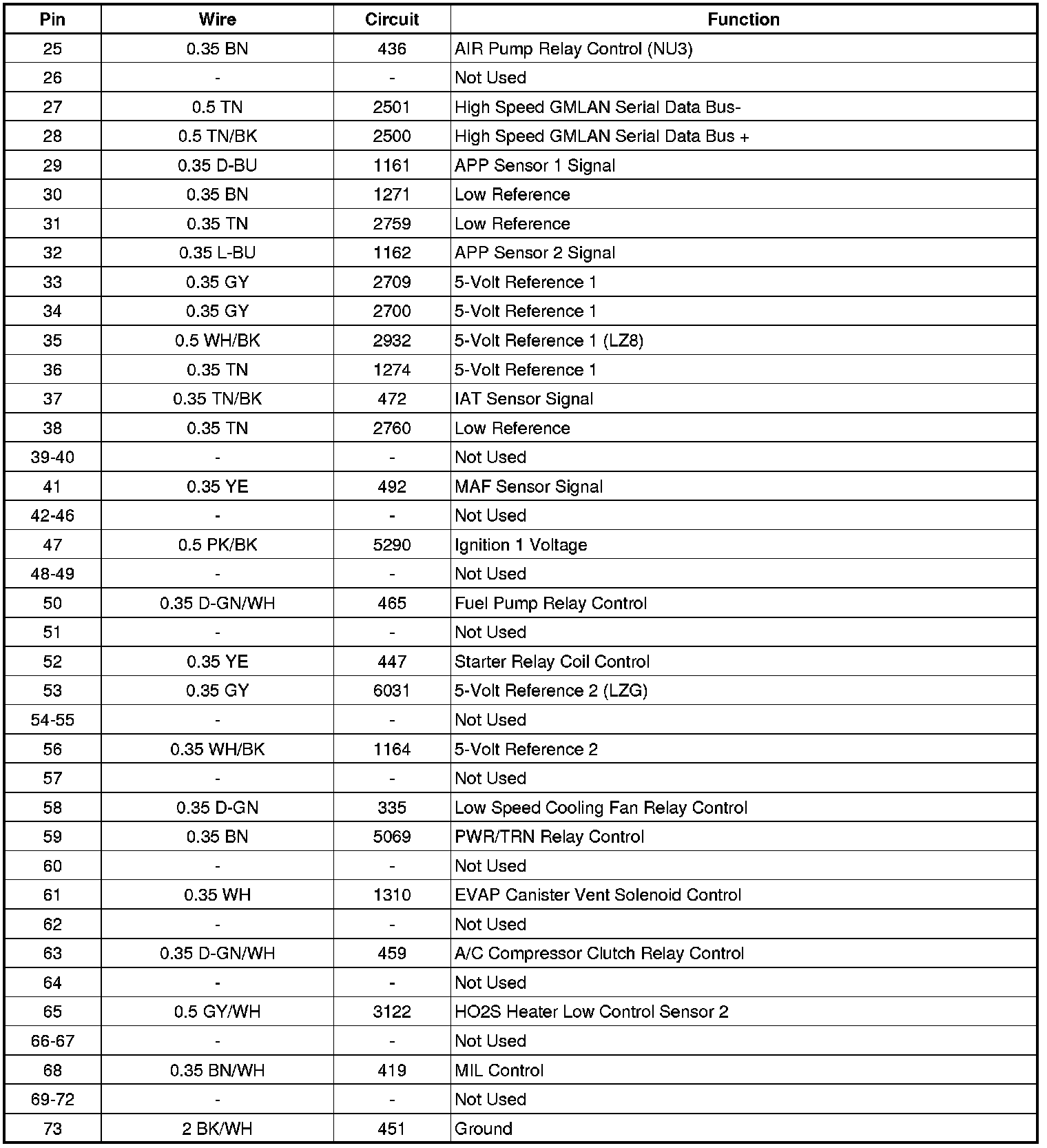

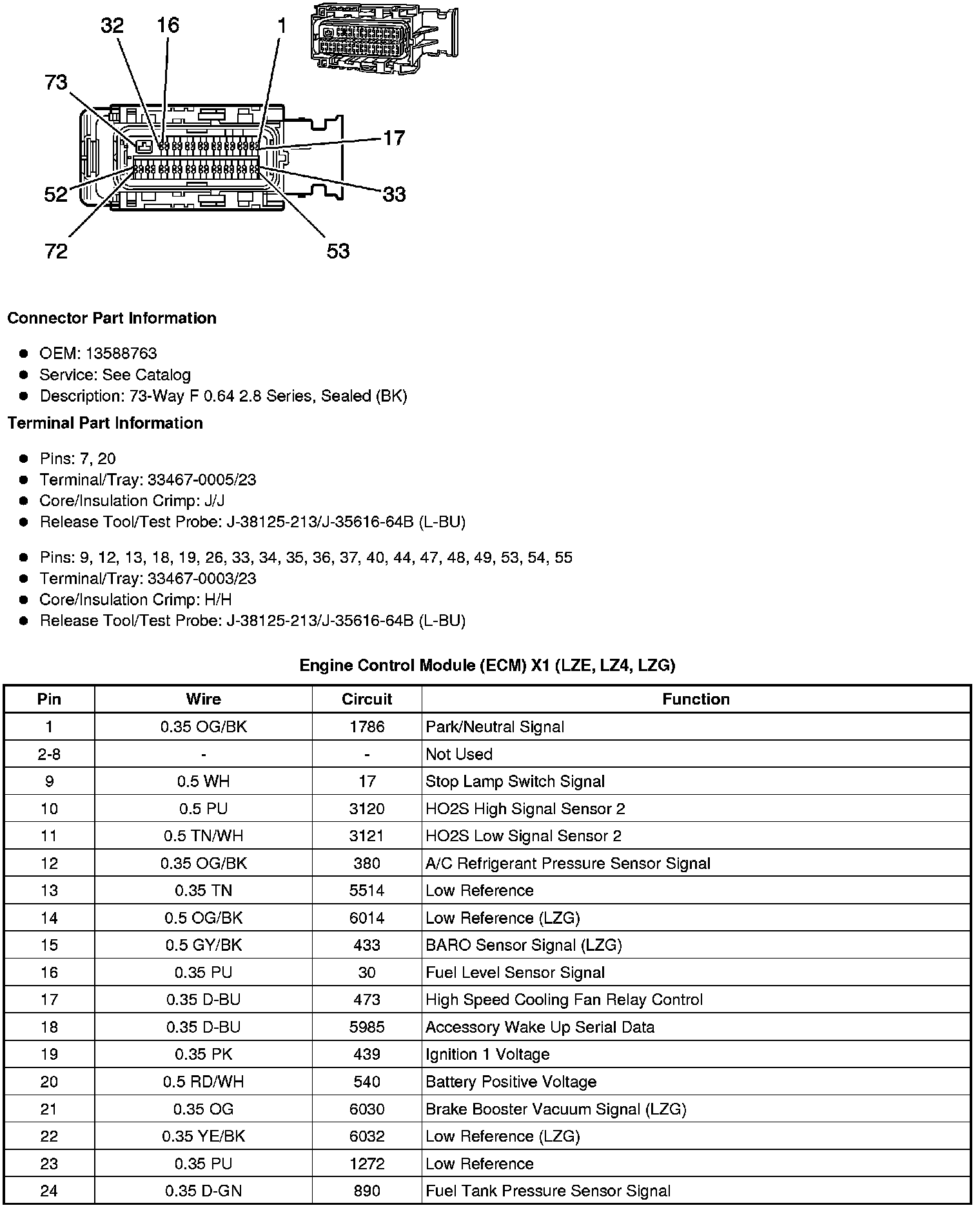

Engine Control Module (ECM) X1 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)

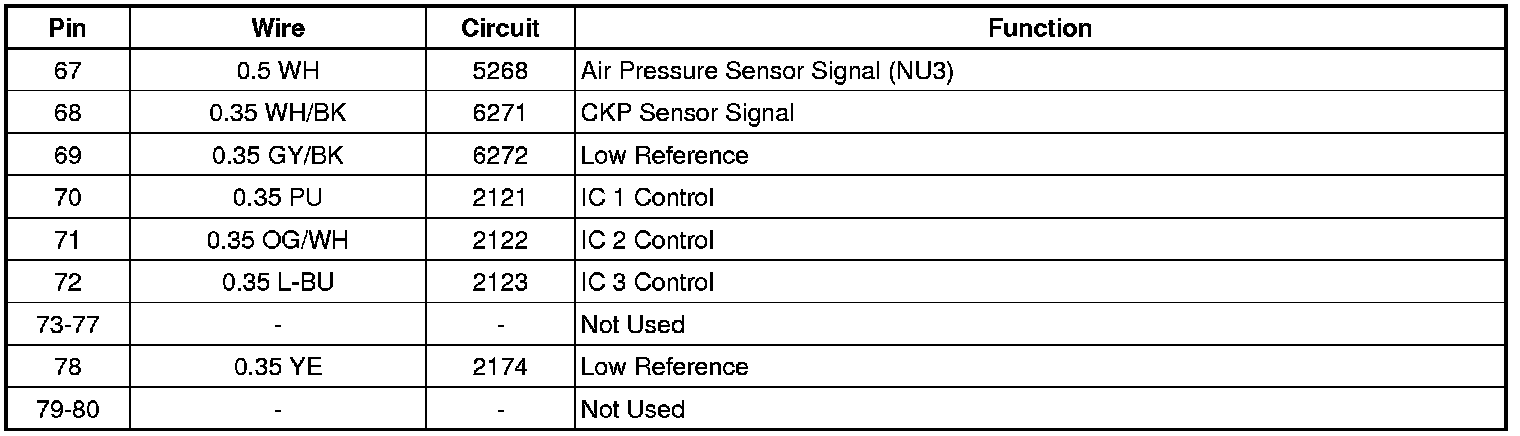

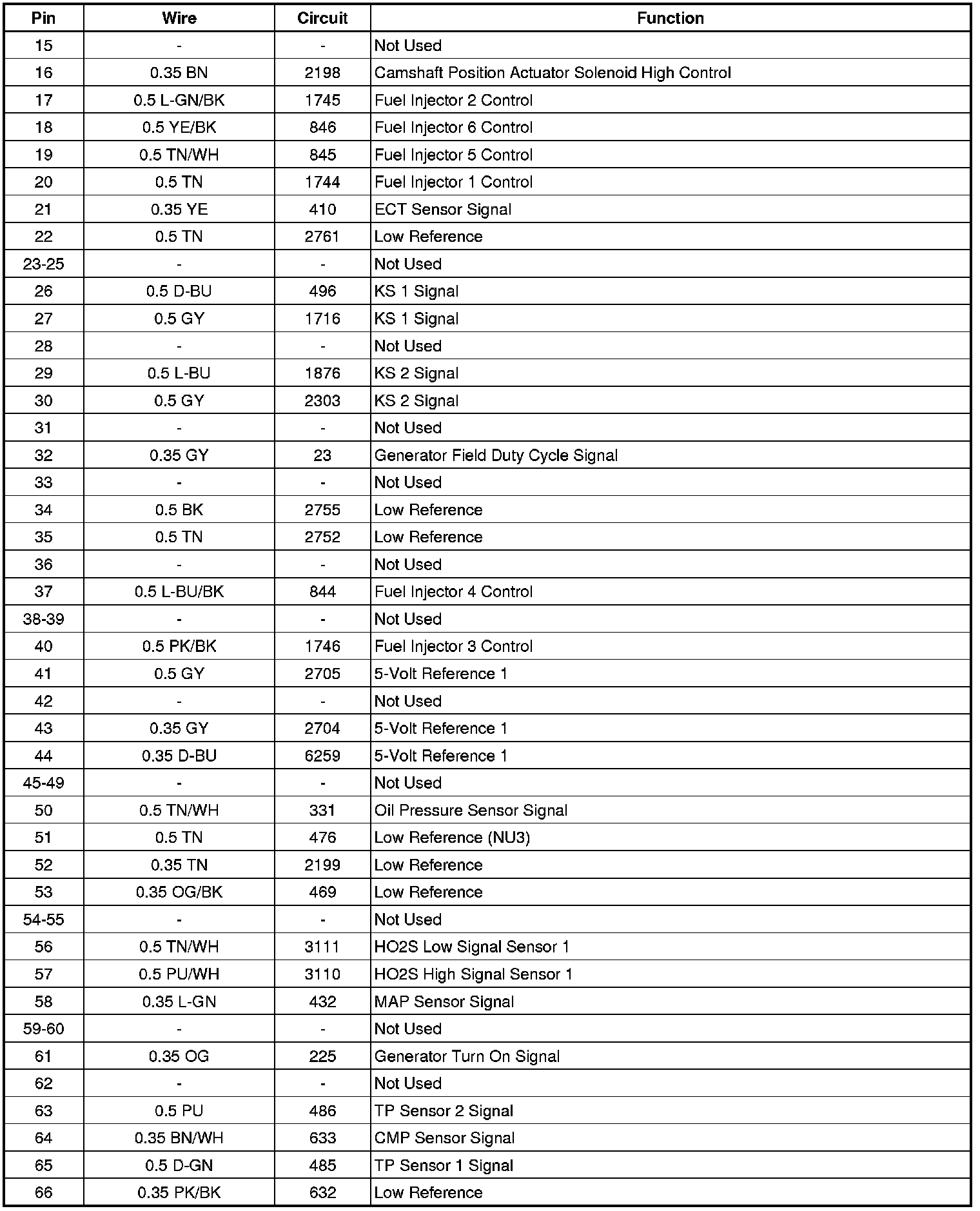

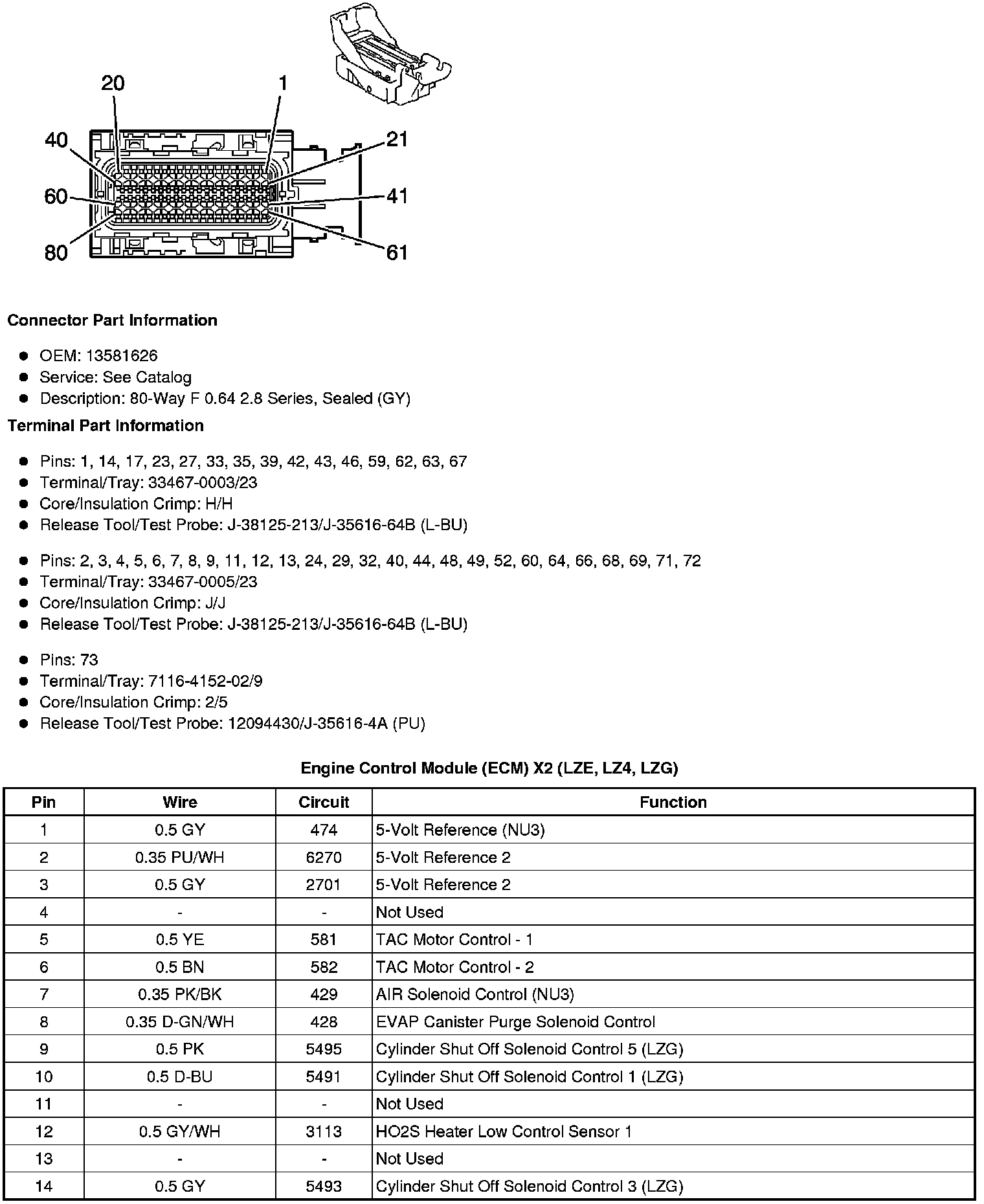

Engine Control Module (ECM) X2 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)
Component Connector End Views
Engine Control Module (ECM) X1 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)
Engine Control Module (ECM) X2 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)
