Chevrolet
>>
2009
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

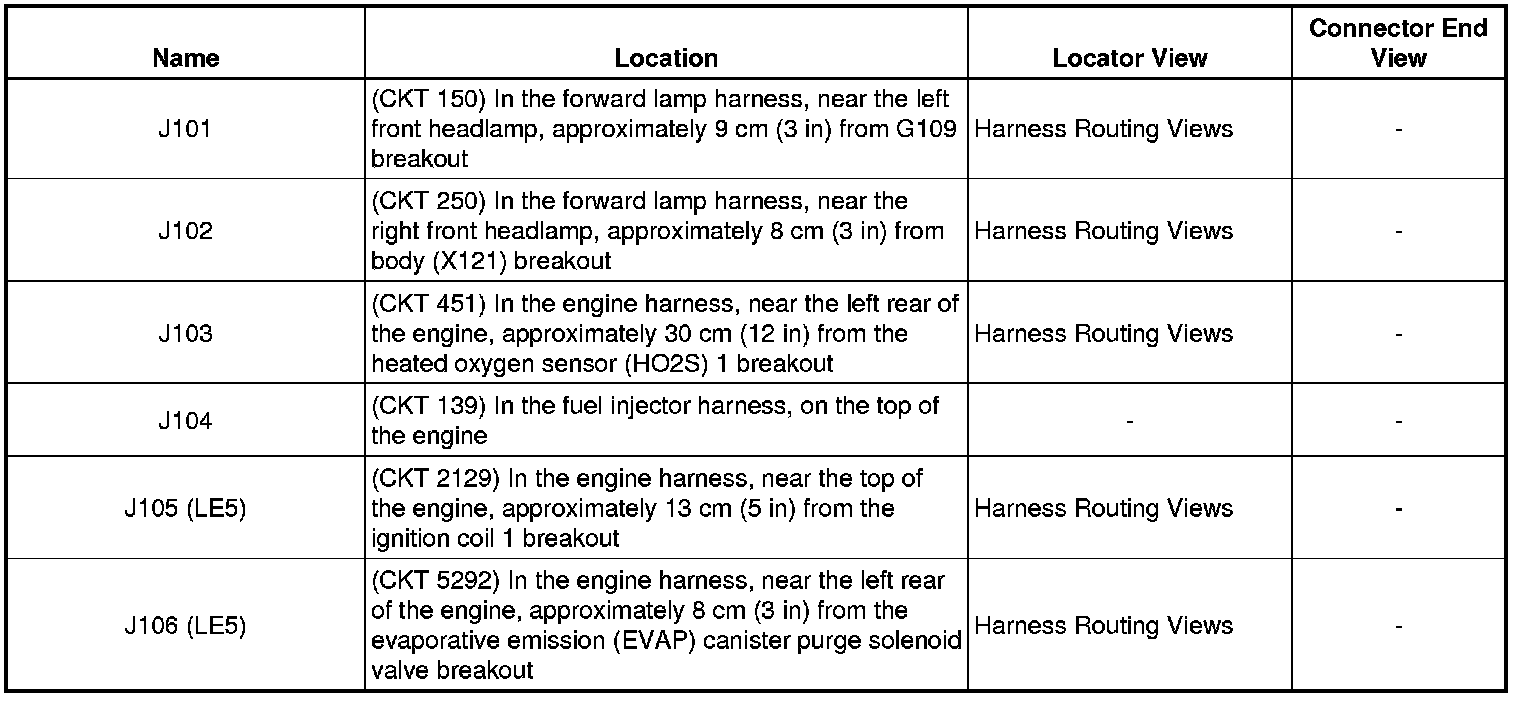

J101 - J106:

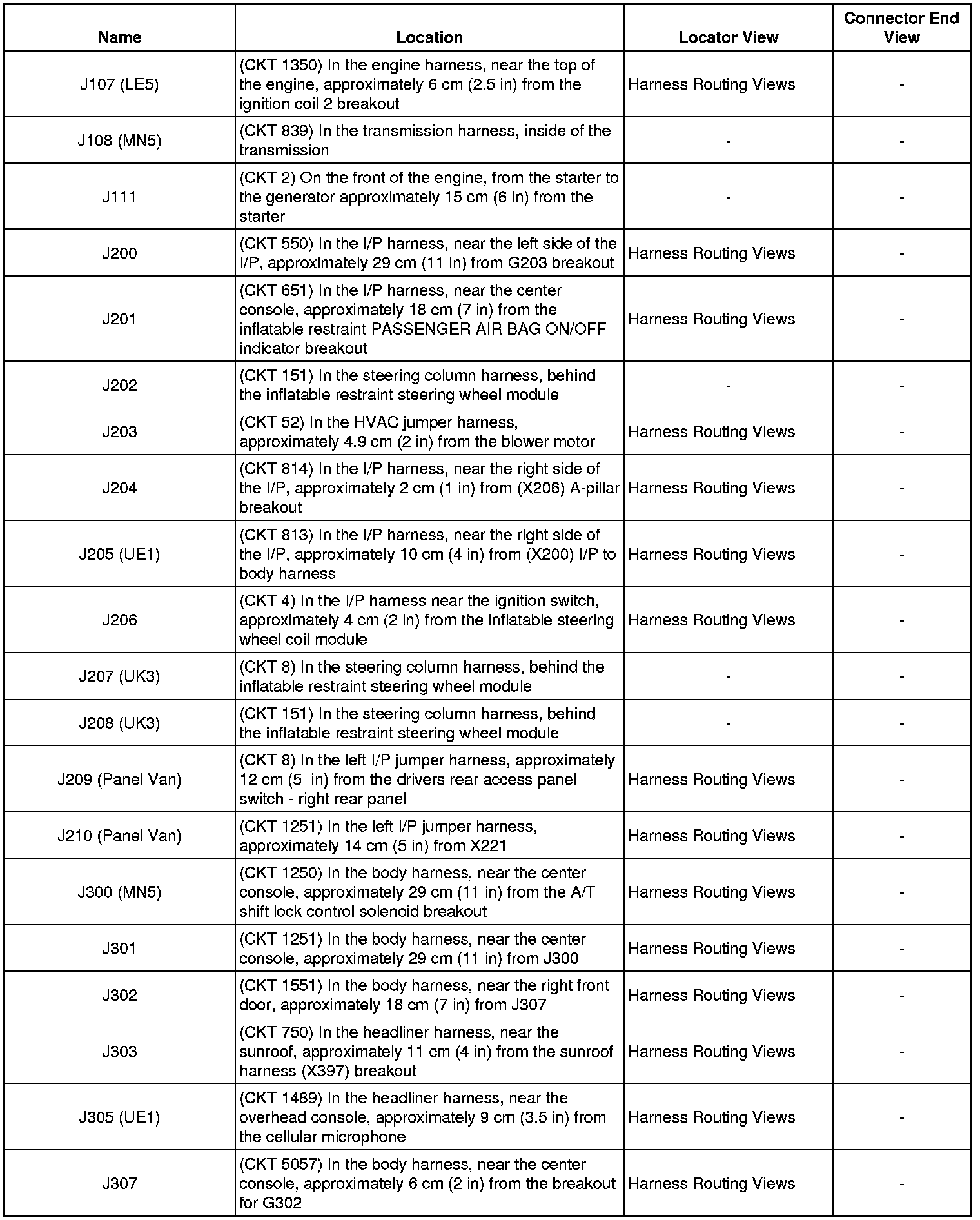

J107 - J307:

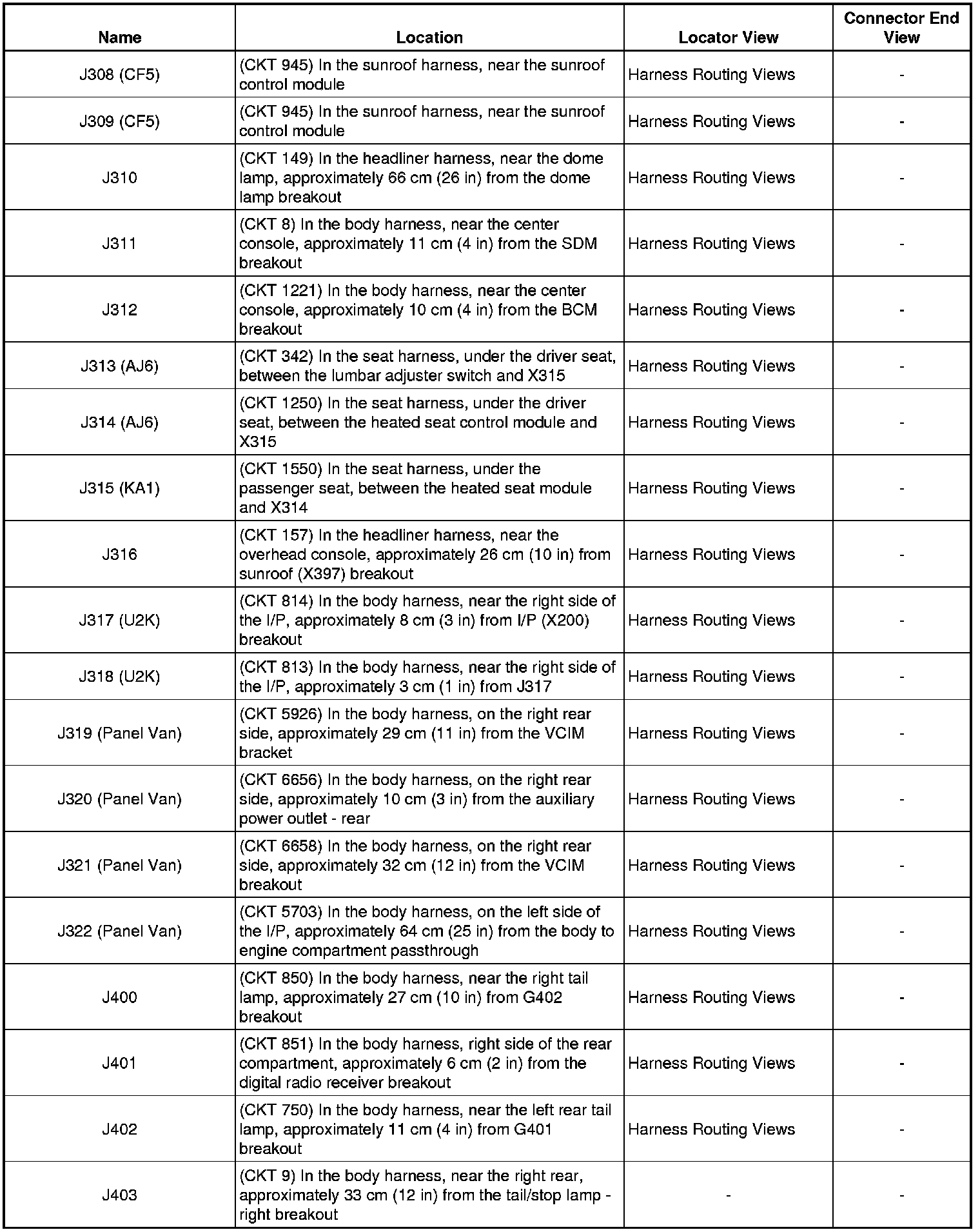

J308 - J403:

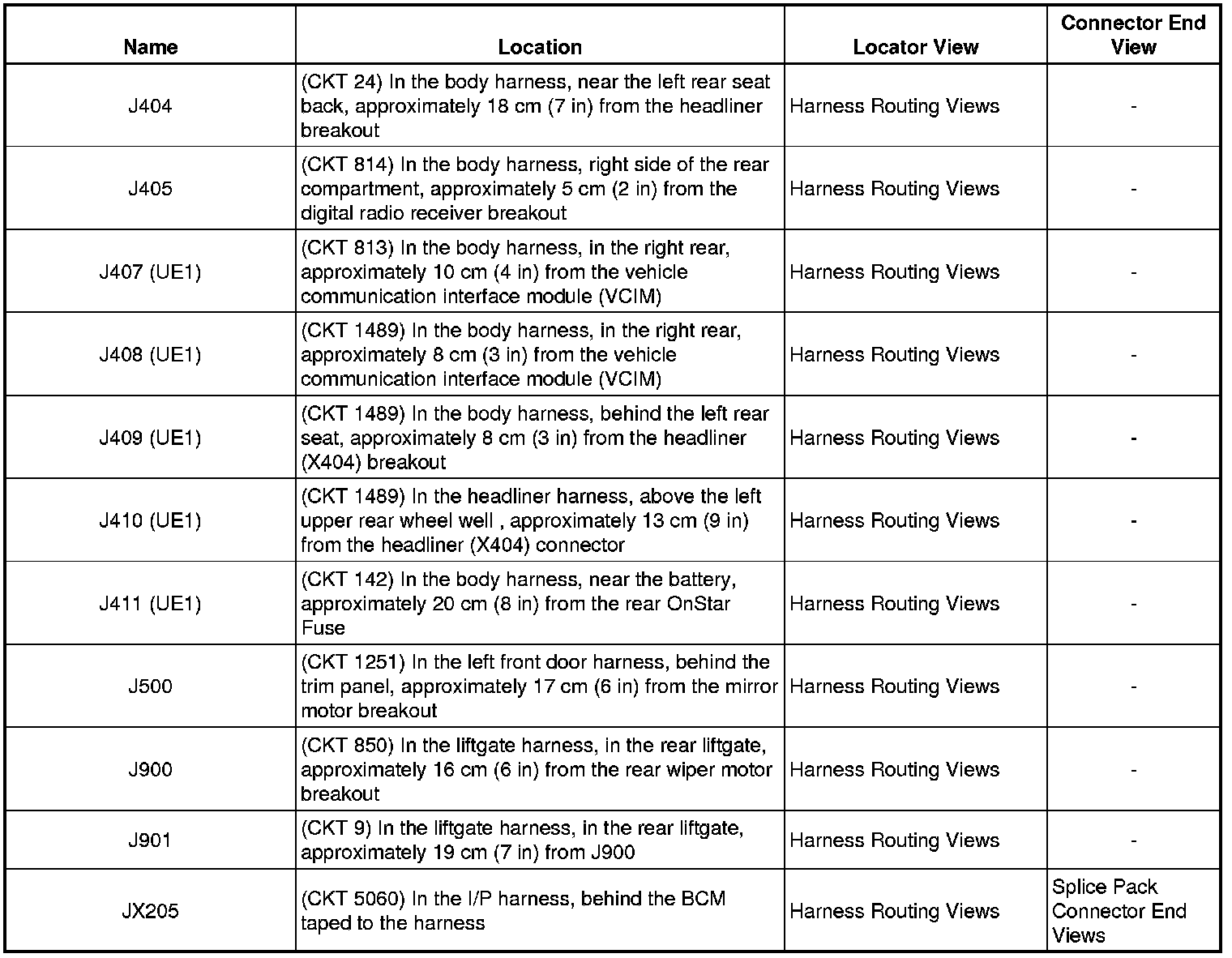

J404 - JX205:
