Ignition Lock
Ignition Lock

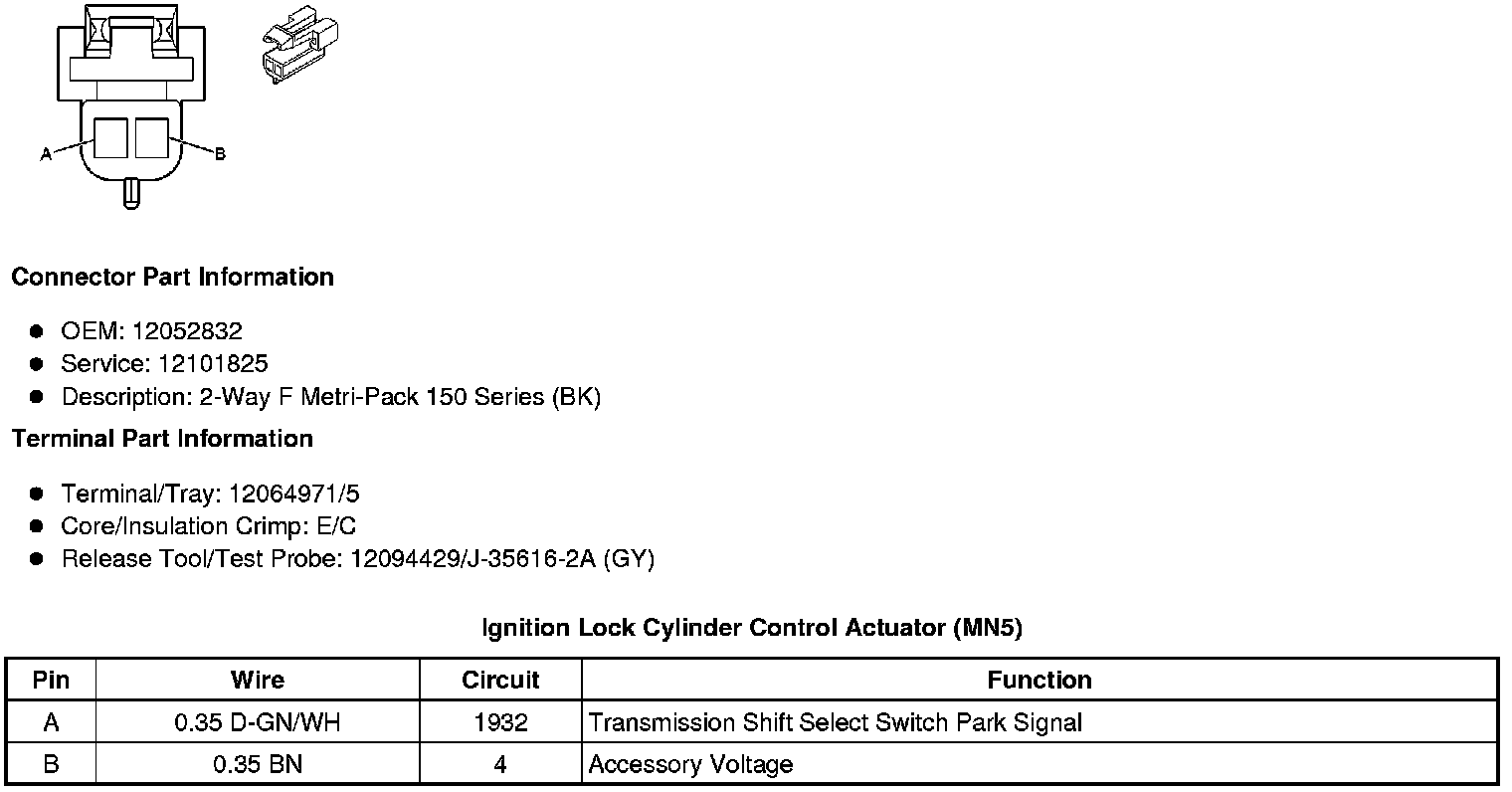

Component Connector End Views
Ignition Lock Cylinder Control Actuator (MN5)
