Electronic Throttle Control Module
Electronic Throttle Control Module
Component Connector End Views

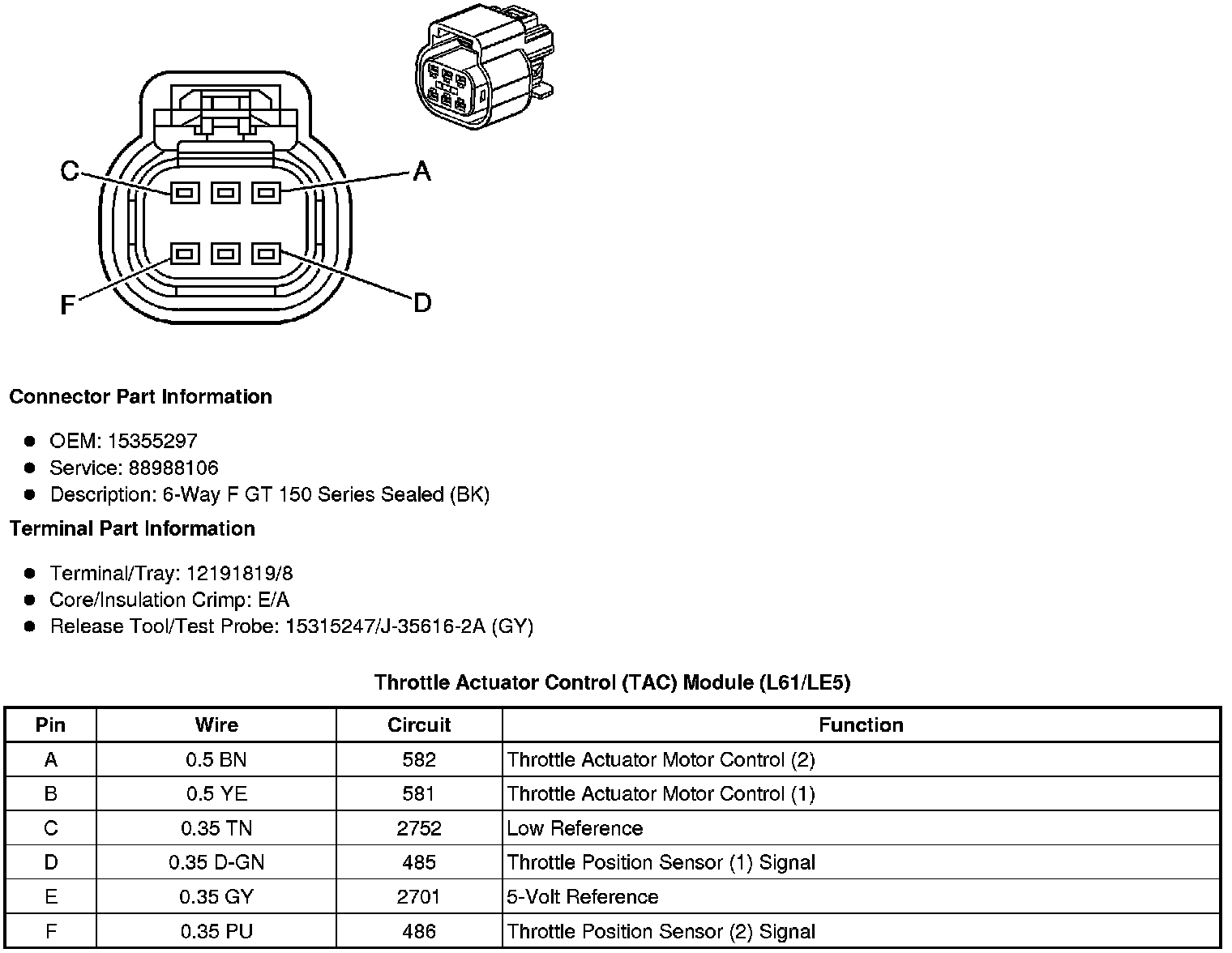

Throttle Actuator Control (TAC) Module (L61/LE5)
