Home >> Chevrolet >> 2009 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module




Component Connector End Views

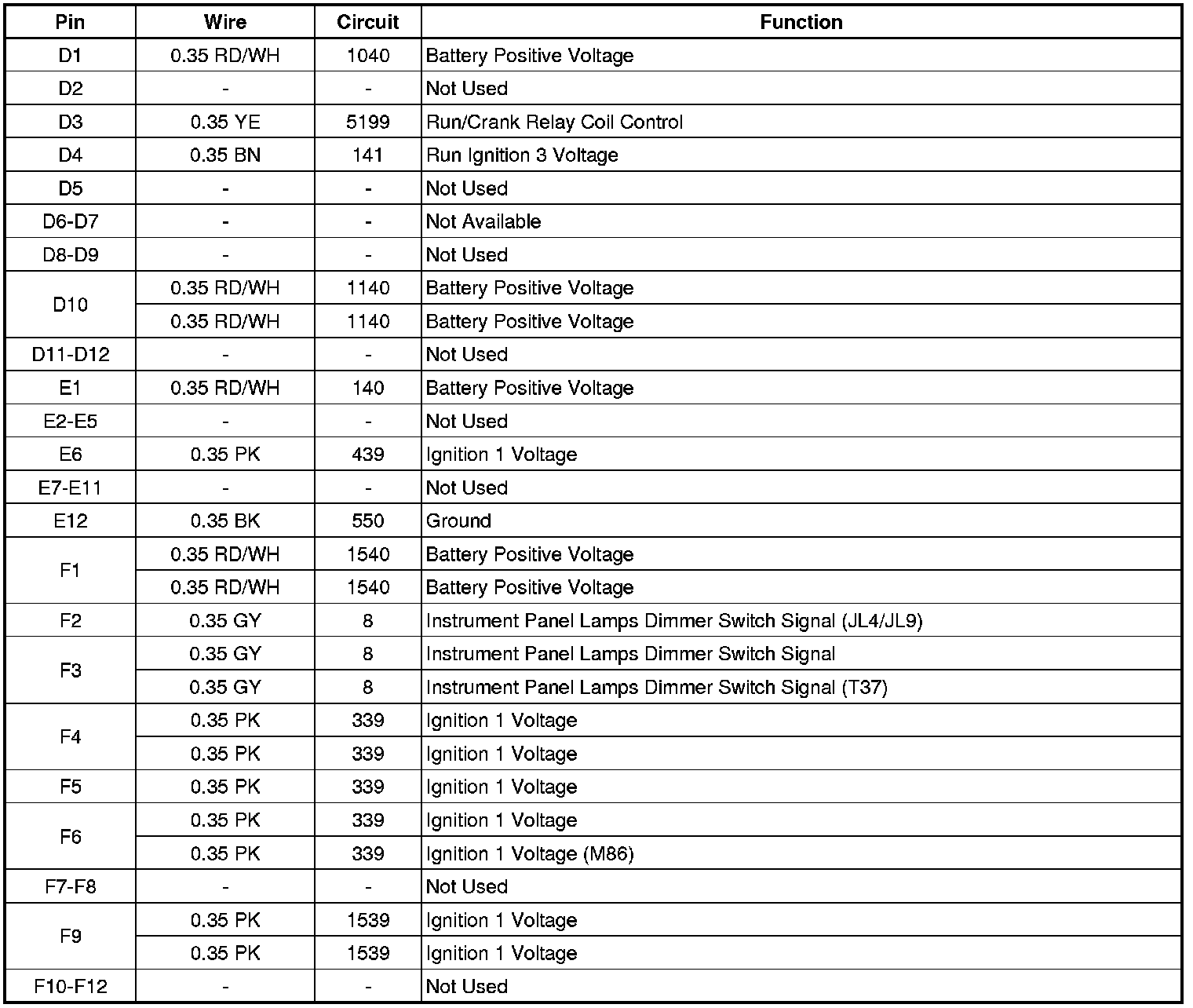

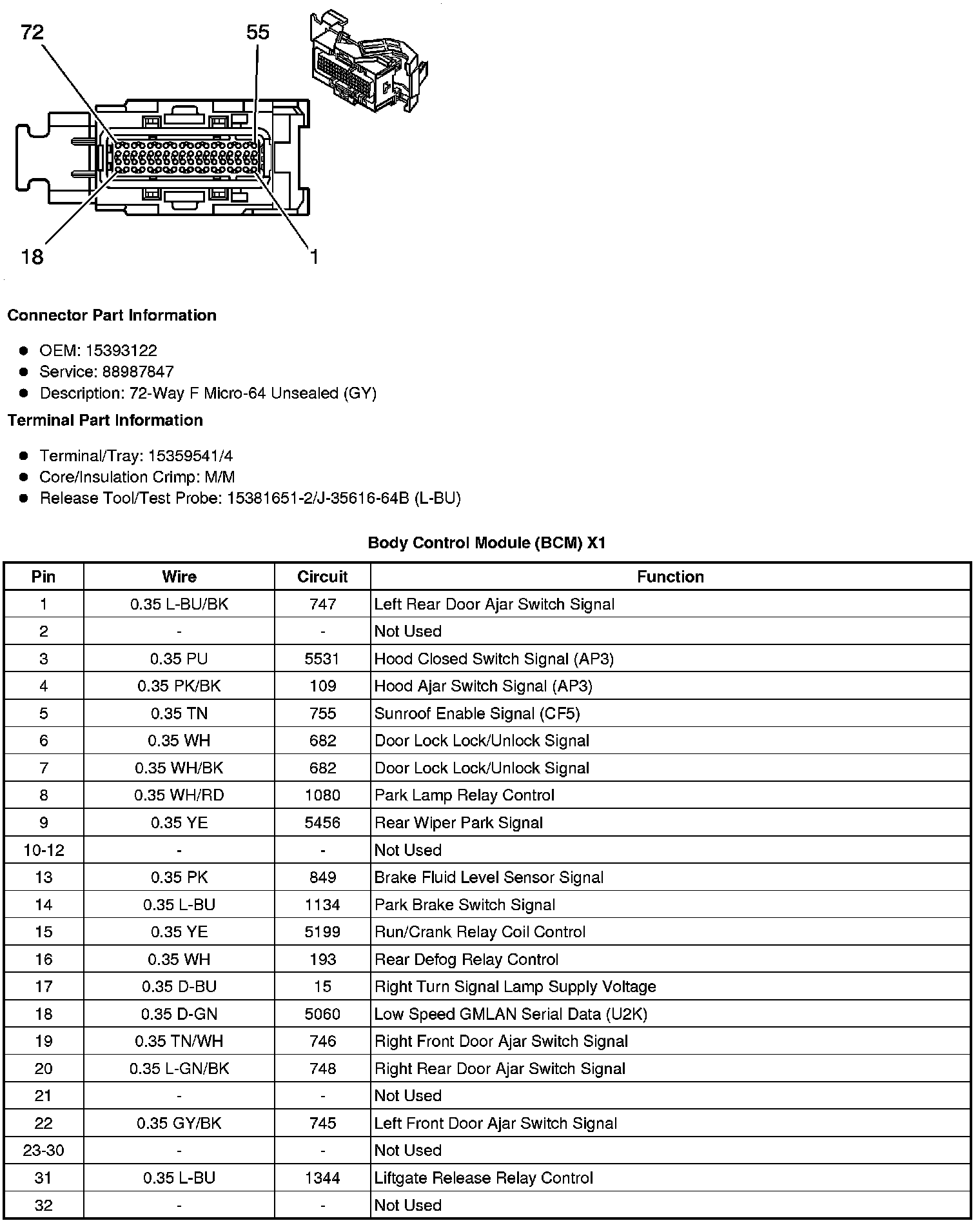

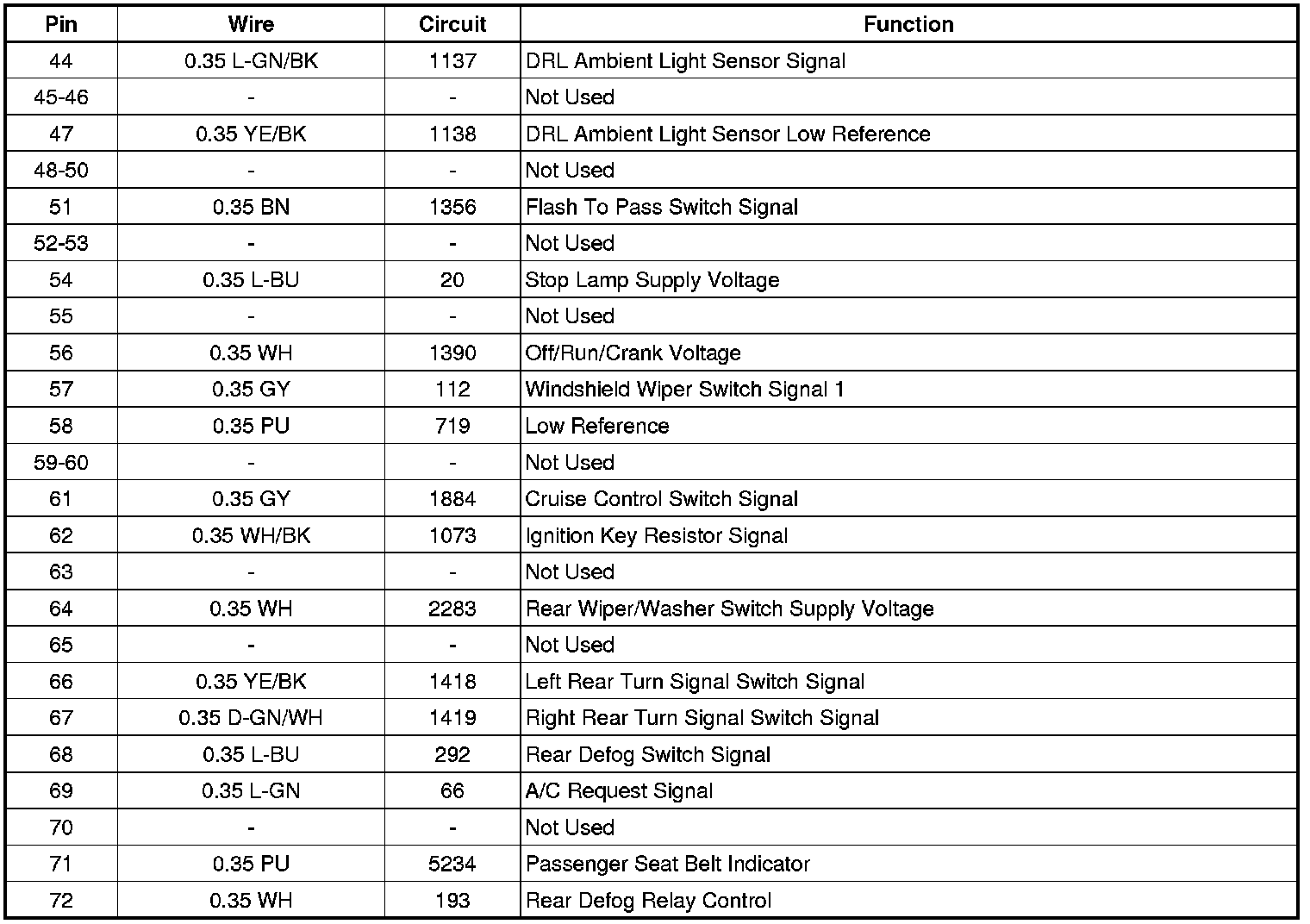

Body Control Module (BCM) X1

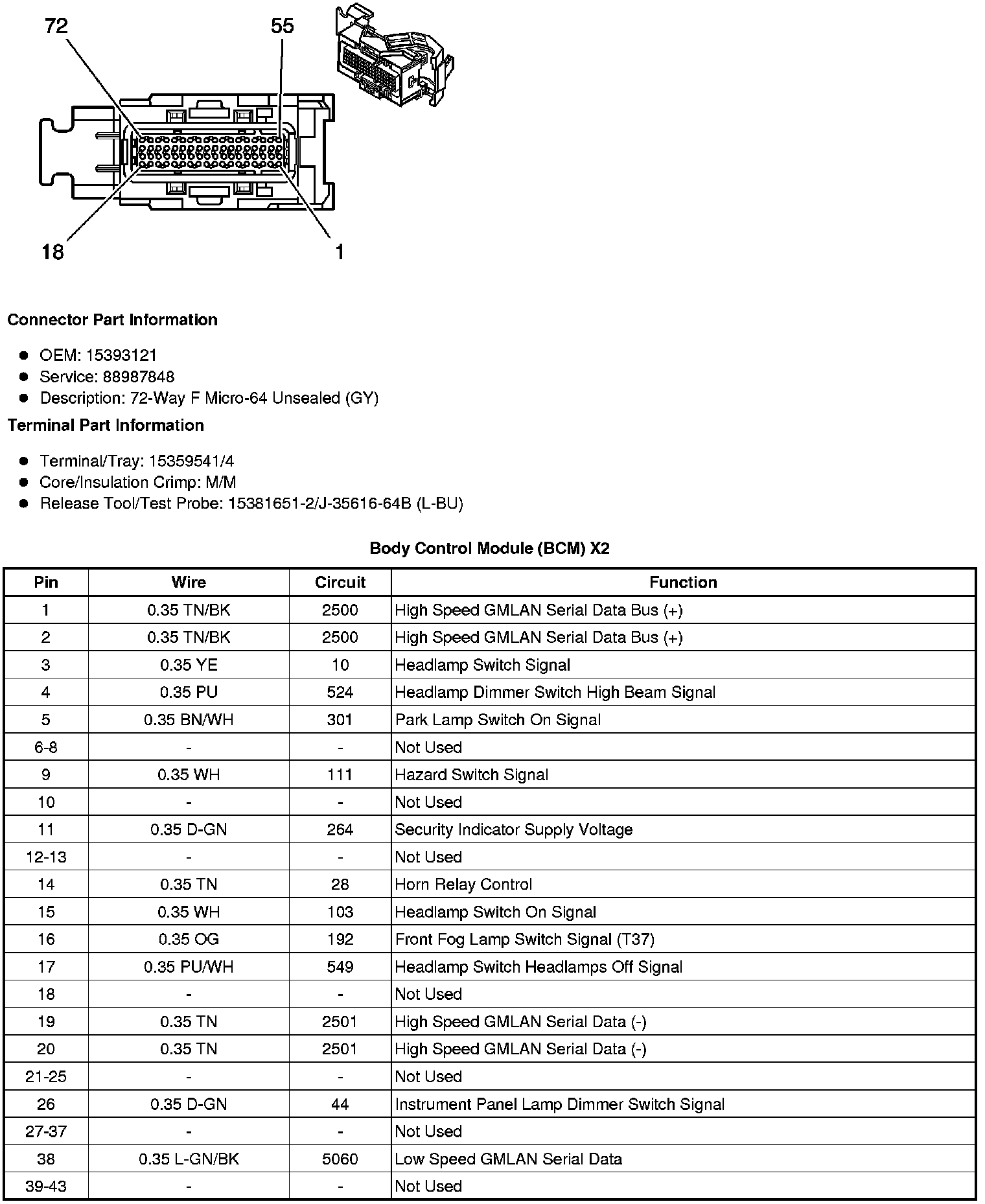

Body Control Module (BCM) X2

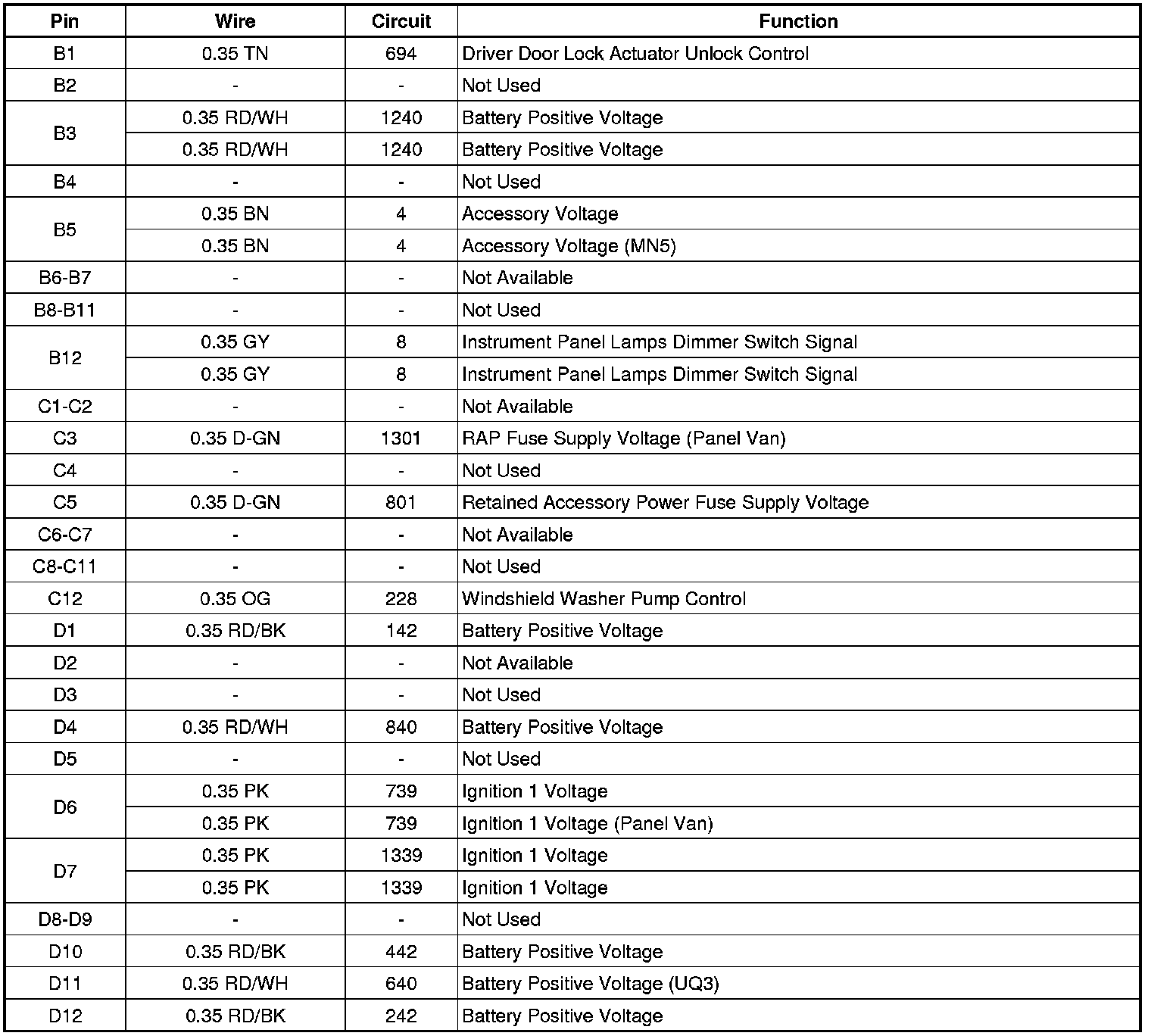

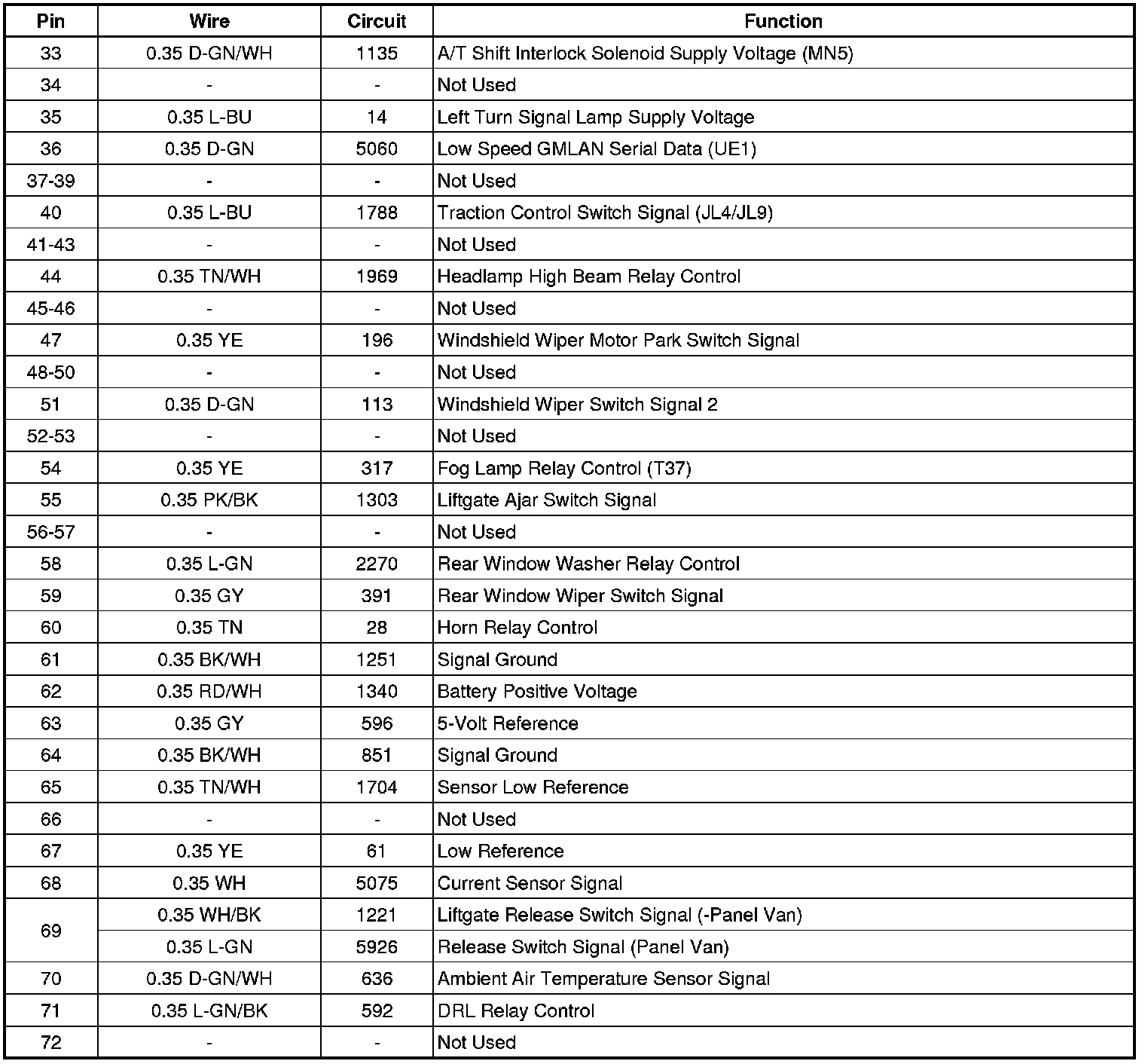

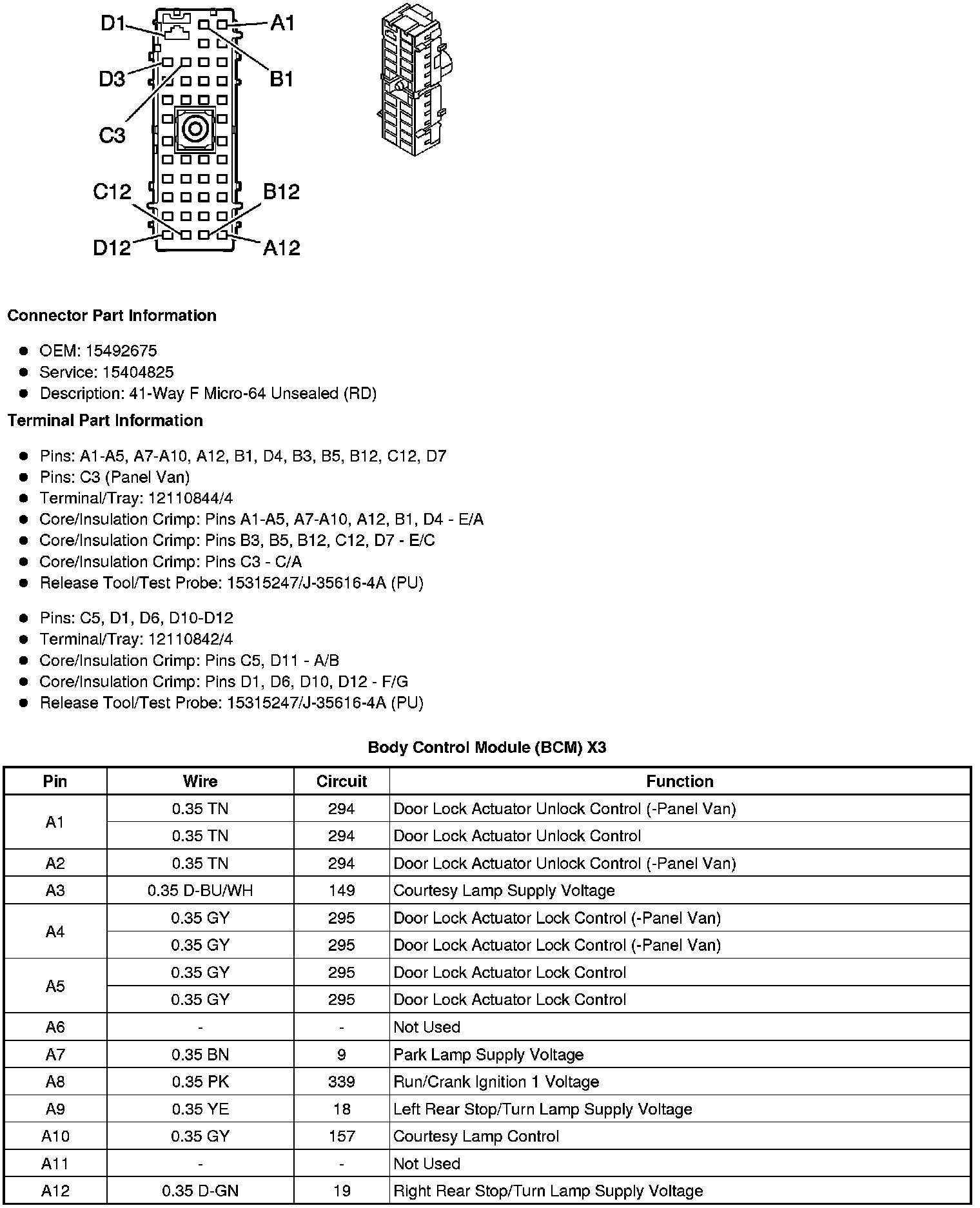

Body Control Module (BCM) X3

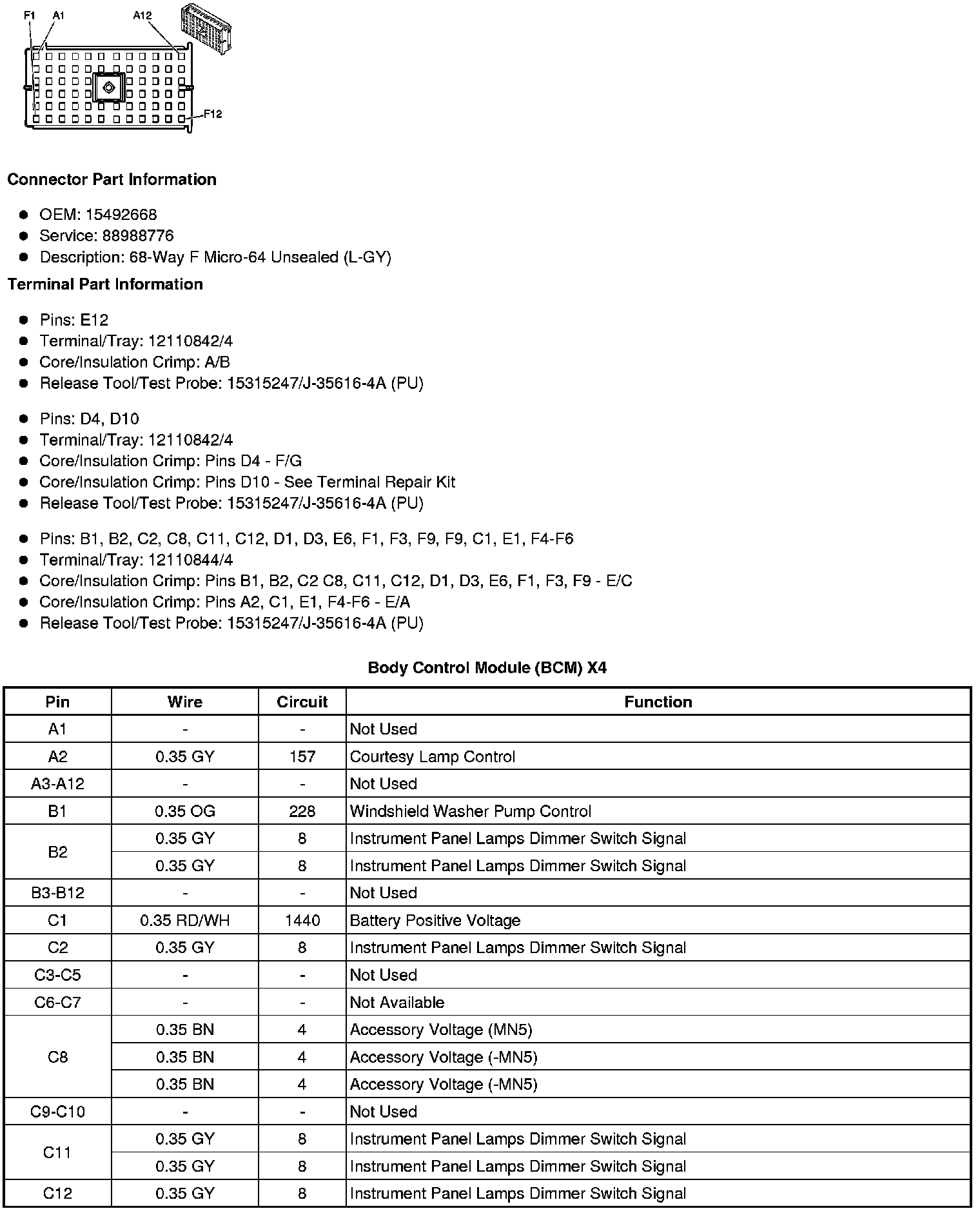

Body Control Module (BCM) X4
