Engine Control Module
Component Connector End Views

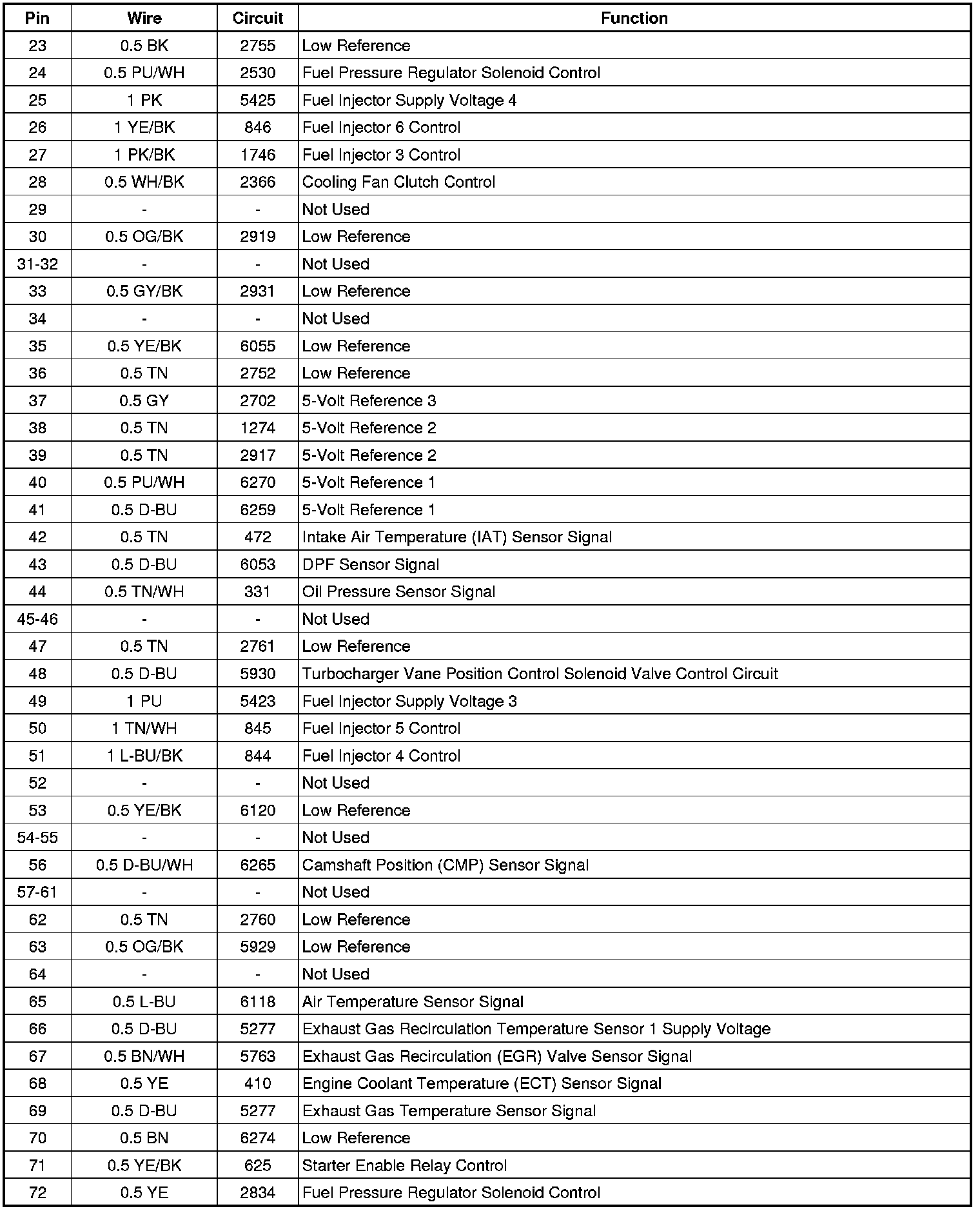

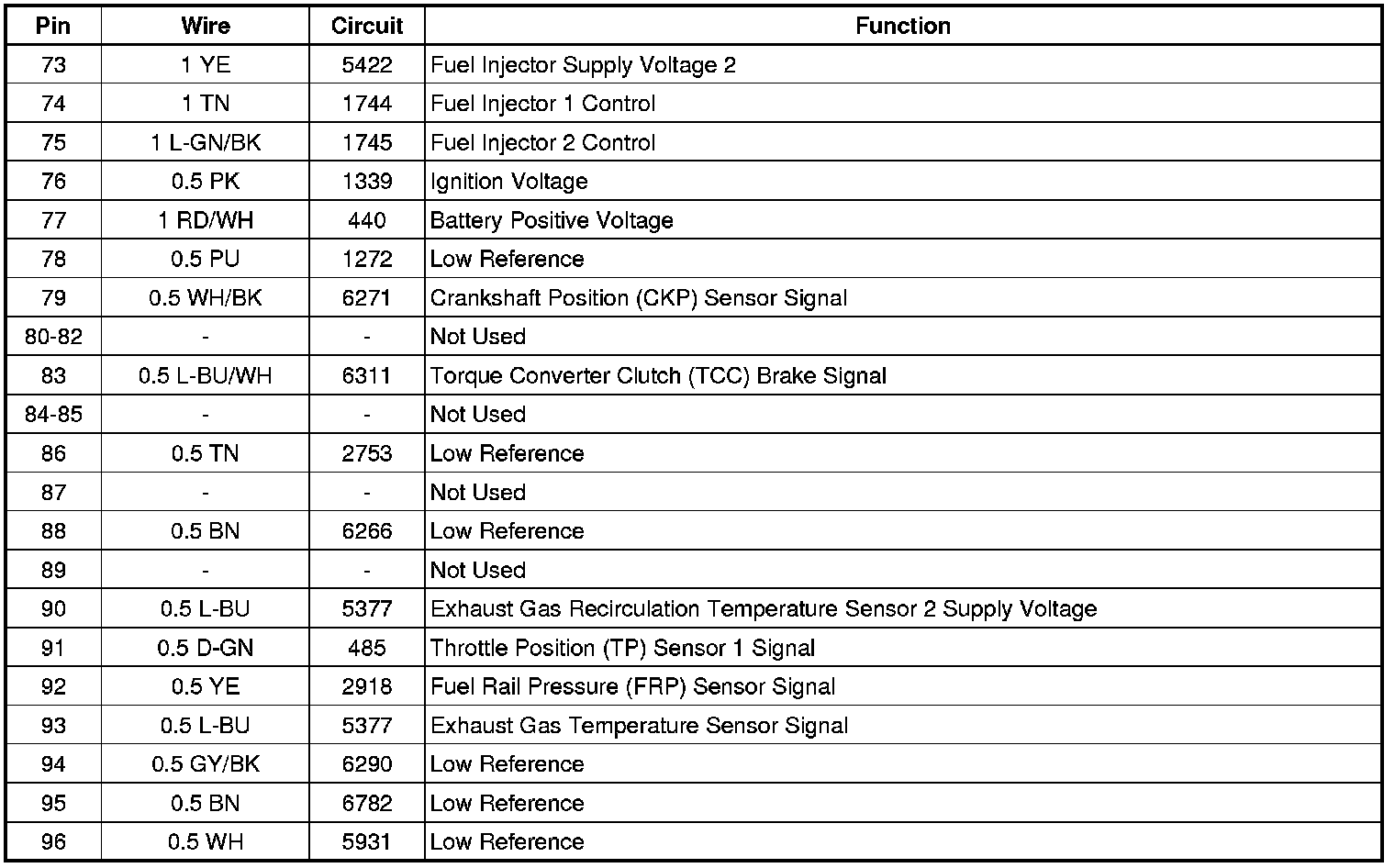

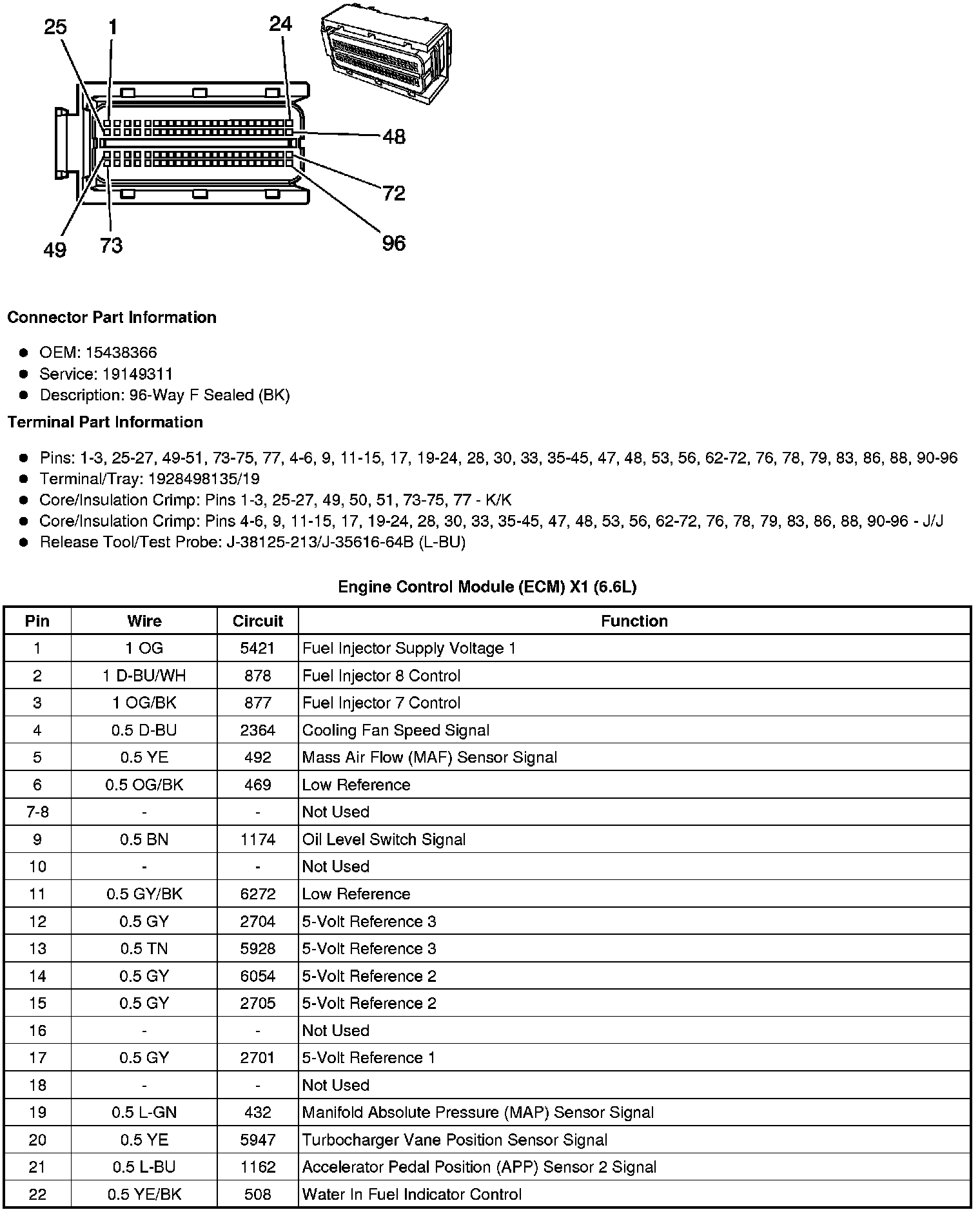

Engine Control Module (ECM) X1 (6.6L)

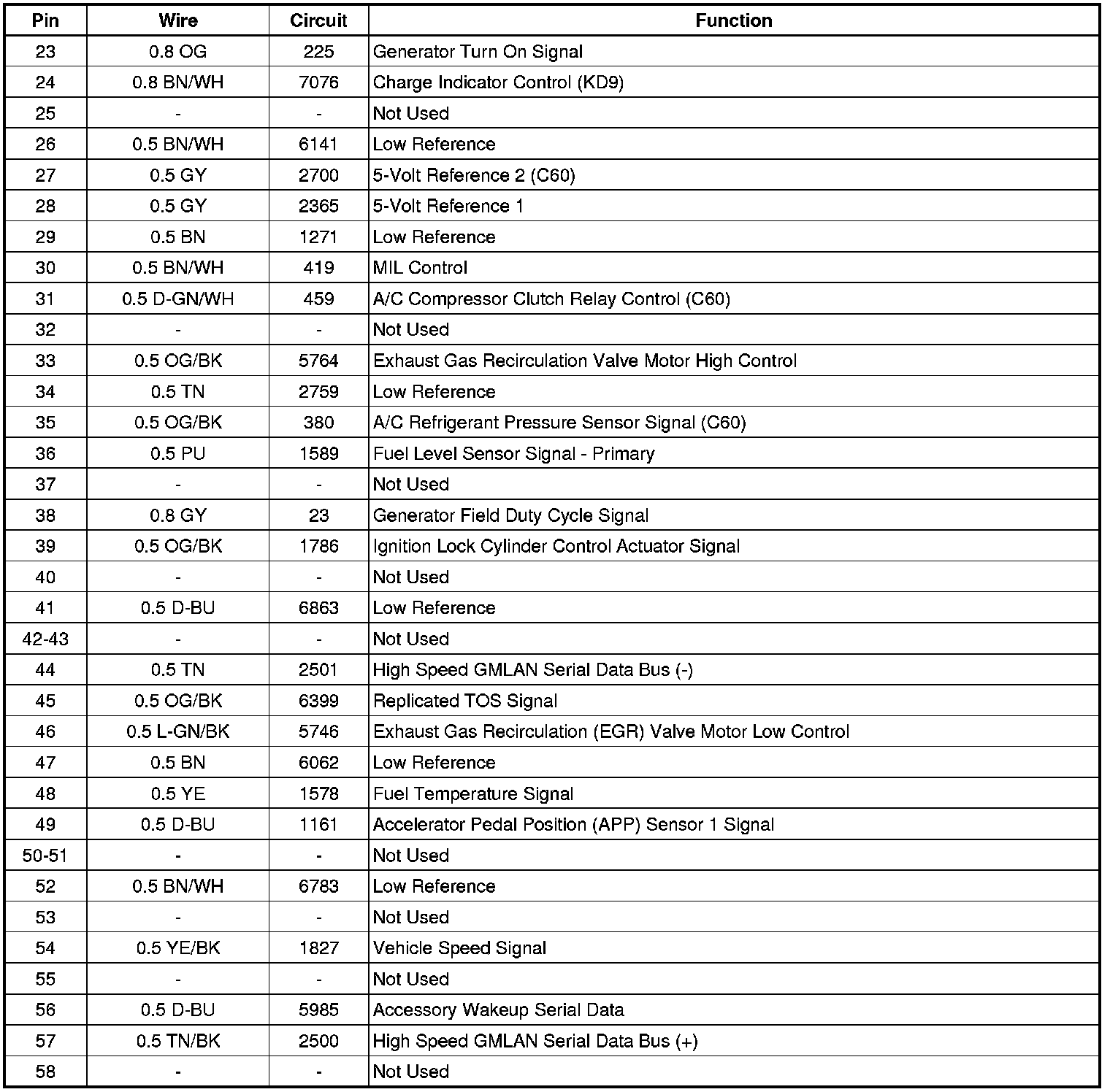

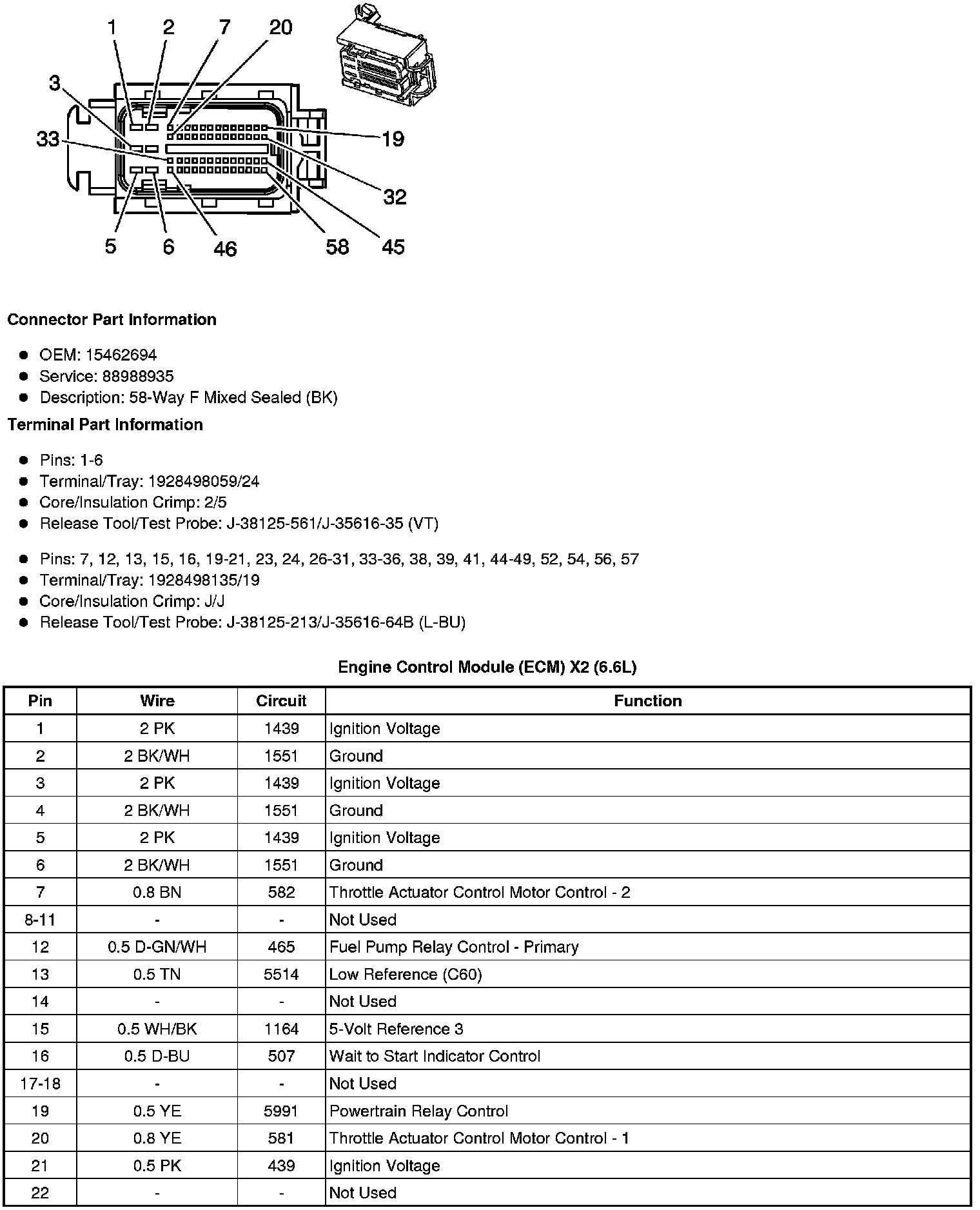

Engine Control Module (ECM) X2 (6.6L)
