Home >> Chevrolet >> 2009 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC




Component Connector End Views

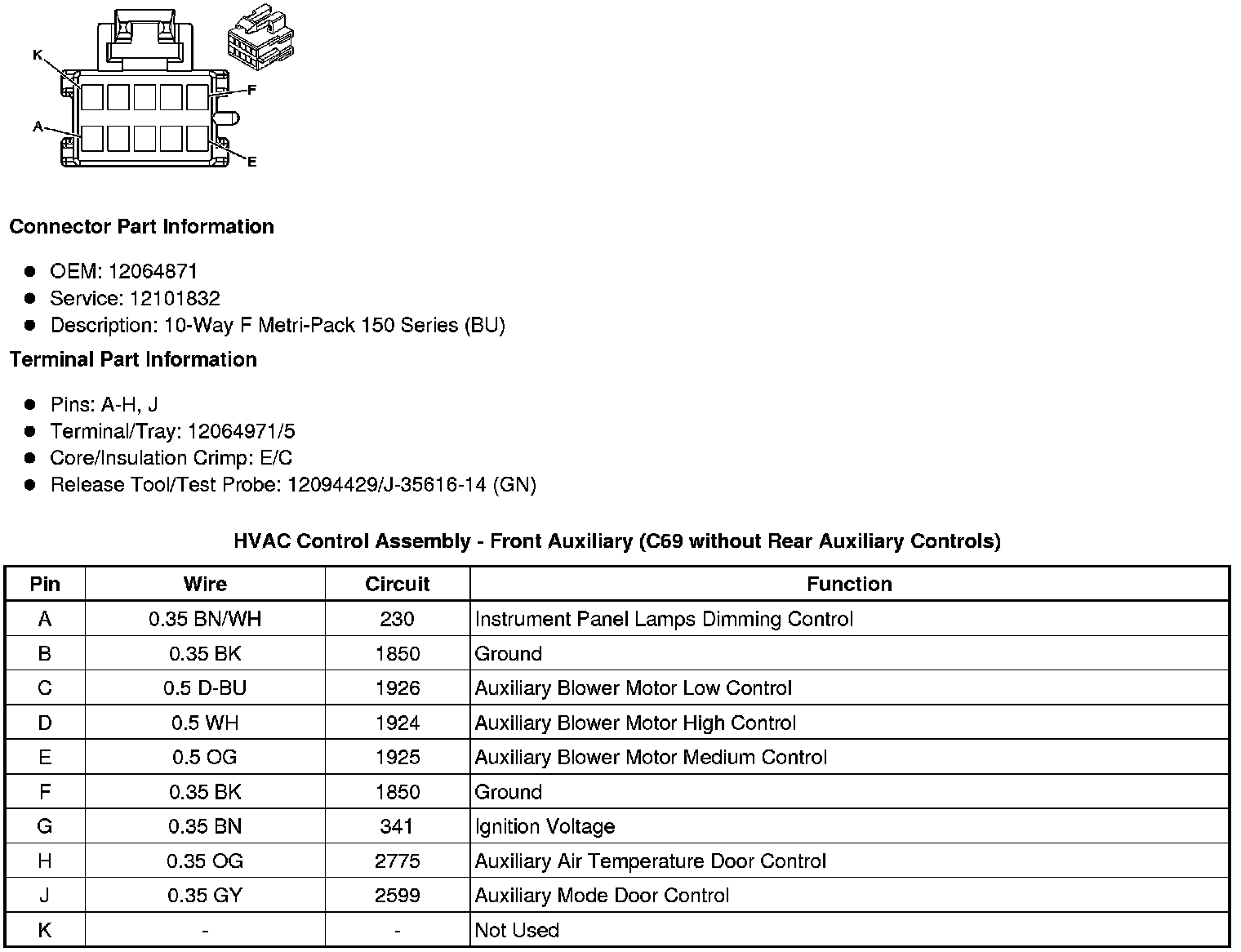

HVAC Control Assembly - Front Auxiliary (C69 without Rear Auxiliary Controls)

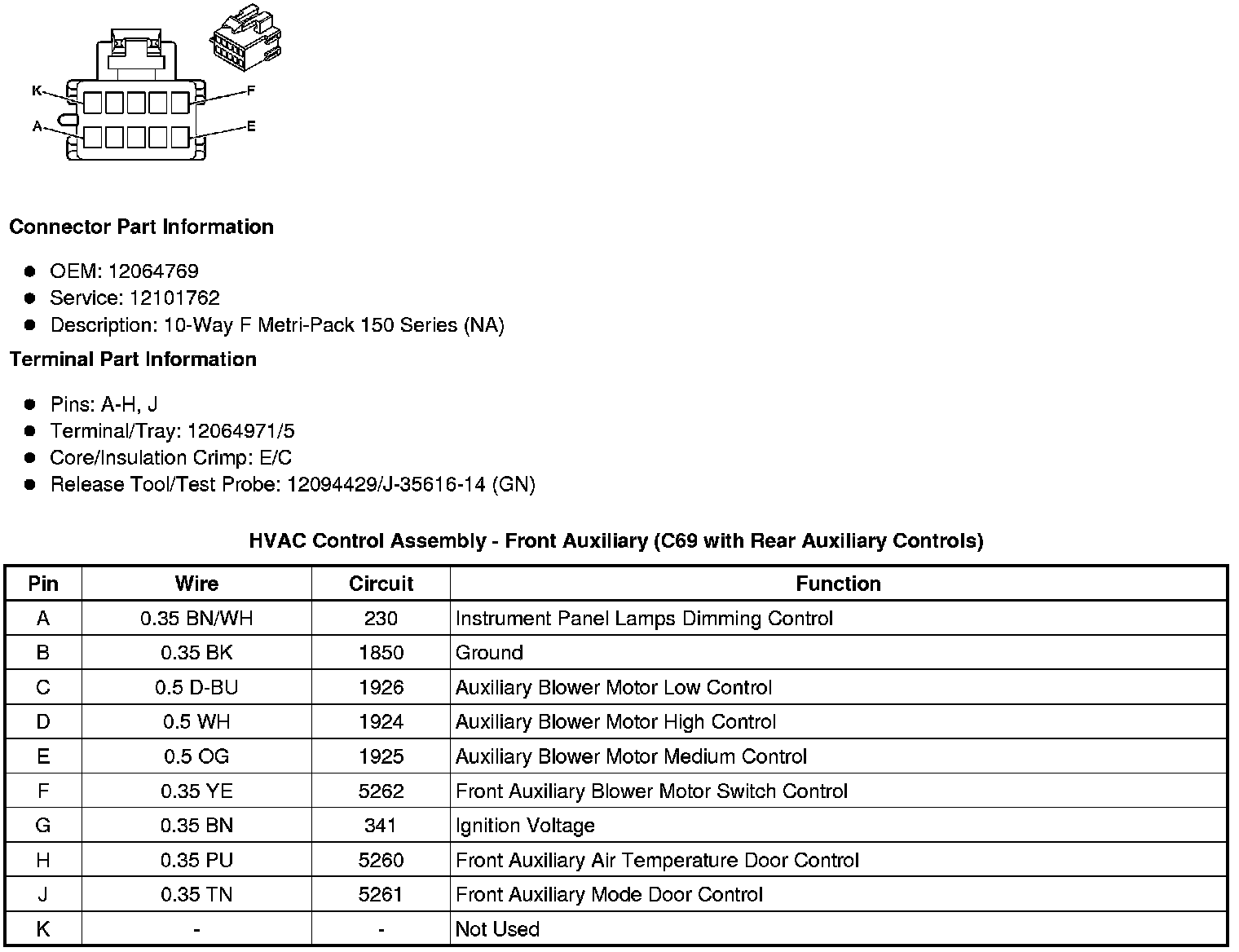

HVAC Control Assembly - Front Auxiliary (C69 with Rear Auxiliary Controls)

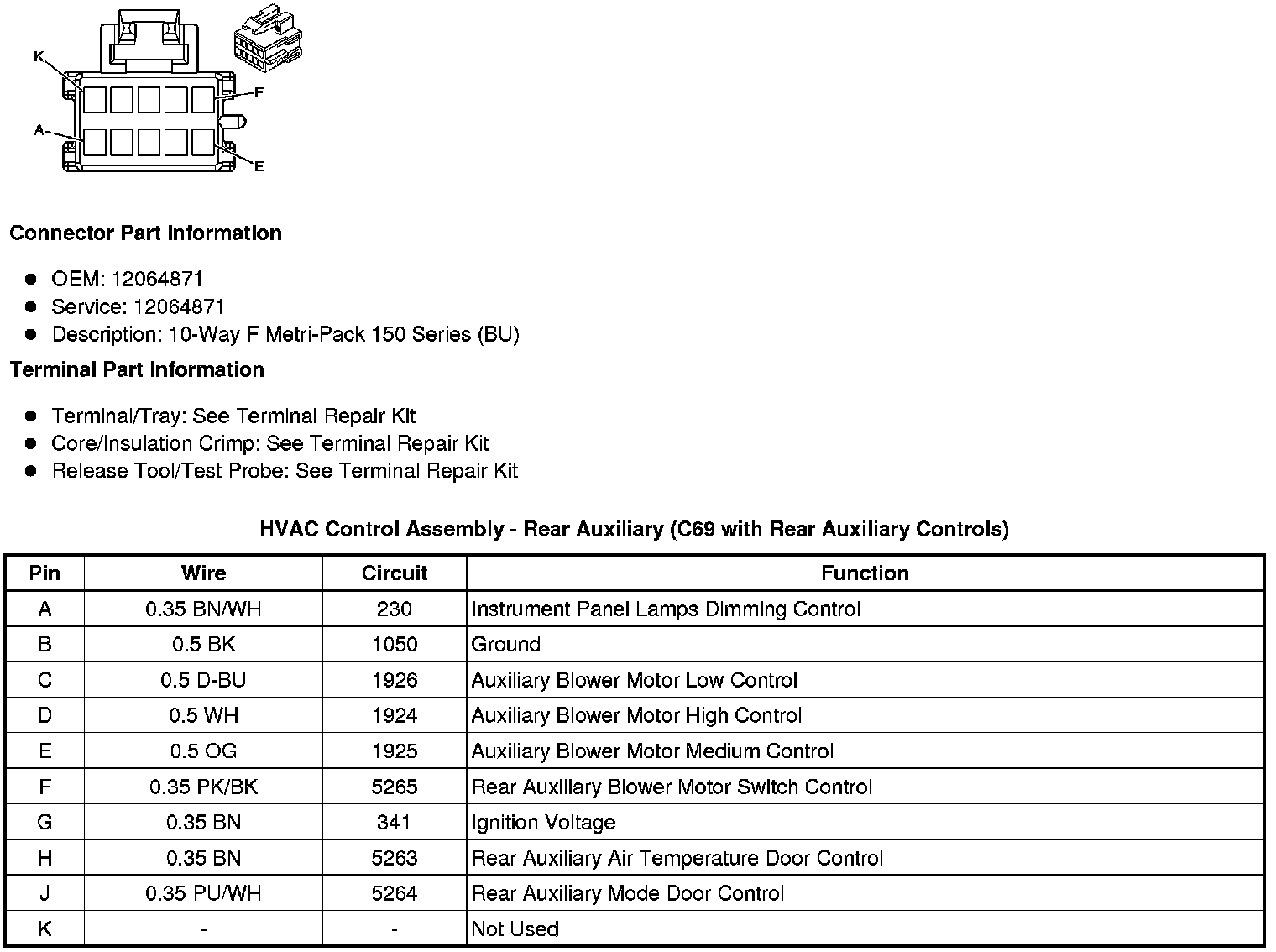

HVAC Control Assembly - Rear Auxiliary (C69 with Rear Auxiliary Controls)

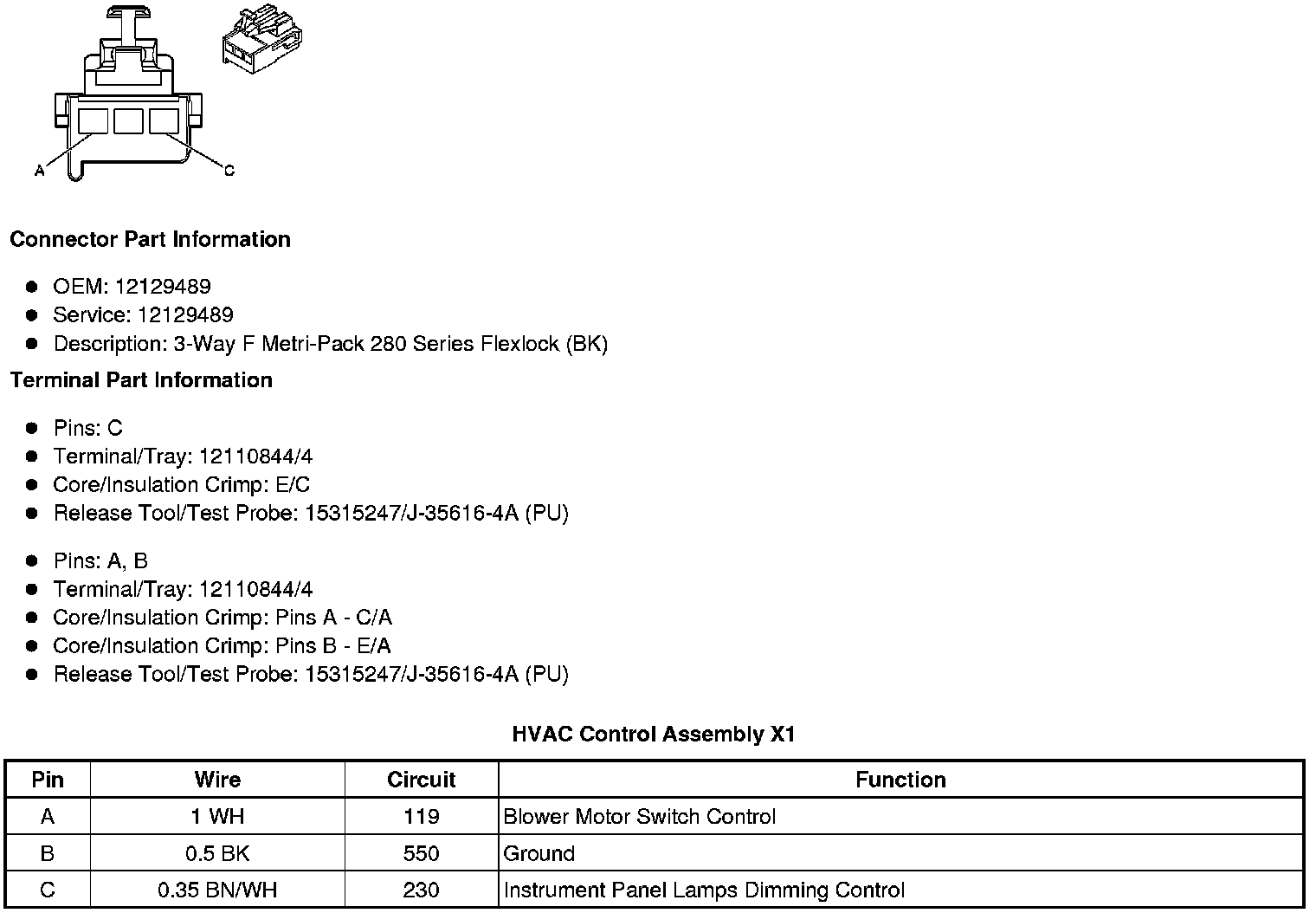

HVAC Control Assembly X1

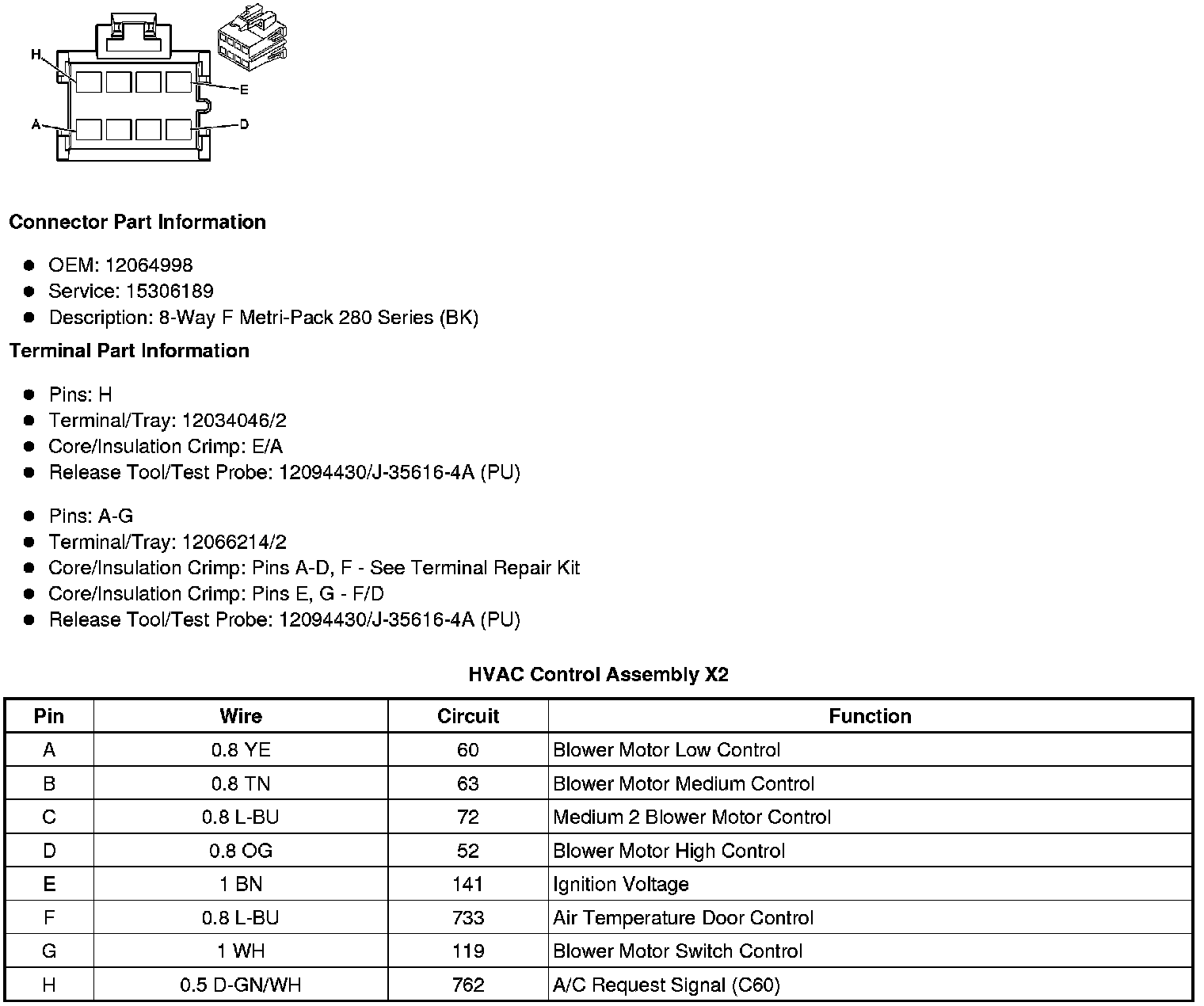

HVAC Control Assembly X2

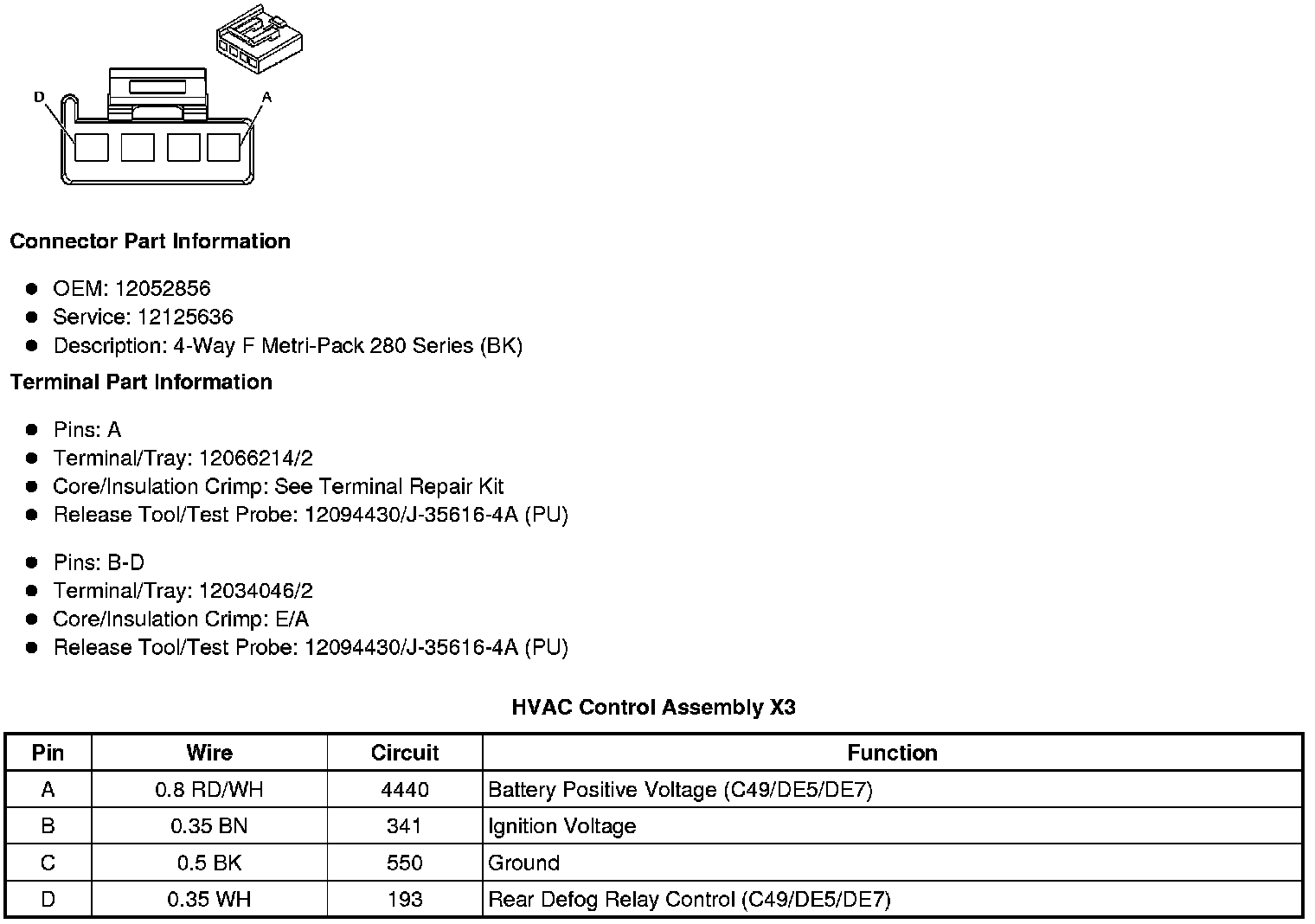

HVAC Control Assembly X3

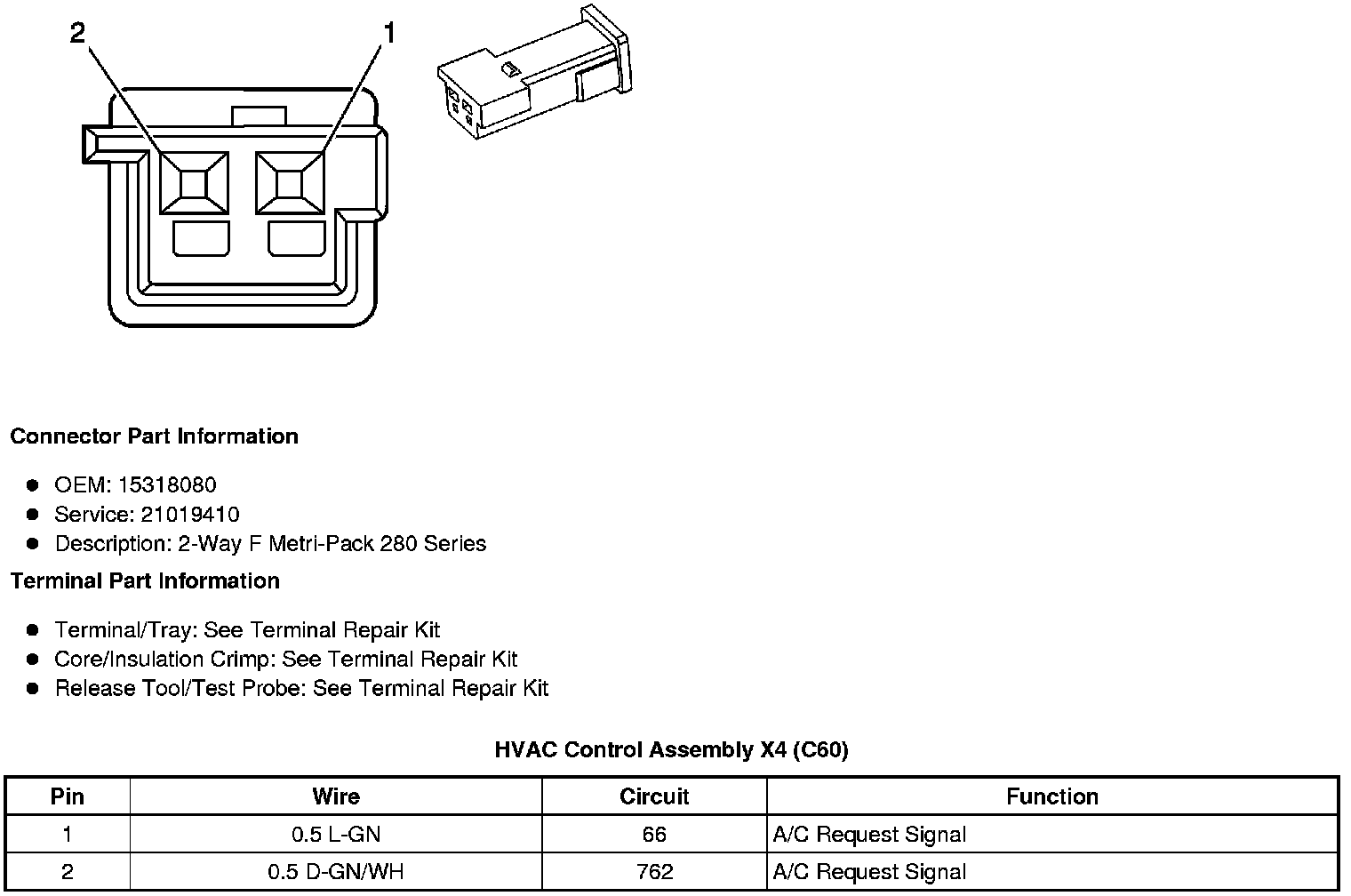

HVAC Control Assembly X4 (C60)

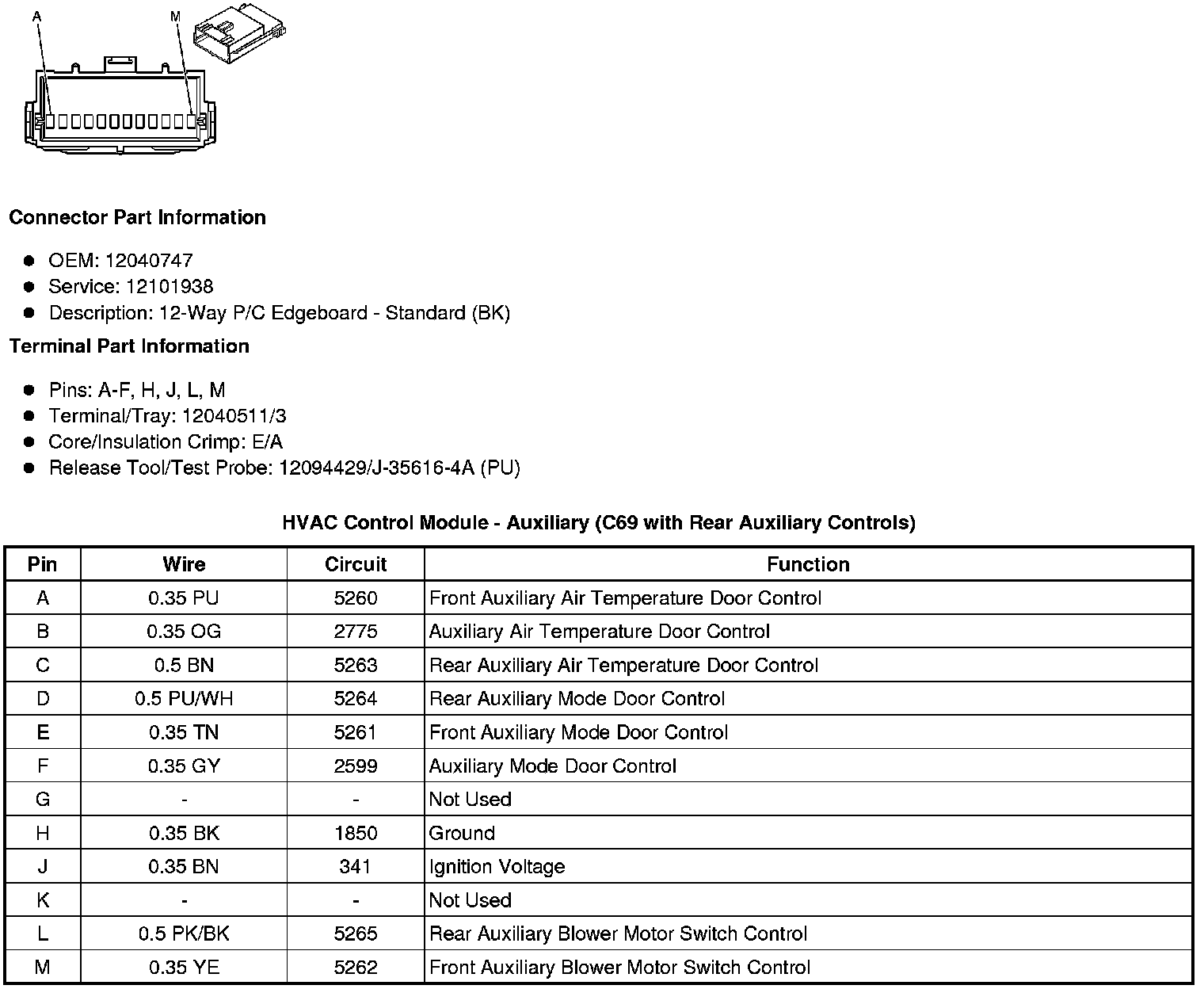

HVAC Control Module - Auxiliary (C69 with Rear Auxiliary Controls)
