Intake Manifold

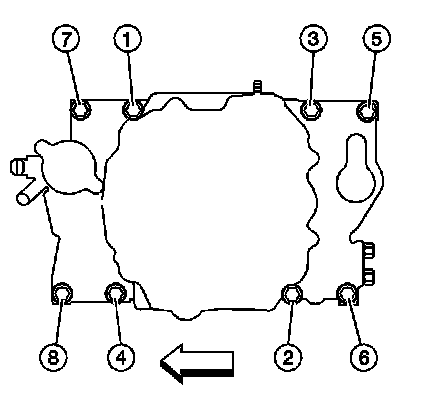

Lower Intake Manifold Bolt
First Pass in Sequence 3 Nm (27 lb in)
Second Pass in Sequence 12 Nm (106 lb in)
Final Pass in Sequence 15 Nm (11 lb ft)

Upper Intake Manifold Stud
First Pass 5 Nm (44 lb in)
Final Pass 9 Nm (80 lb in)

Throttle Body Bolts 10 Nm (89 lb in)
