Engine Control Module
Component Connector End Views

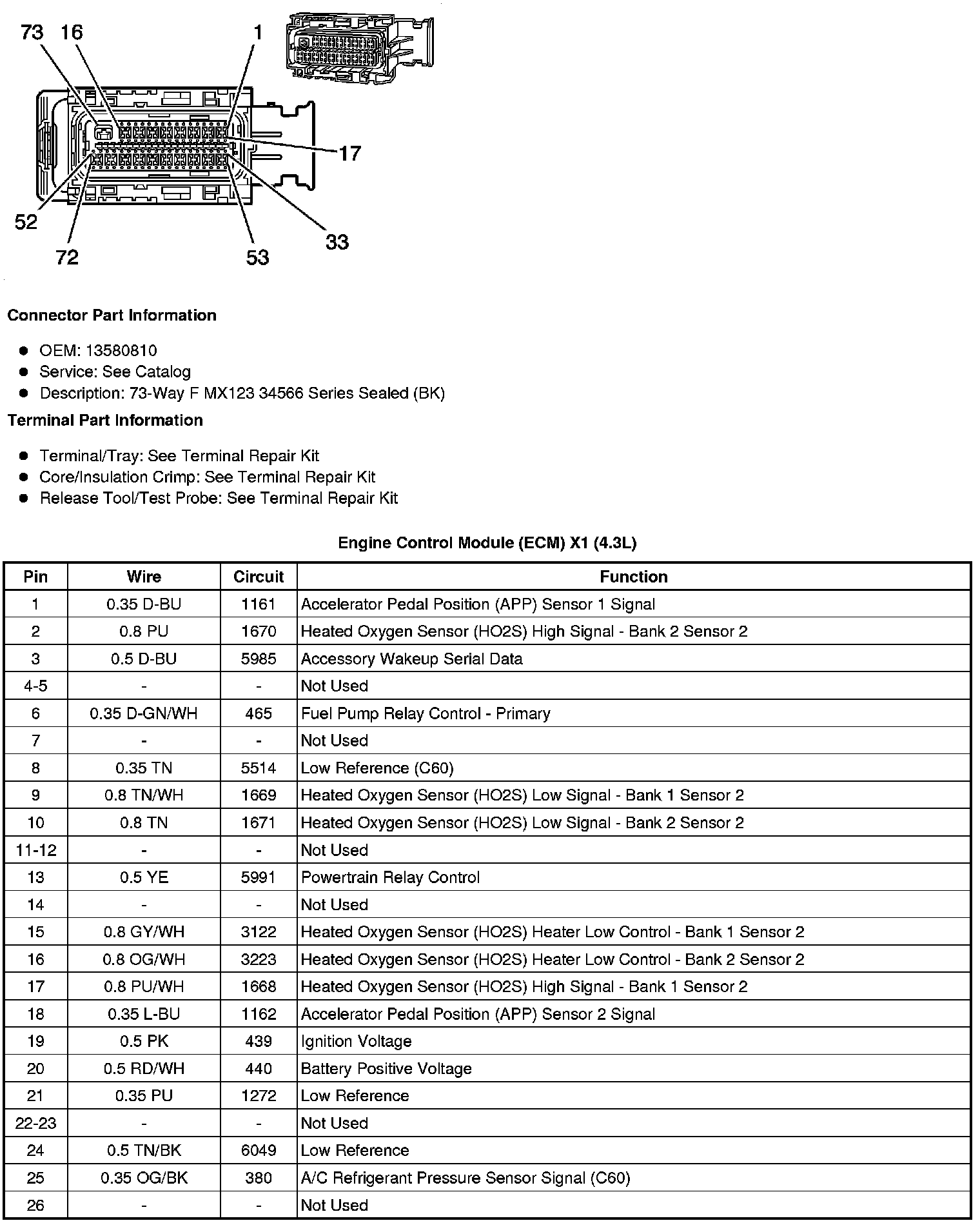

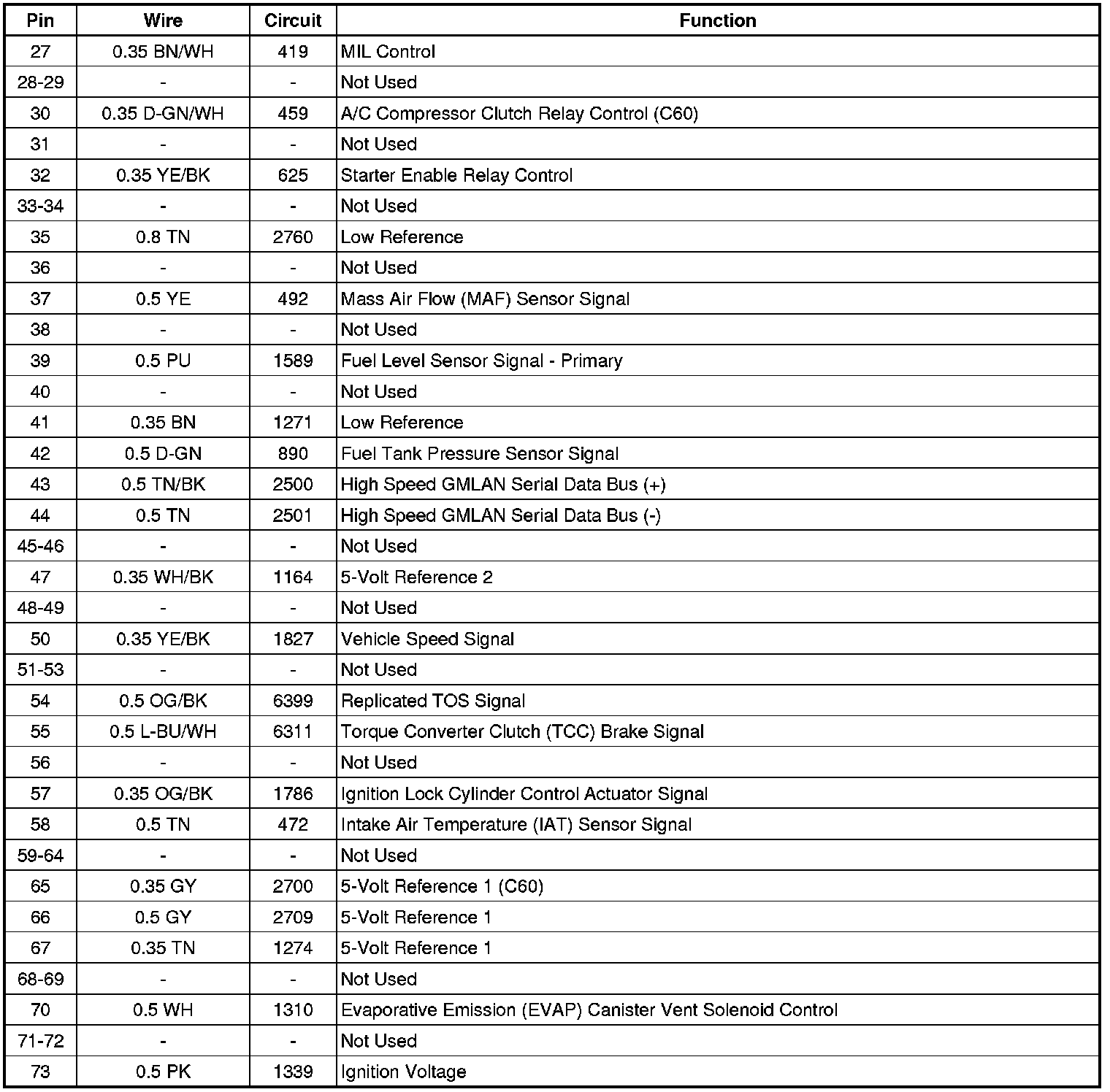

Engine Control Module (ECM) X1 (4.3L)

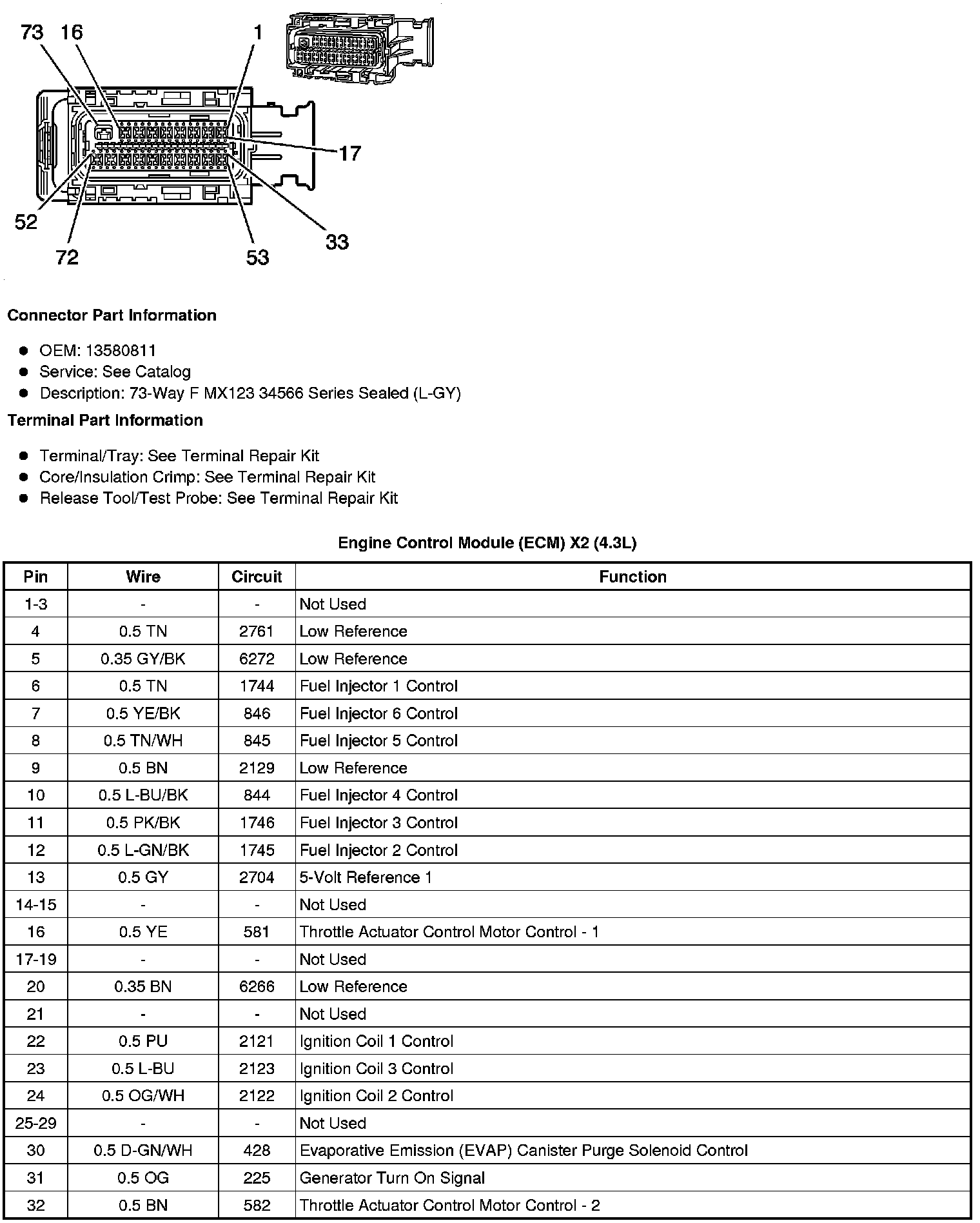

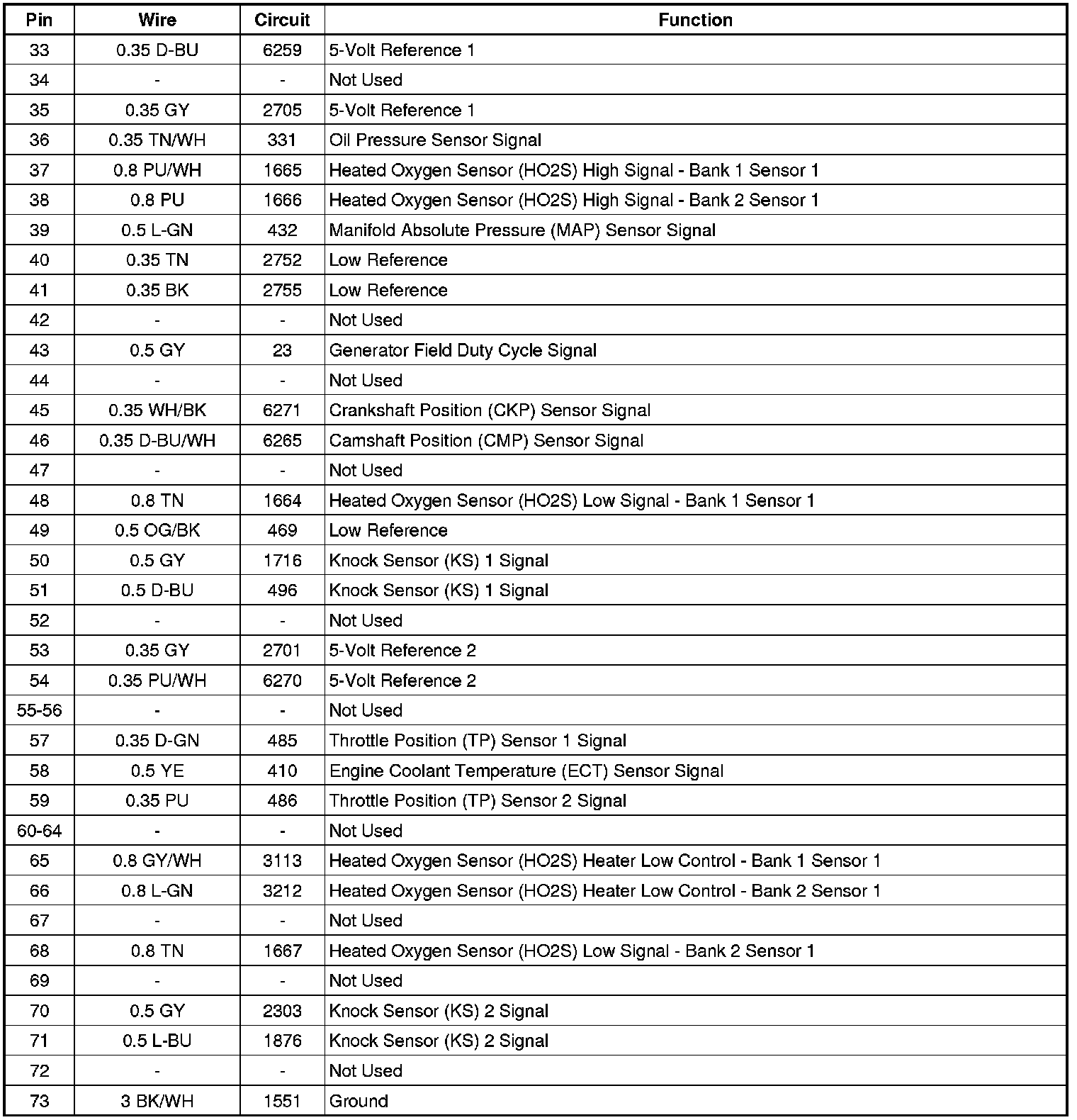

Engine Control Module (ECM) X2 (4.3L)
